99% People Put the Four Antennas of Xiaomi Mi WiFi 3 in the Wrong Way !
Highlights
- The mainstream of dual band 2.4GHz/5GHz AC intelligent routers
- 3 times faster than traditional wireless routers, support the latest 802.11ac protocol, transmission rate up to 1167Mbps
- 4 pcs real 2X2 dual band AC antennas, cover wilder
- An intelligent home controller center to operate all the smart home appliances
- A key switch, the metamorphosis of universal relay let home WiFi coverage without dead angle
- 7 sets of protection, more secure router, to protect your exclusive WiFi zone and etc.
- Creative, direct and swift connection
Specification
Specification| Hardware | |
|---|---|
| Brand | Xiaomi |
| Model | Miwifi 3 |
| CPU | MT7620A |
| RAM | 128MB DDR2 |

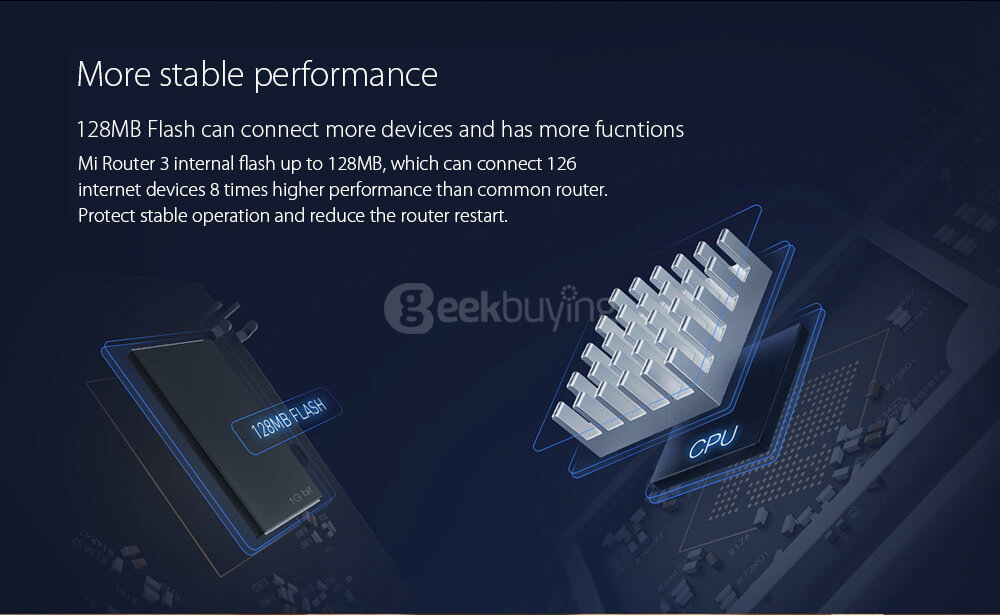

| ROM | 128MB SLC Nand Flash |
| 2.4G WiFi | 2X2 (support IEEE 802.11N, 300Mbps max) |
| 5G WiFi | 2X2 (support IEEE 802.11AC, 867Mbps max) |
| Antenna | 4 PCS |
| Heat dissipating system | Natural heat dissipation |
| Material | ABS |
| Color | White |
| Size | 195*131*23.5mm (Total hight: 177.3mm) |
| Weight | 220g |
| Interfaces | |
| USB 2.0 slot | 1 x DC output (5V/1A) |
| Lan port | 2 (10/100 Auto MDI/MDIX) |
| WAN port | 1 (10/100 Auto MDI/MDIX) |
| LED indicators | 3 (Red/Blue/Yellow) |
| Button | 1 x Reset button |
| DC input | 1 |
| Antenna | |
| Dual bands | 2.4GHz / 5GHz |
| Wireless channels | 2.4GHz Channel: 1,2,3,4,5,6,7,8,9,10,11,12,13 5GHz Channel: 149,153,157,161,165 5GHz DFS Channel: 36,40,44,48,52,56,60,64 |
| Modulation mode | 11b: DSSS: DBPSK(1Mbps),DQPSK(2Mbps), CCK(5.5/11Mbps) 11a/g: OFDM:BPSK(6/9Mbps), QPSK(12/18Mbps),16QAM(24/36Mbps), 64QAM(48/54Mbps) 11n: MIMO-OFDM:BPSK,QPSK,16QAM,64QAM. Rate: MCS0~MCS15 11ac: MIMO-OFDM:BPSK, QPSK,16QAM,64QAM,256QAM Rate: MCS0~MCS9 |
| Receiving sensitivity | 11Mbps:≤-90dBm,54 Mbps:≤-72dBm, HT20 MCS7:≤-69dBm, HT40 MCS7:≤-66dBm, VHT20 MCS8:≤-65dBm, VHT40 MCS9:≤-60dBm, VHT80 MCS9:≤-58 dBm |
| Software | |
| Operating system | MiWiFi ROM (Supports Web, Android, iOS, Windows, OS X) |
| Wireless security | WPA-PSK/WPA2-PSK encryption, Wireless access control (black and white list), SSID hiding |
| Protocol standards | IEEE 802.11a/b/g/n/ac, IEEE 802.3/3u |
| Approval standards | GB9254-2008 YD/T993-1998 GB4943.1-2011 |
| Working environment | Operating temperature: 0-40°C Working humidity: 10%-90%RH Storage temperature : -40-70°C Storage humidity: 5%-90%RH Power: 12W max |
| Package Contents | |
| 1 x Xiaomi WiFi Router 3, 1 x Charger (12V/1A), 1 x User Manual | |
