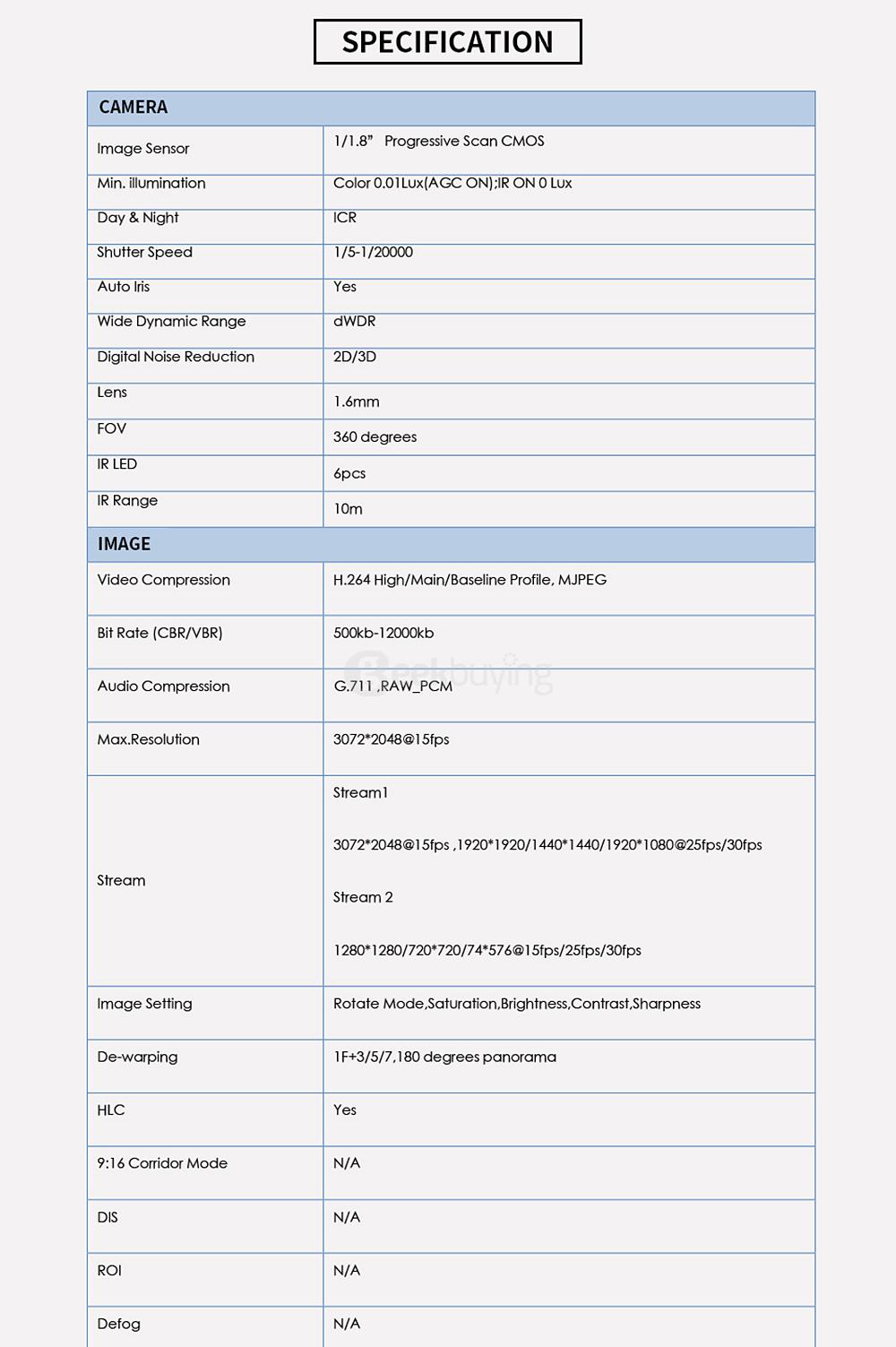

Camera |

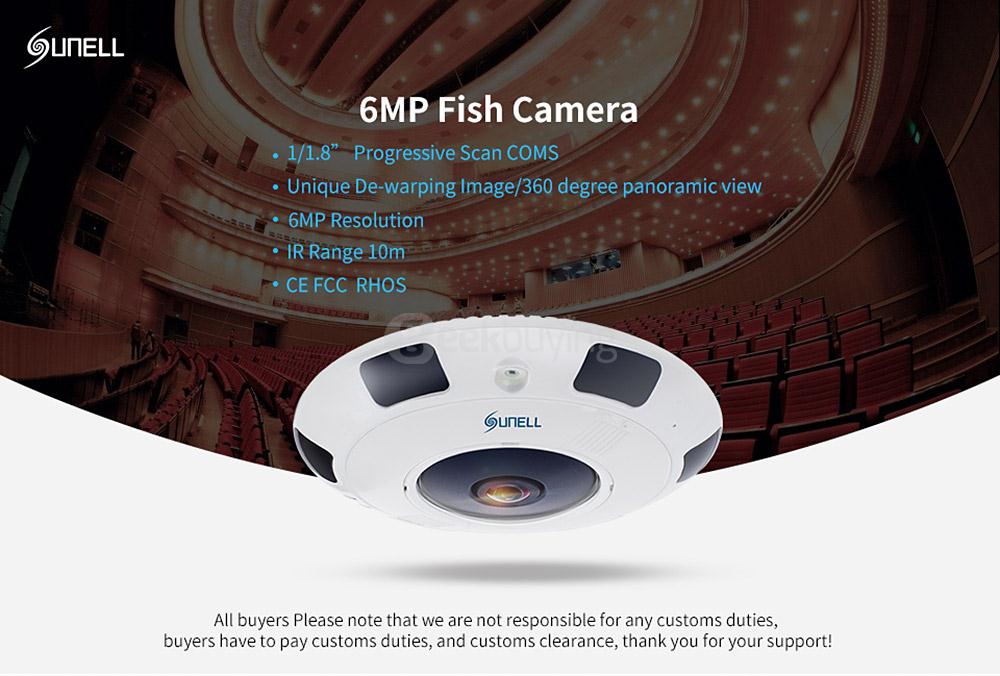

Image Sensor |
1/1.8” Progressive Scan CMOS |
Min. illumination |
Color 0.01Lux(AGC ON);IR ON 0 Lux |
Day & Night |
ICR |
Shutter Speed |
1/5-1/20000 |
Auto Iris |
Yes |
Wide Dynamic Range |
dWDR |
Digital Noise Reduction |
2D/3D |
Lens |
1.6mm |
FOV |
360 degrees |
IR LED |
6pcs |
IR Range |
10m |
IMAGE |
Video Compression |
H.264 High/Main/Baseline Profile, MJPEG |
Bit Rate (CBR/VBR) |
500kb-12000kb |
Audio Compression |
G.711 ,RAW_PCM |
Max.Resolution |
3072*2048@15fps |
Stream |
Stream1 |
3072*2048@15fps ,1920*1920/1440*1440/1920*1080@25fps/30fps |
Stream 2 |
1280*1280/720*720/74*576@15fps/25fps/30fps |
Image Setting |
Rotate Mode,Saturation,Brightness,Contrast,Sharpness |
De-warping |
1F+3/5/7,180 degrees panorama |
HLC |
Yes |
9:16 Corridor Mode |
N/A |
DIS |
N/A |
ROI |
N/A |
Defog |
N/A |

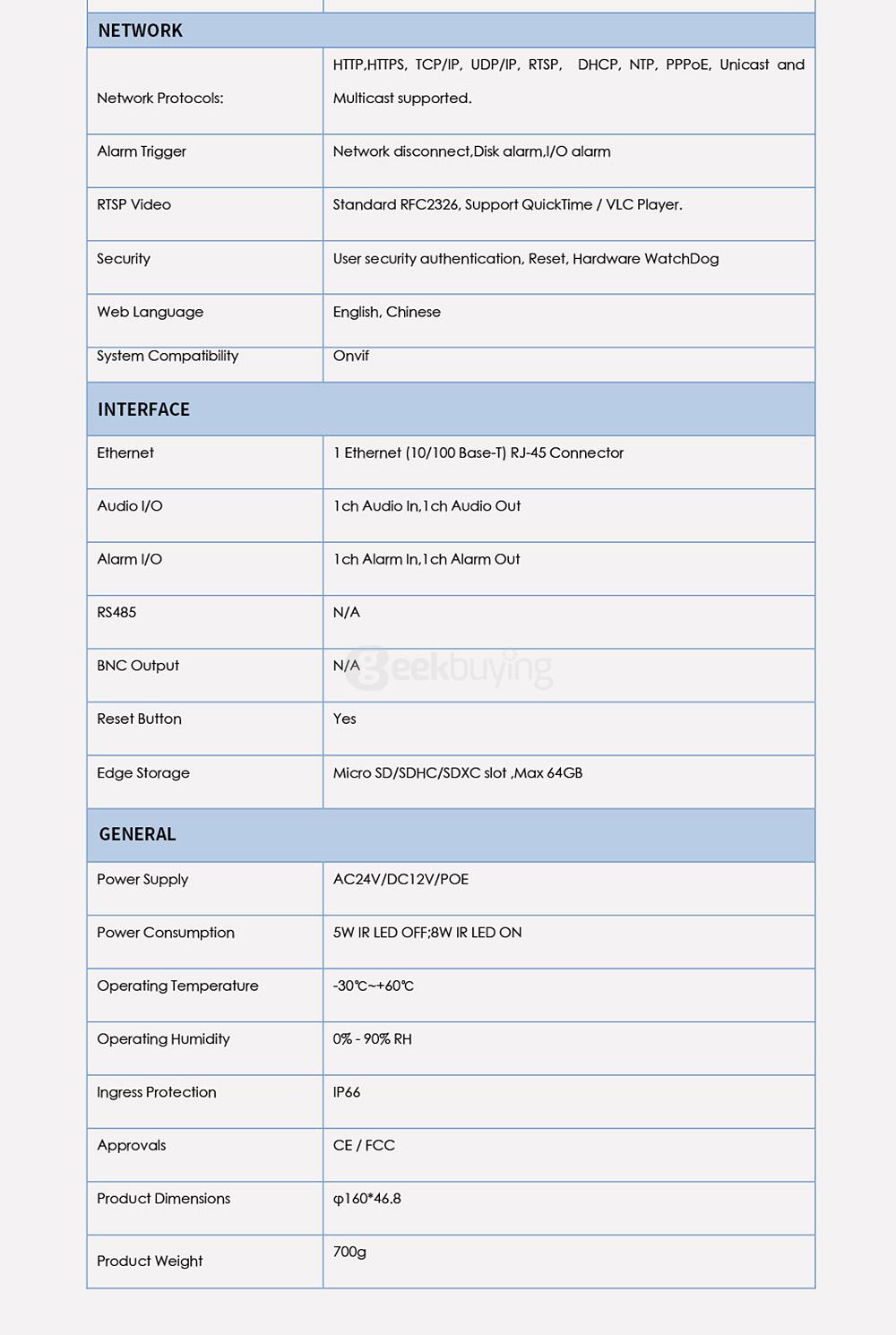

NETWORK |

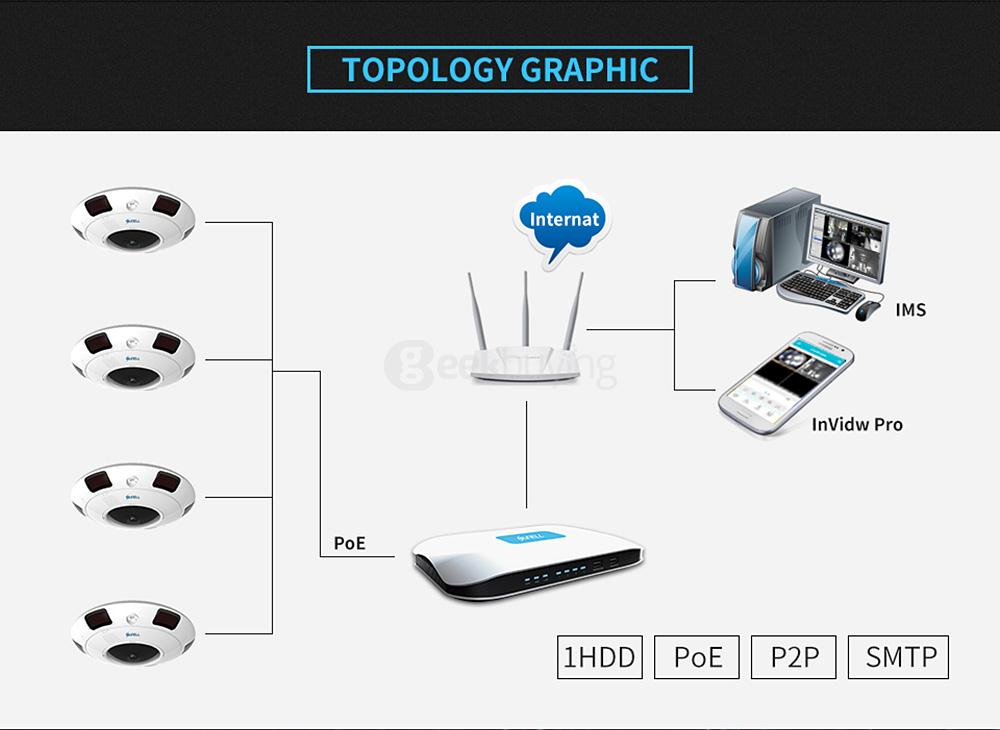

Network Protocols: |
HTTP,HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, PPPoE, Unicast and Multicast supported. |
Alarm Trigger |
Network disconnect,Disk alarm,I/O alarm |
RTSP Video |
Standard RFC2326, Support QuickTime / VLC Player. |
Security |
User security authentication, Reset, Hardware WatchDog |
Web Language |
English, Chinese |
System Compatibility |
Onvif |
INTERFACE |
Ethernet |
1 Ethernet (10/100 Base-T) RJ-45 Connector |
Audio I/O |
1ch Audio In,1ch Audio Out |
Alarm I/O |
1ch Alarm In,1ch Alarm Out |
RS485 |
N/A |
BNC Output |
N/A |
Reset Button |
Yes |
Edge Storage |
Micro SD/SDHC/SDXC slot ,Max 64GB |
GENERAL |
Power Supply |
AC24V/DC12V/POE |
Power Consumption |
5W IR LED OFF;8W IR LED ON |
Operating Temperature |
-30ºC~+60ºC |
Operating Humidity |
0% - 90% RH |

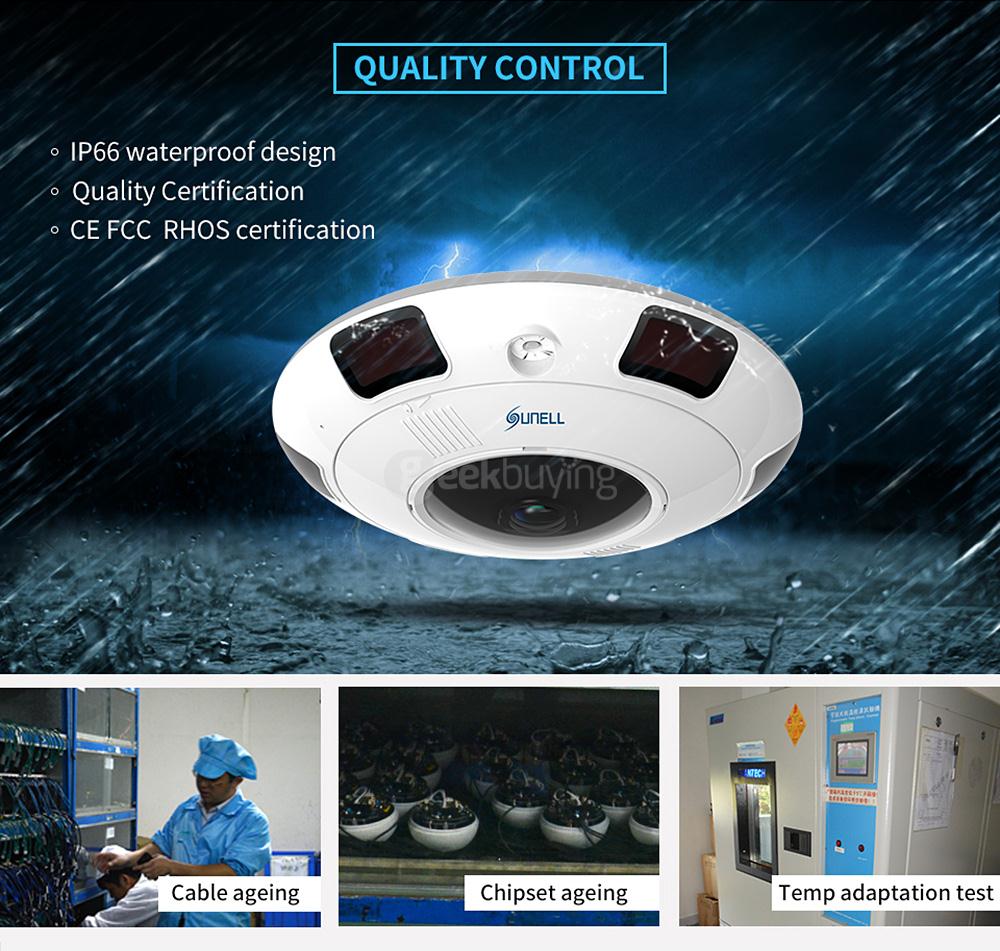

Ingress Protection |
IP66 waterproof |
