Highlights
10-channel 2.4GHz RC transmitter
The ST10 personal ground station is a 10-channel 2.4GHz RC transmitter that supports a 5.8GHz video downlink that delivers streaming video to the built-in screen of the transmitter.
12 megapixel, 1080p/60FPS camera and the 3-axis brushless gimbal
While the Q500 offers a superior flying experience, it is the quality of the video and still images that sets it apart. The CGO2 GB combines the 12 megapixel, 1080p/60FPS camera and the 3-axis brushless gimbal into a single unit that captures smooth, steady aerial video and still images in vivid detail.
Overall
The Q500 Typhoon is a complete aerial photography and videography (APV) system. The Q500 System includes the aircraft, a 1080P HD camera, a CGO2-GB 3 axis precision gimbal, the ST10 personal ground station, 2 batteries, a charger and an 8GB micro SD card. In addition, there are a number of accessories including a sun shade, car charger, USB adapter/charger and an extra set of 4 rotors.
Video
Specification
| Q500 Typhoon Aircraft | |
|---|---|
| Flight Time | Up to 25 Minutes |
| Height | 240mm (9.45 in) |
| Width | 420mm (16.54 in) |
| Diagonal Length Without Rotor Blades | 565mm (22.2 in) |
| Propeller/Main Rotor Diameter | 330mm (13.0 in) |
| Weight Without Battery and Payload | 1130g (40.0 oz) |
| Battery | 5400mAh 3S 11.1V LiPo (included) |

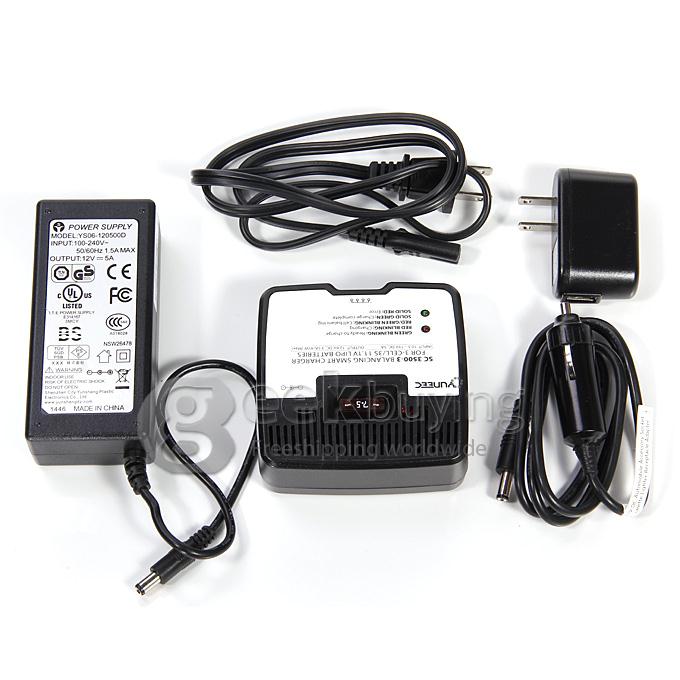

| Charger | 3S 11.1V LiPo DC Balancing Smart Charger with AC Adapter (included) |
| Transmitter | 10-channel 2.4GHz with 5.8GHz video downlink (included) |
| 3 Flight Modes | Smart, Angle and Home Modes |
| Maximum Flying Height | Default 400 Feet Above Ground Level (Adjustable via the Q500 GUI) |
| Maximum Rotational Velocity | 65°/s |
| Maximum Bank Angle | 35° |
| Maximum Climb Rate in Smart and Angle mode | 3m/s |
| Maximum Descent Rate in Smart and Angle mode | 2m/s |
| Radio Control Frequency Band | 2.4GHz |
| Takeoff Weight With Battery and CGO2-GB | 1700g (60.0 oz) |
| CGO2-GB Camera Gimbal System | |
| Focusing System | Aerial Optimized Fixed Focus |
| Video Resolution | FULL HD 1080p - Adjustable 60, 50 or 48 FPS |
| Photo Resolution | 12 Megapixels |
| Video Field of View | 130° |
| Control Angle Accuracy | ±0.02° |
| White Balance | Automatic Smart White Balance Feature |
| Transmission Band | 5.8GHz |
| Input/Operating Voltage | 7.0V to 14.0V DC |
| Video Transmission Distance/Range (Optimum Conditions) | FCC Compliance: Up to 600m (1968.5 ft) CE Compliance: Up to 300m (984.252 ft) with ST10 Warning: You Must Follow Local Laws and Maintain Visual Line of Sight of Aircraft at All Times. |
| Current Consumption/Operating Current | 500mA (average) to 600mA (peak) @ 12.0V (7.2W max) |
| Storage Temperature | -20°C-60°C |
| Working Temperature | 0°C-50°C |
| Storage (memory) | microSD Class 10 ~ 4 to 128GB |
| Height | 115mm (4.5 in) |
| Weight | 185g (6.5 oz) |
| Depth | 135mm (1.4 in) |
| Width | 74mm (2.9 in) |
| ST10 Personal Ground Station | |
| Operating System | Android |
| Number of Channels | 10 |
| Control Transmission Distance/Range (Optimum Conditions) | FCC Compliance: Up to 800m (2624.67 ft) CE Compliance: Up to 400m (1312.34 ft) Warning: You Must Follow Local Laws and Maintain Visual Line of Sight of Aircraft at All Times. |
| Robust Radio Control Modulation | Yuneec Protocol |
| Video link Frequency Band | 5.8GHz |
| Video Transmission Distance/Range (Optimum Conditions) | FCC Compliance: Up to 600m (1968.5 ft) CE Compliance: Up to 300m (984.252 ft) Warning: You Must Follow Local Laws and Maintain Visual Line of Sight of Aircraft at All Times. |
| Flight Systems Telemetry Data On Screen Display (OSD) | Yes |
| LED Backlit LCD Screen | Capacitive Multi-Touch 4.5” |
| Tactile (Vibrating) and Audible Feedback | Yes |
| Built-In LiPo Battery Voltage / Capacity | 3.6V/5200mAh 18.72Wh |
| Charger | Auto-Charge Mode via Micro-B USB Cable with AC to 5V DC USB Power Supply (Included) |
What's in the box?
1 x YUNEEC Q500 Typhoon Quadcopter
1 x HD Camera
1 x CGO2-G3 3-axis Gimbal
1 x ST10 Personal Ground Station (Transmitter)
2 x Batteries for Q500 Quadcopter
1 x Charger
1 x 8GB TF Card
1 x A set of accessories
