Specification
General | |
---|---|
Model | ZMR250 |
Quantity | 1 Piece |
Material | Carbon Fiber Fasteners: Stainless Steel & Red Metal 8/8 |
Specification | |
Size | 250mm diagonally, 175mm wide, 130mm long motor-to-motor; about 1/2 the size of a regular quadcopter |
Motor Mount | M2 12mm - 16mm (Tiger MN1806 2300kv, RCX 1804 2400kv), M3 19mm (Tiger MT2206 2000kv, Sunnysky X2204 2300kv) |
Maximum Propeller | 5"(Suggest 5030 propeller) |
Flight Controller Mount | 30.5mm x 30.5mm |
Board Camera Mount | 32mm x 32mm |
Motor |
Product Name: 1806 2400KV Mini multi-rotor motors Manufacturers Number: 1806 KV value: 2400kv Stator diameter: Φ18 Motor Weight: 18g Supply voltage: 2-3s Maximum current: 6.5A Maximum power: 70W Dimensions: 25*25*33mm (without cable) |

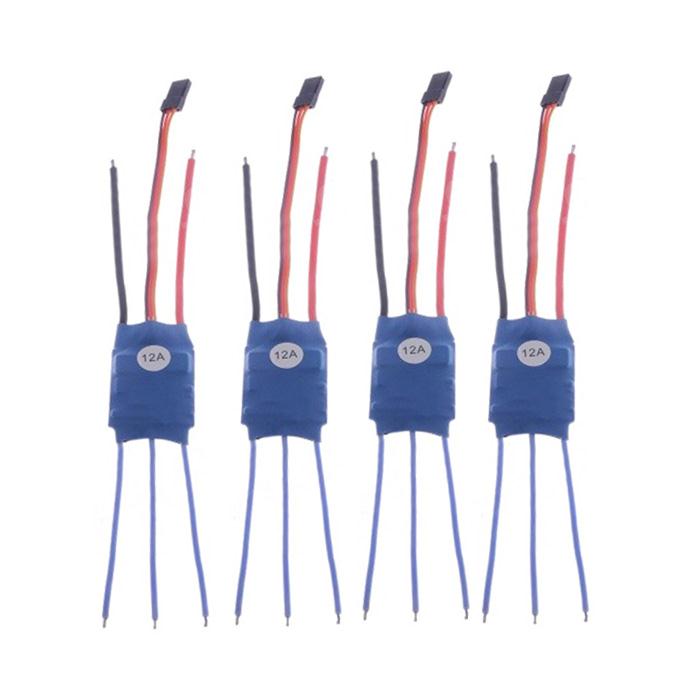

ESC |
Dimensions: 40 x 27 x 8mm (without cable) Weight: 14g (contains the line) Lithium Battery: 2-3S BEC Output: 5V2A (linear equation) Continuous current: 12A Burst current: 14A Support frequency: 30-499Hz Output line: 22 # 6cm |
FS-T6 | Channels: 6 Channels Mode:Mode 2 Left Hand Throttle Model Type: Glider/Heli/Airplane RF Range: 2.40-2.48GHz Bandwidth: 500Hz RF Power: Less than 20dBm Sensitivity: 1024 Low Voltage Warning: 9V Power: 12V DC (1.5AA*8) Size: 302x190x93mm |

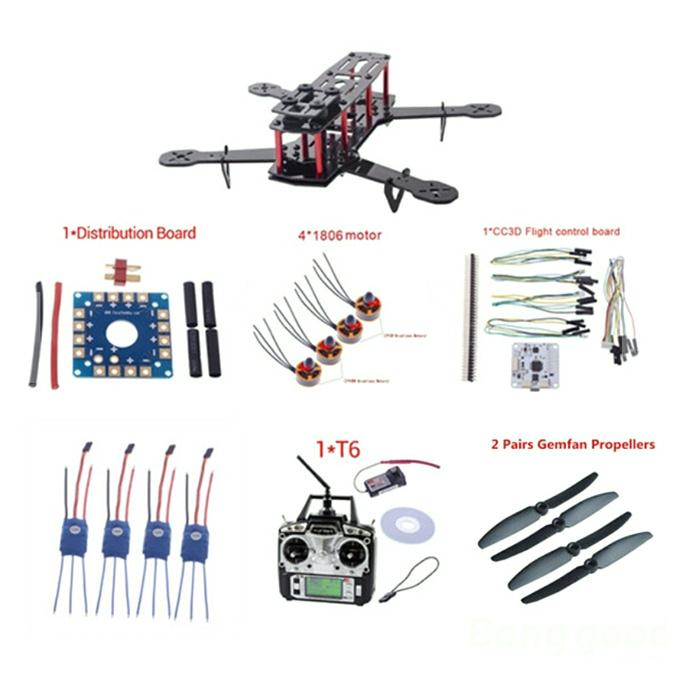

Package Contents | |

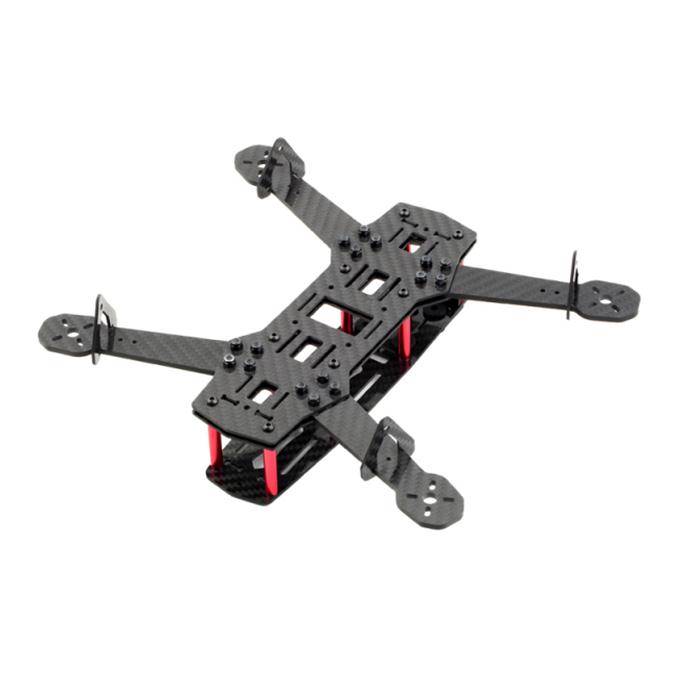

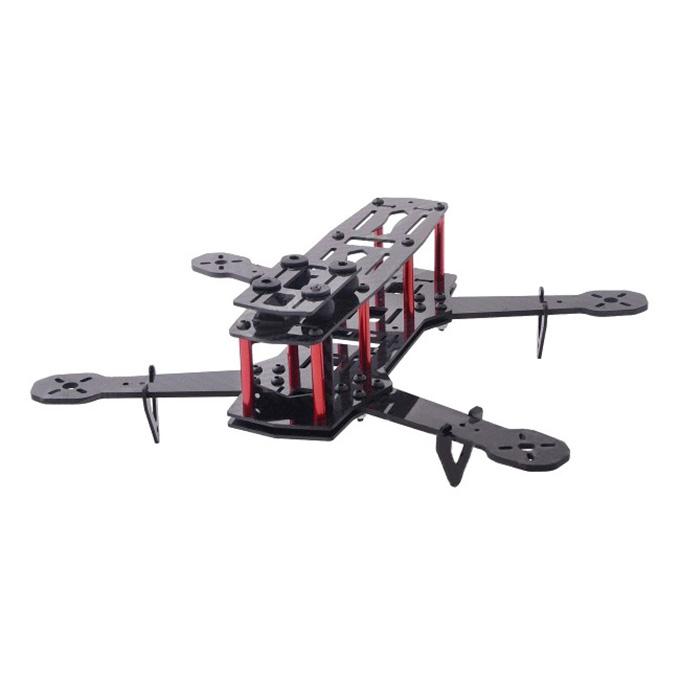

1 x Mini ZMR250 Quadcopter frame | |

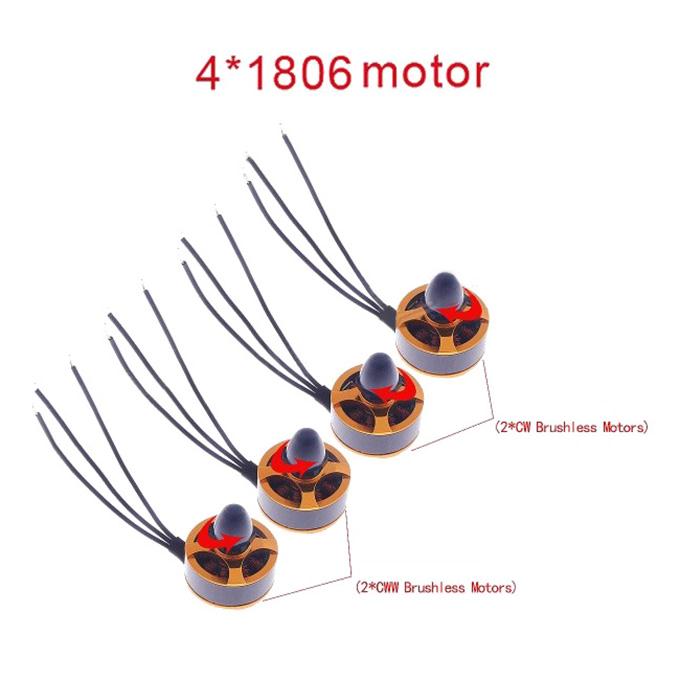

4 x 1806 motor with eight screws | |
4 x 12A ESC | |

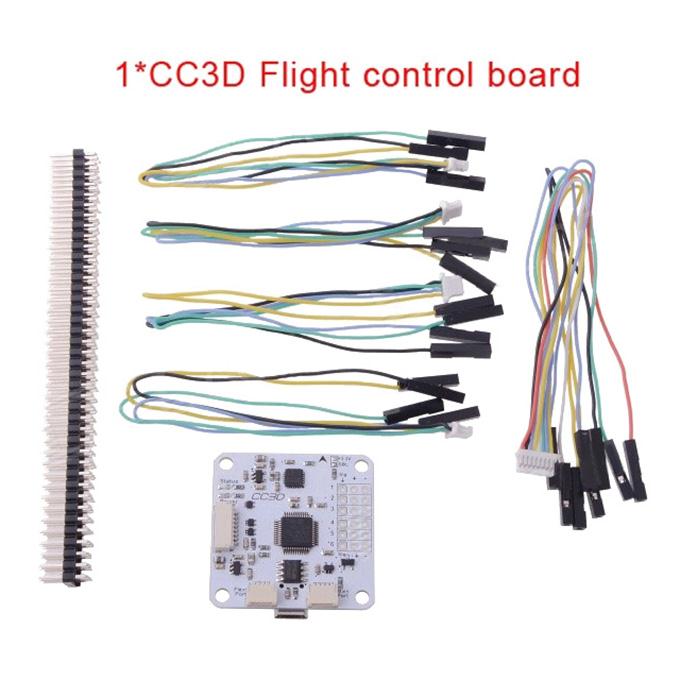

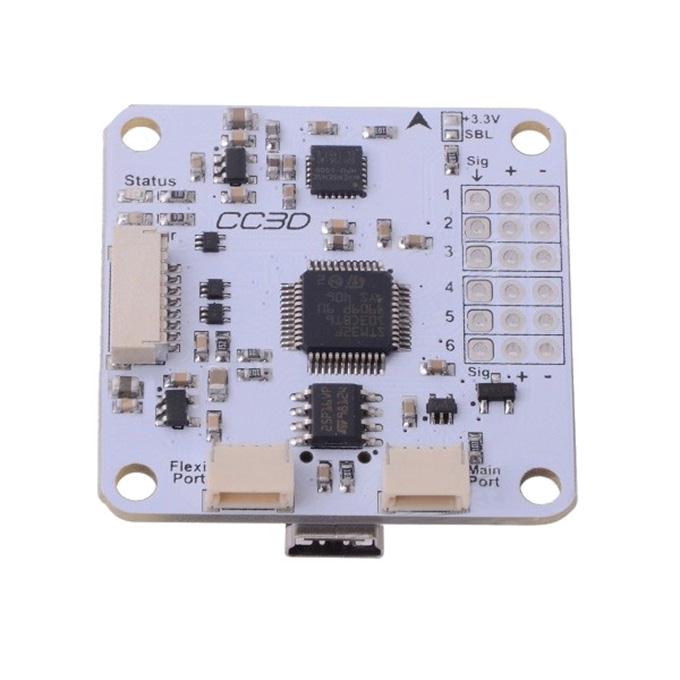

1 x CC3D Flight control boardwith cable long 20cm | |

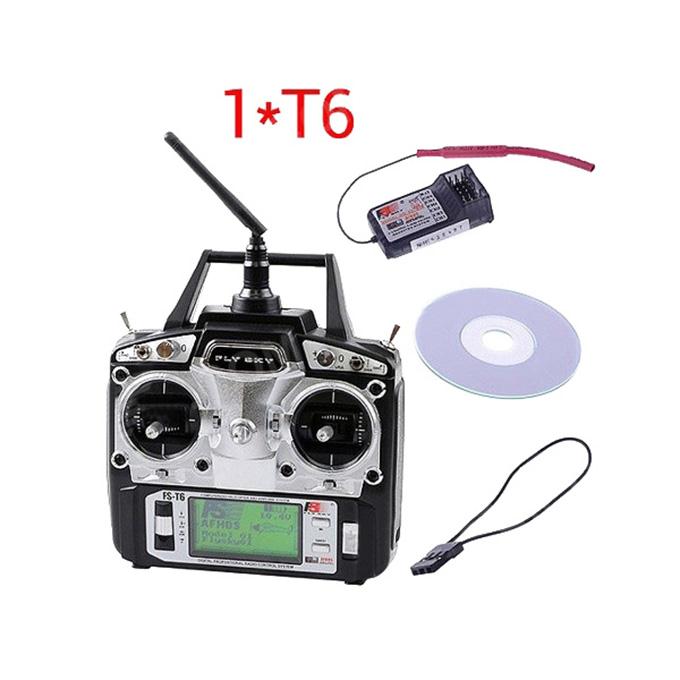

1 x FS-T6 Mode 2 remote control | |

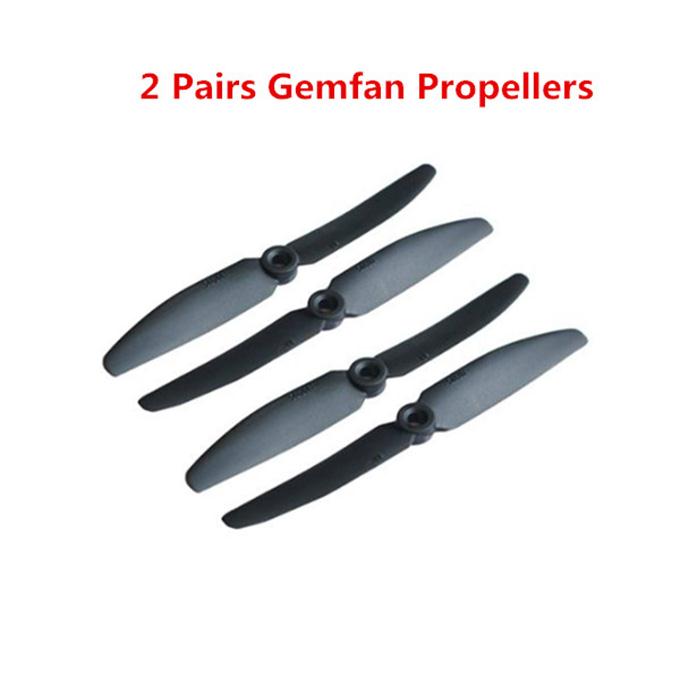

2 x Pairs of 5030 GF Propellers | |

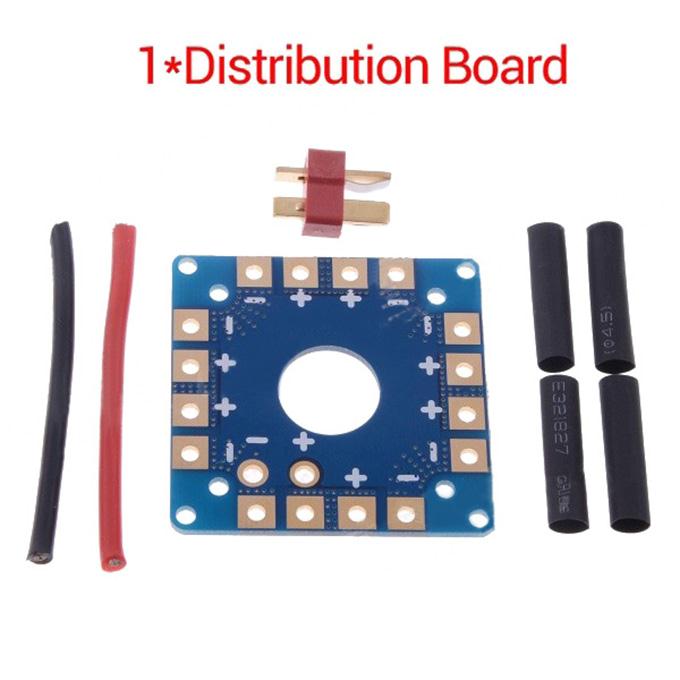

1 x ESC Connection Board |
