Highlights

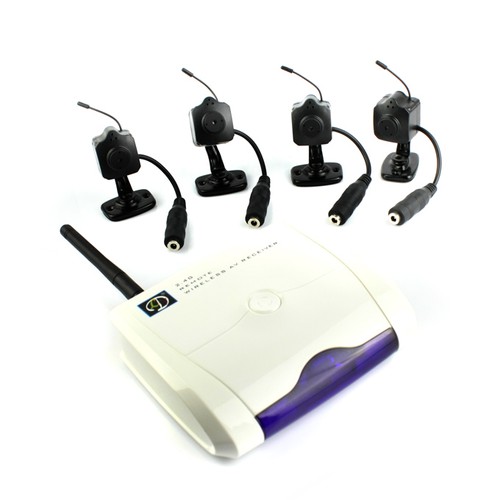

- Now it's possible to monitor anything, anywhere, with these Wireless Real-Time cameras and receiver. The receiver has 4 different channels that can be easily controlled by a handy remote, with an effective range of 200 meters! This system includes four miniature cameras with sound that can be mounted anywhere. It's the perfect system for monitoring your home, office or just about anywhere else. Connect the receiver to your TV and you're ready to go!
Specifications
- Four-Channel Wireless Receiver and 4 Color Cameras
- General Features:
- Remote control
- 4-channel wireless receiver w/dual composite video and mono audio RCA outputs
- Miniature color video cameras with sound
- PAL/NTSC/SECAM AV system
- PLL frequency control
- -85 dB sensitivity
- 200 m effective distance (656.16 ft, approximate)
- 3 seconds auto change output
- Receiving Frequency:
- Channel 1: 2.414 GHz
- Channel 2: 2.432 GHz
- Channel 3: 2.450 GHz
- Channel 4: 2.468 GHz
- Receiver Connectors:
- Two (2) composite RCA video outputs (both output same signal)
- Two (2) mono RCA audio outputs (both output same signal)
- Antenna receiver
- DC-in 12 V, 500 mA
- Camera Connectors:
- DC-in 8 V, 500 mA
- Receiver Dimensions:
- 1.75 x 4.75 x 4-inches (H x W x D)
- Camera Dimensions:
- 1.25 x 1.25 x 1.5-inches (H x W x D)
|
Item
|
Value
|
||
| Transmission Frequency | ISM 2,400 MHz~2,483 MHz 4CH | ||
| Modulation Mode | FM | ||
| Unobstructed Effective Range | 100m(Without Block) | ||
| Operating Temperature | 0~ +50 / +32~ +122 | ||
| Storage Temperature | -20 ~ +60 / -4 ~ +140 | ||
| Operating Humidity | 85%RH | ||
| CAMERA | TV System | PAL | NTSC |
| Validity Pixel | 628(H) x 586(V) | 510(H) x 492(V) | |
| Image Device | 1/3" OmnVision CMOS | ||
| Horizontal Definition | 380TV Line | ||
| Angular Field of View | 45° (f=6mm) | ||
| Minimum Illumination | 3.0Lux(F1.2) | ||
| Scanning Frequency(H) | 15.625KHz | 15.734KHz | |
| Scanning Frequency(V) | 50Hz | 60Hz | |
| Power Adapter | DC 8V/500mA | ||
| Dimension | 42x35x53mm | ||
| Weight | 65g | ||
| RECEIVER | Receiving Sensitivity | ≤-85dBm | |
| Video Output | 1Vp-p@75Ω,S/N>38dB | ||
| Audio Output | 10KΩ/200mVp-p | ||
| Power Adapter | DC 12V/500mA | ||
| Dimension | 120x99x30mm | ||
| Weight | 165g | ||
| Antenna | 50ohm SMA | ||
| Intermediate Frequency | 480MHz | ||
| Frequency Stabilization | ± 100MHz | ||
Detail
What's in the box?
- 1 x Receiver
- 4 x Camera
- 1 x Av cable
- 5 x Power charger
- 4 x battery cable
- 1 x users manual
- 1 x Gift box
