Highlights

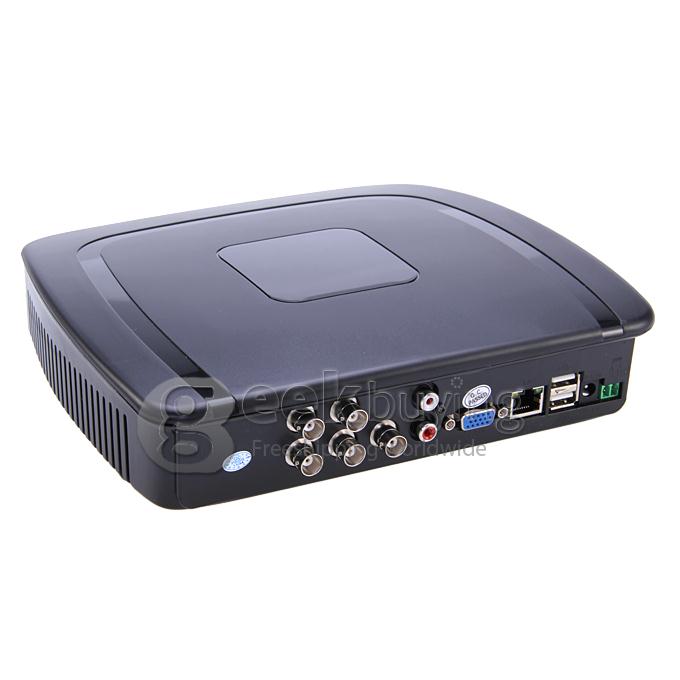

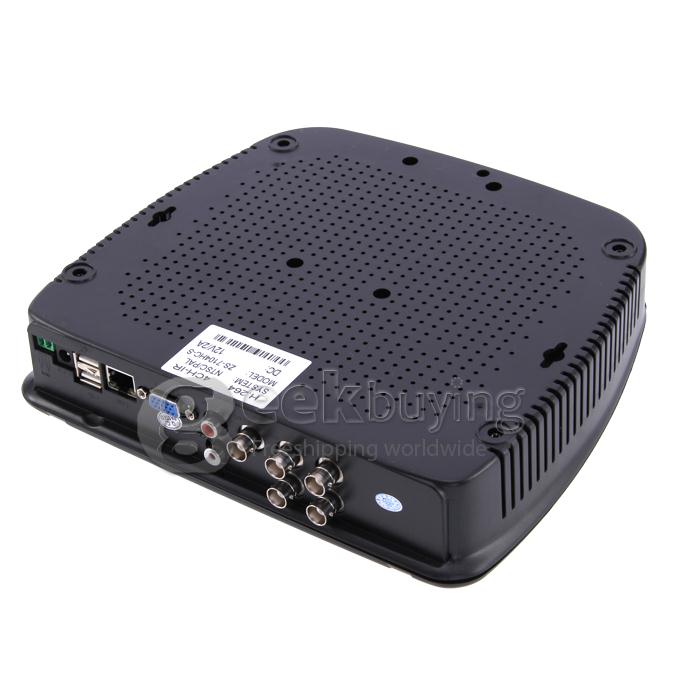

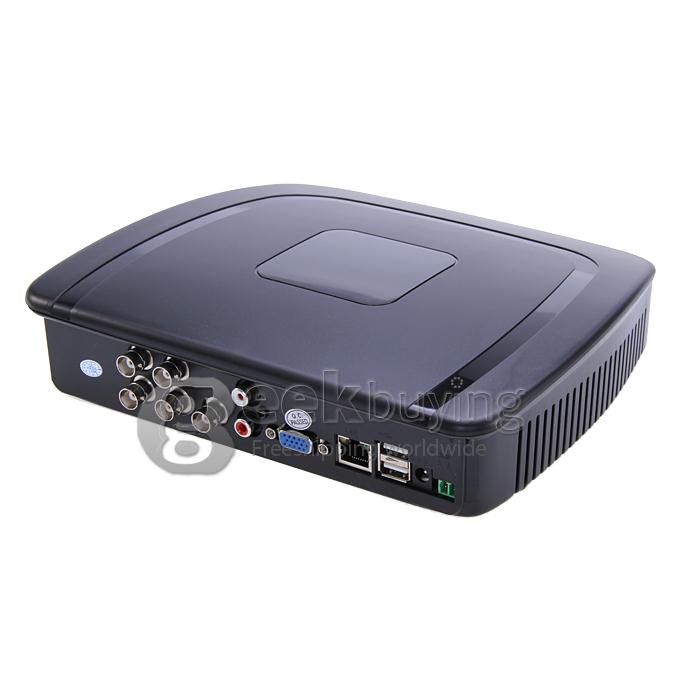

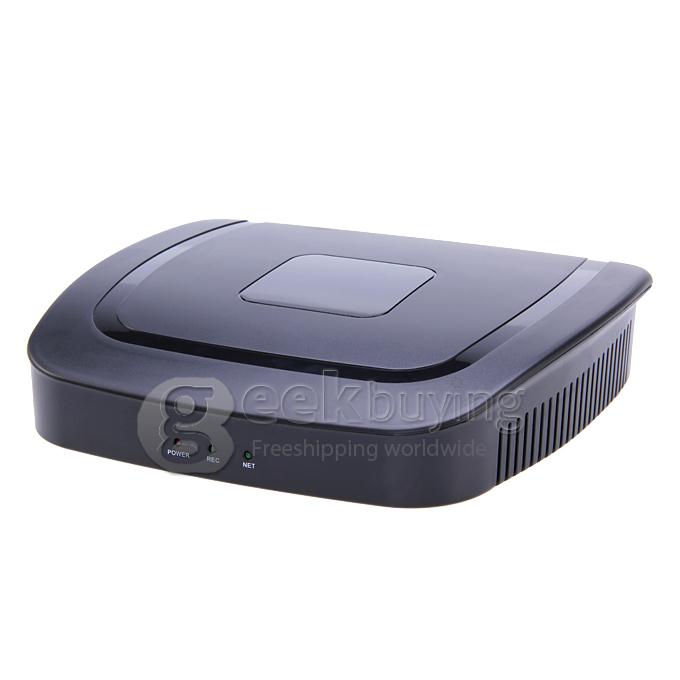

- StandAlone DVR:
- Adopt high performance H.264 video compression, high definition and good image quality.
- Embeded Linux operating system, stable performance.
- Allow live display, record, playback, backup and network operation at the same time.
- Support D1, HD1, CIF recording resolution.
- Recording modes: Continuous / Time Schedule / Motion Detection.
- Display resolution: NTSC: D1(704 x 480) / PAL: D1(704 x 576).
- 4CH playback simultaneously, playback modes support Normal Play, Fast Forward, Fast Rewind, Frame by Frame.
- Support VGA output and BNC video output at the same time.
- File backup via USB flash drive, USB hard disk, USB CD/RM and Network.
- Built-in a SATA interface, support up to 2TB hard disk. (HDD is not included).
- Support dual-stream design.
- Supports PTZ control through RS-485.
- Support Remote Access: LAN, Internet Browser and smart mobile phone(Windows Mobile, iPhone, Android and BlackBerry).
- Multiple control methods: front panel, IR remote controller and USB mouse.
- Plug and Play, easy to operate.

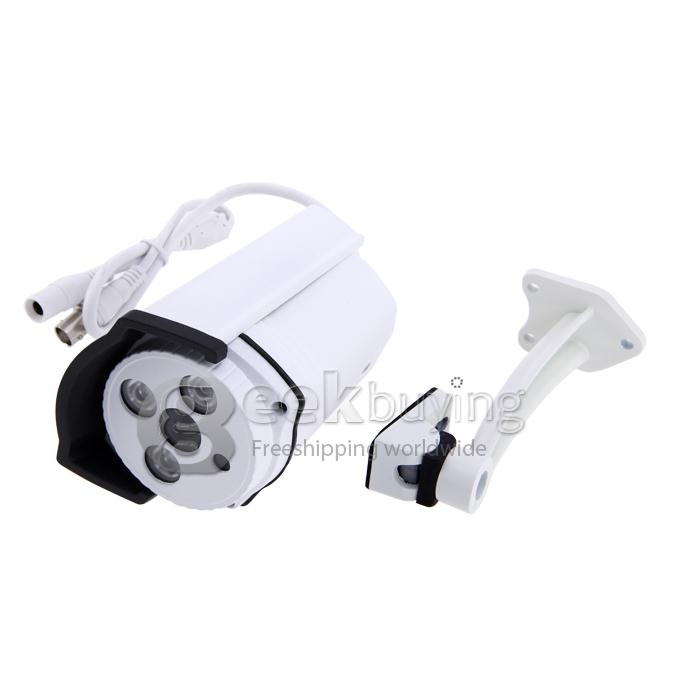

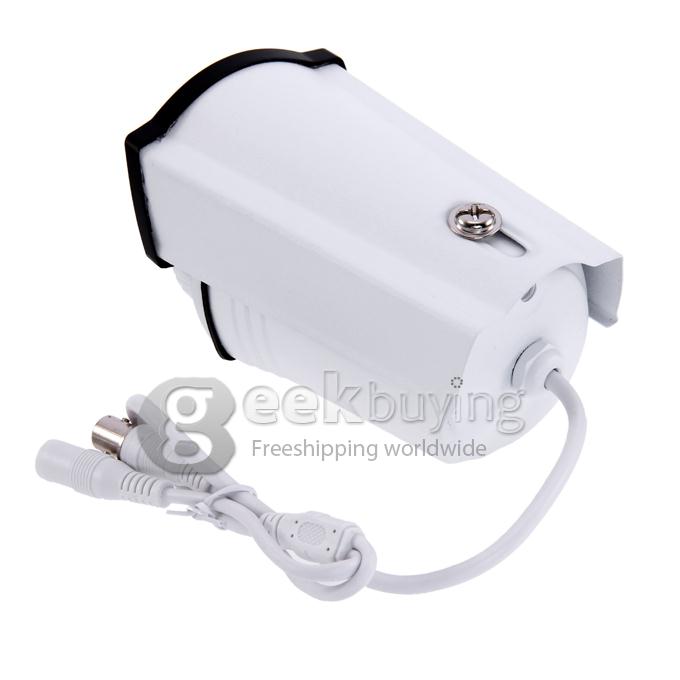

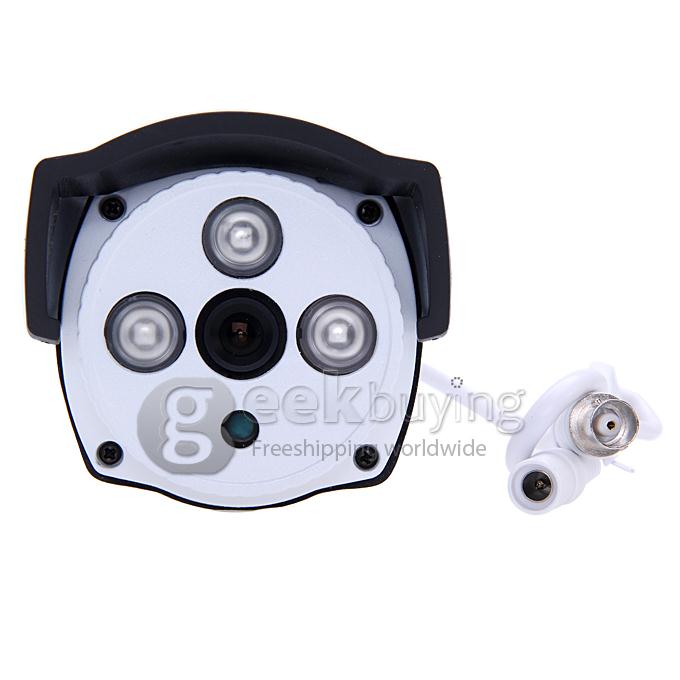

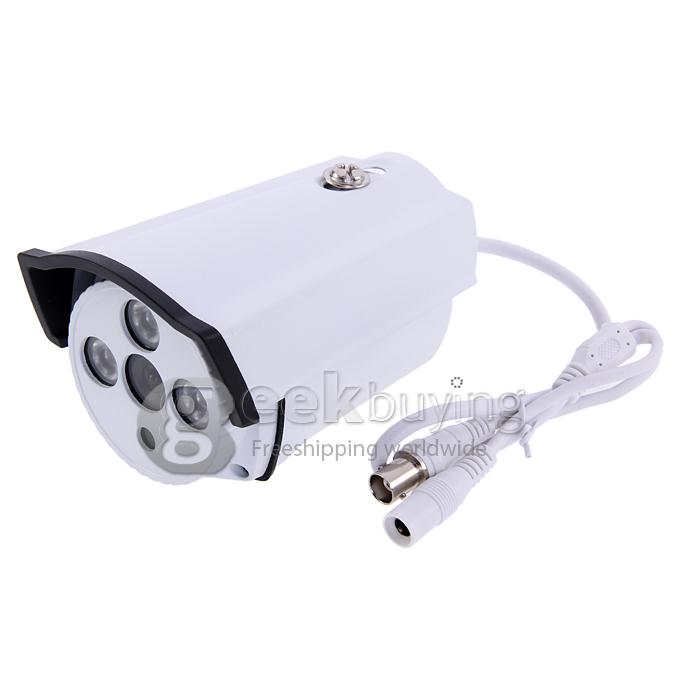

- CCTV Camera:
- High-sensitivity 1/4" Color CMOS.
- With 3 IR LEDs , the night visual range is up to 10m.
- 3.6mm camera Lens.
- Horizontal Definition is 480TV Lines.
- Low illumination, high quality image.
- Designed with metal case, it can be installed outdoor and indoor.
Specifications
| StandAlone DVR | ||
| Operating System | Linux Based | |
| Video Compression | H.264 | |
| Video System | NTSC / PAL | |

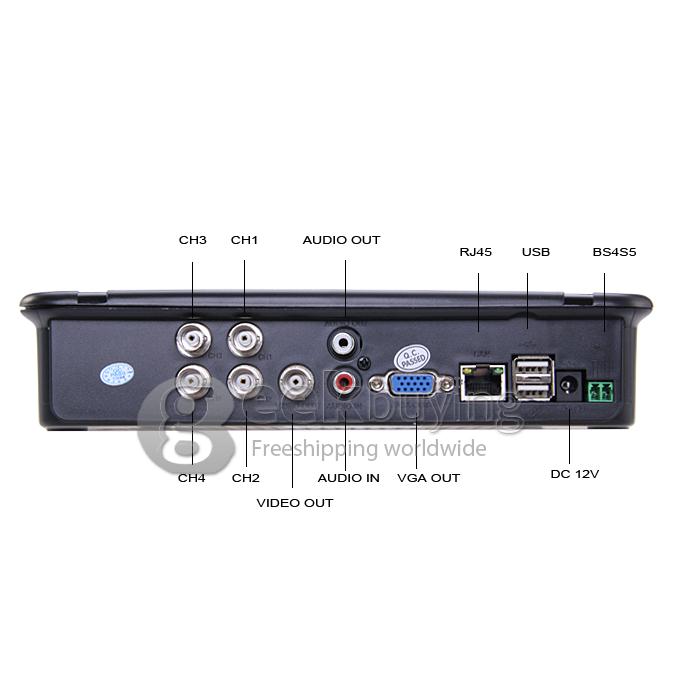

| Video Input / Output | BNC 4-Channel Input / BNC 1-Channel Output | |
| Other Video Output | VGA | |
| Audio Compression | G711A | |
| Audio Input / Output | RCA 1-Channel Input / RCA 1-Channel Output | |
| Record | Resolution | NTSC: D1(704 * 480); HD1(704 * 240); CIF(352 * 240) |
| PAL: D1(704 * 576); HD1(704 * 288); CIF(352 * 288) | ||
| Frame Rate | NTSC: 120 fps @ CIF / PAL: 100 fps @ CIF | |
| Modes | Continuous / Time Schedule / Motion Detection | |
| Pack Time | 15/30/45/60 mins Selectable | |
| Display | Resolution | NTSC: D1(704 x 480) / PAL: D1(704 x 576) |
| Frame Rate | NTSC: 120 fps @ D1 / PAL: 100 fps @ D1 | |
| HDD Interface | SATA, support up to 2TB | |
| Playback Search | Time & Date / Event List | |
| Playback Modes | Normal Play / Fast Forward / Fast Rewind / Frame by Frame | |
| Backup | USB flash drive, USB hard disk, USB CD / RM and Network | |
| USB | USB Backup / USB 2.0 | |
| PTZ Control | RS-485 | |
| Network Interface | RJ45, 10M/100M | |
| Network Protocol | TCP / IP, PPPoE, DHCP and DDNS | |
| Remote Access | LAN or Internet Browsing | |
| Alarm | No | |
| Remote Control | IR Remote Control | |
| Power Supply | Input: 100-240V AC 50/ 60Hz; Output: 12V | |
| Casing Material | Metal | |
| Language | English, French, Greek, Hebrew, Italian, Portuguese, Russian, Spanish, Thai, Turkish, Japanese, Korean, Persian, Polish, Arabic, German, Simplified Chinese, Traditional Chinese, etc. | |
| Support System | Microsoft Windows XP, Apple's operating system, Windows7, Android | |
| DVR Dimension | 23.5 * 21.2 * 4.7cm | |
| DVR weight | 396g | |
| IR Security Camera | ||
| Image Sensor | 1/4" CMOS | |
| Lens | 3.6mm | |
| TV System | PAL | |
| Effective Pixels | 752 (H) * 582 (V) | |
| Horizontal Resolution | 480 TV Lines | |
| IR Distance | 10m | |
| Minimum Illumination | 0.0 Lux | |
| Number of IR LEDs | 3 pcs | |
| S/N Ratio | 48dB | |
| Video Output | 1.0Vp - p/75Ω | |
| Material | Metal Shell | |
| Operation Temperature | 0°C ~55°C | |
| Weatherproof | Yes | |
| Power Supply | Input: 100-240V 50-60Hz; Output: DC12V | |
| General | ||
| Package Size | 34 * 16.2 * 26.5cm | |
| Package Weight | 4540g | |

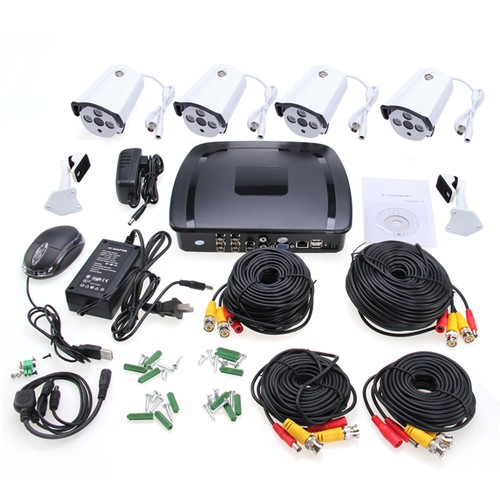

What's in the box?
- 1 * 4CH DVR
- 4 * IR Security Camera
- 2 * BNC to RCA Cable (10m)
- 1 * BNC to RCA Cable (20m)
- 1 * BNC to RCA Cable (30m)
- 1 * Mouse

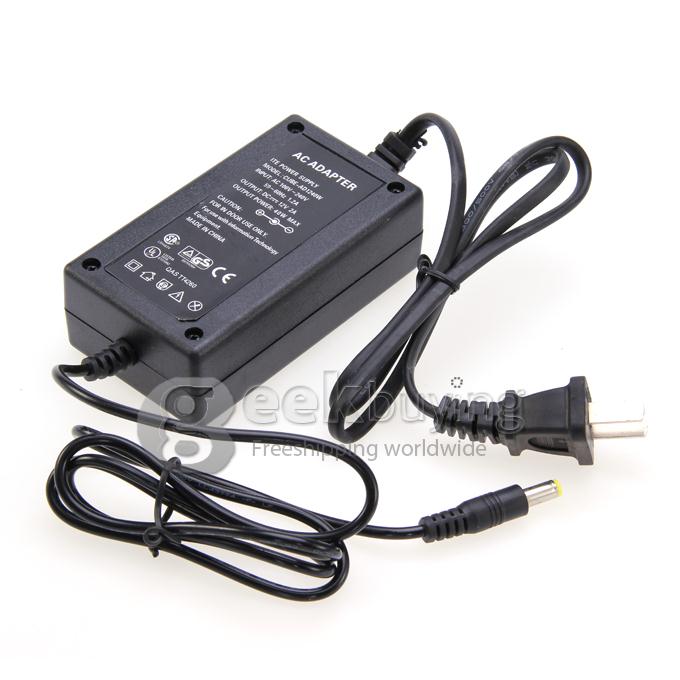

- 1 * Power Supply for DVR
- 1 * Power Supply for Cameras
- 1 * CD Software
- 1 * Power Splitter Cable
- 1 * User's Manual
- 1 x Screw pack
