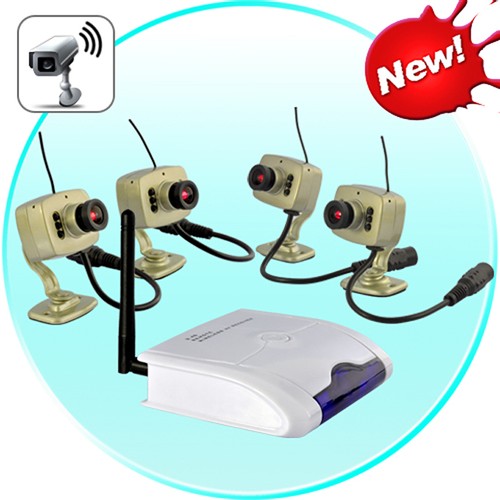

Highlights
- Switch the receiver's channels by remote control.
- 380 TVL of horizontal definition.
- Micro-camera easy for installation.
- 4 cameras exchangeble for watch.
- Receiver with 4 channesl exchangeble by auto & manual.
- 100m transmission distance without block.
- Audio monitoring with microphone in camera.
Specification
|
Item
|
Value
|
||
| Transmission Frequency | ISM 2,400 MHz~2,483 MHz 4CH | ||
| Modulation Mode | FM | ||
| Unobstructed Effective Range | 100m(Without Block) | ||
| Operating Temperature | 0~ +50 / +32~ +122 | ||
| Storage Temperature | -20 ~ +60 / -4 ~ +140 | ||
| Operating Humidity | 85%RH | ||
| CAMERA | TV System | PAL | NTSC |
| Validity Pixel | 628(H) x 586(V) | 510(H) x 492(V) | |
| Image Device | 1/3" OmnVision CMOS | ||
| Horizontal Definition | 380TV Line | ||
| Angular Field of View | 45° (f=6mm) | ||
| Minimum Illumination | 3.0Lux(F1.2) | ||
| Scanning Frequency(H) | 15.625KHz | 15.734KHz | |
| Scanning Frequency(V) | 50Hz | 60Hz | |
| Power Adapter | DC 8V/500mA | ||
| Dimension | 42x35x53mm | ||
| Weight | 65g | ||
| RECEIVER | Receiving Sensitivity | ≤-85dBm | |
| Video Output | 1Vp-p@75Ω,S/N>38dB | ||
| Audio Output | 10KΩ/200mVp-p | ||
| Power Adapter | DC 12V/500mA | ||
| Dimension | 120x99x30mm | ||
| Weight | 165g | ||
| Antenna | 50ohm SMA | ||
| Intermediate Frequency | 480MHz | ||
| Frequency Stabilization | ± 100MHz | ||
Detail
What's in the box?
- 1 x Receiver
- 1 x Camera
- 2 x Av cable
- 5 x Power charger
- 4 x Battery Cable
- 1 x User Manual
- 1 x Gift Box
