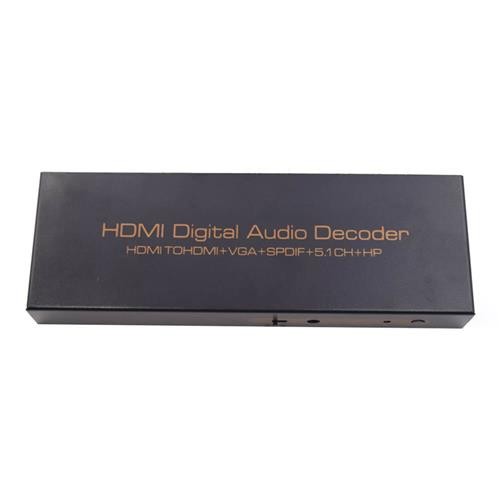

51S 1080P HDMI TO HDMI VGA SPDIF 5.1CH RCA Digital Multi-channel Audio Decoders DSP - EU Plug

Note

Operation and Connection:

1. Connect one HDMI cable from a DVD/Blu-ray player into input port of decoder.

2. Connect one HDMI/VGA cable from TV/Monitor into output port of decoder.

3. If you need a digital audio, connect one optical fiber from digital power amplifier into the SPDIF output port of decoder.

4. If you need an analog audio, Connect six AV cables from analog power amplifier into the analog audio output ports of decoder, the channel must correspond. If the connected TV or stereo power amplifier, connect the FL/FR two channel only, and switch EDID mode in 2CH.

5. If you need to use the headphone output, pls switch EDID mode in 2CH.

6. Connect 5V power supply to the decoder and inserted into the power socket.

7. VGA output resolution format with the input format automatically changes. Support resolution formats as follows: 720×480@60Hz(480P,800×600@60Hz, 1024×768@60Hz, 1152×864@60Hz, 1280×720@60Hz(720P), 1280×768@60Hz, 1280×800@60Hz, 1280×960@60Hz, 1280×1024@60Hz, 1360×768@60Hz, 1366×768@60Hz, 1440×900@60Hz, 1600×900@60Hz, 1600×1200@60Hz, 1680×1050@60Hz, 1920×1080@60Hz(1080P).

Highlights

1X HDMI input and 1X HDMI output

1X VGA analog video sync output, 1X SPDIF optical digital audio and 6 channel RCA analog audio output that can connect with the amplifier or the TV directly.

MHL/HDMI working in dual mode, support audio and video input in MHL mode, and can charge for MHL equipment

Support CEC and HDCP

Supports 3 modes of EDID management for audio formats, can switch among built-in EDID (2CH/5.1CH) and external EDID (TV).

Uses 24 bit/96KHz audio DSP and 24bit /192KHz DAC

Support digital audio formats: Dolby digital (AC3), DTS, LPCM, automatic identification signal format

VGA output resolution format with the input format automatically changes

Headphone amplifier output, can drive the general 3.5mm earphone

High tone quality, low noise

DC5V/1A power adapter

Specification
