Highlights
- 100% Brand new and high quality!

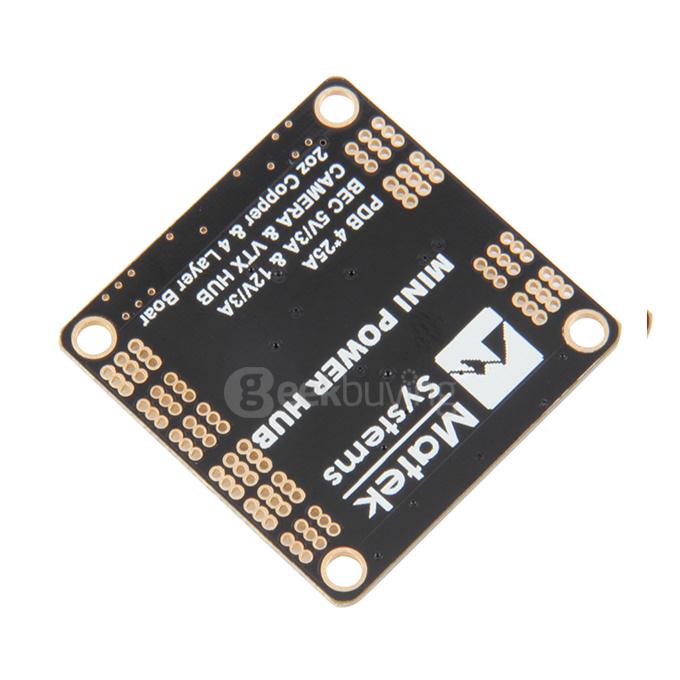

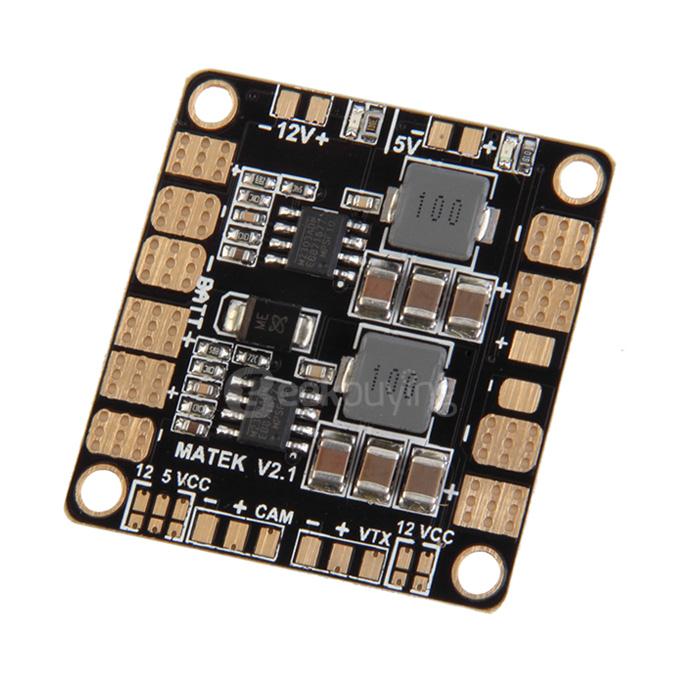

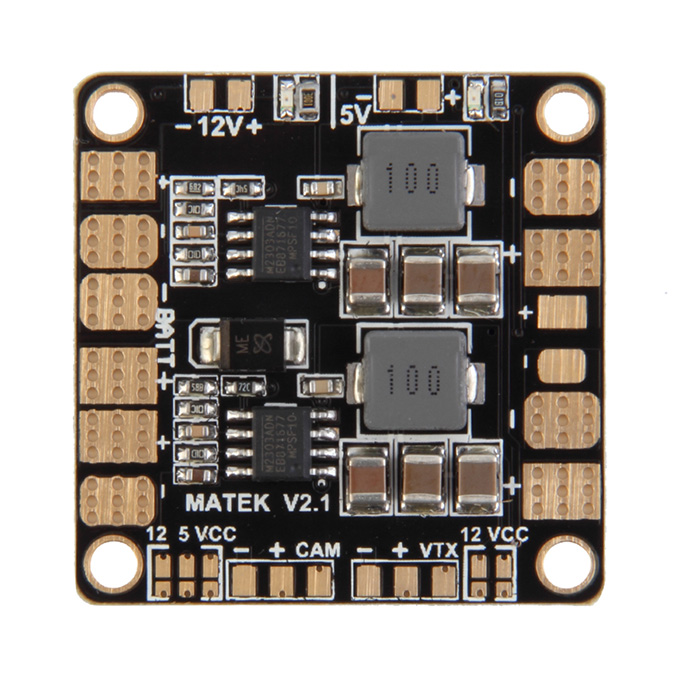

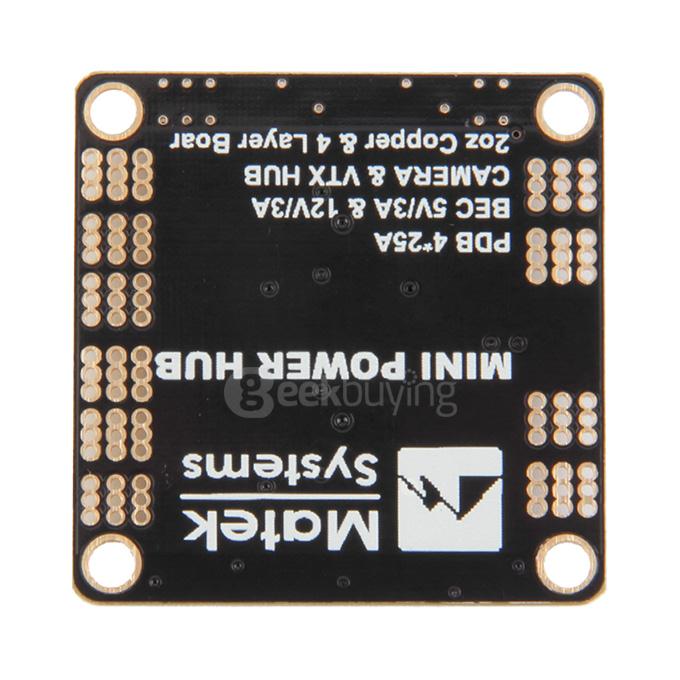

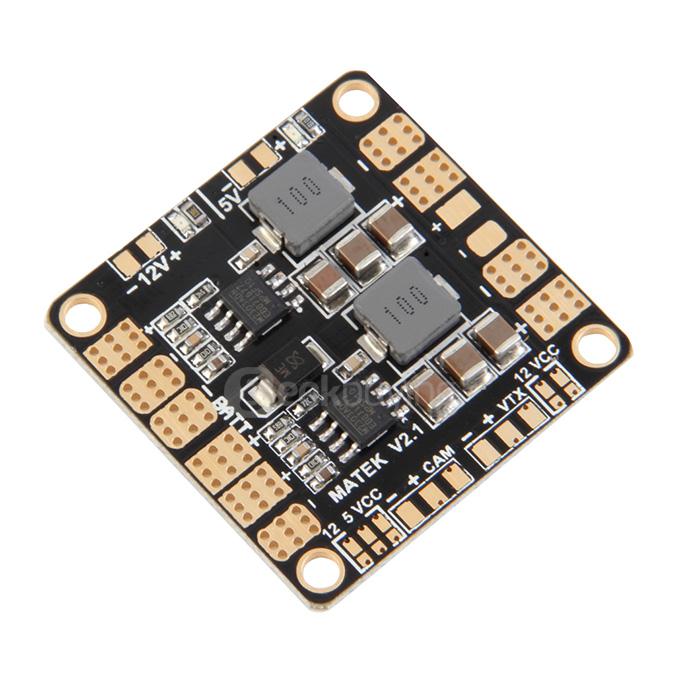

- Power Distribution Board PDB 4-Layers PCB With 2 BEC 5V 12V For Mini 250
- 2oz copper & 4-layers PCB
- ESC & Battery solder tabs in pairs
- Solder Bridges of various voltage for Camera & VTX
- DC/DC synchronous buck regulator, Efficiency is up to 95%
- TVS(Transient Voltage Suppressor) protection for DC/DC chip
- 5V & 12V Output LED indicators & Short circuit tolerant
Specification
| General | |
|---|---|
| Type | Power Distribution Board |
| Input /Output (2S-6S operation) | Input: 7.2 - 26VDC Regulated 5V and 12V outputs LED power indicators ( 5V & 12V outputs ) 4 ESC outputs |
| ESC Output | Continuous current: 20A per output Peak current (10 seconds/minute): 30A per output |
| BEC 5V Output | Designed for RC Receivers, Flight controllers, OSD, and Servos. Voltage: 5.0 +/- 0.1VDC Continuous current: 3 Amps Short-circuit tolerant (10 seconds/minute) LED (indicates voltage is in regulation, within 10%) |
| BEC 12V Output | The battery should be 4S~6S LiPo Standard output designed to power cameras and video transmitters,etc. Voltage: 12.0 +/- 0.2VDC Continuous current: 2 Amps (Max.3A 10s/minute) Short-circuit tolerant (10 seconds/minute) LED (indicates voltage is in regulation, within 10%) CAM & VTX voltage bridge 3S operation. choose ''VCC'' for 12V camera & 12V VTX, VCC=Battery Voltage. 4~6S operation, choose ''12'' for 12V camera & 12V VTX 3~6S operation, choose ''5'' for 5V camera Video pass through from the “CAM” pad to the ''VTX'' pad |
| Dimensions/Weight | Dimensions: 36 x 36mm Weight: 6g |
| Package Contents | |
| 1 x Power Distribution Board | |
