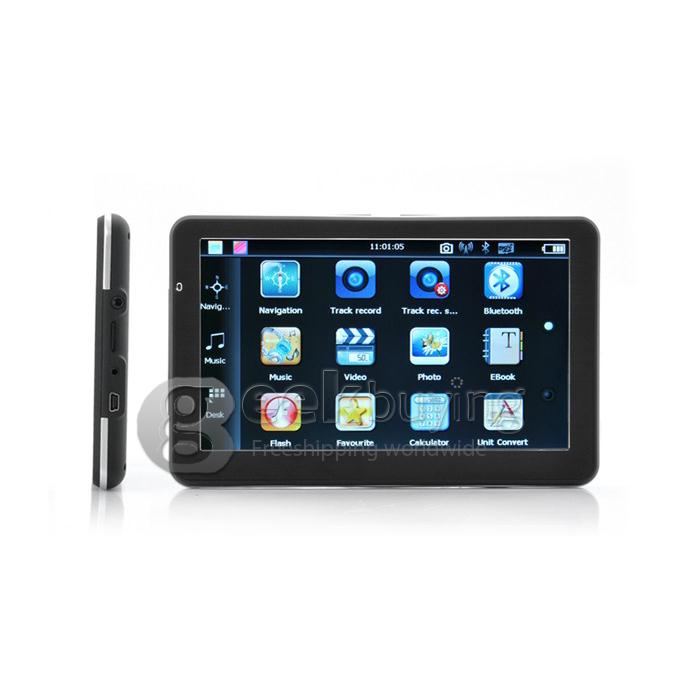

7 Inch TFT- LCD Touchscreen HD 800x480 Windows 6.0 Car DVR GPS Navigator with 4GB Bluetooth FM - Australia Map

Share to

Ship to:

United States

Select the desired shipping method

Shipping Company Estimated Delivery Time Shipping Cost

*Please note: the shipping costs are only estimates; the actual shipping price will be shown on the order page.

Trusted Shipping Partners: and more

0 item(s) added

View CartContinue Shopping

Description
Reviews
Q&A
Support & Firmware
Learn More

Sold Out

Highlights

1. GPS navigation with car DVR.
2. 7 inch TFT- LCD touchscreen HD 800x480 pixels.
3. Thin,bluetooth, FM, Video and other functions car gps, make the Colorful scene on the travel.
4. Nand Flash 4GB OR 128MB and 128MB DDRII.
6. OS: Windows 6.0 net.
7. FM Transmit: KT0803.
8. BLUETOOTH: Built-in Bluetooth,via Hands-free with echo cancellation, DUN, Phonebook.
9. AV-IN: AV-INPUT Support: PAL, NTSC.
10. VIDEO Support: MP4 ,AVI, ASF, WMV.
11. Battery: 1150MAH.
12.Lens:130 Mega pixel color CMOS.
13.View angle: 75 degree.
14. Built in Camera car DVR.
15. DVR video can be played on this device.
16. Built in Camera car DVR GPS navigation.
17. 130 Mega pixel CMOS gps DVR.

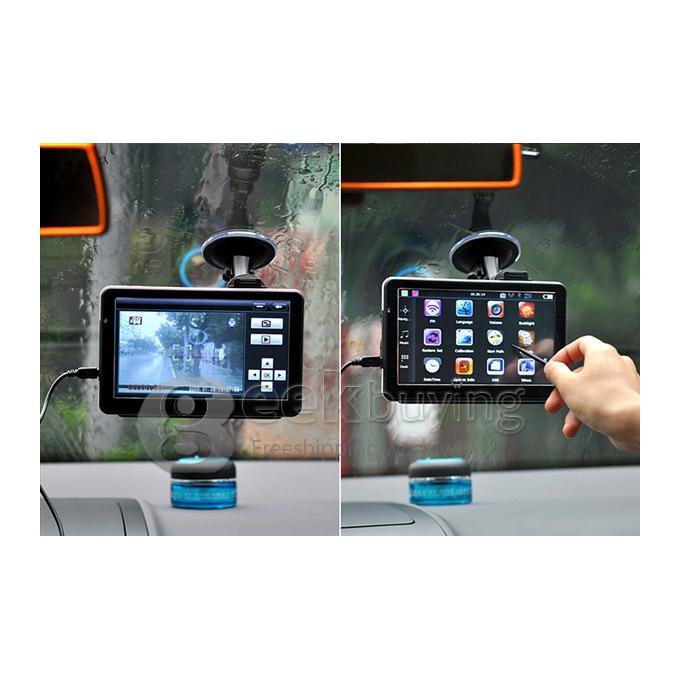

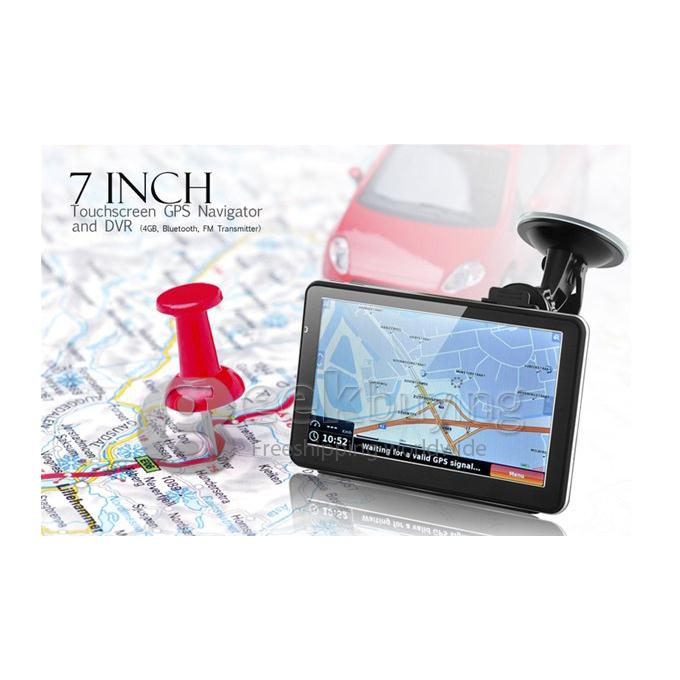

7 inch touch screen CAR DVR GPS Which lets you get to your destination effortlessly, memory or record videos for Purpose insurance, and comes with rich multimedia features to keep you entertained.

System Parameters
Main Frequency	Dual core 468MHz
Type of Main Chip	MTK MT3351,ARM11 76JZ-S Core
Internal DDR2	128MB
Storage Space	SD card space expand to 16GB
Navigation Software Storage	NAND Flash 128MB, SD micro card/SLC NAND FLASH
Operating System	WINCE 6.0 Core Version
Multimedia Parameters and Function
Audio Support Type	MP3/WMA/WAV, LRC with the sing words
Video Support Type	MP4/MPG/WMV/AVI/3GP
Video Decode Function	QVGA 25/s
Picture and Document Browser
Support Picture Type	BMP/JPG/GIF/PNG
Support Document	TXT
Basic Parameters
Display Size	7 TFT-LCD
Touch Screen	Single 7inch touch screen
Display Definition Ratio	800RGB480 P
Display Ratio
Audio Input	Dual channel CD sound
Audio Power	Earphone stereo dual channel 0.25W/CHANEL, single 8Ω/1W
Average Power	1.5W
Standby Power	<20mW
Battery Type	Built-in Polymer battery or lithium ion battery 800mAH
GPS Parameters
Chips Team	MT3329
Frequency	1.575GHZ
Channel Qty	24 Channels
Trace Sensitive	-161dBm
Location Accuracy	<10m
Speed	0.1m/s
Information Update Ratio	1HZ
Renew Time	Average 0.1s(OPEN SKY)
Hot Start Time	< =5s(OPEN SKY)
Normal Start Time	< =35s(OPEN SKY)
Cold Start Time	< =42s(OPEN SKY)
Max Location Height	18,000m
Max Speed	515m/s
FM Transmit Parameters
Chip Team	KT0803, SNR ≥ 60 Db
Frequency Scope	76MHZ-108MHZ
Frequency Control Step	100KHZ
Launch Distance	10m
Antenna	Speaker line
USB Parameters and Function
USB Interface Type	USB 2.0(High Speed)Device
USB Function	Connect computer
USB Function	Via USB cable connect PC
Battery Parameters and Function
Battery Type	Polymer battery or lithium ion battery Capacity:1100mAh
Power Mode	CLASS 2
Decode Method	Built in 16-bit Stereo Codec
AVIN Function Parameters
Modulate Method	FM
Working Frequency	2414Mhz/2432Mhz/2450Mhz/2468Mhz(optional)
System Format	PAL/NTSC
Transmit Space	40m~50m
Transmit Scope	2400-2480MHZ
Video Parameter :
Lens	130 Mega pixel color CMOS
Video	VGA 640 x 480
Frame Rate	25 – 30 fps
View Angle	75 degree
Other Application
Start Page	Can choose the navigation
Earphone Jack	yes

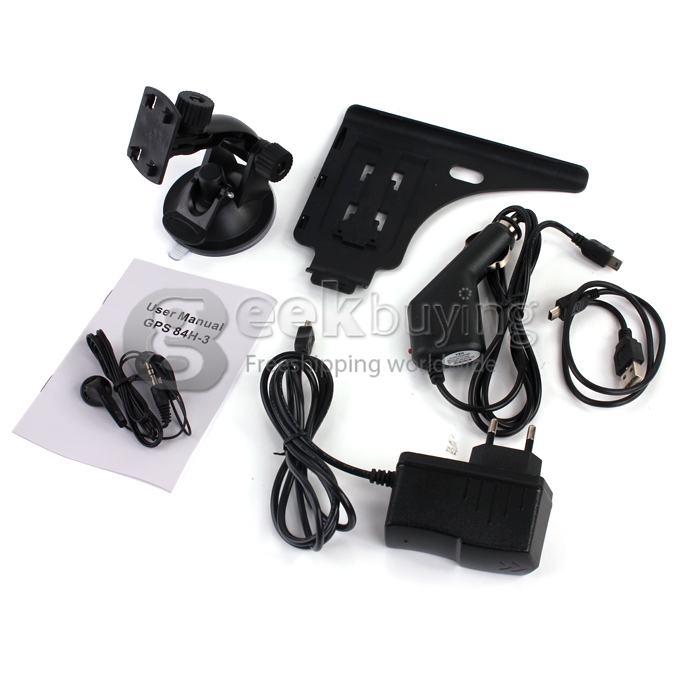

Accessories
Car Charger	Input: DC +12V-24V Output: DC +5V, 1.5-2A, via USB
MAP Software	IGO8 IGOPRO GARMIN PAPAGO R66 TOMTOM, PolNav, Navitel Etc.
Language	ENGLISH, ITALY, FRANCE,SPAIN,GERMANY, PORTUGAL, HOLAND, DENMARK, SWEDEN, NORWAY, GREECE, RISSIA, TURKISH, JAPANESE ,POLAND, ISREAL ,SERBIA, HUNGARY, CROATIAN Etc.
