74LVC8T245 Board 8-bit Noninverting Bus Transceiver Module with TTL Voltage Translation

Highlights

• The 74LVC8T245 Board is an accessory board that integrates the 74LVC8T245 bus transceiver onboard.

Specification

The 74LVC8T245 Board features:

• 8-bit noninverting bus transceiver
• 3-state outputs, dual-supply
• configurable voltage level (1.65V-5.5V)
• bidirectional translation (controlled by DIR pin)
• up to 500Mbps data rate
• up to 32mA output current
• "plug to" your application system (providing solder holes, male/female pinheaders)
• compatible with prototype breadboard
• /OE, DIR pins are configurable via jumpers, eliminating the need of controlling interface on one-way translating occasion

Applications

• 8-bit bus transceiver
• 8-bit voltage translation (1.65V-5.5V)
• I/O expansion (requires multi 74LVC8T245)

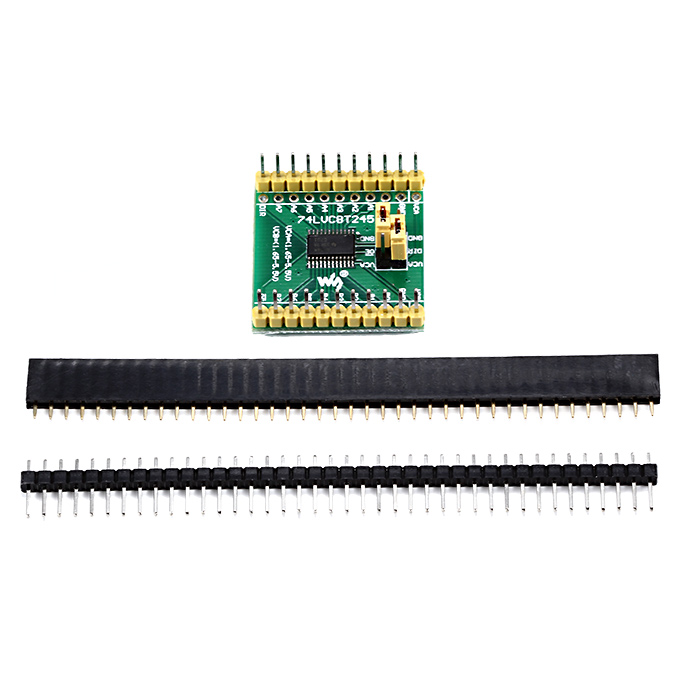

What's in the box?

• 1 x 74LVC8T245 Board
• 1 x 40-pin male pinheader
• 1 x 40-pin female pinheader
