ALZRC Devil X360 FAST FBL 370mm Blade 3D Flying RC Helicopter - KIT Version

Highlights

Main rotor set's thrust bearing internal design, substantially increased the resistance of transverse forces, reduce part,s abrasion, circular pitch control is more precise and more agile, reduce mechanical fatigue of spindle shaft screws. Equipped with m4*8mm screw which increased tooth spacing and gain greater external tension.

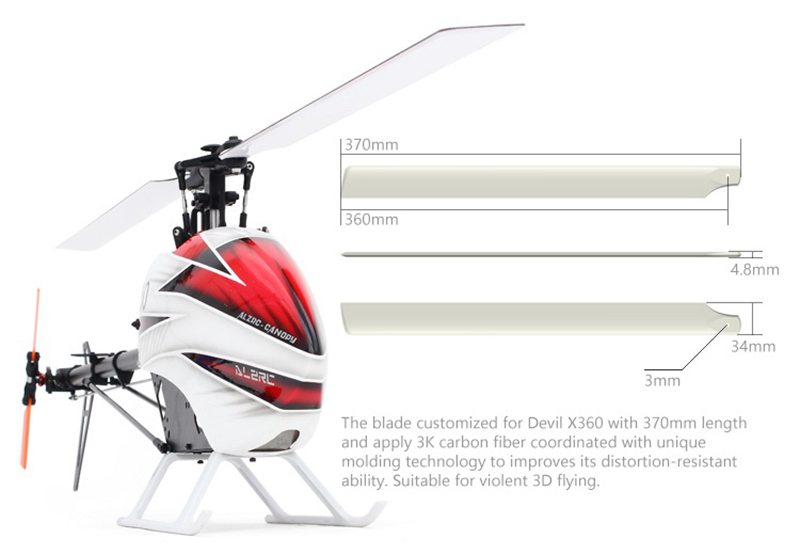

3K Carbon Fiber Blade

The blade is made of 3K carbon fiber (370mm length) coordinated with unique molding technology to improves ints distortion-resistant ability,suitable for violent 3D fly.

High-Precision Mould Scheme

All machine PA engineering plastic parts are adopt the most advanced high-precision mould scheme.

Apply FBL Rotor Set

Apply FBL rotor set and with diameter of 5mm for spindle shaft and 6mm for main shaft 6061-T6 main rotor housing working with precision CNC machining, enhanced the capacity of 3D flight.

New FBL Pull Rod

With the new radius arm and two-direction thread locks FBL pull rod.

New Design Swashplate

Brand new design swashplate with zero gap and double bearing bring you an accurate flght.

New Design ESC Mount

Brand new design ESC mount, lower the installation surface which can be combined with large ESC.

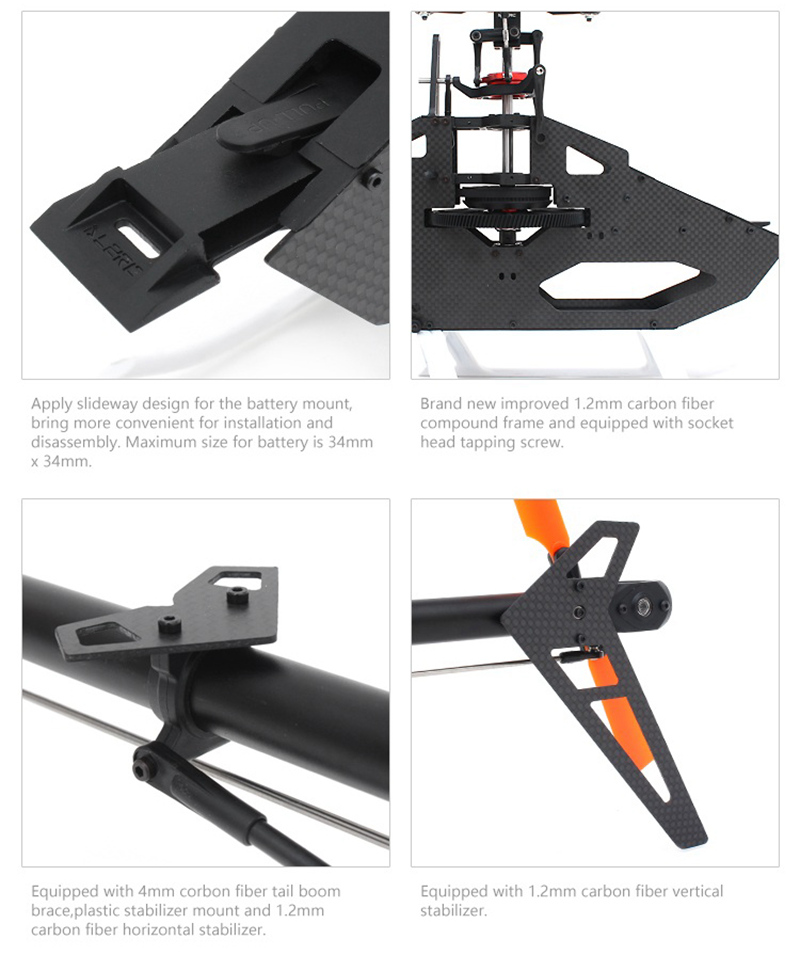

Apply Slideway Design

Apply slideway design for the battery mount, bring more convenient for installation and dasassembly.

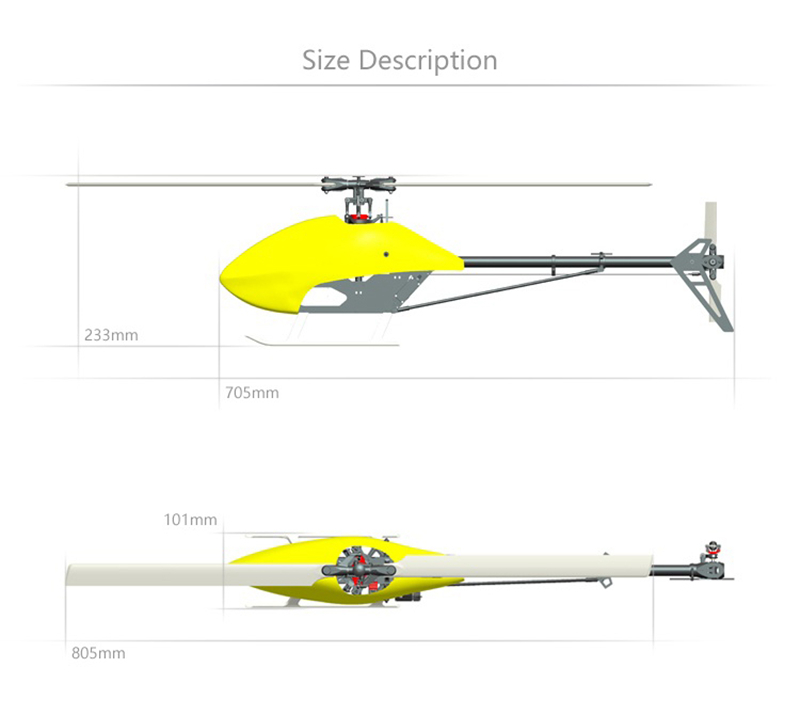

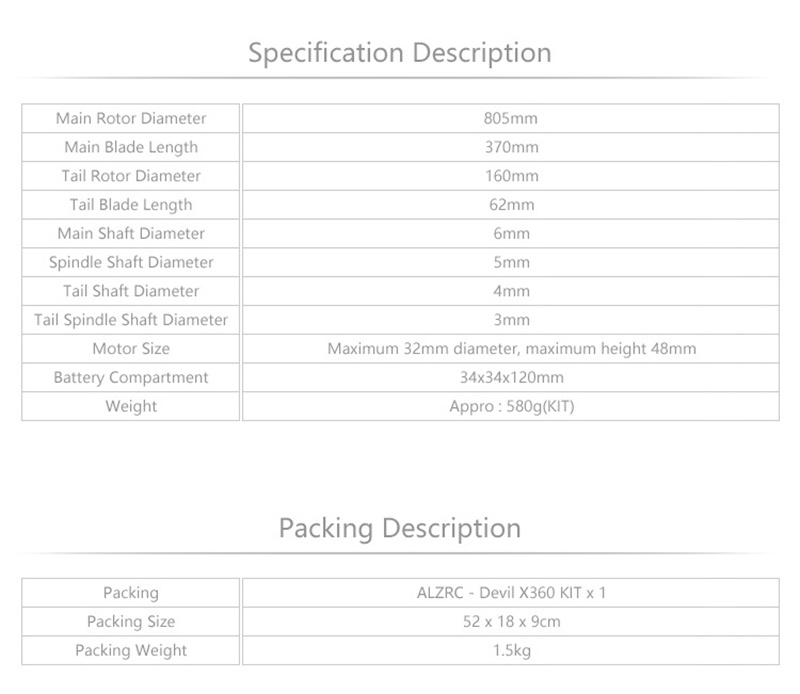

Specification
