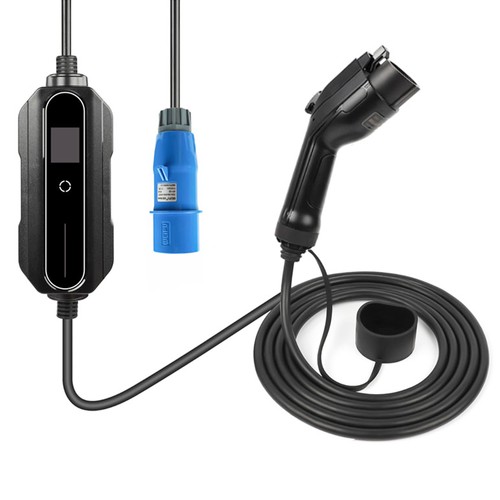

Compact Car Charger
The charge cable measures 5m from plug to plug. It is a compact portable EV charging station that is an ideal solution for low-cost charging in your garage or to keep in the trunk of your EV for charging at work or on trips.
Over Temperature Protection
When the internal temperature of the control box exceeds 85°C, enter over-temperature protection, and stop charging. It will recover charging after the temperature drops to 65°C.
Detailed LED Display
Easily read the charging temperature, current, time and power status in kWh on the convenient screen.
Our EV charger adopts High Strength ABS material, which has better quality and high durability. Our chargers have over-current protection, over-voltage protection, under-voltage protection, leakage protection, and overheating protection.
There are two different charging standards for EVs, Type 1 for US and Type 2 for EU. Please make sure you are choosing the correct charging plug for your EV.
|Specification||Service life: >10000 times
Insulation resistance: > 1000M ohm
Terminal temperature rise: <50K
Withstand voltage: 2000V
Contact impedance: 0.5mohm
Max Vibration resistance: Meet JDQ 53.3 requirements
Working temperature: -30°C ~+ 50°C
Shell Material: Thermo Plastic (Insulator inflammability UL94 V0)
Contact Pin: Copper alloy, silver
Sealing gasket: Rubber
Inlet cable spec: 3*2.5mm2
Outlet cable spec: 3*2.5mm2+2*0.5mm2
Cable diameter: 12(mm) / 0.47(in)
Certificate: TUV/ RoHs
Power plug: CEE 3Pins
EV charging plug: Type 2 or type 1
Current: 10A 16A 20A 24A 32A adjustable
Voltage: AC 110V-250V
Power: max 7.4 kw
Length: 5m (16.4ft)
Cable: Black straight cable
Controller type: LCD screen
Protection level: IP66
|Size||Product Size(L): 5m
Package Size(L x W x H): 34 x 35 x 12 cm
1 x Electric Car Charger
