Highlights
- Adjustable Power: 25mW/200mW/600mW
- 5.8G 40CH Tranmitter with Raceband
- 2 kinds of connector, the extend cord is 50mm long
- Indicator LED to show the frequency and power
Specification
General | |
---|---|
Type | Transmitter |

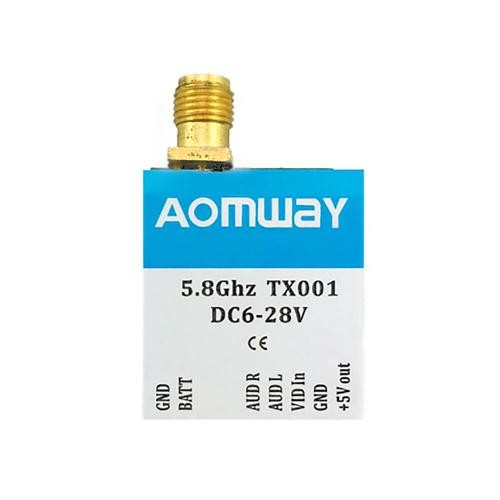

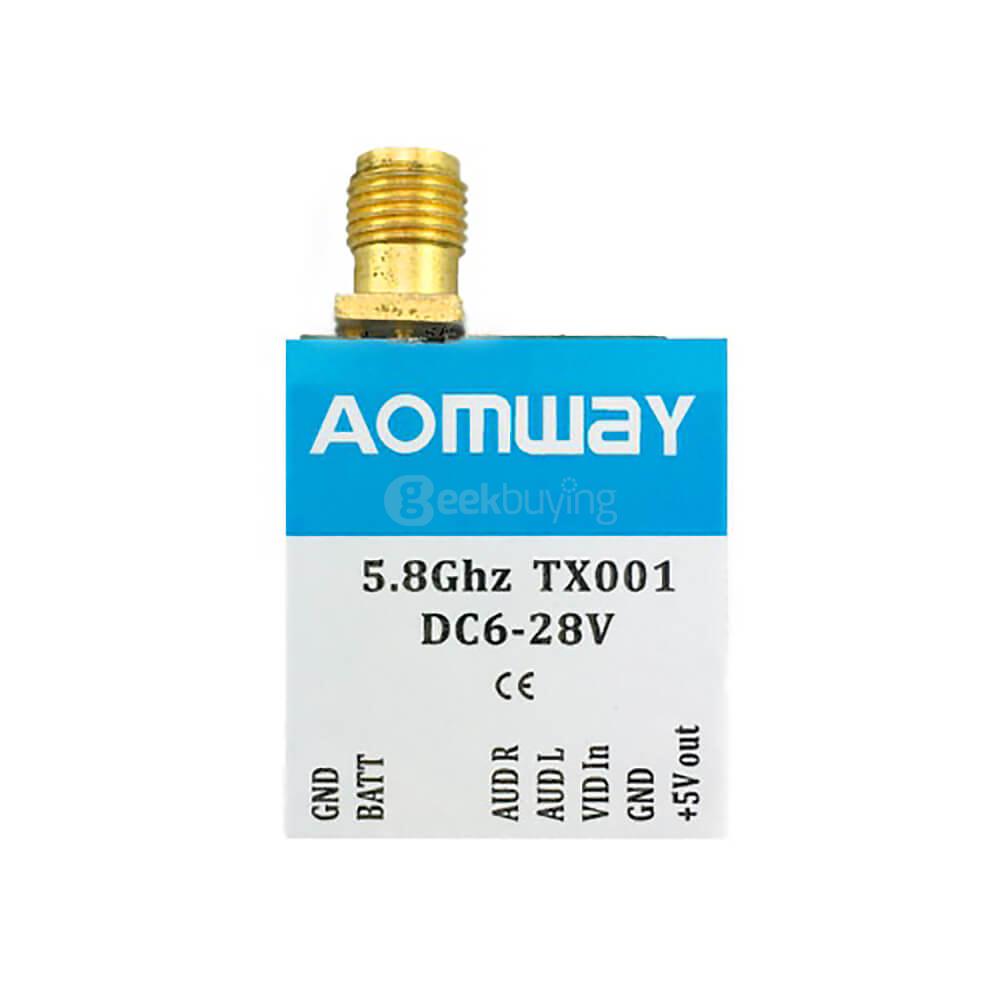

Model | Aomway TX001 |
Frequency | 5.8Ghz |
Power Adjustable | 5.8G Switchable 25mW/200mW/600mW |

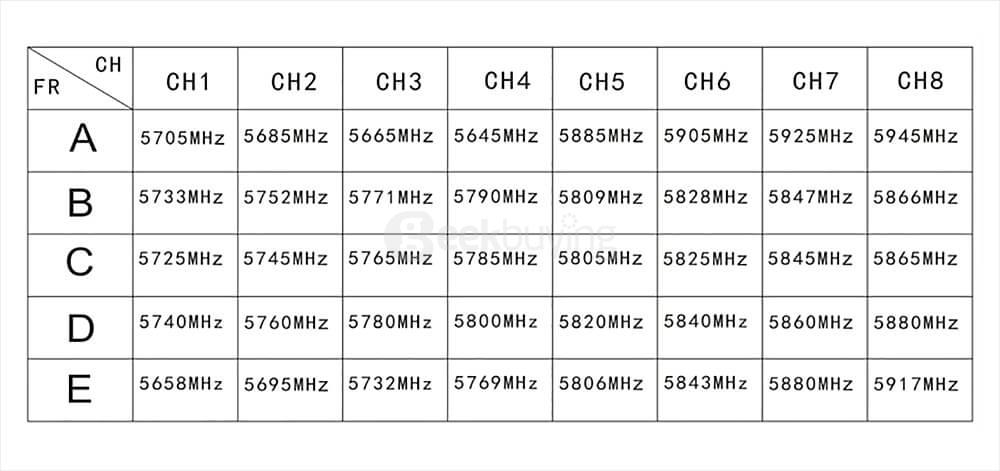

Channel | 40CH 5658-5945mhz (Raceband) |
Power | Wide Power Input: 6-28V Current: 12V/200mW/150mA |
Mic | Swithable, when open the Mic., it will occupy one audio channel |
Output Voltage | 4.9-5.1V for camera |
Audio | Stereo Output |
Format | Auto regonize NTSC/PAL |

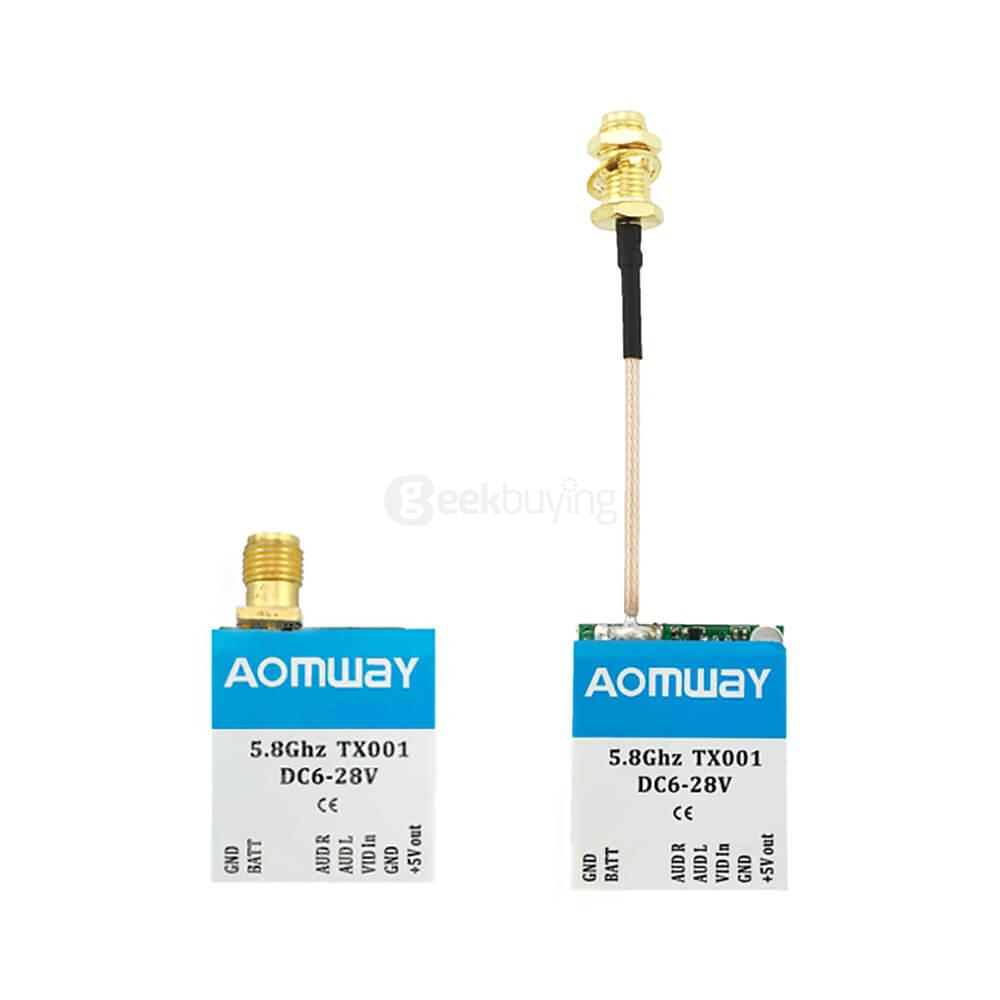

Connector | TX001A SMA short conenctor;TX001B 50mm SMA extend cord connector |

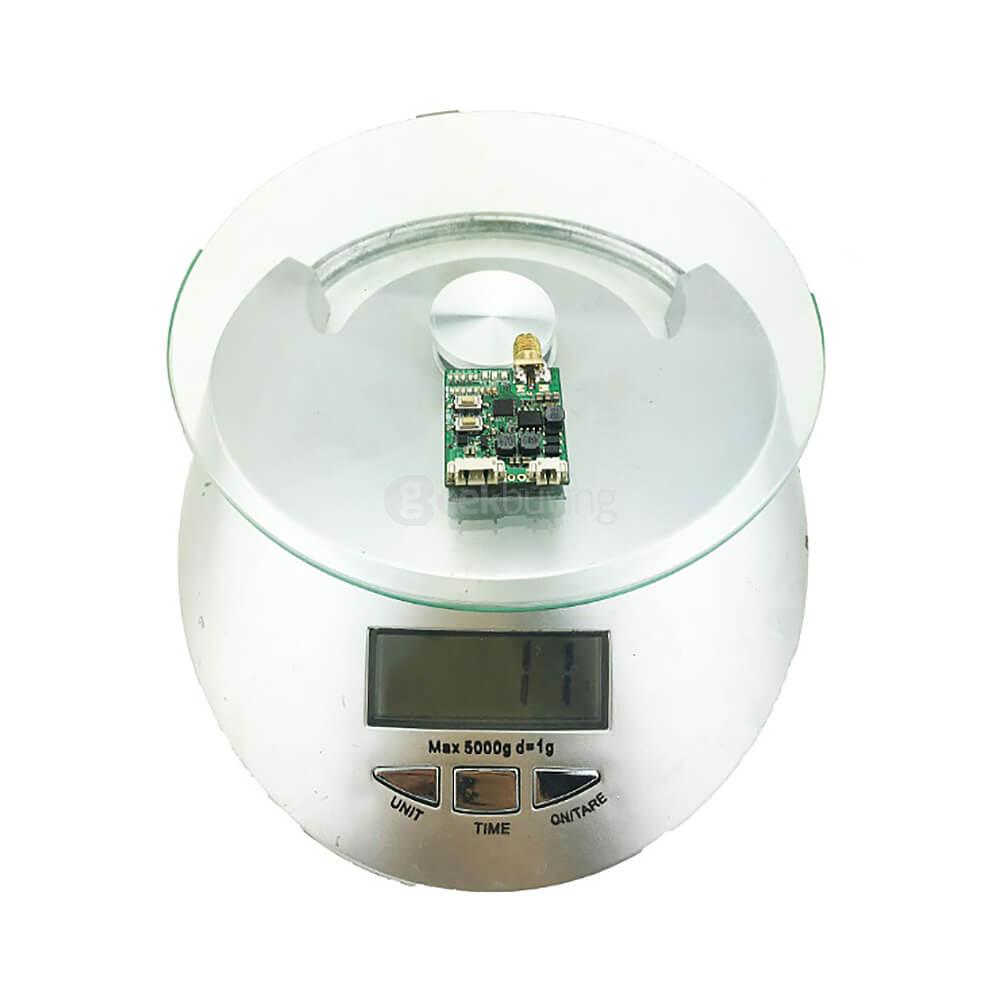

Dimension & Weight | Dimension: 29x25x10mm Weight(without antenna): TX001A: 11g;TX001B: 12g |
Package Contents | |
1 x TX | |
1 x Power Cable | |
1 x Signal Cable | |
1 x 5dB Antenna | |
1 x User Manual |
