Highlights

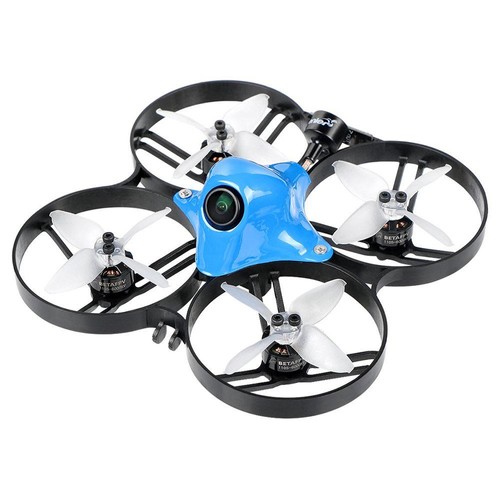

Beta85X pushes the new era of brushless whoop drones to a higher level. With the new power system, you could fly real acro even with a HD DVR camera in racing or freestyle.
High-performance Parts
It is equipped with the high- performance STM32F405 processor FC boards and tuned Betaflight Ominibus 3.5.0 firmware. This is also the first 2" BNF drone that come with BLHeli-32 ESC.
Durable Frame
Durable and light frame is customized for the Beta85X. Except the traditional carbon fiber frame, it also takes plastic frame.
Just Plug and Play
The whole drone needs no soldering or tinkering, including customized lightest 1105 6000KV motors with cable connectors. EMAX Avan 2" prop is the best combo in this Beta85X drone.
Battery
2-3S high rate battery is recommend by default. But pilots could also use their own batteries with battery strap.
Note:DO NOT FLY WITH 4S BATTERY. Only support 2-3S battery nowadays.
Specification
| General | Brand: BETAFPV Item No.: Beta85X Wheelbase: 85mm Weight: 58g (without Battery) Motors: 1105 6000KV with connector Props: EMAX Avan 2" 4-Blades Props Camera: Customized EOS2 Camera Receiver Option: Frsky / Flysky / DSMX 5.8G VTX antenna: Customized Lumenier AXII antenna Battery strap fit for micro 3S battery |
| F4 Flight Control | CPU: STM32F405 Six-Axis: MPU6000 Size: 26mm x 26mm, whoop mounting pattern Firmware version: Betaflight OMNIBUSF4SD (OBSD) 3.5.0 OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode) Smart Audio port is available for radio control VTX |

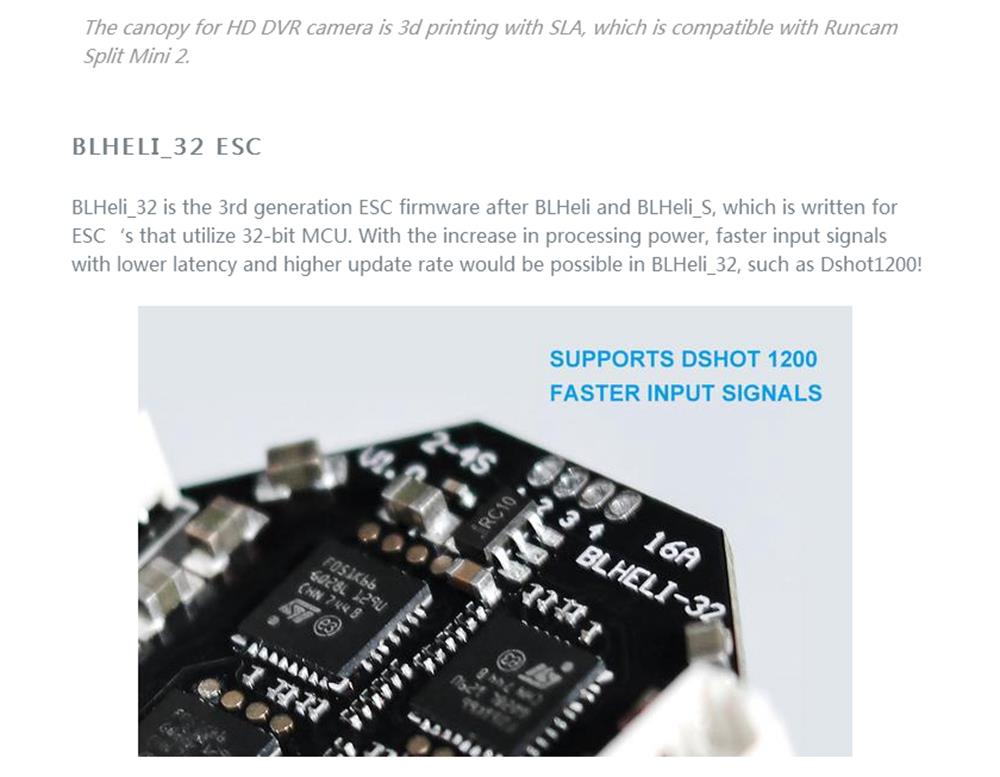

| ESC | MCU:STM32F051 Supports Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, Dshot1200 Input voltage: 2S-3S lipo Continue current: 16A Peak current: 25A BLHELI_32 Firmware target: BETAFPV-16A-32bit |

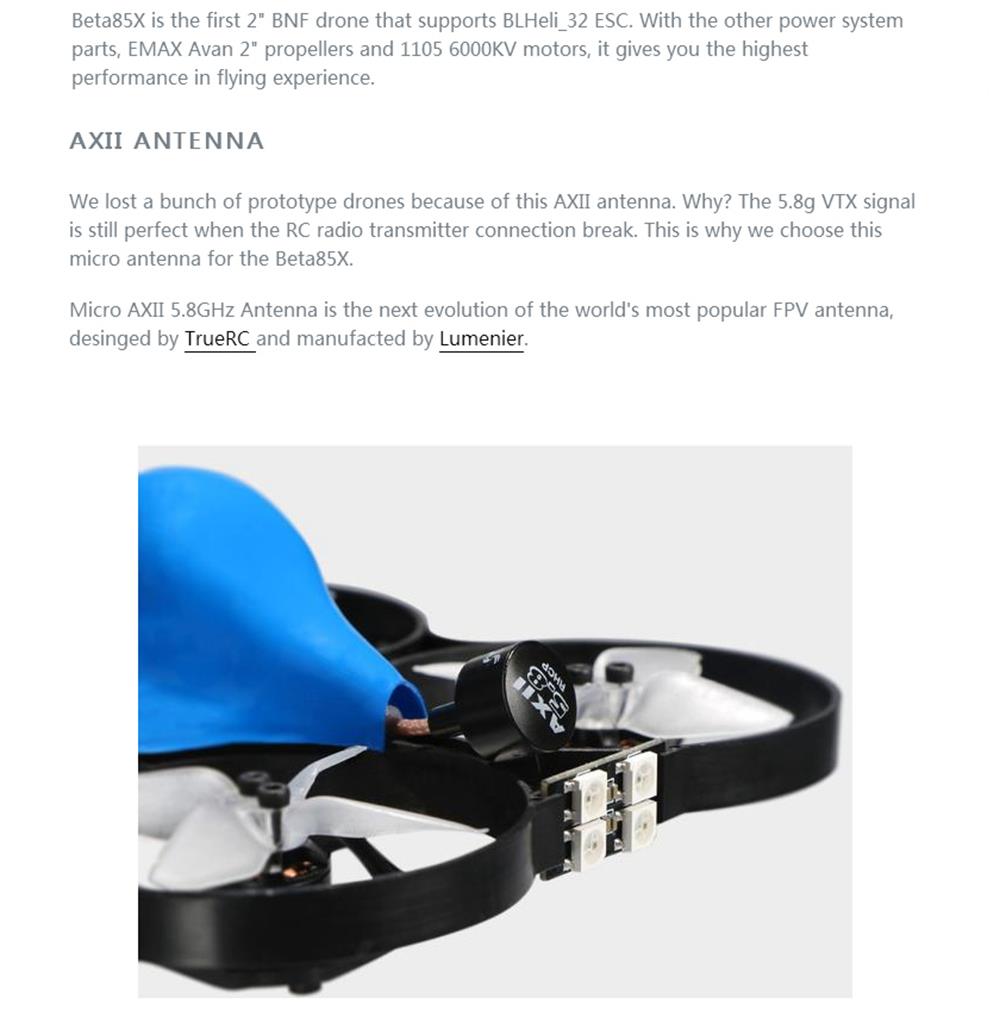

| FPV Camera and VTX | Output power: 0mW, 25mW and 200mW (Adjustable) Smart Audio function is included for radio control Antenna: Customized Lumenier AXII antenna Frequency: 5.8GHz 6 bands 48 channels, with Raceband: 5362~5945MHz Customized EOS2 FPV camera TV System: NTSC Field of view: 100-120 degrees with 1/3 lens |
| Package Contents | 1 x Beta85X BNF 2S Whoop Quadcopter 4 x Spare EMAX Avan 2" props (2CW+2CCW) 1 x Spare Canopy |
