Highlights

Neat structure and good heat dissipation with 3 PCB boards of flight controller, 4-in-1 ESC and video transmitter at the center

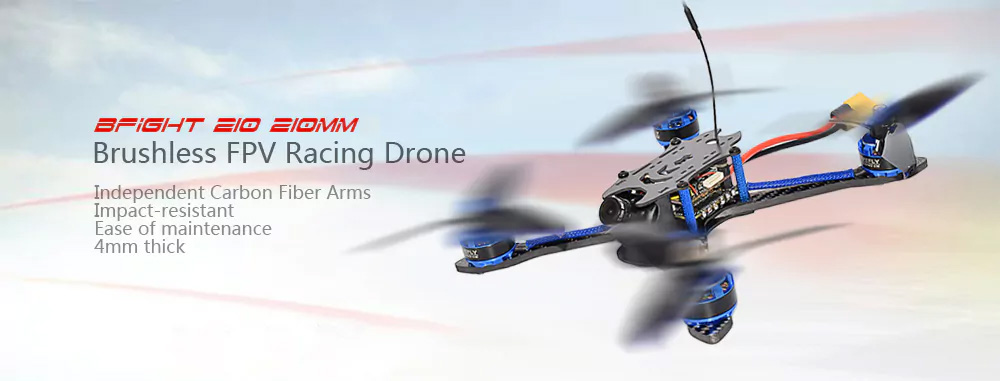

4mm ultra thick 3K carbon fiber chassis consists of 4 independent arms, which increases the ease of maintenance

4-in-1 BLHeli - S 30A ESC supports Oneshot, Multishot, the latest DShot digital signals as well as firmware updates

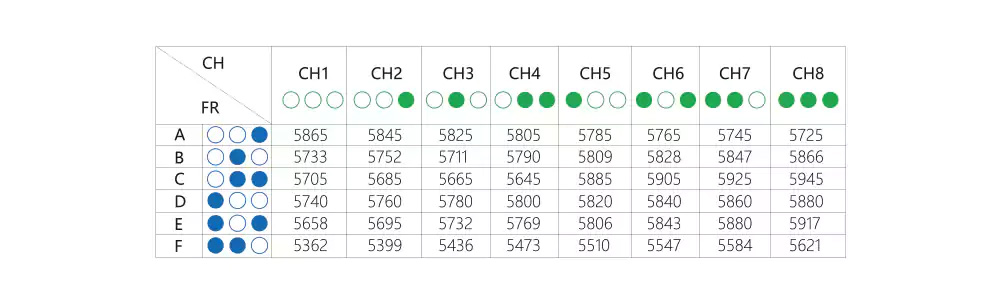

5.8G 40CH real-time FPV, with MICRON CCD camera, 1km image transmission range, remotely adjustment of frequency / band ( receiver SBUS support required )

BFight 210 Brushless FPV Racing Drone 5.8G 40CH Omnibus F3 Pro OSD 30A BLHeli_S DSM2/DSMX Receiver - BNF

Specification

General

Item Name: BFight 210
Wheelbase: 210mm
Size: 17.8 x 17.8 x 38cm (Not Including Propellers)
Weight: 267g
Frame Material: 3K Carbon Fiber
Bottom Plate Thickness: 4mm
Top Plate Thickness: 1.5mm
Flight Controller: OMNIBUS F3 Pro With OSD
Brushless Motor: F2205 2300KV
Brushless ESC: 4 In 1 BLHeli_S 30A
Propeller: Gemfan 5152 3-Blade
Camera: HS1177, 650TVL(Black And White ),600TVL(Color)
Image Sensor: 1/3 Inch Super HAD II CCD
Video Transmitter: 5.8G 40CH 25mW / 200mW
Power Supply: 11.1-14.8V (3-4S Li-Po)
Package Size: 26 x 20 x 7cm
Package weight: 0.49kg

Product Details

OMNIBUS F3 Pro Flight Controller
Processor: STM32F303 MCU
IMU: MPU6000 SPI
Barometer: BMP280
Integrated BEC: Yes
Supported Micro SD Card: Up To 32GB

4 In 1 BLHeli_S 30A ESC
Main Processor: EFM8BB2F16G
Driver: FD6288 MOSFET
Upgradable: Yes
Continuous Current: 4 X 30A
Burst Current: 4 X 35A

Camera
Image Sensor: 1/2.7 Inch CCD
Resolution: D1,960H
Lens: 2.5mm
TV System: PAL/NTSC (Adjustable Via OSD)
Min. Illumination: 0.001Lux
Power Supply: 5-17V DC

Motor
Model: F2205
Motor Type: Brushless Motor
KV: 2300

Package Contents

1 x BFight 210 Frame Kit
1 x Flight Controller
1 x 4 In 1 BLHeli_S 30A ESC
1 x 40CH Transmission
4 x 2205 2300kv Brushless Motor
4 x 3-Blade Propeller(2 X CW 2 X CCW,random color)
1 x HS1177 Camera
1 x DSM2/DSMX Receiver
