Highlights
- 25KHz/12.5KHz Switchable
- FM Radio (65.0MHz-108.0MHz)
- Large LCD Display
- LED Flashlight
- Hight /Low RF Power Switchable
- Voice companding
- 50 CTCSS/ 104DCS coder & tone searching
- Dual standby
- PC programmable
- Wide/Narrow Band(25kHz/12.5kHz)
- Transmitter time-out timer(TOT)
- Busy channel lock-out(BCLO)
- Range of application: 5-10 km in open terrain
Specification
Frequency Range | 65-108MHz(FM Receive only),136-174MHZ and 400-520MHZ (TX/RX) |
Channel No | 128 |
Frequency Stability | ±2.5ppm |
Antenna | High gain DualBand antenna |
Antenna Impedance | 50Ω |
Operating Voltage | DC 7.4V |
Mode of operation | Simple or semi-duplex |
Antenna | SMA -Female |
Earpiece / mic type | Kenwood Plug type |
Dimension(W x H x D) | 132 x 60 x 35 mm (not included antenna) |
Weight | 238g(including battery, antenna) |
Power adapter | Input: AC100-240V, 50-60Hz;Output: DC10V/500mA; |
Plug Type | US |
Transmitter | |
Output power | 5W / 1W (Max 5W) |
Modulation Mode | 16kΦF3E / 11kΦF3E |
Maximum deviation | 5kHz(Wide) / 2.5kHz(Narrow) |
Spurious Radiation | 7μW |
Adjacent Ch. power | ≤-65dB(Wide) / ≤-60dB(Narrow) |
Pre-emphasis characteristics | 6dB |
Current | ≤1.6A(5W) |
CTCSS/DCS deviation | 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow) |
Intermediation sensitivity | 8-12mv |
Intermediation distortion | ≤10% |

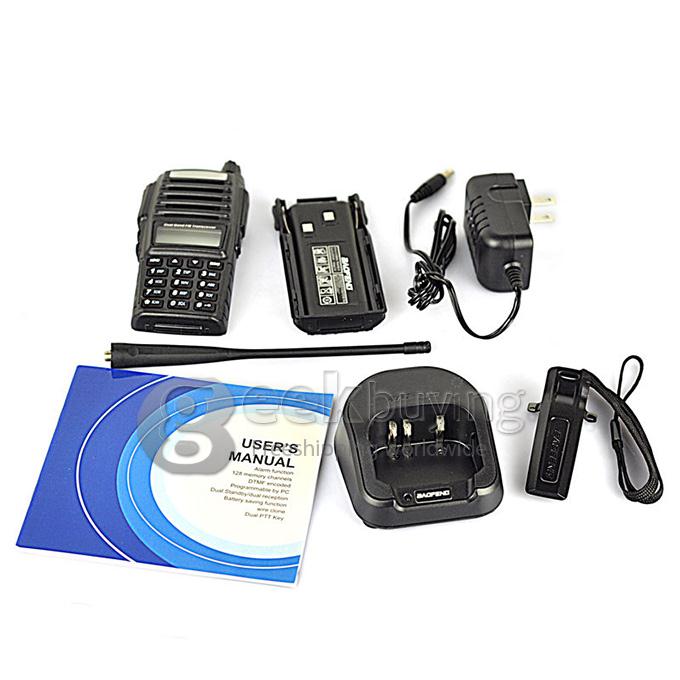

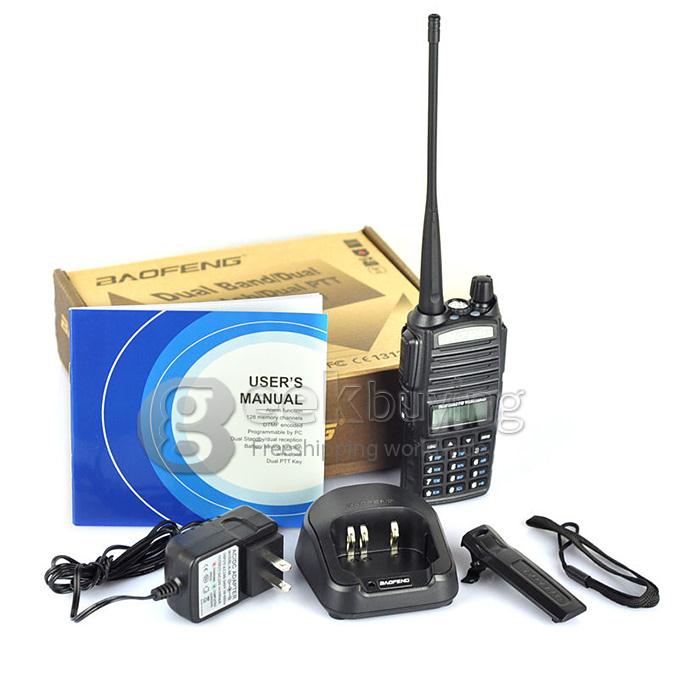

What's in the box?

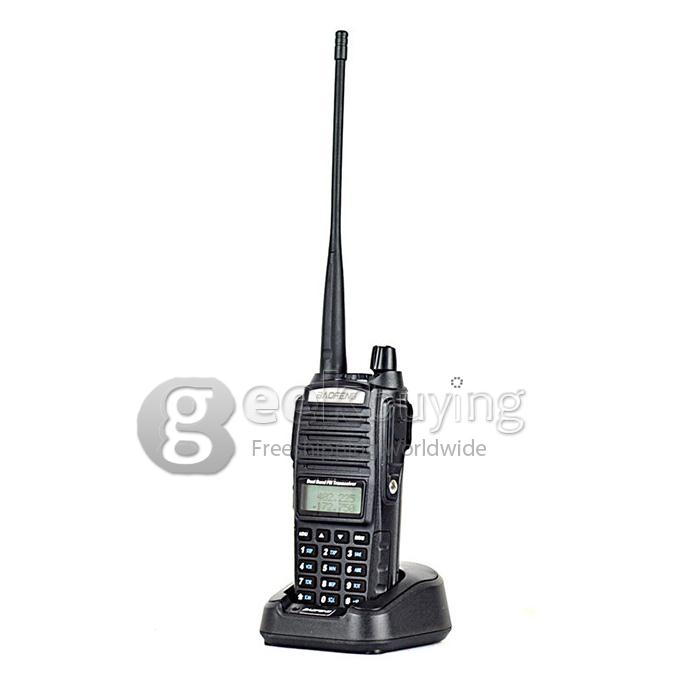

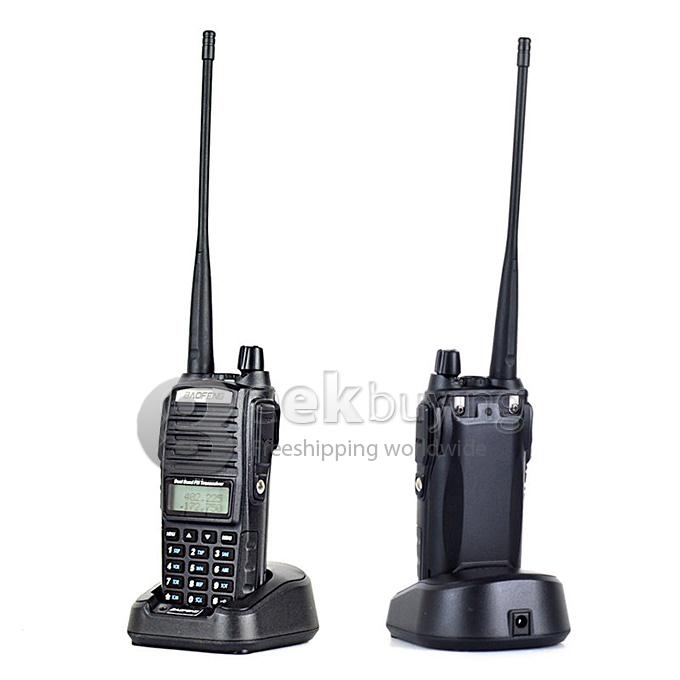

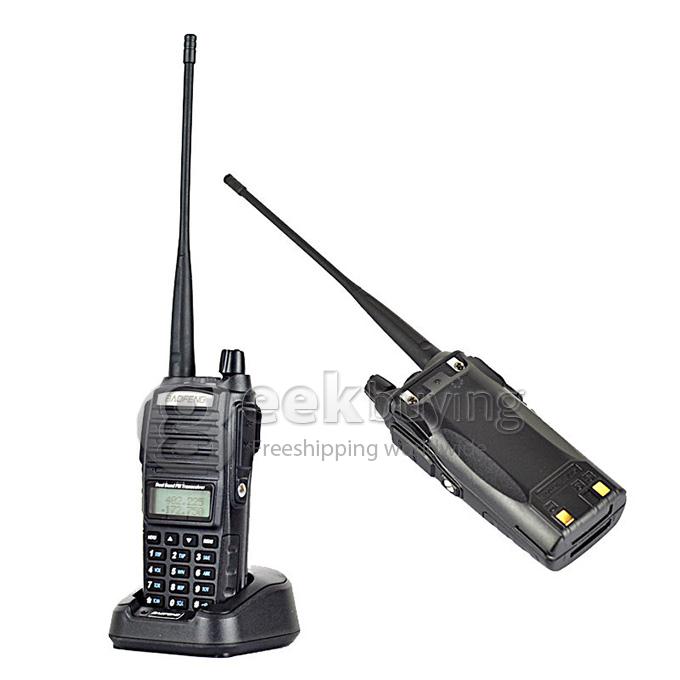

- 1 x BAOFENG UV-82 Dual Band FM Transceiver
- 1 x 7.4V/1800mAh BL-8 Battery
- 1 x Antenna
- 1 x Power Adapter(US Plug)
- 1 x Belt Clip
- 1 x Hand Strap
- 1 x Battery Charger
- 1 x User Manual
