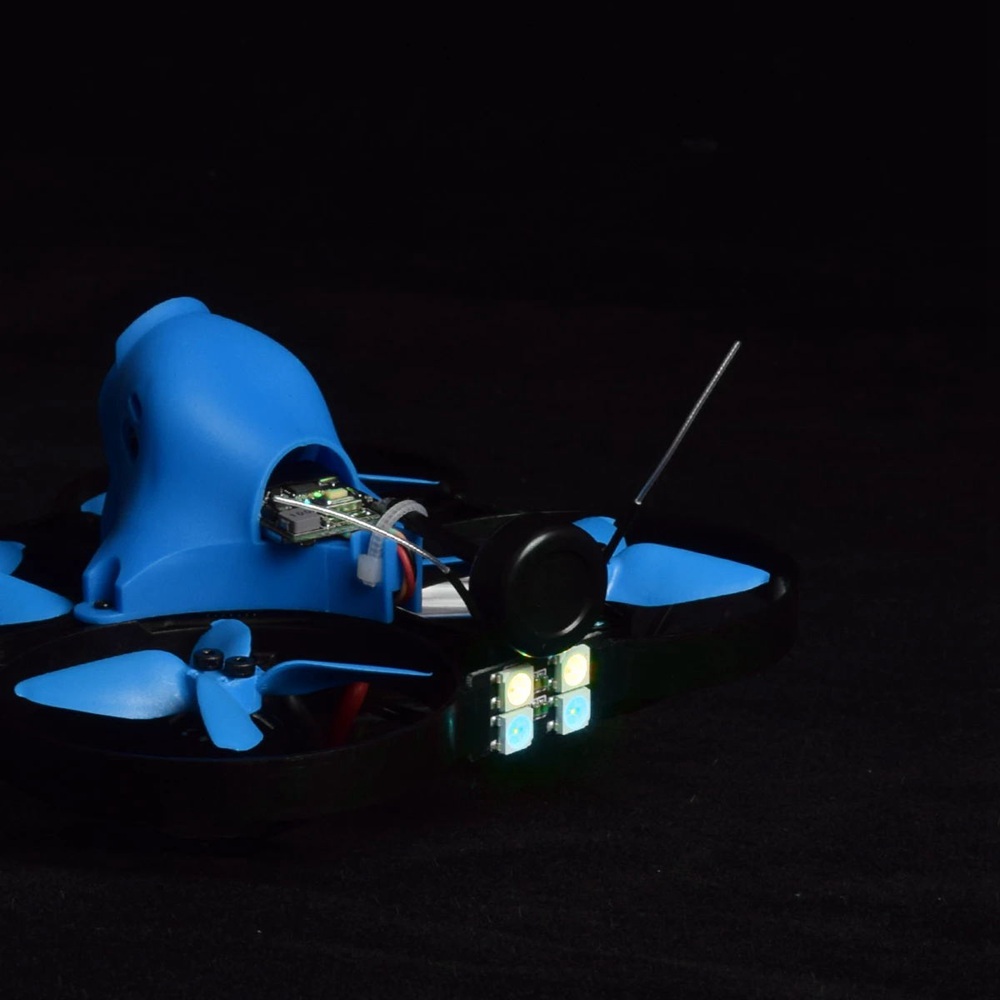

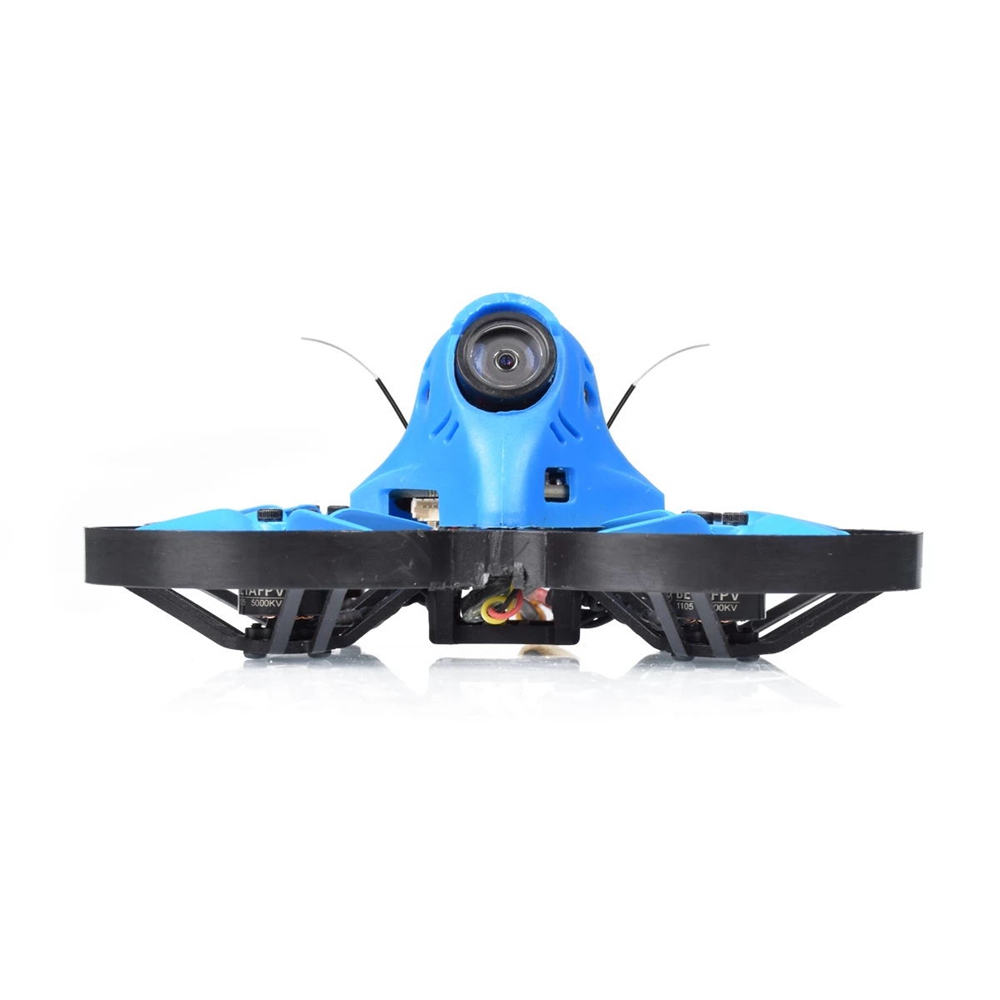

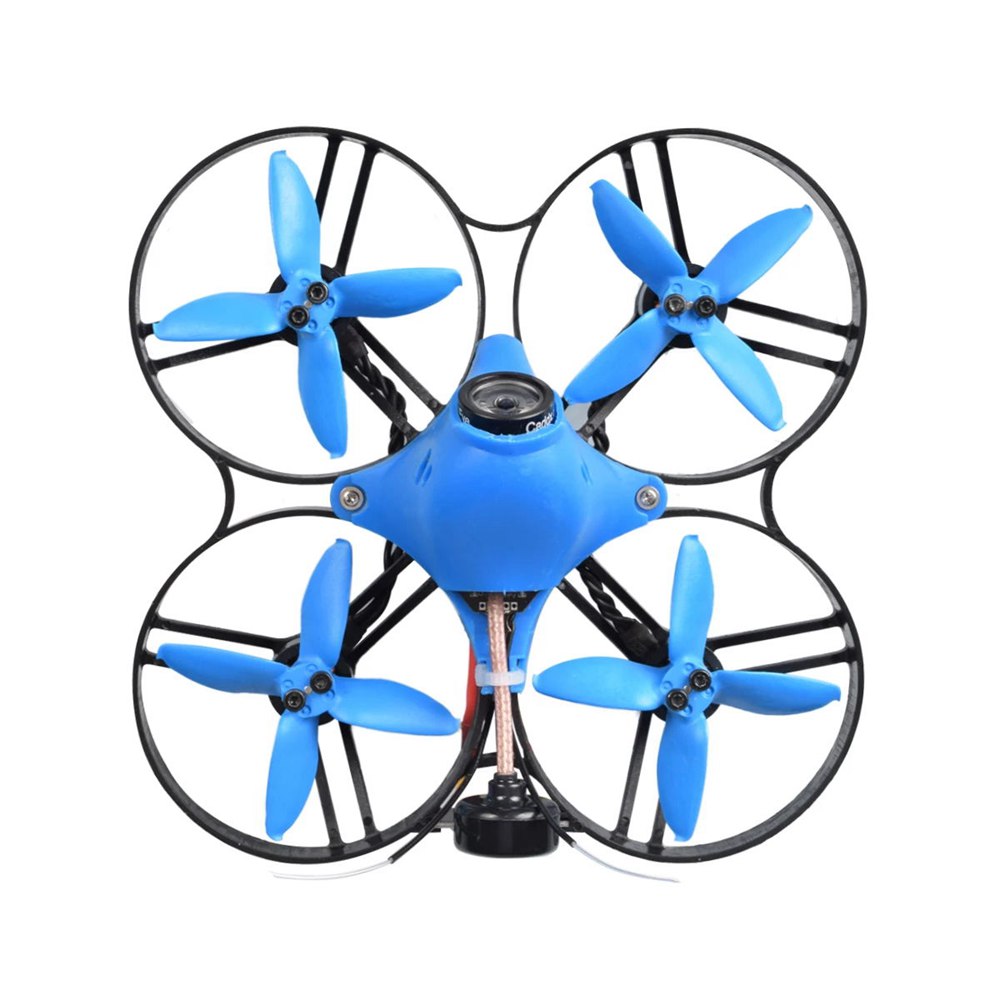

BetaFPV Beta85X HD 4S CineWhoop FPV Racing Drone With AIO F4 V2 OSD 16A BLHeli_32 Caddx Turtle V2 Cam - Frsky LBT Receiver

General

Brand: BetaFPV
Item No.: Beta85X HD 4S
Version: BNF

Specification

Wheelbase: 85mm
Weight: 80g (without battery)
Motors: 1105 5000KV with connector
Props: EMAX Avan 2" 4-Blades Props
Receiver: Frsky XM+
5.8G FPV Antenna
Battery strap fits for micro 2S-4S battery
Flight time: 4min - 6min with 450mAh 4S battery (smooth flight in a windless environment)

F4 V2 4S Flight Control

CPU: STM32F405
Six-Axis: MPU6000
Size: 26mm x 26mm, whoop mounting pattern
Firmware version: Betaflight OMNIBUSF4SD(OBSD)
OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)

BLHeli_32 ESC

Support BLHELI_32
Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, Dshot1200
Input voltage: 3-4S lipo
Cotinue current: 16A
Peak current: 19A
Firmware target: BETAFPV-16A-32bit
MCU: STM32F051K66

HD Camera and Z02 VTX

Output power: 25mW and 200mW (Adjustable)
Smart Audio function is included for radio control
Antenna: Customized ZRC antenna
Frequency: 5.8GHz 6 bands 48 channels, with Raceband: 5362~5945MHz
Caddx Turtle V2 Camera
TV System: NTSC
Field of view: 100-120 degrees with 1/3 lens

Recommended Battery:

Battery: 4S 450mAh Battery (Not included)

Weight & Dimensions

Package weight: 0.26kg
Package size (L x W x H): 20 X 13 X 6cm

Package Contents

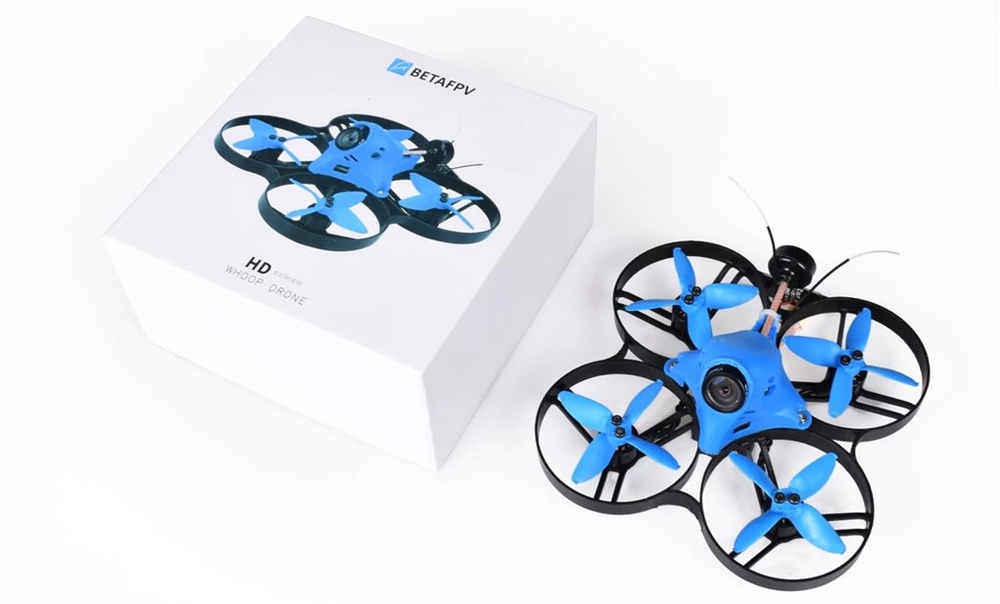

1 X Beta85X HD Whoop Quadcopter(4S)
1 X OSD Menu Board
