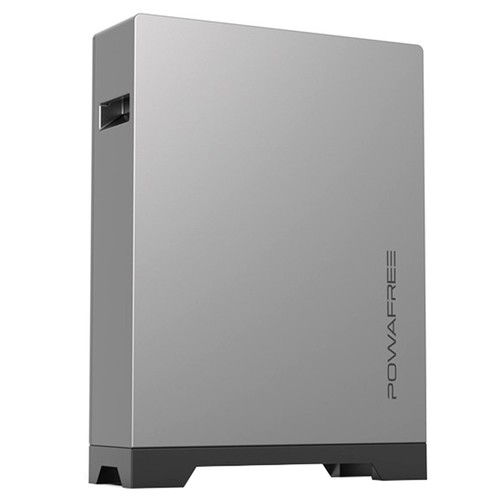

BigBlue POWAFREE H1 Wall Solar Power Storage for Balcony, 2560Wh Battery Storage, IP67 Waterproof, 3 MPPT Tracers with 800W Solar Input, Plug & Play, Smart App Control

Ship to:
United States
Select the desired shipping method
Shipping Company Estimated Delivery Time Shipping Cost
*Please note: the shipping costs are only estimates; the actual shipping price will be shown on the order page.
0 item(s) added
View CartContinue Shopping

Highlights

Trio-integrated MPPT And 2560Wh LiFePO4 Memory

2 modules with solar power up to 800Wp can be connected. The storage capacity is perfectly chosen for a central balcony with two solar panels, which makes the ideal complement to the 600/800 W microwave ovens.

Easy Connection To the Energy Memory

Easy Plug & Play photovoltaic system with battery storage for charging, so you have your own electricity produced in a few minutes. No professional is necessary for installation.

Charge At Low Temperatures To Zero

Makes some of the first batteries in the world work even at negative temperatures. Down to -20 °C, the winter sun can cool down. BigBlue POWAFREE is a completely solid storage solution. The protection of the PV controller is IP67 and the battery cell is IP65; it is resistant to the elements and dust, so you can also use it without any problems on the balcony or in the garden.

Easy Control Via Wi-Fi And Application

Advanced functions, commands and information on the BigBlue device, such as panel productivity, storage capacity and generated value, can be consulted in real time via the BigBlue customized application.

Universal Compatibility

BigBlue POWAFREE integrates perfectly into all current microwave ovens and also guarantees compatibility with your existing solar equipment. For example: APsystems, Envertech, Deye, Enphase and Tsun.

BigBlue POWAFREE H1 Wall Solar Power Storage for Balcony, 2560Wh Battery Storage, IP67 Waterproof, 3 MPPT Tracers with 800W Solar Input, Plug & Play, Smart App ControlBigBlue POWAFREE H1 Wall Solar Power Storage for Balcony, 2560Wh Battery Storage, IP67 Waterproof, 3 MPPT Tracers with 800W Solar Input, Plug & Play, Smart App ControlBigBlue POWAFREE H1 Wall Solar Power Storage for Balcony, 2560Wh Battery Storage, IP67 Waterproof, 3 MPPT Tracers with 800W Solar Input, Plug & Play, Smart App ControlBigBlue POWAFREE H1 Wall Solar Power Storage for Balcony, 2560Wh Battery Storage, IP67 Waterproof, 3 MPPT Tracers with 800W Solar Input, Plug & Play, Smart App ControlBigBlue POWAFREE H1 Wall Solar Power Storage for Balcony, 2560Wh Battery Storage, IP67 Waterproof, 3 MPPT Tracers with 800W Solar Input, Plug & Play, Smart App ControlBigBlue POWAFREE H1 Wall Solar Power Storage for Balcony, 2560Wh Battery Storage, IP67 Waterproof, 3 MPPT Tracers with 800W Solar Input, Plug & Play, Smart App ControlBigBlue POWAFREE H1 Wall Solar Power Storage for Balcony, 2560Wh Battery Storage, IP67 Waterproof, 3 MPPT Tracers with 800W Solar Input, Plug & Play, Smart App ControlBigBlue POWAFREE H1 Wall Solar Power Storage for Balcony, 2560Wh Battery Storage, IP67 Waterproof, 3 MPPT Tracers with 800W Solar Input, Plug & Play, Smart App ControlBigBlue POWAFREE H1 Wall Solar Power Storage for Balcony, 2560Wh Battery Storage, IP67 Waterproof, 3 MPPT Tracers with 800W Solar Input, Plug & Play, Smart App ControlBigBlue POWAFREE H1 Wall Solar Power Storage for Balcony, 2560Wh Battery Storage, IP67 Waterproof, 3 MPPT Tracers with 800W Solar Input, Plug & Play, Smart App ControlBigBlue POWAFREE H1 Wall Solar Power Storage for Balcony, 2560Wh Battery Storage, IP67 Waterproof, 3 MPPT Tracers with 800W Solar Input, Plug & Play, Smart App ControlBigBlue POWAFREE H1 Wall Solar Power Storage for Balcony, 2560Wh Battery Storage, IP67 Waterproof, 3 MPPT Tracers with 800W Solar Input, Plug & Play, Smart App ControlBigBlue POWAFREE H1 Wall Solar Power Storage for Balcony, 2560Wh Battery Storage, IP67 Waterproof, 3 MPPT Tracers with 800W Solar Input, Plug & Play, Smart App ControlBigBlue POWAFREE H1 Wall Solar Power Storage for Balcony, 2560Wh Battery Storage, IP67 Waterproof, 3 MPPT Tracers with 800W Solar Input, Plug & Play, Smart App Control

Specification

General Brand: BigBlue
Type: Storage System
Model: H1
Color: Metal Gray
Specification

PV Route: R800
Protection Level: IP67
Performance Warranty: 10 years
Rated PV Input Power: 100 - 400W per channel (total two channels)
PV Input DC Voltage: 12 - 65V
MPPT Voltage: 60V
Maximum PV Input Current: 15A
Number of MPPT: 3 (2 @input, 1 @output)
Connector: MC4
Wireless Type: Bluetooth 5.0 & Wi-Fi 2.4GHz
To Micro inverter Output Power: 800W (max)
To Micro inverter Maximum Output Voltage: 55V
To Micro inverter Maximum Output Current: 18A
To Micro inverter Connector: MC4

Storage Battery System: Cell Pack 2500
Capacity: 2560Wh
Battery Type: LiFePO4
Housing Material: Zinc alloy
Input Power: 800W
Input Current: 20A
Voltage Range: 44V - 58.4V
Output Power: 800W
Output Current: 20A
Nominal Voltage: 44V - 58.4V

Weight & Size

PV Route R800 Product Weight: 3.3kg
PV Route R800 Package Weight: 4.5kg
PV Route R800 Product Size(L x W x H): 326.7x199x43.4mm
PV Route R800 Package Size(L x W x H): 447x210x153mm

Storage Battery Cell Pack 2500 Product Weight:  29.75kg
Storage Battery Cell Pack 2500 Package Weight: 33.2kg
Storage Battery Cell Pack 2500 Package Size(L x W x H): 440x140x565mm
Storage Battery Cell Pack 2500 Product Size(L x W x H): 657x529x245mm

Package Contents 1 x PV-Route 800 PV-controller
1 x Cell-Pack 2500 Solar Battery
1 x Battery Cable (150cm)
2 x MC4 Y-connector Microinverter Cables (60cm)
4 x MC4-to-MC4 Solar Extension Cables (300cm)
4 x Mounting Screws (K4 x 30mm)
1 x Wall-mounted Board
1 x MC4 Spanner (to unlock the solar extension cables)
1 x User Manual
1 x Drilling Sticker
