Highlights

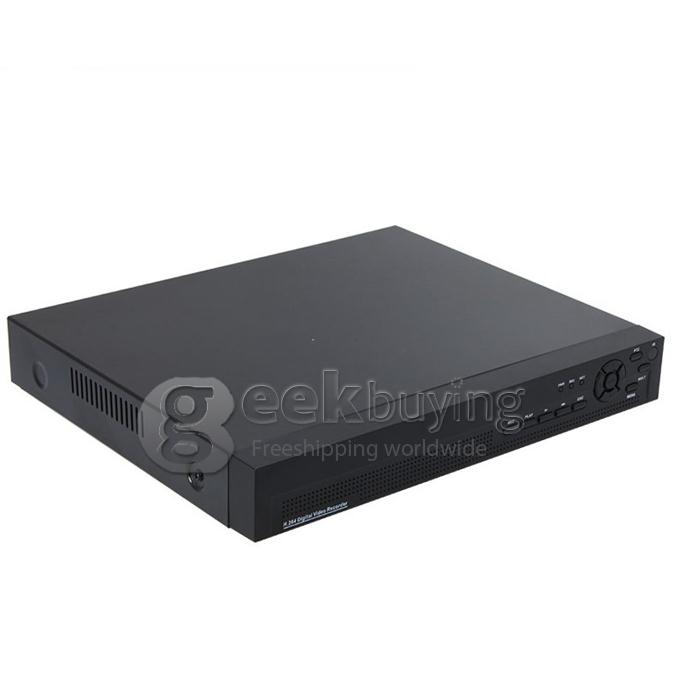

- Features of DVR:
- Based on the H.264 Compression format, longer recording time, taking up less bandwidth resources.
- Embeded Linux operating system, stable performance.
- Dual-stream design, network remote view effects and local recording effects parameters can be set separately.
- Advanced motion detection recording, saving hard drive space without missing important events.
- Scheduled recording options: to choose the specific days of the week and hours of the day you would like your DVR to record or not record. Each individual camera can be set with its own personalized schedule.
- The built-in USB port gives you the option of backing up and transferring your video footage with USB devices.

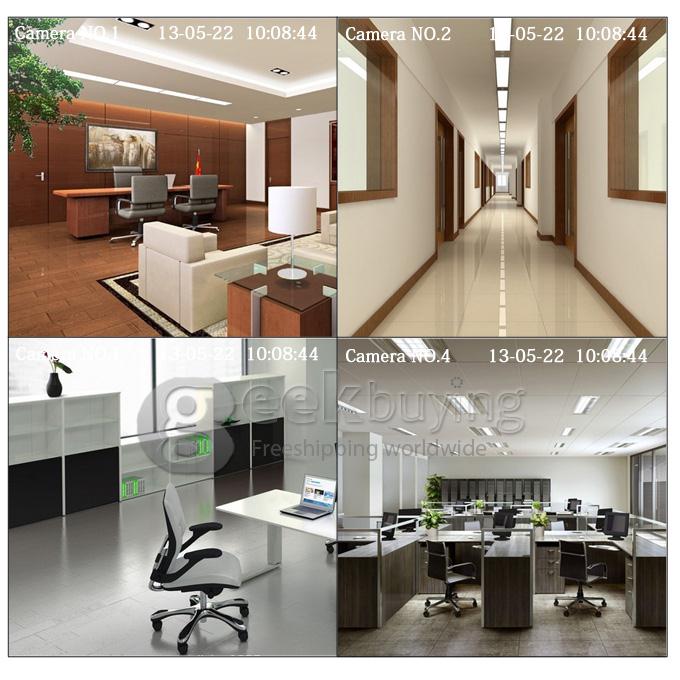

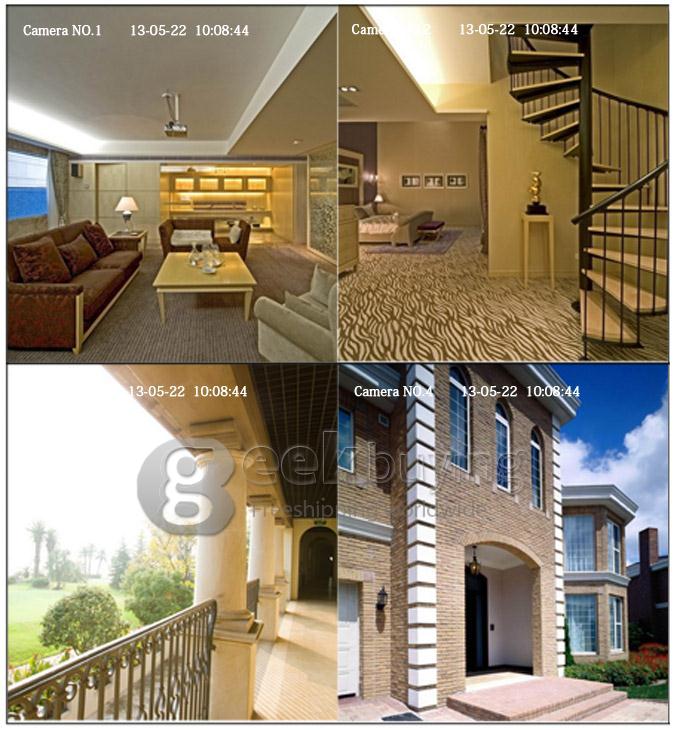

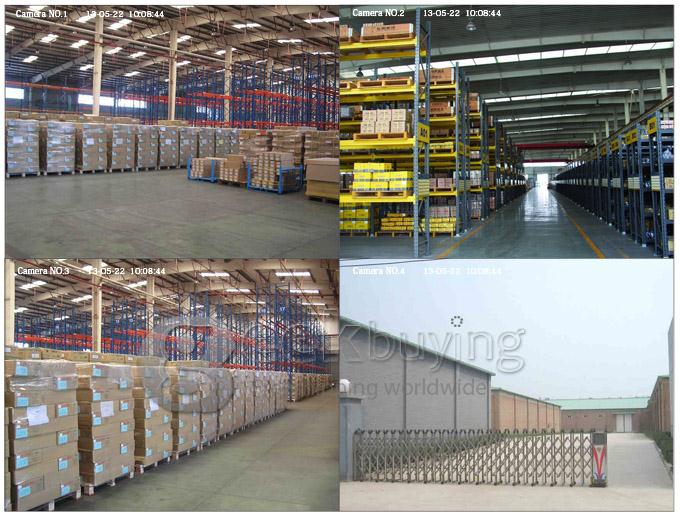

- Multiplex operation simultaneously: Preview, recording, playback, backup, network live, mobile phone view.
- Supports Multiple channel playback (8CH playback simultaneously, each channel can enlarge to full screen).
- Recording playback support: Normal play, Speed play, Fast back play, Manual single-frame slow play.
- Support Live View with IE & Mobile Phones (Windows, Symbian, iPhone, Blackberry, Android), allowing you to view your footage, no matter the time or location.
- Support PTZ via RS485 Port.
- System auto recovery to power after power reconnected, and return to the pre-power-down state.

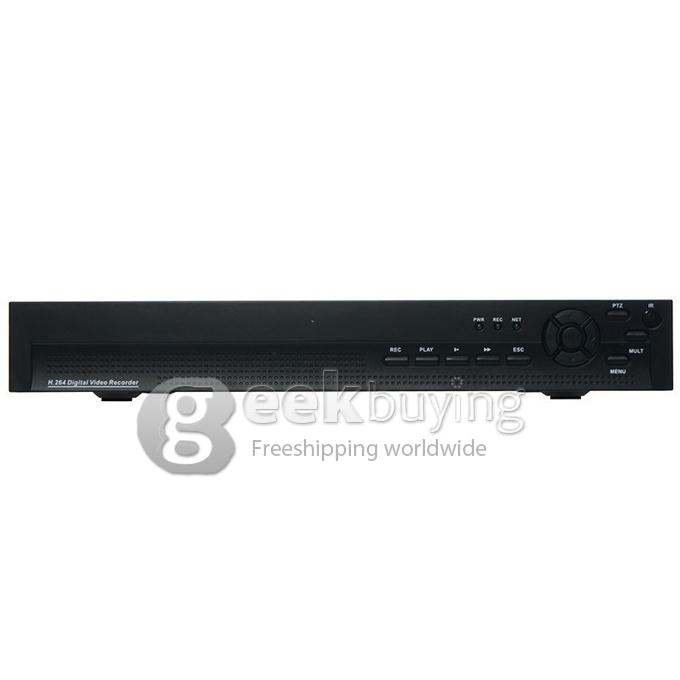

- Multiple control methods: front panel, IR remote controller and USB mouse.
- All-in-one Kit, convenient for users.

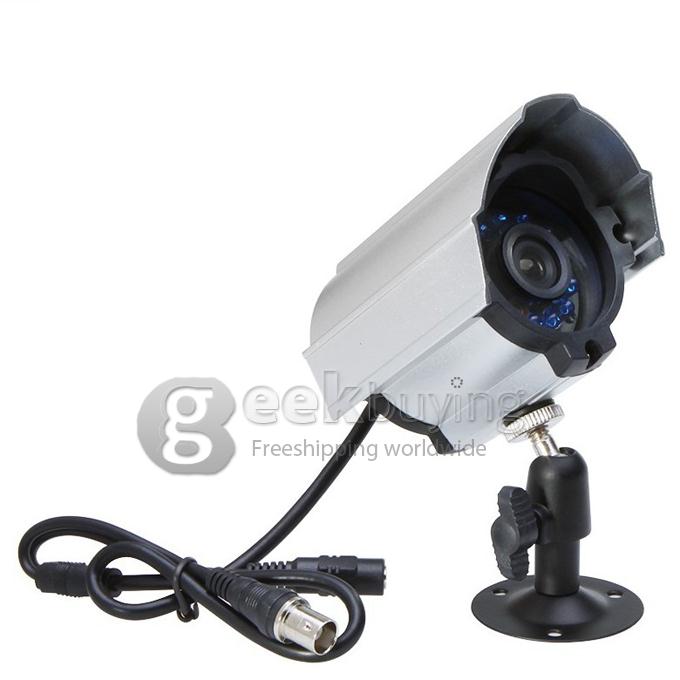

- Features of cameras:
- With a 3.6mm super wide angle lens, protecting larger areas such as driveways, entrances, warehouses, parking lots, etc.

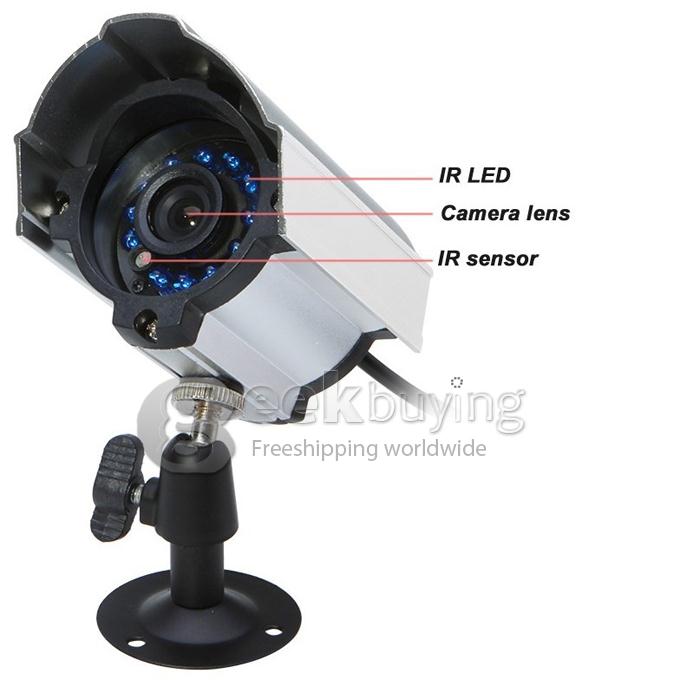

- Powerful 12 LED for day and night surveillance by activating automatically when it becomes dark and deactivating during the day to save energy.
- IR distance 20M, high intensity infrared night vision illuminators.
- 420TVL high resolution, high quality image.
- Adopts professional grade materials for the housing and a sunshade to help prevent glare, deterioration, and rusting, making it can be mounted in any indoor or outdoor setting.

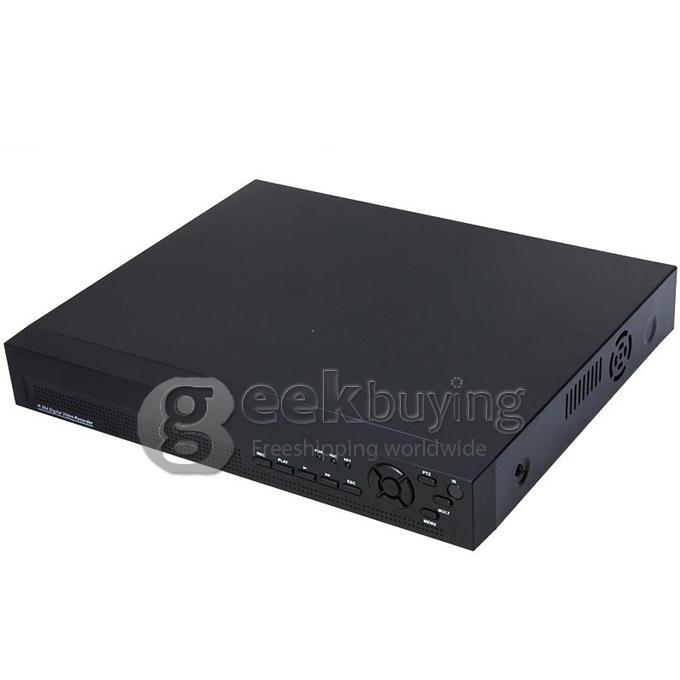

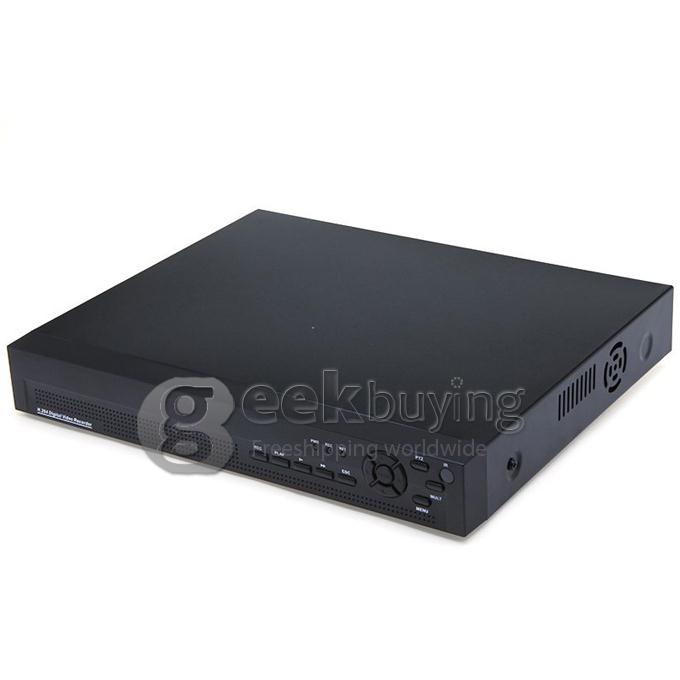

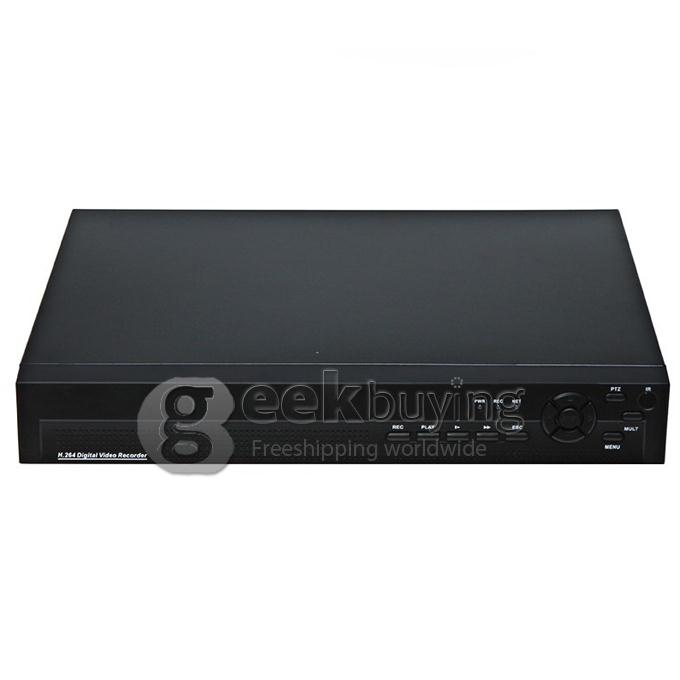

| Specifications of DVR: | |
| Video Compression | H.264 |
| Video System | NTSC / PAL |
| Operation System | Linux Based |

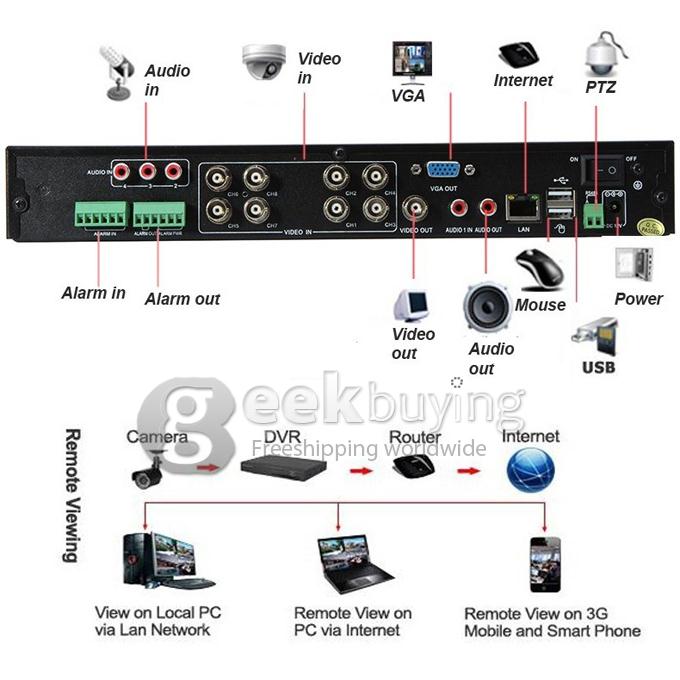

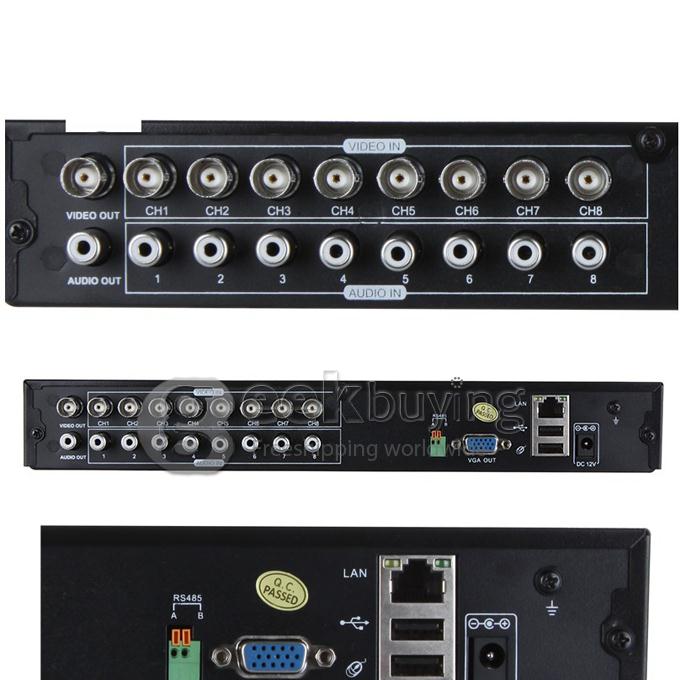

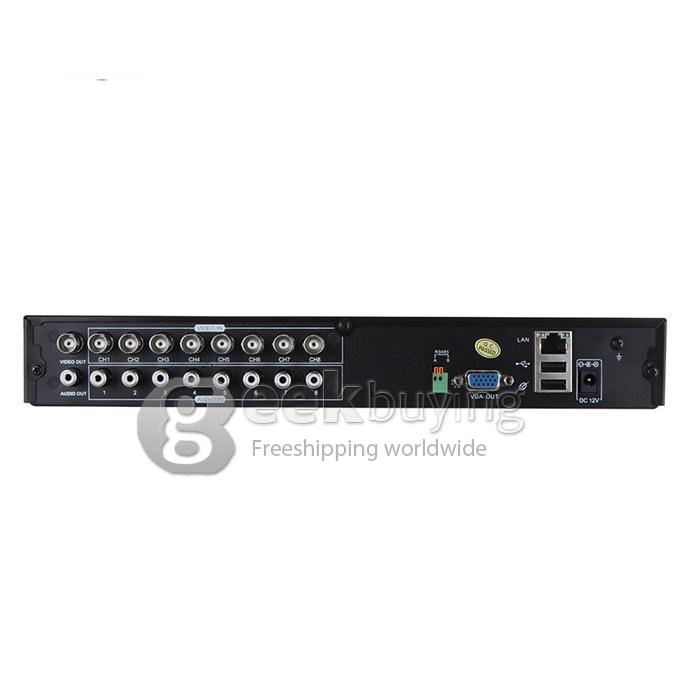

| Video Input / Output | BNC 8-Channel Input / 1-Channel Output |
| Other Video Output | VGA |
| Audio Input / Output | RCA 4-Channel Input / RCA 1-Channel Output |
| Display Frame Rate | NTSC: 240fps@D1/ PAL: 200fps@D1 |
| Display Resolution | NTSC: D1 (704 x 480)/ PAL: D1 (704 x 576) |
| Recording Frame Rate | NTSC: 56 fps @ D1 /120 fps @ HD1 / 240 fps @ CIF/PAL: 48 fps @ D1 /100 fps @ HD1/ 200 fps @ CIF |
| Record Resolution | Selectable: NTSC: D1(704*480), HD1(704*240), CIF(352*240)/PAL: D1(704*576), HD1(704*288), CIF(352*288) |
| Record Mode | Continuous / Time Schedule / Motion Detection |
| Recording Pack Time | 15/ 30/ 45/ 60mins Selectable |
| Playback Modes | Normal Play / Fast Forward / Fast Rewind / Frame by Frame |
| Playback Search | Time & Date / Event List |
| Network Function | Support Live View with IE & Mobile Phone(Windows, Symbian, iPhone, Blackberry, Android) |
| Supporting System | Windows, MAC OS & Mobile Phone(Windows, Symbian, iPhone, Blackberry, Android) |
| Network | RJ45, 10M/100M |
| Net Protocol | TCP/IP, PPPoE, DHCP and DDNS |
| Remote Access | LAN or Internet Browsing |
| Alarm | Alarm in/ out |
| PTZ Control | RS-485 |

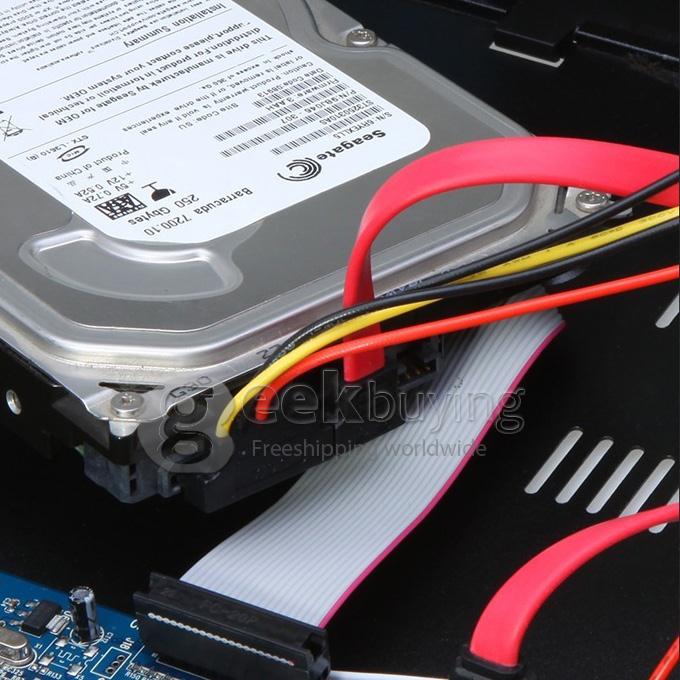

| HDD Interface | SATA, Support between 250GB and 2TB|(HDD not included) |
| USB | USB Backup/ USB 2.0 |
| Remote Control | IR Remote Control |
| Language | English, French, Greek, Hebrew, Italian, Portuguese, Russian, Spanish,trai, Turkey, Japanese, Korean, Farsi, Polish, Arabic, German,Simplified Chinese, Traditional Chinese, etc |
| Power Supply | DC 12V, 3A |
| DVR Color | Black |
| DVR material | Metal |
| DVR Dimension | 32 * 26.3 * 4.5cm/ 12.6 * 10.4 * 1.8in(L * W * H) |
| DVR Weight | 1331g/ 2.93Lb |

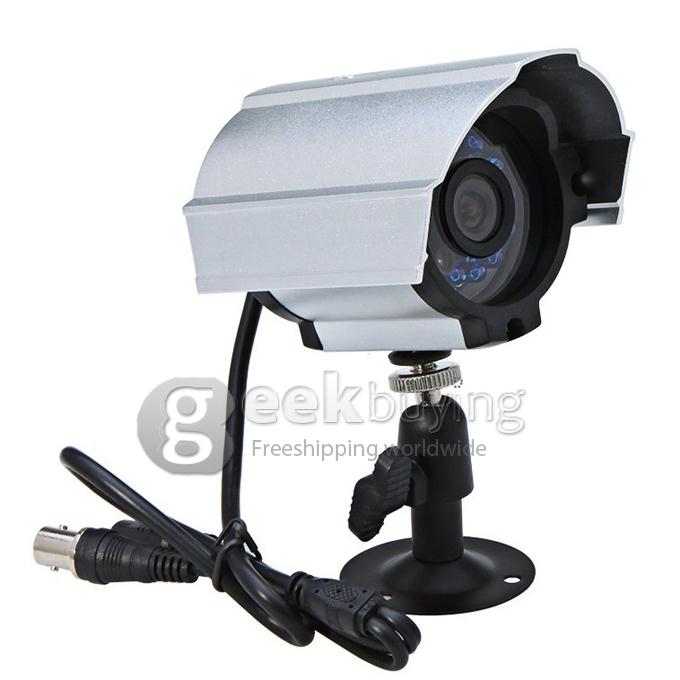

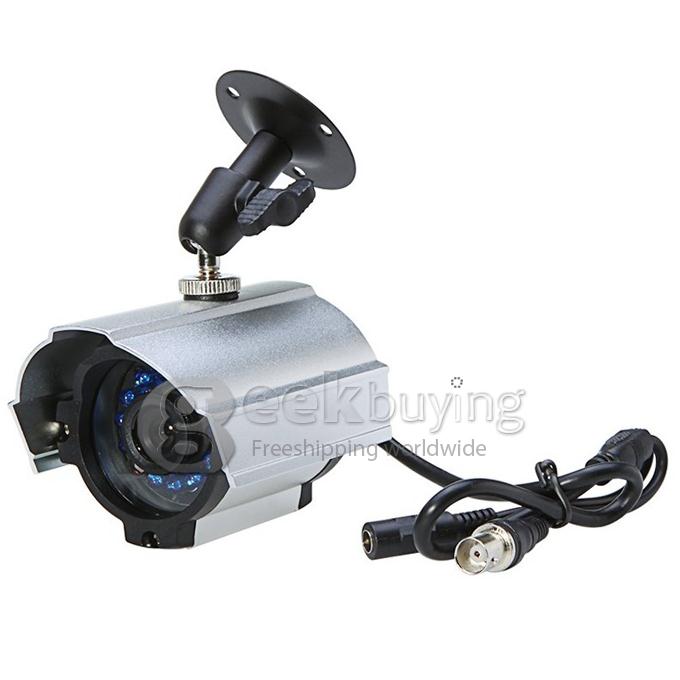

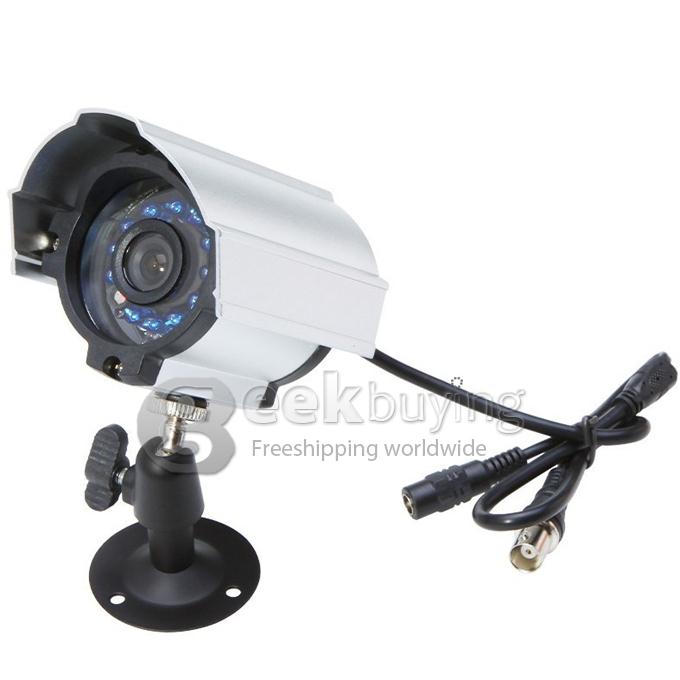

| Specifications of Standalone Camera: | |
| Image Sensor | 1/4" CMOS |
| TV System | PAL |
| Effective Pixels | PAL:510H×492V |
| Horizontal Resolution | 420 TV-Lines |
| Lens | 3.6mm |

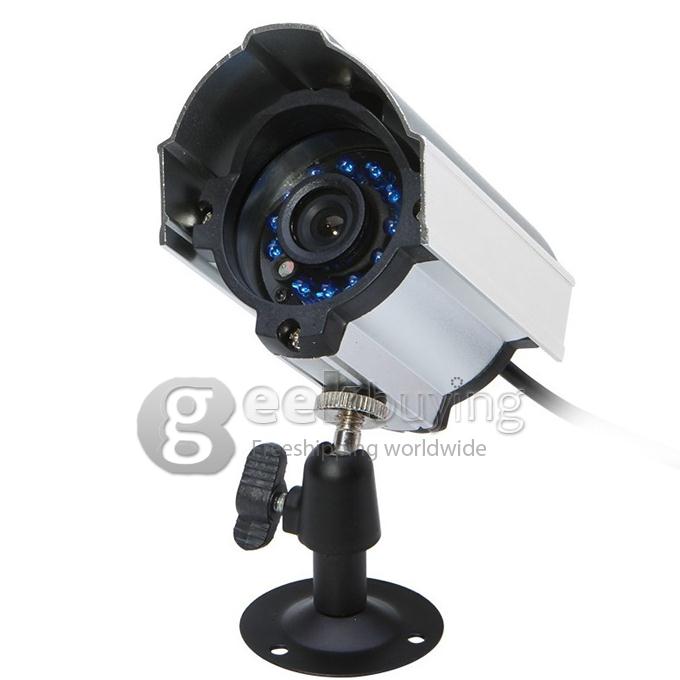

| Number of IR LEDs | 12PCS |
| Infrared Illumination (Night Vision) | up to 65ft (20m) |
| Minimum Illumination | 0 Lux (IR On) |
| S/N Ratio | ≥48dB |

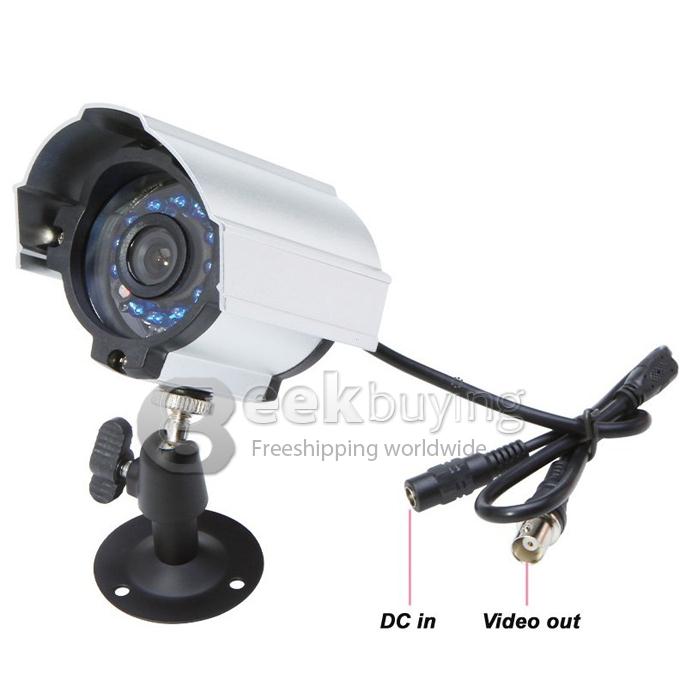

| Video Output | 1.0Vp-p, 75ohms (BNC) |
| Weatherproof | Yes |
| Operating Temperature | --25°F~122°F / -32°C ~50°C |
| Power | 12V DC |
| Camera Color | Silver |

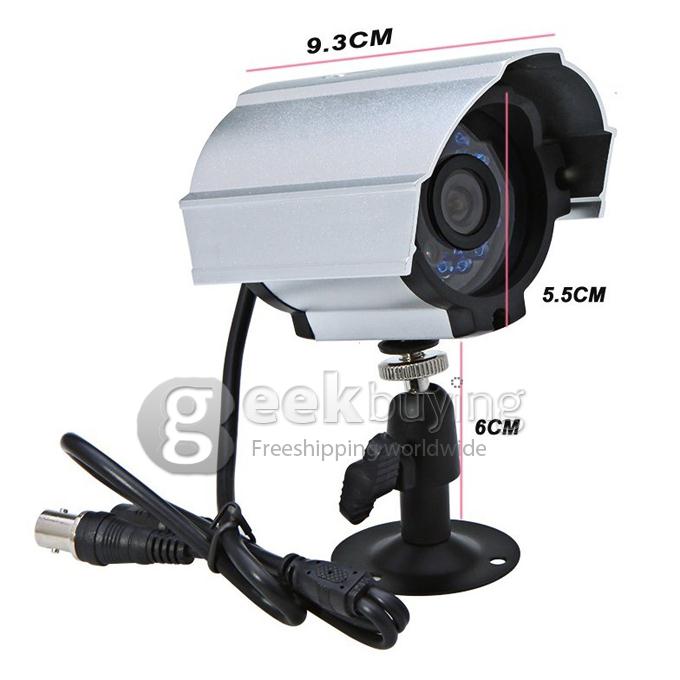

| Camera Dimension | 9.3 * 6 * 5.5cm/ 3.7 * 2.4 * 2.2in |
| Camera Weight | 282g/ 9.9oz |

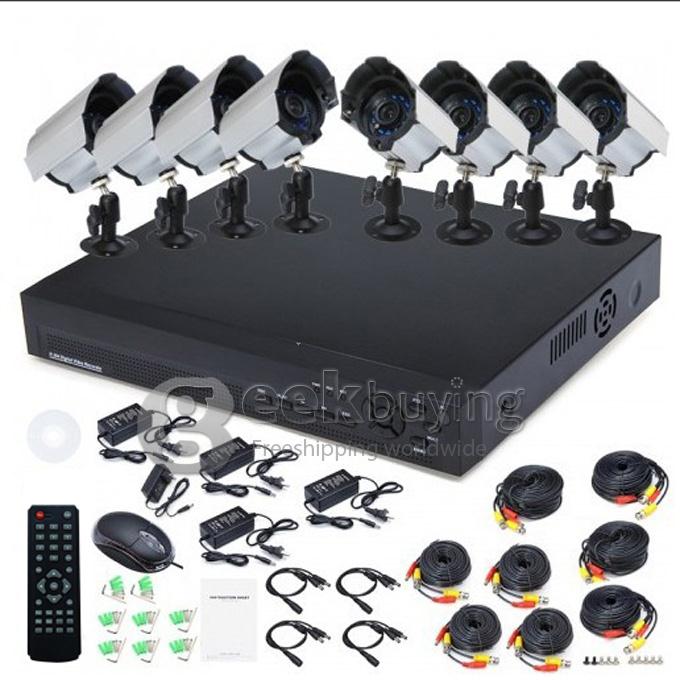

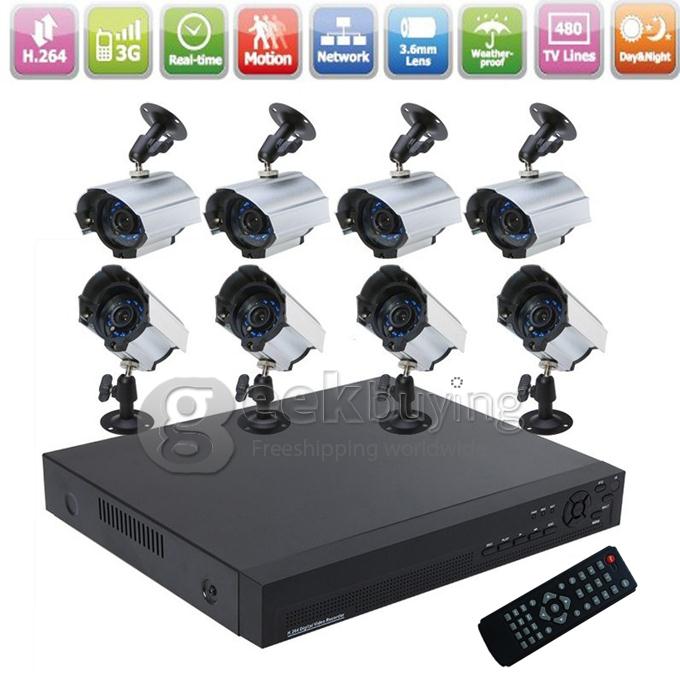

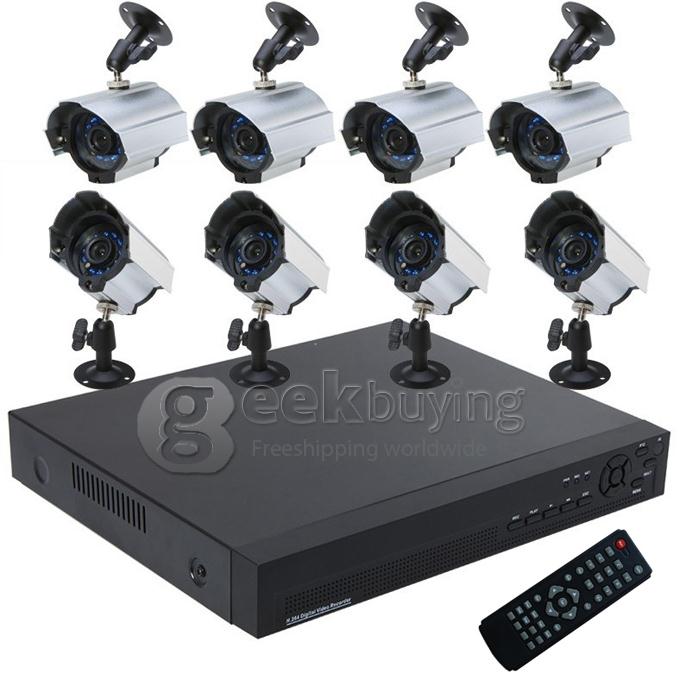

What's in the box?
- 1 * 8CH DVR
- 8 * Security Camera
- 4 * BNC to RCA Cable (10m)
- 2 * BNC to RCA Cable (20m)
- 2 * BNC to RCA Cable (30m)
- 5 * Power Supply
- 4 * Power Splitter Cable (AC 100V-240V)
- 1 * Remote Control
- 1 * Mouse
- 1 * CD
- 1 * Mounting Screw Bag
- 1 * User Manual
