Specification
| General | Brand: Caddx Item Name: Firefly Color: Black Lens: 2.1mm Image Sensor: 1/3" CMOS Sensor Horizontal Resolution: 1200 TVL TV System: NTSC / PAL (optional) Image: 16:9 / 4:3 (optional) Synchronization: Internal Electronic Shutter PAL: 1/50~100,000; NTSC: 1/60~100,000 S/N Ratio: >52dB (AGC OFF) Video Output: CVBS Min. Illumination: 0.001Lux@F1.2 Auto Gain Control: YES BLC: YES WDR: Global WDR DNR: 2 DNR Dimensions: 14mm*14mm*16mm Wide Power Input: DC 3.3-9V Work Temperature: -20°C - +60°C Work Humidity: 20%~80% Weight: 4.1g (Camera + VTX) |

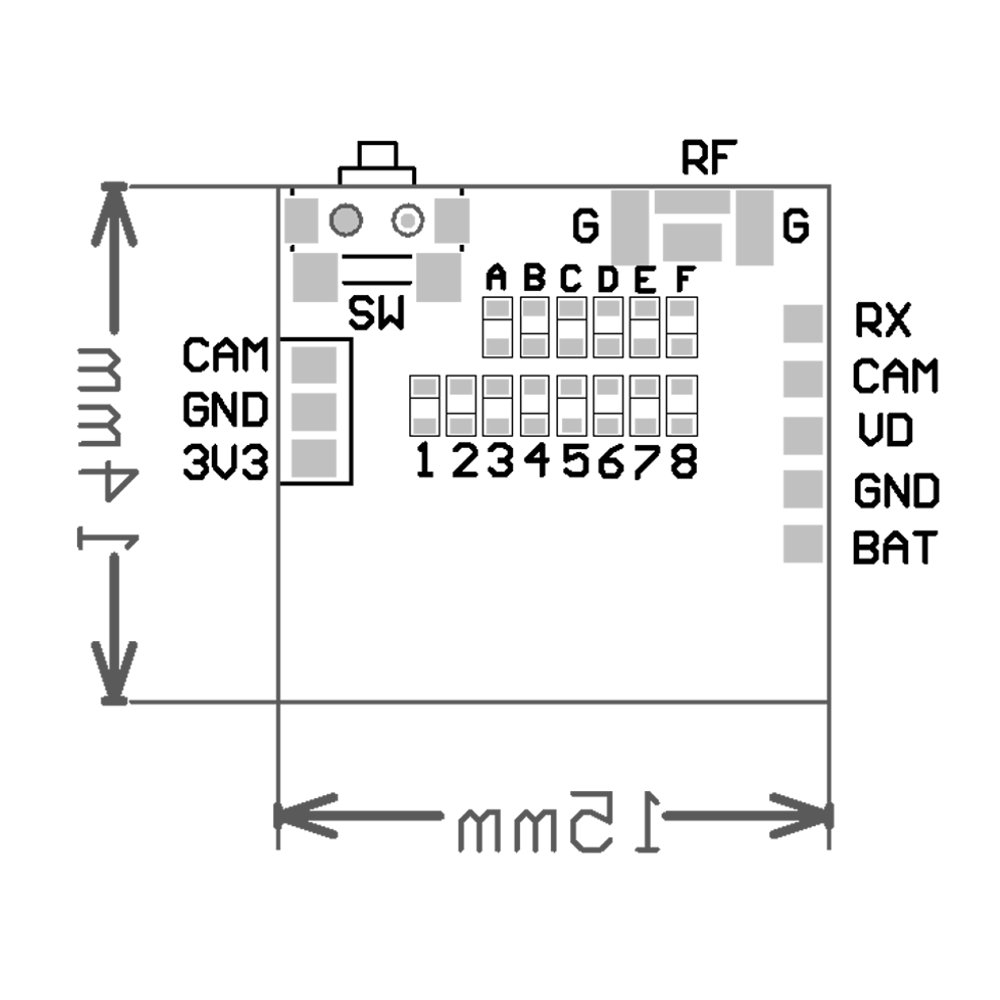

| Specifications of VTX | Feature: TBS SMART OSD Frequency Band: 5362~5945MHz Channel Customer: 48 Modulation Type: FM Channel SEL.: Touch Switch Channel Indicate: CH1~CH8 Channel indication with 8LEDS and A~F frequency group Indicate |
| with 6 LEDS | Transmit Power: 13±1dBm Frequency Control: PLL All Harmonic: Max -50dBm Frequency Stability: ±100KHz (Typ.) Frequency Precision: ±200KHz (Typ.) Channel Carrier Error: 1dB Antenna Port: 50 Ω Power Consumption: 140±20MA@5V DCIN Supply Voltage: 2.9-5.5V Operating Temperature: -10°C - +60°C Profile Dimension: 15mmx14mm |
| Package Contents | 1 x Caddx Firefly FPV Camera |
