Highlights
- New Turbo Eye lens
- More reasonable PCB layout and 20x20mm mounting holes - no offset holes!
- microphone
- Wrapped cable
- Default image setting improvements
Specification
| General | Brand: Caddx Item No.: Turtle V2 Image sensor: 1 / 2.7" CMOS sensor Level: 800TVL TV system: NTSC / PAL, Switchable Video resolution: 1080P @ 60fps / 1080P @ 30fps / 720 @ 60fps Power input: DC 4.5-20V FPV FOV: 155° Recording field of view: 170 °C Mini lighting: 0.01LUX Image resolution: 2 megapixels Lens: 1.8mm Turbo Eye Lens Working current: 380mA @ 5V / 160mA @ 12V (low power consumption) OSD menu: Yes (support voltage display) Video file: MP4 Audio: Support Electronic shutter: PAL: 1 / 50-100,000 NTSC: 1 / 60-100, 100 Signal to noise ratio: > 60dB (AGC OFF) Video output: CVBS Max Micro SD card support: 8-64GB (Class 10 or above is required, Class 10 / UHS-I / UHS-II is recommended) Net weight: 12 grams (more or less) |
| Quick Operation Guide | 1. Right button: Press the RIGHT button for 3 seconds - 5 seconds to activate the video recording, while the light in the lower right corner flashes. 2. Left button: Press the left button for 3 seconds - 5 seconds to stop video recording. 3. Down button: Press the down button for 3 seconds - 5 seconds to switch the resolution, 720P blue LED is on, 1080P red LED is on, the default mode is 1080P. 4. MIDDLE BUTTON: The MIDDLE button is a menu button. Note: The camera requires at least an 8G Class 10 SD card. Note: If the video is accidentally cut off during video recording, please turn it on again, then the camera will automatically recover the memory. Video recordings before power down will still be saved in the TF card. |

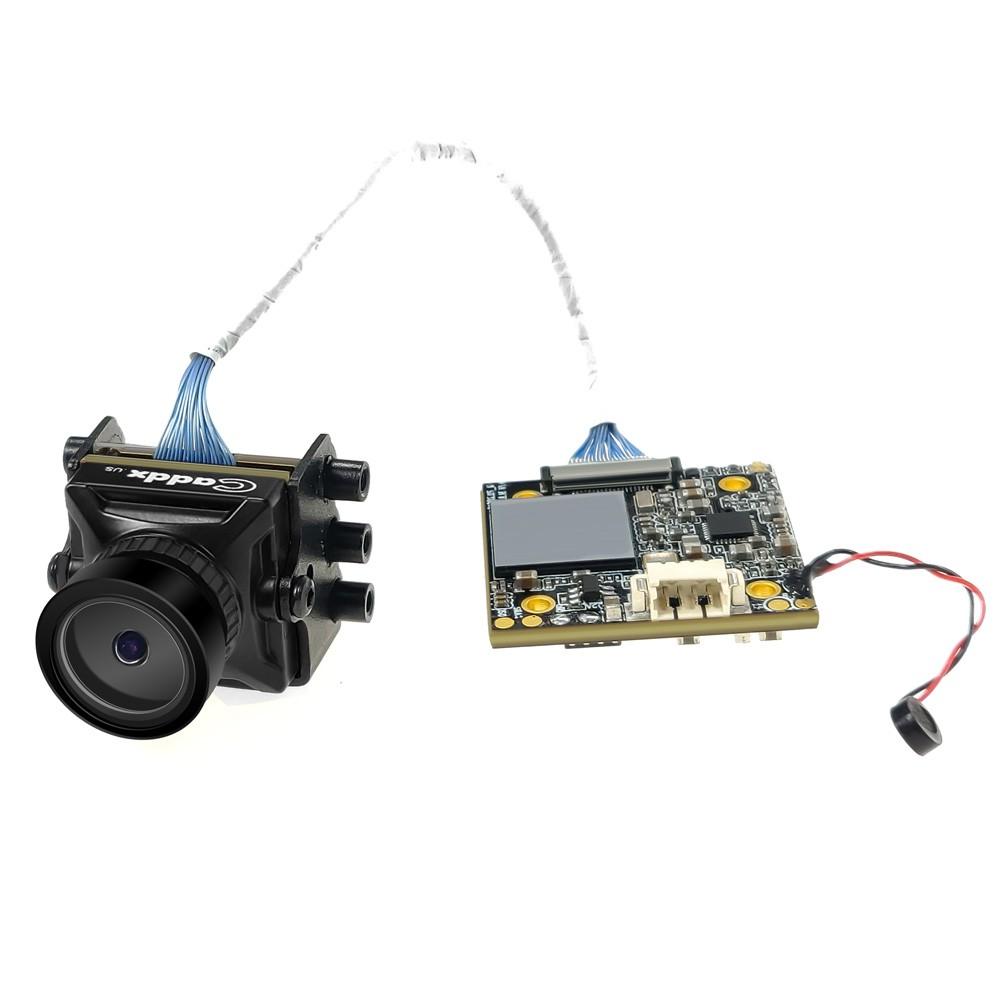

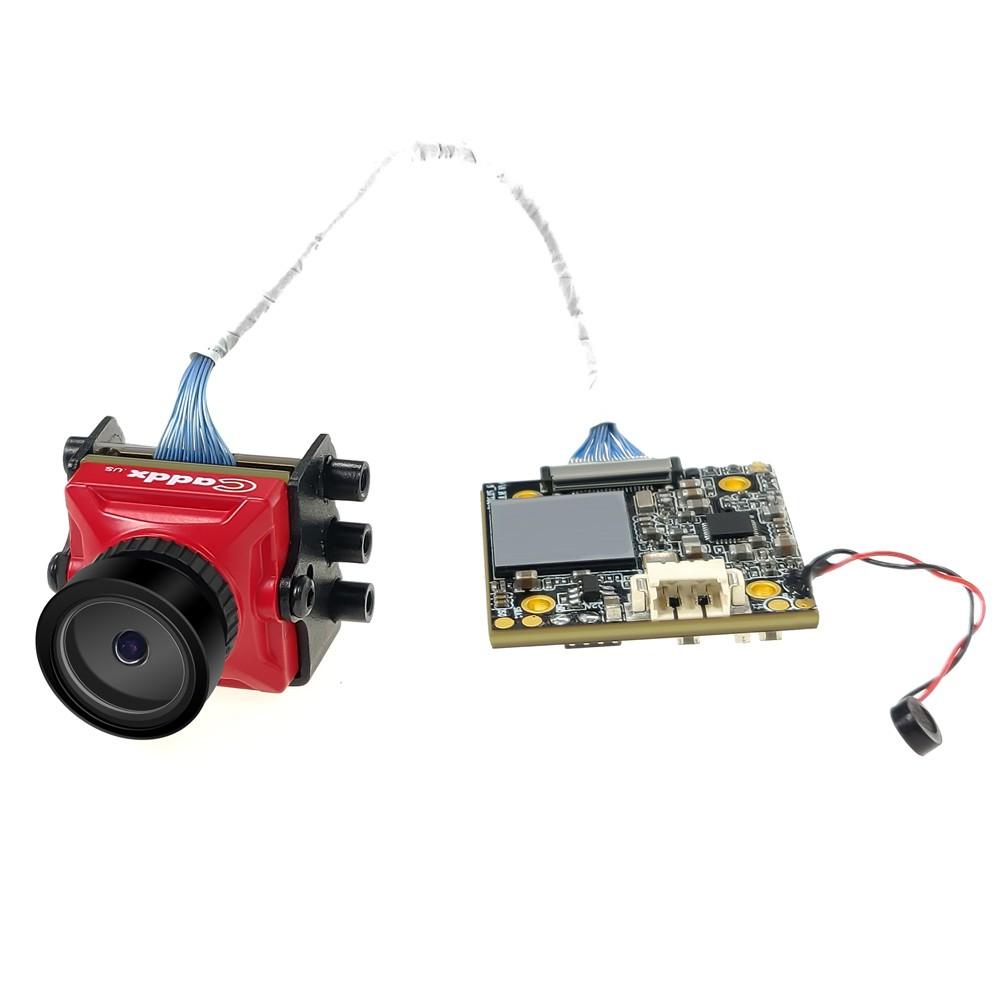

| Package Contents | 1 x Caddx Turtle V2 camera 1 x 5D-OSD menu board 1 x Camera stand 1 x 30x30mm mounting bracket 1 x 4pin FPV silicon cable (expanded to 2-pin connector for OSD board and 3-pin connector for FPV) 1 x Hex wrench 1 x Manual 1 x Warranty Card Note: Full size metal brackets shown in some photos are not currently included. |
