Highlights

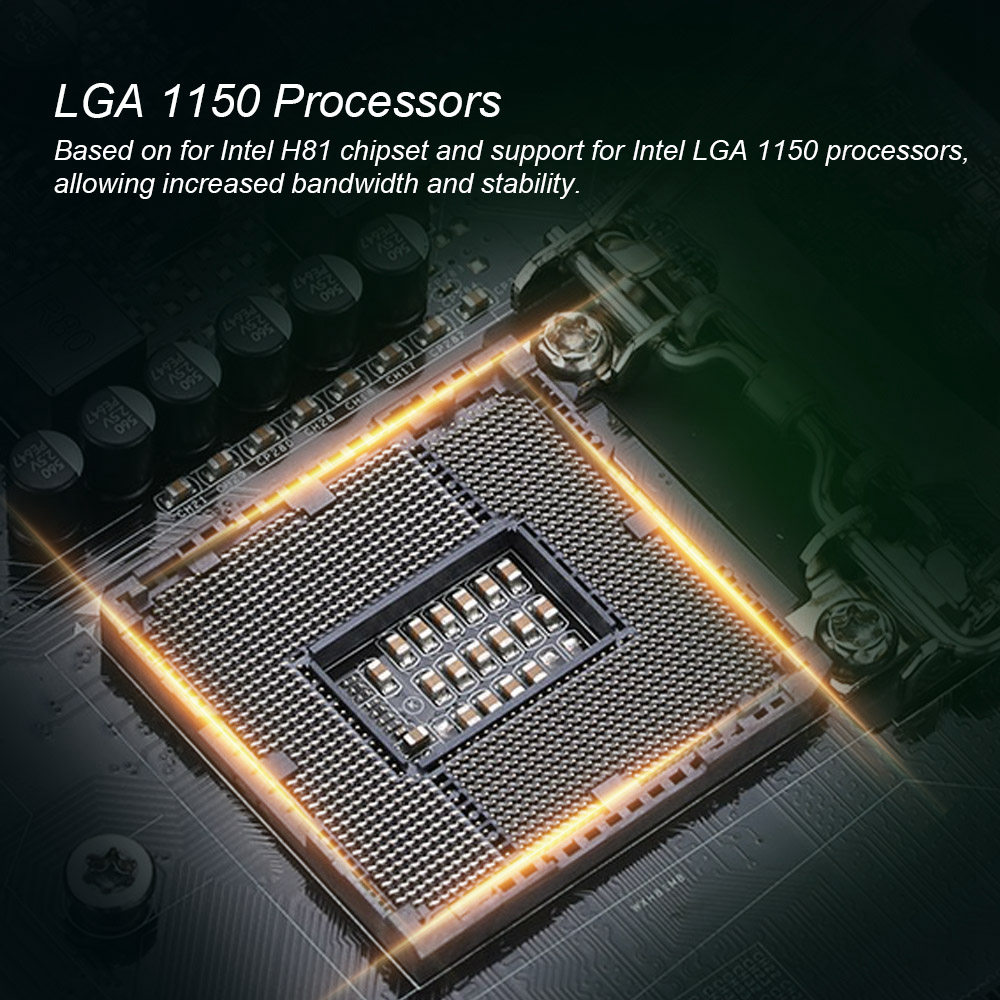

LGA 1150 Processors
Based on for Intel H81 chipset and support for Intel LGA 1150 processors, allowing increased bandwidth and stability.
Dual Channel DDR3
Two memory slots, support dual channel DDR3 1066/1333/1600MHz memory.
Super Speed USB3.0
High speed USB 3.0 ports with theoretical transfer speed up to 5.0 Gbps, backwards compatibility with USB2.0.
SATA3.0 6Gb/s
High-speed SATA Revision 3.0 compatible, delivering superfast 6Gbps link speeds which twice the data transfer rates to SATA 2.0 (3Gbps).
LAN Port
RTL8105E 100M LAN, provides 100Mb Ethernet to deliver better network responsiveness.
All Solid Capacitors
Equipped with all solid capacitors, environment friendly, low impedance, high frequencies & temperatures, superior heat resistance and better electric conductivity, allowing PC enthusiasts to tweak the highest levels of performance.
FCC Ferrite Core Chokes
Equipped with ferrite core chokes which offer superior performance and prolong usage life.

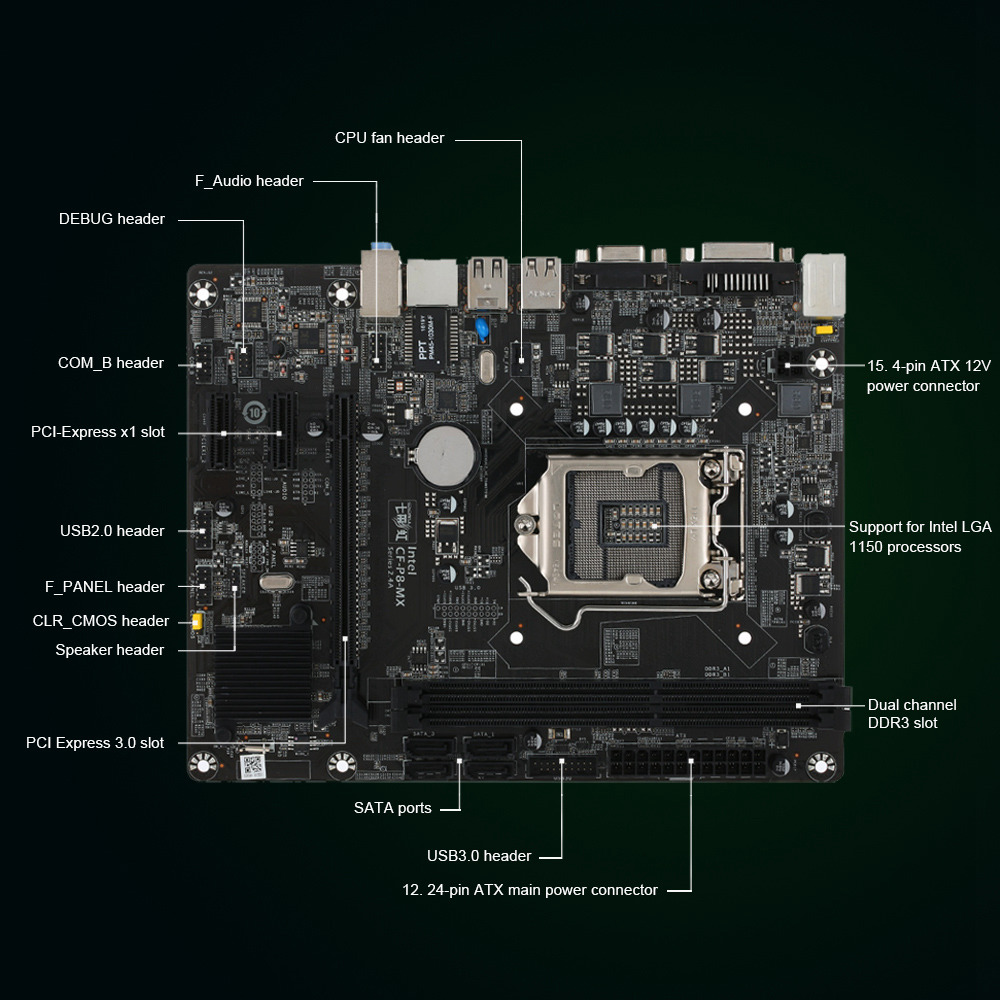

Specification
| General |
Brand: Colorful |
| Specification |
Processor: support for Intel LGA 1150 processors (TDP:54W)
Memory: Two memory slots, support dual channel DDR3 1066/1333/1600MHz memory
Graphics: 1 * PCI Express2.0X16 slot
SATA ports: 2 * SATA3.0 6Gb/sport(SATA1-2), 2 * SATA2.0 3Gb/s port(SATA3-4)

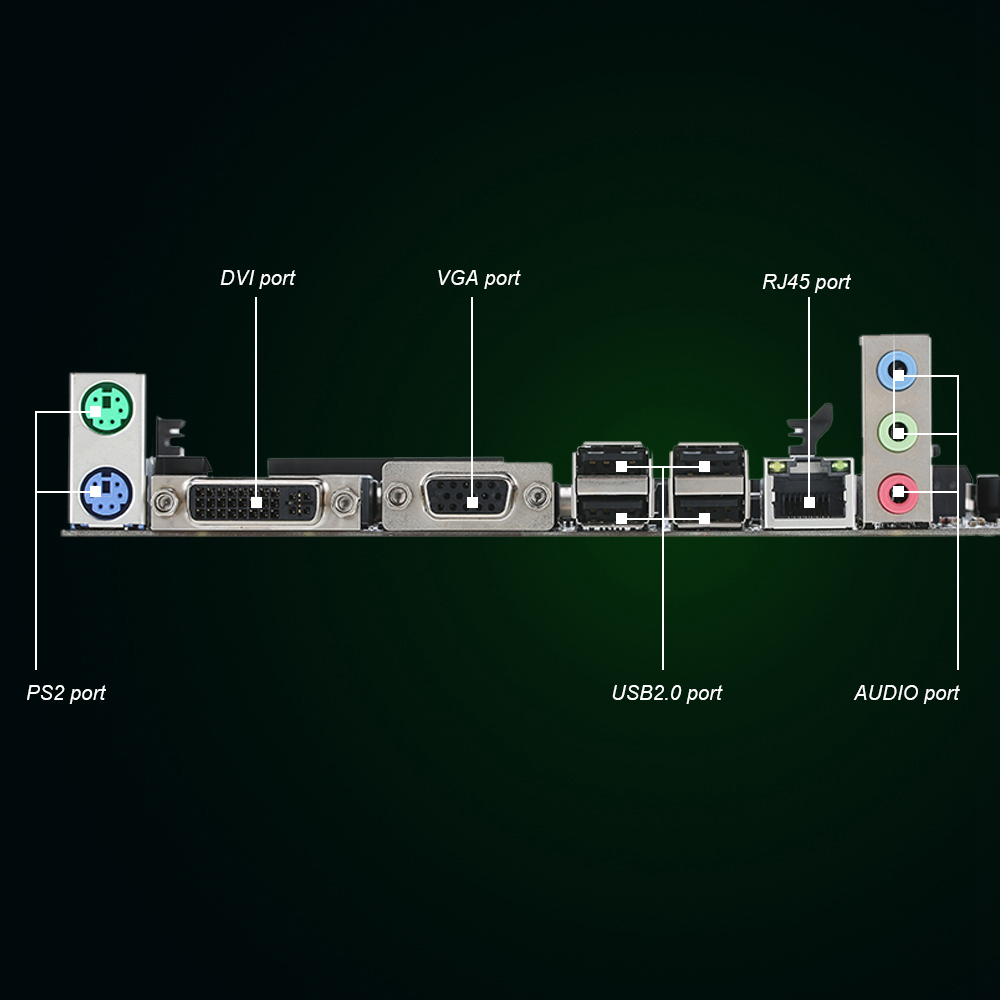

Back panel I/O ports: 2 * PS2 port, 4 * USB2.0 port, 1 * RJ45 port, 3 * AUDIO port(6-CH), 1 * VGA port, 1 * DVI port
Internal I/O connectors: 1 * 9-pin USB2.0 header, 1 * 19-pin USB 3.0 header, 1 * COM header
Expansion slots: 1 * PCIE2.0X16 slot, 2 * PCIEX1 slot
BIOS: 64M UEFI
Power management: support S1/S3/S4/S5 Wake up, LAN Wake up, definite time power on, Automatic power on when Power
Hardware monitor: CPU Fan Speed Controlled,SYSTEM Fan Speed Monitoring,CPU Temperature Monitoring,System Temperature Monitoring,and Voltage Monitoring
LAN: RTL8105E 100M LAN
Audio: ALC662 6-CH
IO chipset: IT8772E
Power: 2 phase power supply
Other Features: Colorful Netlive4.0,PXE
|
| Weight & Dimensions | Product Weight: 0.58kg Package Weight: 0.66kg Product Dimensions: 170 x 216mm Package Dimensions: 27 x 26 x 6cm |
| Package Contents |
1 x Motherboard |
