Highlights
- Supported MegaPirateNG and MultiWii firmware
- Up to 8-axis motor output
- 8 input channels for standard receiver
- 4 serial ports for debug/Bluetooth Module/OSD/GPS/telemetry
- 2 servos output for PITCH and ROLL gimbal system
- A servos output to trigger a camera button
- 6 Analog output for extend device
- A I2C port for extend sensor or device
- Separate 3.3V and 5V LDO voltage regulator
- ATMega 2560 Microcontroller
- MPU6050 6 axis gyro/accel with Motion Processing Unit
- HMC5883L 3-axis digital magnetometer
- MS5611-01BA01 highprecision altimeter
- FT232RQ USB-UART chip and Micro USB receptacle
- On board logic level converter
- Match the standard of RoHS
Specification
| General | |
|---|---|
| Type | Multi-Copter Flight Control Board |
| Dimension/Weight | Dimension: 50mmX50mm Height: 11.6mm Weight: 14.2g Fixing hole spacing: 45mm Hole diameter: 3mm |
| Flight Mode for Multiwii | One of the following basic mode Acro Level Alt Hold Head Lock Optional mode HeadFree (CareFree) GPS Hold (Need GPS receiver or Extend Board) GPS Back to home position (Need GPS receiver or Extend Board) |
| Flight Mode for MegaPirate | Acro Alt Hold Simple Loiter (uses GPS) Guided (uses GPS) Position (uses GPS) Circle (uses GPS) RTL (uses GPS) Auto(uses GPS) Follow Me(uses GPS) |
| Input Power Selection | One of the following way Connect 5V power cable from ESC or UBEC to the ESC/Servo port, the J1 jumper must be closed. Connect 5V~12V power cable to the extend power port, the J1 jumper must be removed. When using Extend Board, AIO PRO must be powered from the extend power port. |
| Package Contents | |

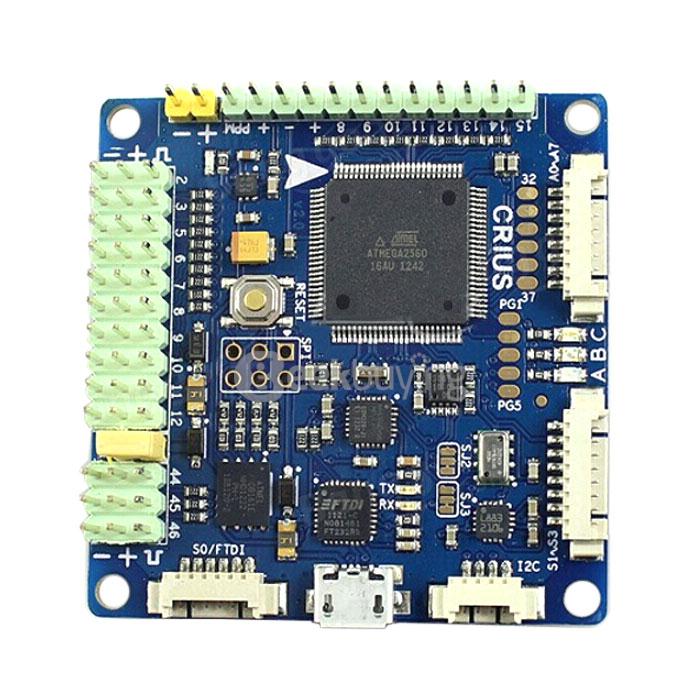

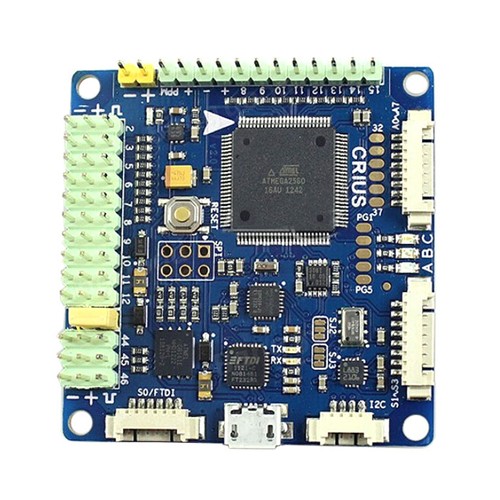

| 1 x Crius All In One Pro v2.0 Multi-Copter Flight Control Board | |
