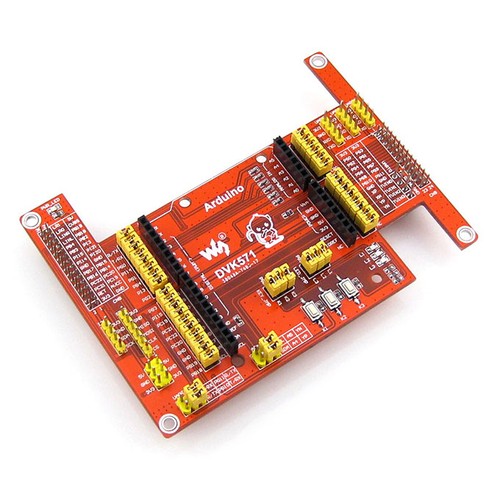

Cubietruck Expansion Board DVK571 Provide Arduino Connectivity with UART0 I2C SPI UART Interface

Highlights

• DVK571 is an expansion board designed for Cubietruck, supports connecting Arduino boards and/or Arduino shields.

Specification

DVK571 Product introduction

1. 1.Cubietruck connector
2. 2.UART0 interface: for connecting serial debugging module
3. 3.Arduino connector: for connecting compatible Arduino boards and/or Arduino shields
4. 4.I2C interface: easily connects to I2C modules
5. 5.SPI interface: easily connects to SPI modules
6. 6.UART interface: easily connects to UART modules
7. 7.5V/3.3 V power input/output: usually used as power output, also common-grounding with other user board
8. 8.Power indicator
9. 9.User LEDs: 3 red LEDs
10. 10.User keys: 3 user keys
11. 11.User LEDs jumper
    • short the jumper to connect to I/Os used in example code
    • open the jumper to connect to other custom pins via jumper wires
12. 12.User keys jumper
    • short the jumper to connect to I/Os used in example code
    • open the jumper to connect to other custom pins via jumper wires
13. 13.Arduino Port selection jumper: easily controlling the Arduino connection
14. 14.Arduino UART selection jumper
    • short the right: while connecting Arduino UART shield
    • short the left: while connecting Arduino microcontroller board
15. 15.Arduino AD selection jumper
    • short the right: while connecting Arduino ADC shield
    • short the left: while connecting Arduino I2C shield

What's in the box?

• 1 x DVK571
