Highlights
- 100% Brand New And High quality
- Super light: 7 grams
- With 32CH, and new LED show you with frequency you are working at.
- Direct connect to GH3 and GH3+
- Work on 3.7V one cell battery, you can use tiny camera to suport it work for long time, i.e.:500mAh work for 1.3hrs
- SMA connector, we suggest you to choose the short type of Clover Leaf Antennas
- A soft 4 pin cable will be arranged for FPV use. You can have other source of video in.
- Great to work with DJI 2-Axis and 3-Axis Brushless Gimbals. Use a sticker to stick battery to the back of the gimbal to get balance.
Specification
| General | |
|---|---|
| Type | Transmitter |
| Quantity | 1 Piece |
| Compatible | GoPro DJI |
| Frequency | 5.6-5.9GHz |
| Voltage Input | 3.5-5.2V |
| Send Power | 250mW |
| Work Temperature | -20~+85 Degrees |
| Work Current | 360mA/3.7V |
| Video /Audio | Video Bandwidth: 8M Audio Encoder: 6.5M |
| Connector | USB video conenctor(to Gopro,support Hero 3 and Hero 3+) |
| Size | 40.8 x 21 x 8mm |
| Net Weight | 32g |
| Key Part |
Long Press: press for 3 sec, the band will change following A-B-E-F circle, and CH always go to CH1 for next band Short Press: CH goes 1-2-3-4-5-6-7-8 and circle/ |
|
Time Setting |
1. Create a text file TIMESET.txt at the root folder of the Micro SD card. 2. Open the text file and type in the current date and time in the following format: yyyy-mm-dd hh:mm:ss. For example, 2014-09-30 17:30:00 3. Save the text file, power up the camera to update time 4. The text file will be automatically deleted when the update succeeds |
| Package Contents | |

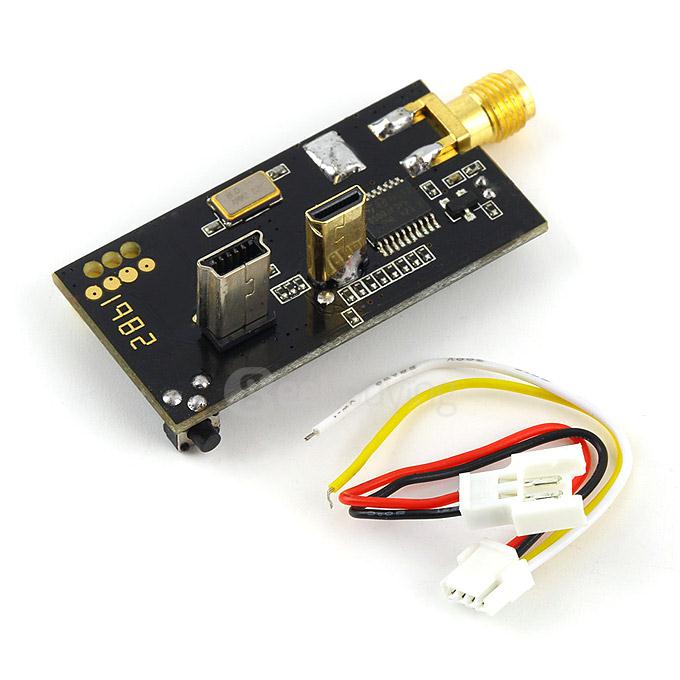

| 1 x 5.8G 250mW Transmitter | |
| 1 x 4 Pins Connecting Cable | |
| 1 x User Manual | |
