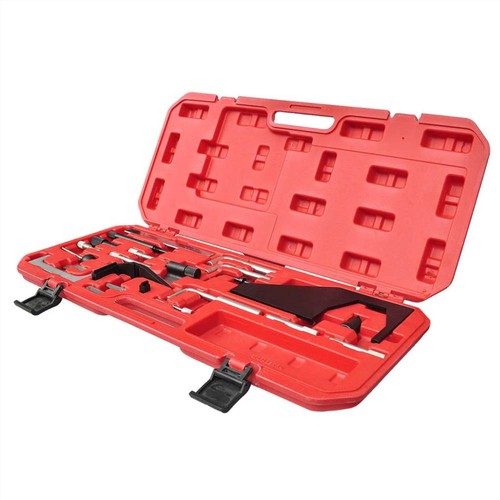

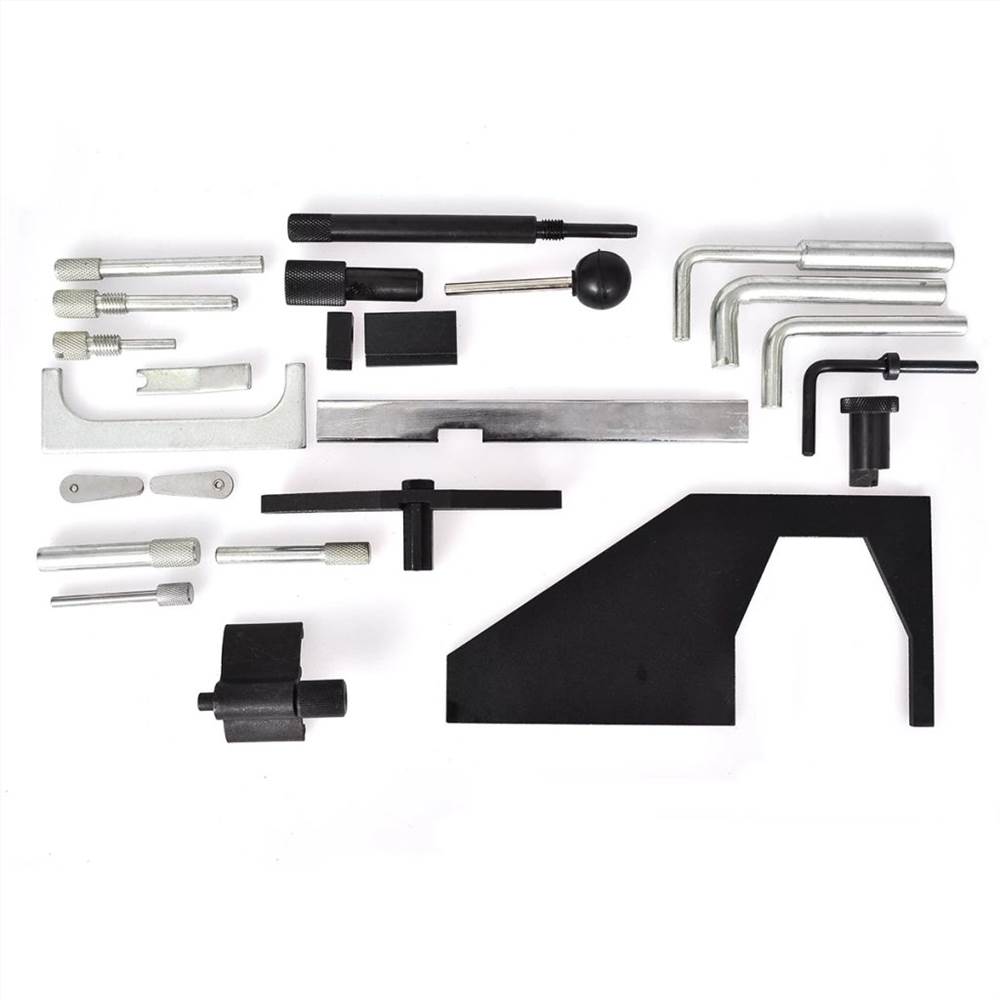

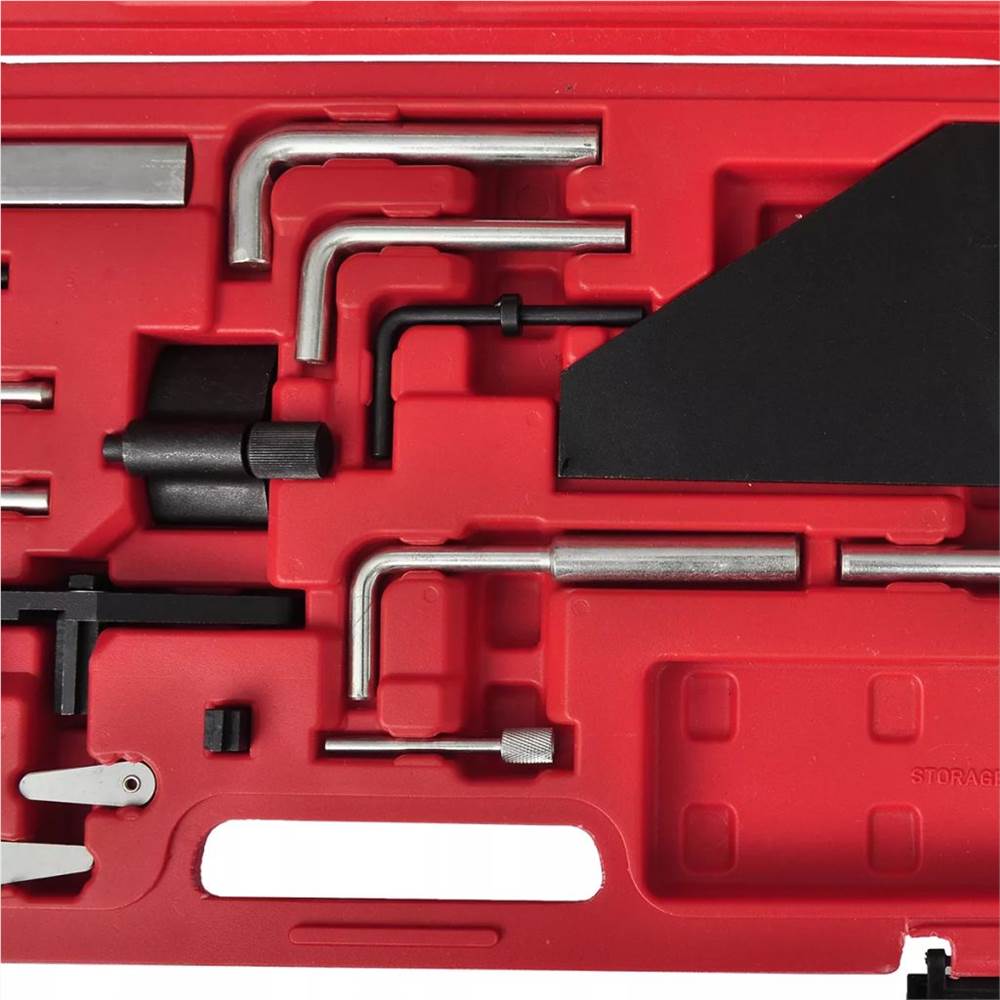

ENGINE TIMING TOOL SET - FORD & MAZDA

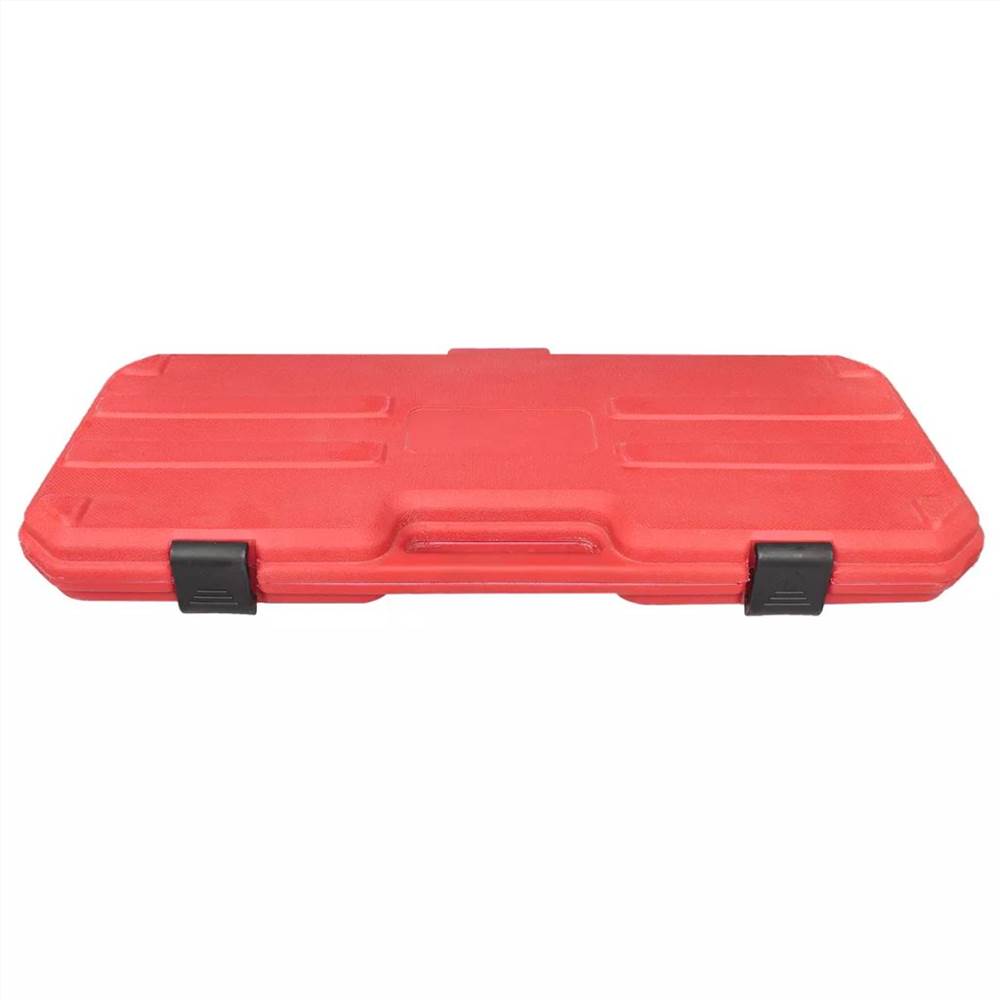

This engine timing tool kit allows you to lock the camshaft sprockets when changing timing belt or repairing engines. This tool set is suitable for the following engines: DIESEL: all 1.8 D / TD / TDCi all 1.6 - 1.8 - 1.9 diesel from 1997GASOLINE: Zetec SE 1.25 L / 2.0 L engines (Fiesta from 1996 on, Focus from 1998 on, Puma from 1997 on);All 1995-1998 2.0 L / 16 V; all 1.6 L 16 V / 1.8 L and 2.0 L 16 V / 16 V from 1991-1998;It is applicable with Ford & Mazda models.All the hand tool kits come complete in a blow moulded storage case for easy storage and transportation.

• Engine locking Pin Dia.: 8 x 95 mm, 5 x 65 mm, 11,5 x 72,5 mm, 7,7 x 70 mm
• Flywheel Timing Pin Dia.: 12,7 mm, 9,6 mm, 6,2 mm and 6,6 x 160 mm
• Engine Timing Pin Dia.: 7,5 x 83 mm and 5 x 54 mm
• Diesel Timing Kit Adaptor Dia.: 15 x 62 mm
