Highlights
- Can connect IP camera, IP speed dome camera and DVS; support Onvif protocol
- Support megapixel HD network video preview, storage and playback
- Click any area and zoom in or zoom out on the image by mouse
- Support digital zooming under preview and playback modes
- Support search, playback and backup by event
Specification
| Model | QD300 | |
| Camera | ||

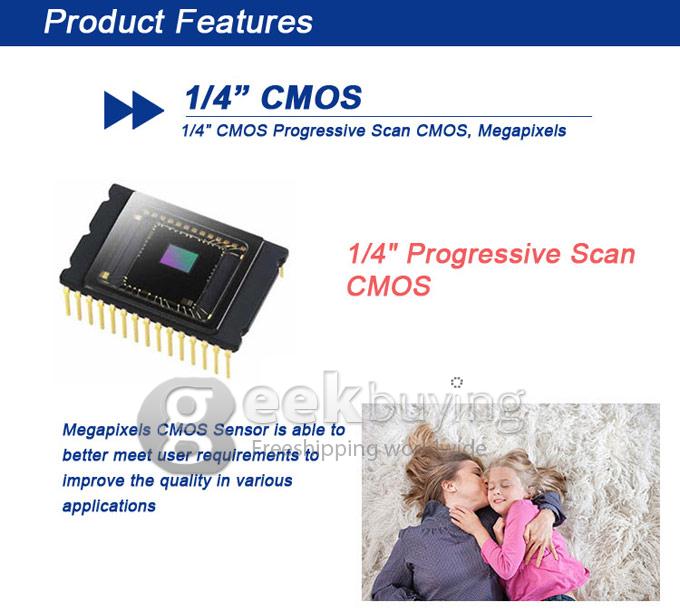

| Image Sensor | 1/4” 1Megapixel progressive scan CMOS | |
| Effective Pixels | 1280(H)x720(V) | |
| Scanning System | Progressive | |
| Electronic Shutter Speed | Auto/Manual 1/3(4)~1/10000 | |
| Min. Illumination | Color: 0. 1Lux/F1.2, B/W: 0.01Lux/F1.2,0Lux (IR on) | |
| S/N Ratio | More than 50dB | |
| Video Output | N/A | |
| Camera Features | ||
| Max. IR LEDs Length | 15m | |
| Day/Night | Auto(ICR) / Color / B/W | |

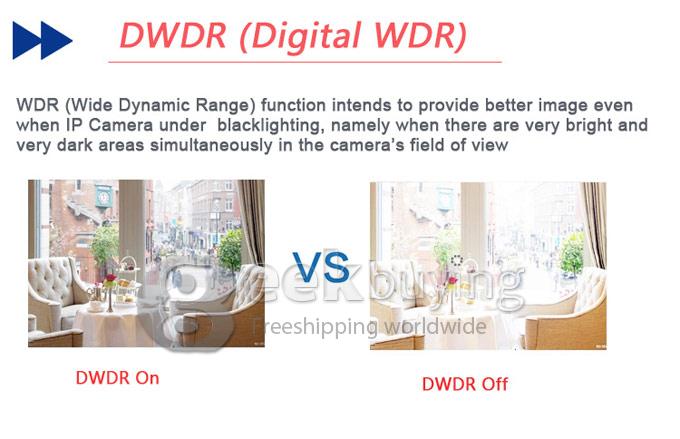

| Backlight Compensation | BLC/ HLC/ DWDR | |
| White Balance | Auto/Manual | |
| Gain Control | Auto/Manual | |
| Noise Reduction | 3D | |
| Privacy Masking | Up to 4 areas | |
| Lens | ||

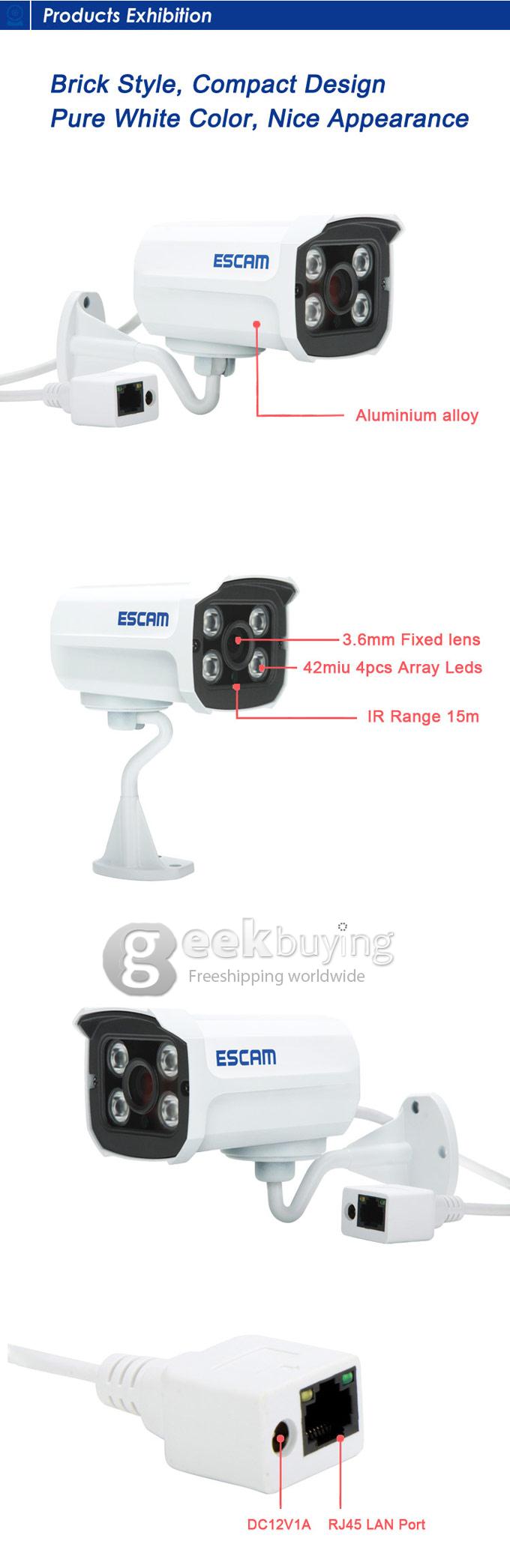

| Focal Length | 3.6mm | |
| Max Aperture | F1.8 | |
| Focus Control | Manual | |
| Angle of View | H: 70° | |
| Lens Type | Fixed lens | |
| Mount Type | Board-in Type | |
| Video | ||
| Compression | H.264 | |
| Resolution | 720P(1280×720)/ D1(704×576/704×480) /CIF(352×288/352×240) | |
| Frame Rate | Main Stream | 720P(1 ~ 25/30fps) |
| Sub Stream | D1/CIF(1 ~ 25/30fps) | |
| Bit Rate | H.264: 16K ~ 8192Kbps | |
| Audio | ||
| Compression | N/A | |
| Interface | N/A | |
| Network | ||
| Ethernet | RJ-45 (10/100Base-T) | |
| Wi-Fi | N/A | |
| Protocol | IPv4, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP | |
| ONVIF | ONVIF Profile S | |
| Max. User Access | 10 users | |

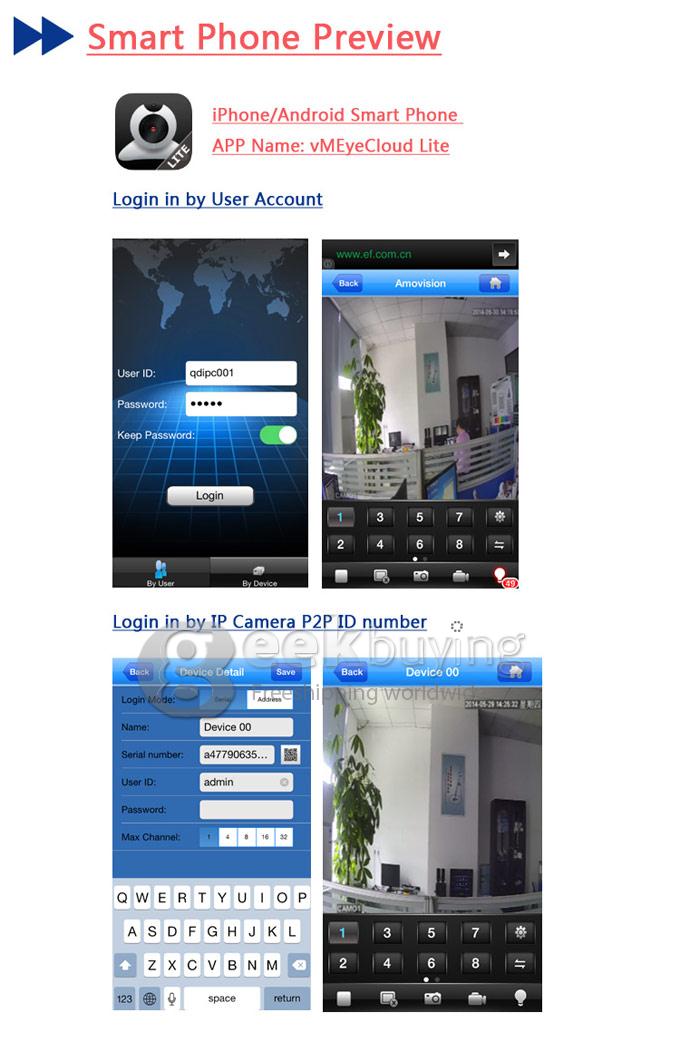

| Smart Phone | iPhone, iPad, Android | |

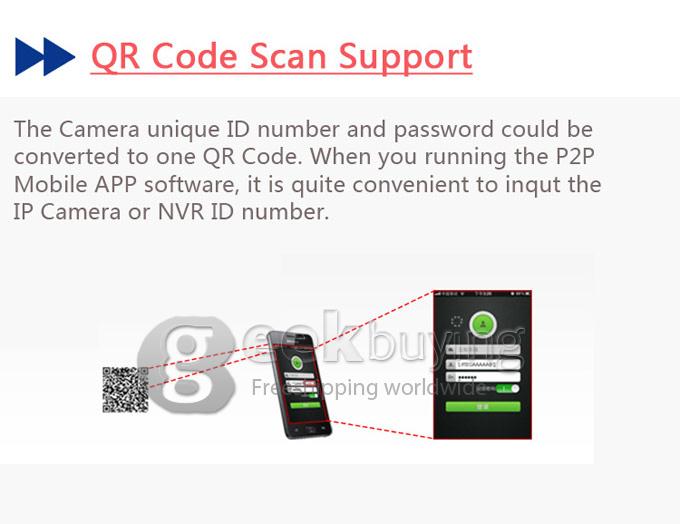

| P2P | iPhone, Android Mobile App | |
| Auxiliary Interface | ||
| Memory Slot | N/A | |
| RS485 | N/A | |
| Alarm | N/A | |
| PIR Sensor Range | N/A | |
| General | ||
| Power Supply | DC12V 1A | |
| POE | N/A | |
| Power Consumption | <4W | |
| Ingress Protection | N/A | |
| Vandal Resistance | N/A | |
| Dimensions | 107mm x68mm x60mm | |
| Weight | 0.25Kg | |
| Package Dimensions | 150mm x90mm x85mm | |
| Package Weight | 0.35Kg | |
| Approvals | CE FCC RoHS | |
|

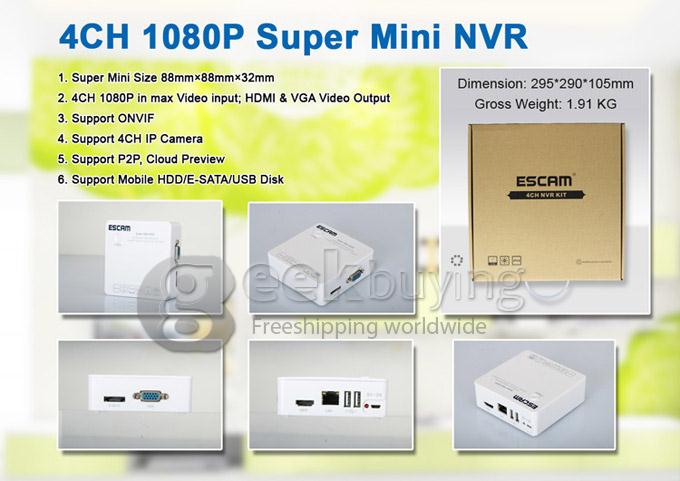

Model Number |
K104 |
|
|
Operating System |
Embedded LINUX operating system |
|
|
Image Code Control |
Image code quality adjustable, variable bitstream and constant bitstream optional |
|
|

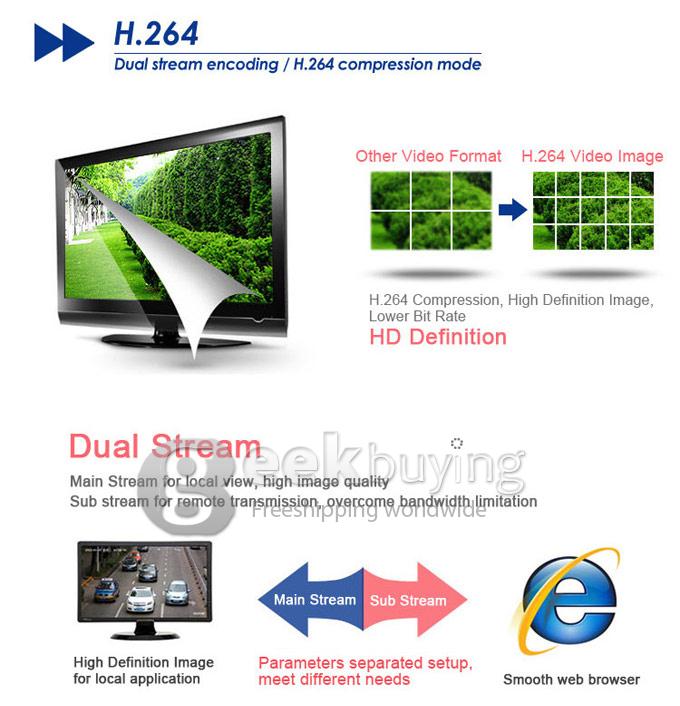

Dual Stream |
Each channel can set main stream and sub stream |
|
|
Video Standard |
1080P(1920×1080)30fps/960P/(1280×960)/720P (1280×720)30fps |
|
|
Monitoring Image Quality |
1080P(1920×1080) / 960P/(1280×960)/720P (1280×720) |
|
|
Image Motion Detection |
Each screen can set mutiple detection areas and set 6- level sensitivityIPC Support) |
|
|
Recording Playback Quality |
4ch playback in 4ch 720/960P mode;1ch 1080P playback in 1/4ch 1080P mode |
|
|
Region Cover |
Every channel can set 4 cover regions(IPC Support) |
|
|
Recording Mode |
Support manual , auto, dynamic detection, alarm trigger record mode(Partly needs IPC Support) |
|
|
Backup Way |
Support U disk, USB mobile HDD, USB DVD-RW, network storage and backup |
|
|
Operation Way |
Mouse |
|
|
Local Login |
User name and password |
|
|
Recording Storage |
Local HDD, network |
|
|
External Ports |
Video Input |
4×(1280*720)+sub[960*576]+4Ref.+4Play Support 4ch 1MP IP camera |
|
4×(1280*960)+sub[960*576]+1Ref.+4Play Support 4ch 1.3MP IP camera |
||
|
4×(1920*1080)+sub[960*576]+4Ref.+1Play Support 4ch 2MP IP camera |
||
|
1×(1920*1080)+sub[960*576]+4Ref.+1Play Support 1ch 2MP IP camera |
||
|
4×(720*576)+sub[352*288]+4Ref.+4Play Support 4ch 0.4MP IP camera |
||
|
Audio Input |
4ch network audio input |
|
|
Video Output |
1ch VGA+1ch HDMI |
|
|
Network Port |
1 RJ45,10M/100M self-adaptive LAN port |
|
|
USB Port |
2 USB 2.0 ports |
|
|
Wireless Port |
3G, WIFI |
|
|
HDD |
Mobile HDD/E-SATA/USB Disk |
|
|
Mobile Surveillance |
Support( iPhone, Windows Mobile, BlackBerry, Symbian, Android) smart phone |
|
|
Power Supply |
5V2A |
|
|
Dimension |
Equipment:88mm×88mm×32mm, Packing:185.5mm×115.5mm×36mm |
|
|
Weight(without HDD) |
N.W: 105g; With packing:250 |
|
|
Outside Carton |
30 pcs/carton. 365mm×350mm×188mm; Weight: 8kg |
|
|
Installation Way |
Desktop Installation |
|

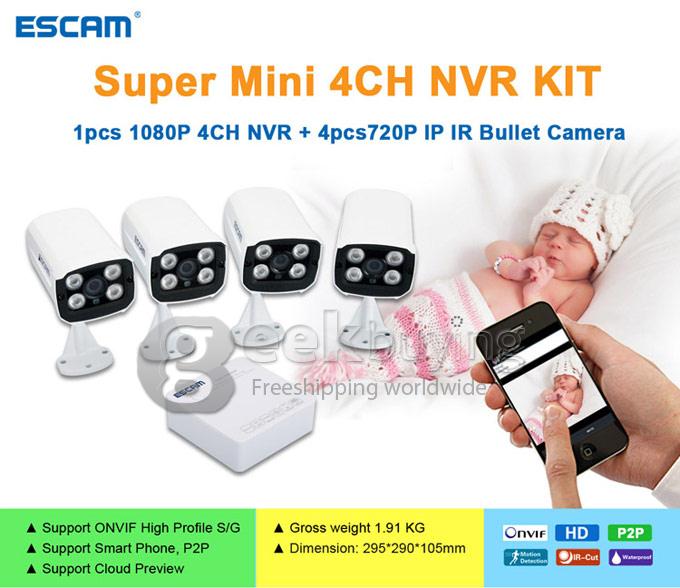

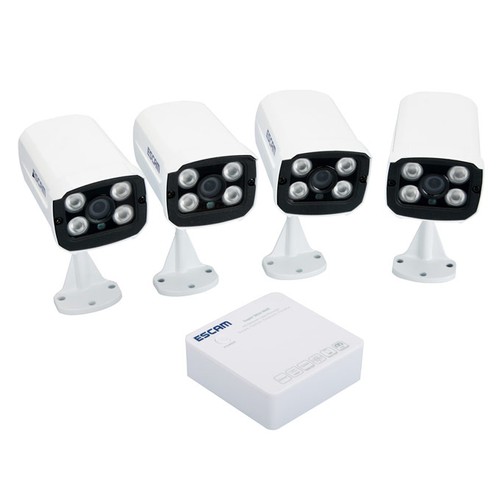

What's in the box?
- 4 x QD300 IP cameras
- 1 x 4-CH White mini NVR
- 1 x English user manual
- 1 x CD
- 4 x Pack of screws
- 1 x Tail cable
- 1 x 5V 2A power adapter
- 4 x 12V 1A Power adapters
