Highlights

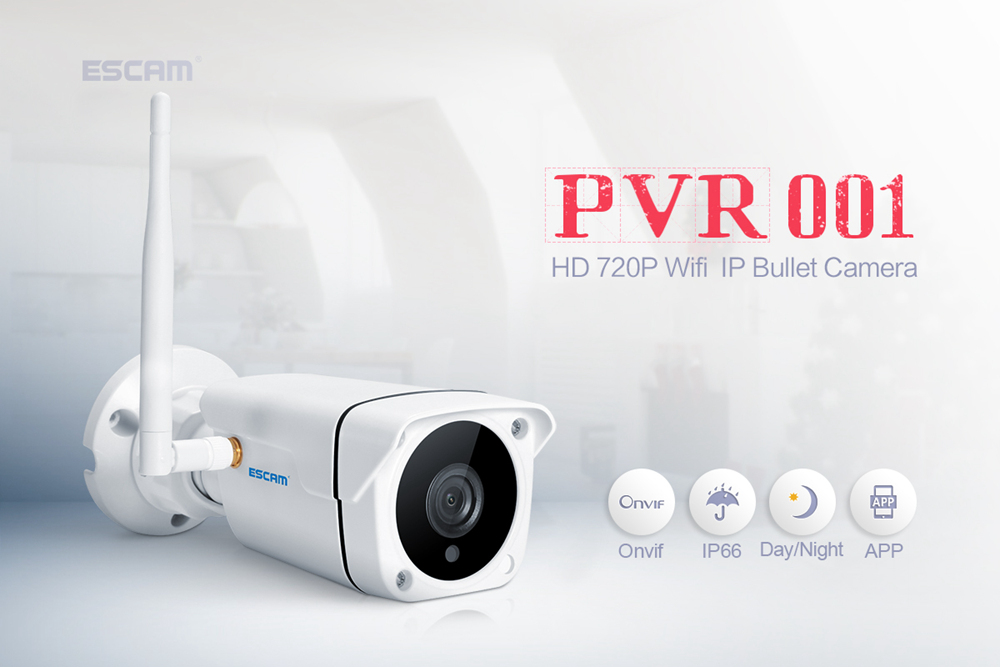

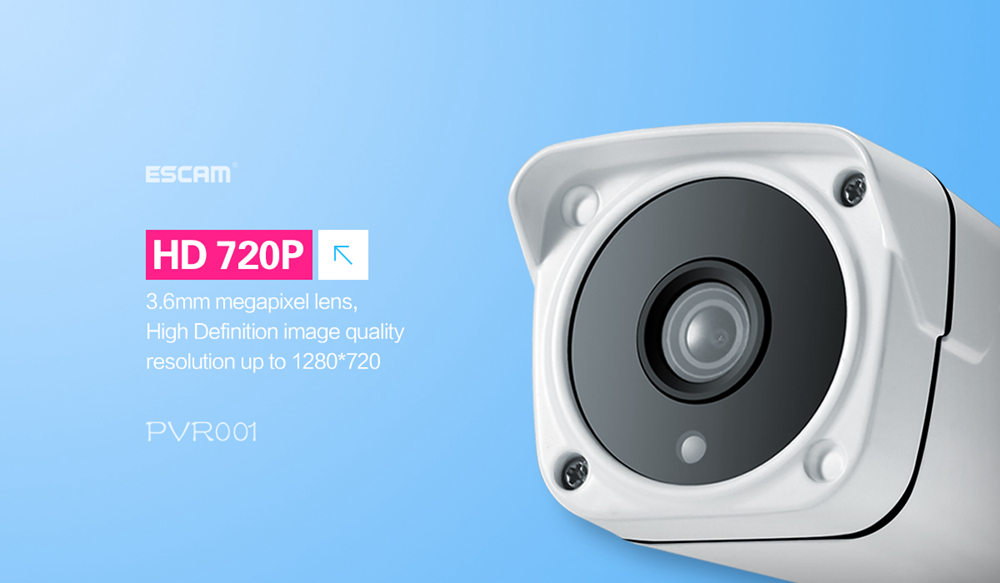

1MP HD 720P
720P camera ensures that you can see enough activity with limited lens distortion, and the ball mount gives you more freedom of where you want to view.

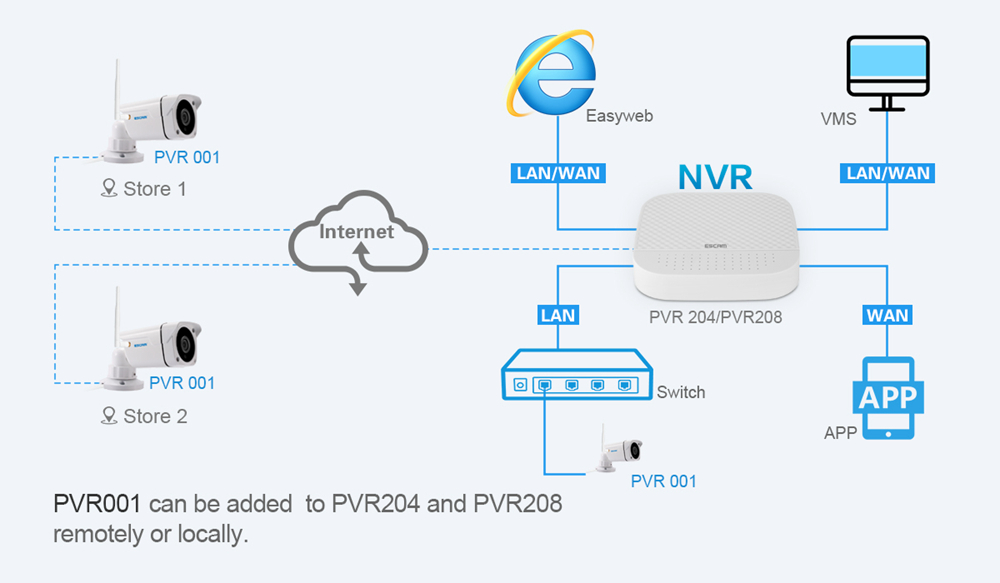

Private Cloud
Support private cloud protocol,it can be added to PVR204 or PVR208 remotely or locally

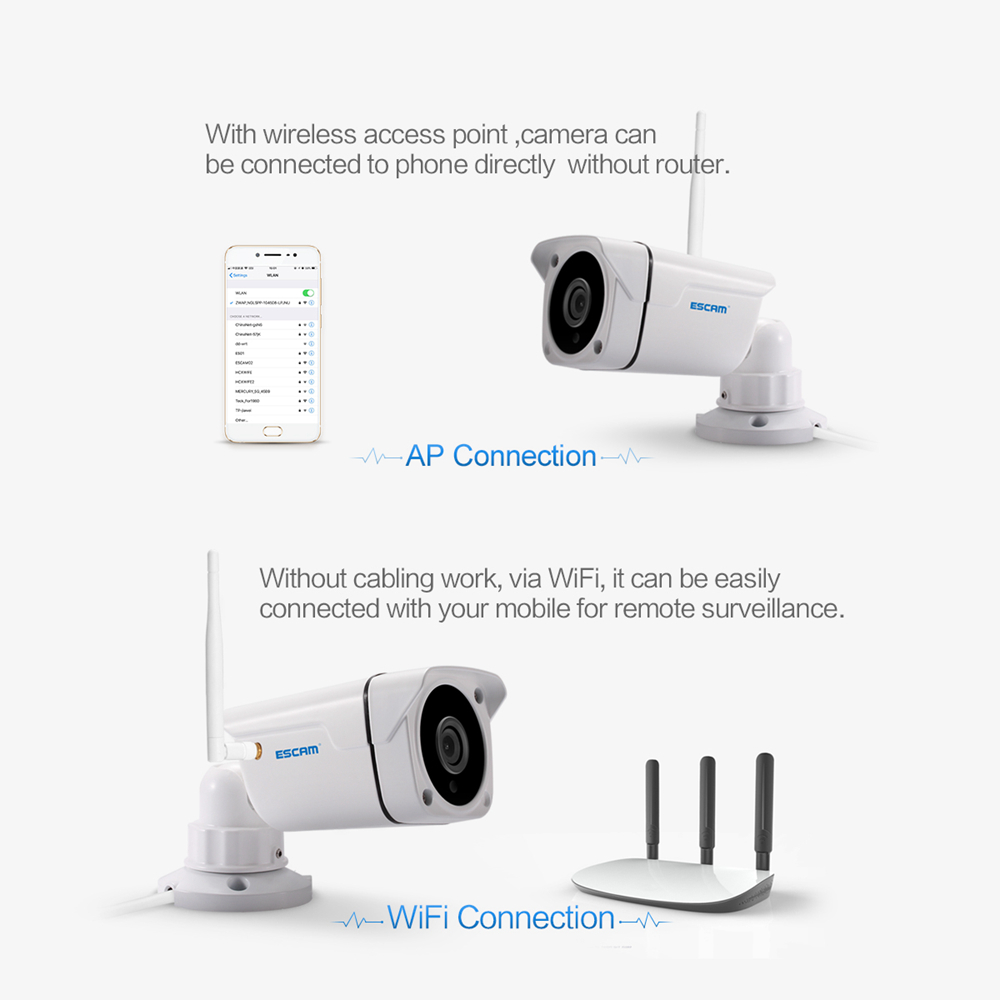

WiFi 802.11b/g/n and AP point
Without calbing work,via Wifi,it can be easily connected with your mobile for remote surveillance.
Day/Night Vision
IR distance 10m provides clear night vision even in pitch black, make your night view as daytime.

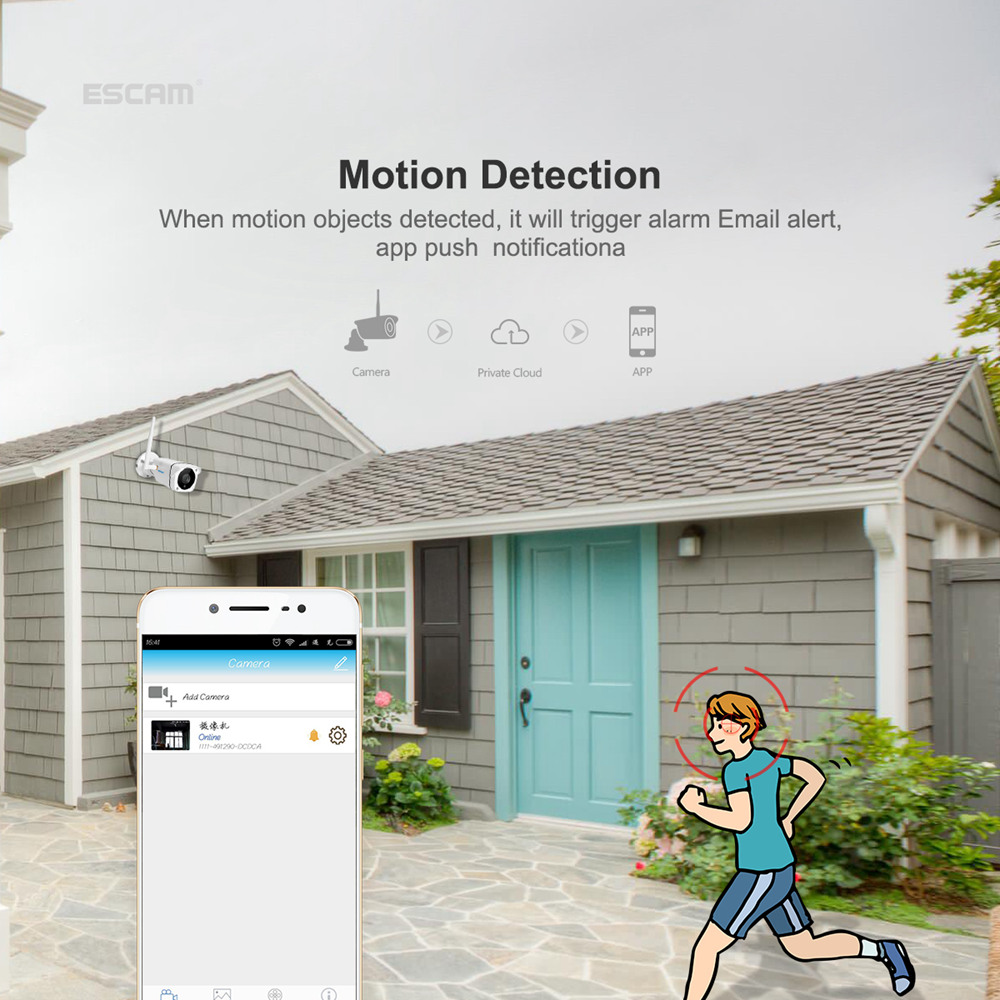

Motion Detection
Using highly sensitive algorithms, the outdoor camera reduces false alerts to only alert you of unwanted intruders, then use the deterrent alarm to send them a warning.
Other Function

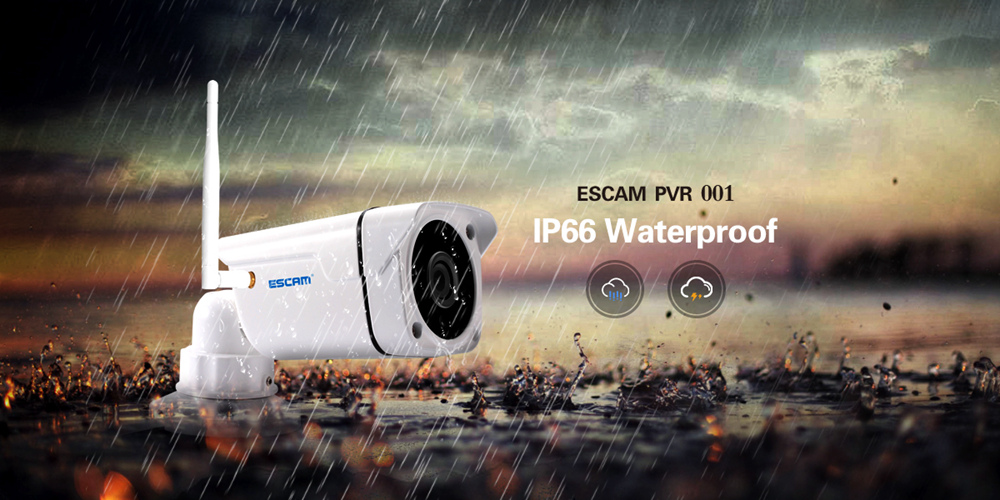

IP66 water resistant, CMS viewing, APP viewing and Brower viewing, onvif, compatible with other devices.
Specification
| General |
Brand:ESCAM |
| Specification |
Camera
Sensor: 1/4” 1Megapixel progressive can CMOS
Electronic Shutter Speed: Auto/Manual, 1/25~1/10000s
Minimum illumination: Color: 0.1Lux@F1.2, B/W: 0.01Lux@F1.2
Focal Length: 3.6mm
Angle of View: 62°
Functions
Day/night switch: IR distance 10m
White Balance: Auto white balance
BLC: Support BLC
Digital noice reduction: Support 3D noice reduction
WDR: Support D-WDR
Motion detection: Support motion detection
Privacy shelter: Support 4 zones
OSD: Support OSD setting
Sleeper: Support schedule reboot
Video
Compression: H.264
Resoluton
Mainstream:720P(1280*720)
Substream:D1(704*576),360P(640*360),CIF(352*288)
Video frame rate: 25fps(50HZ),25fps(60HZ)
Biterate: 64Kbps~12Mbps CBR/VBR adjustable
Video adjustmen:t brightness,saturability,chromacity adjustment
Network
Ethernet: RJ-45 (10/100Base-T)
Wireless: Support WIFI 802.11b/g/n,2.4G band ;AP mode
IP type: Dynamic IP and Static IP
Network agreement : HTTP, TCP/IP, UPNP, RTSP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP
Access protoco:l Support ONVIF 2.4
Max user qty: 6

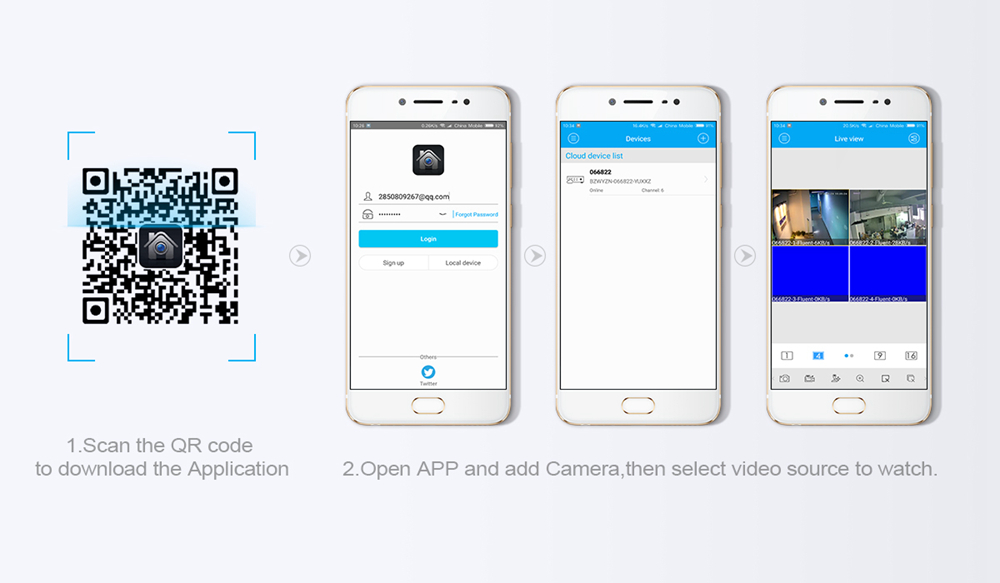

Client: iPhone, iPad, Android, Windows PC
Audio
Audio: Not support
Interface

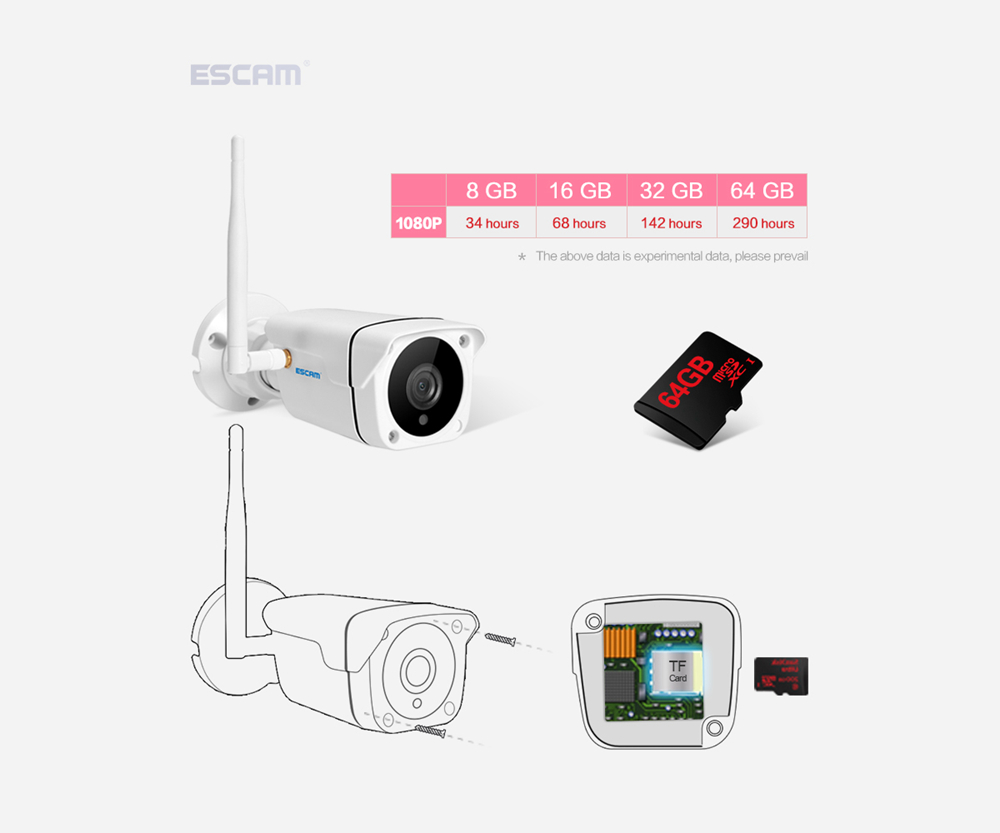

TF card: Support, max support 64GB TF card(micro SD)
General
Power supply: DC12V 1A
Power Consumption: <6W
Working Environment: -20°C~+60°C, 10%~90%
|

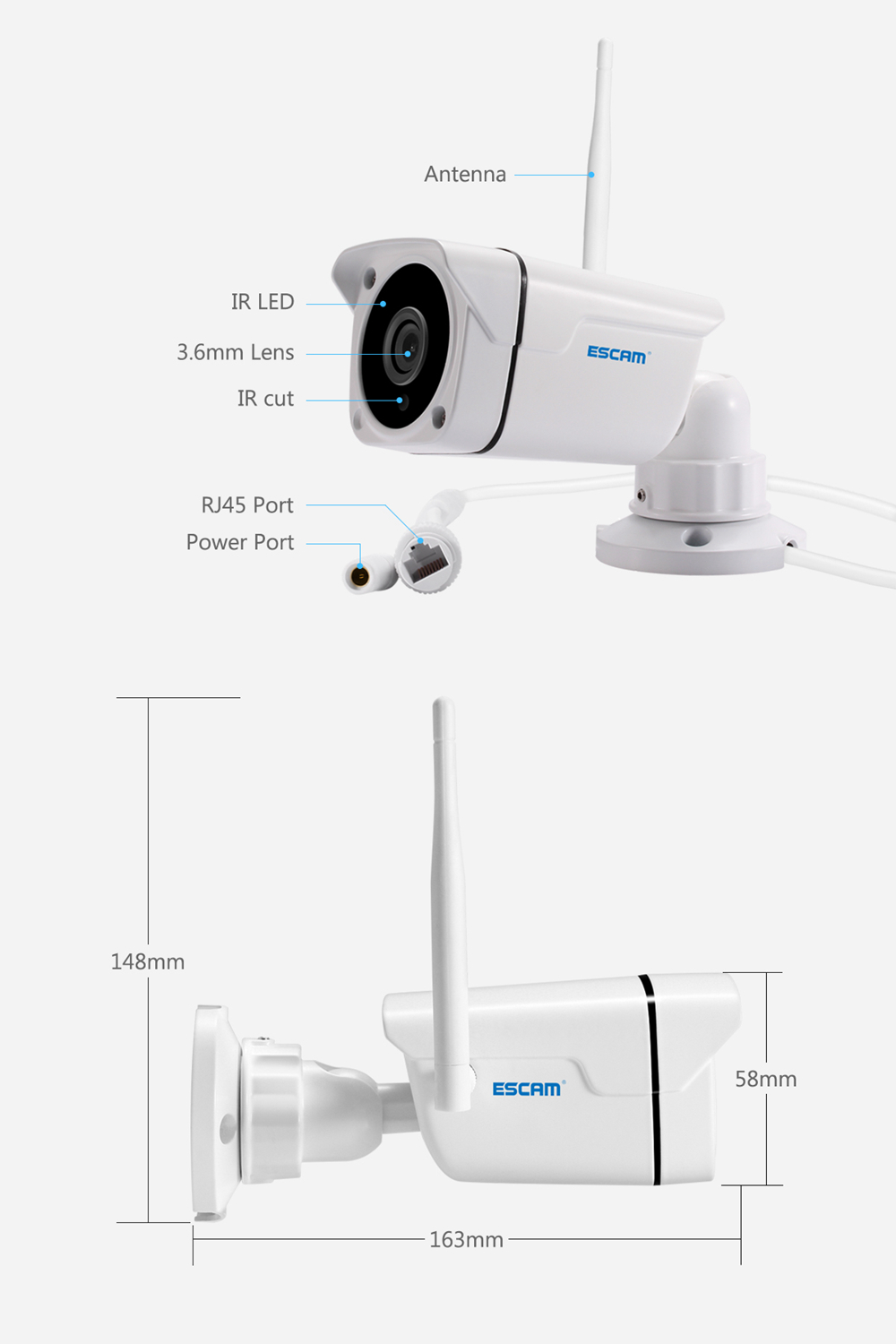

| Weight & Dimensions | Product Weight:0.35KG Product Dimensions:163 x 148 x 58mm Package Weight:0.45KG Package Dimensions:220 x 105 x 100mm |
| Package Contents |
1 x PVR001 Camera |
