Highlights

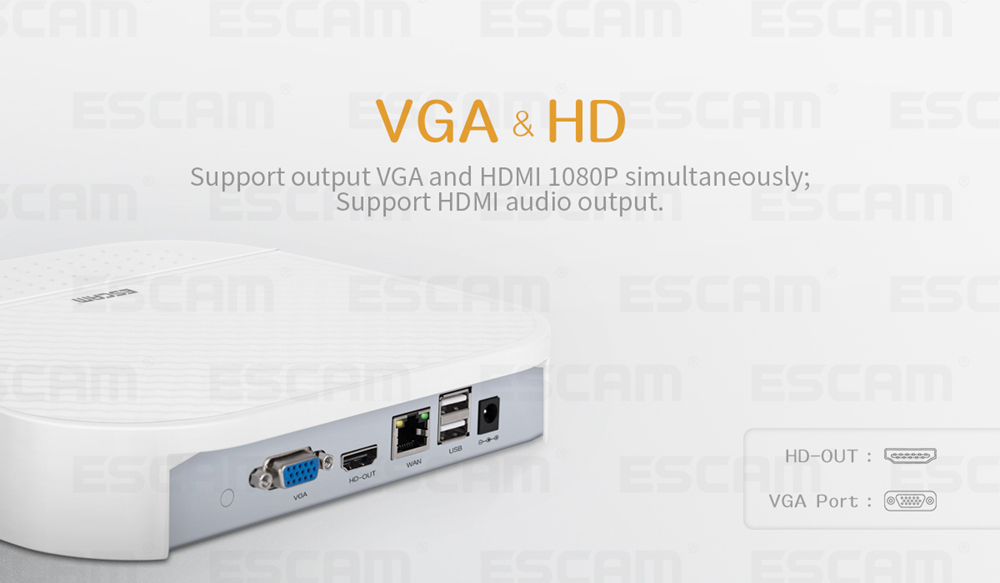

Support output VGA and HDMI 1080P simultaneously

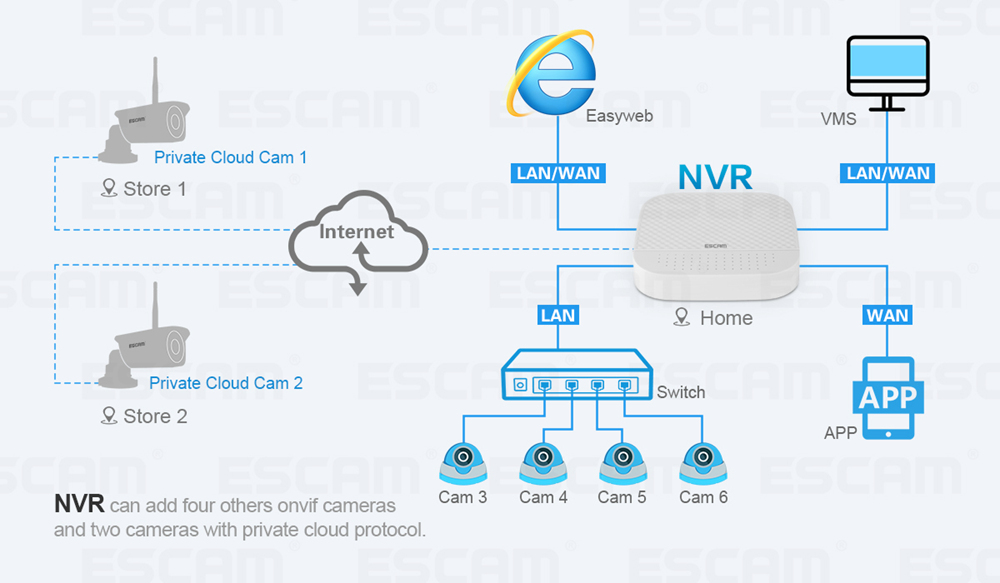

Support Max.10ch preview, 4ch playback.add 2ch cloud channel,can add ESCAM Ip camera with private protocol remotely
Single picture support Max. 2MP main-stream, 4 pictures support max. 4*1.3MP mainstream
Support HDMI audio output
Support preview snapshot and playback snapshot

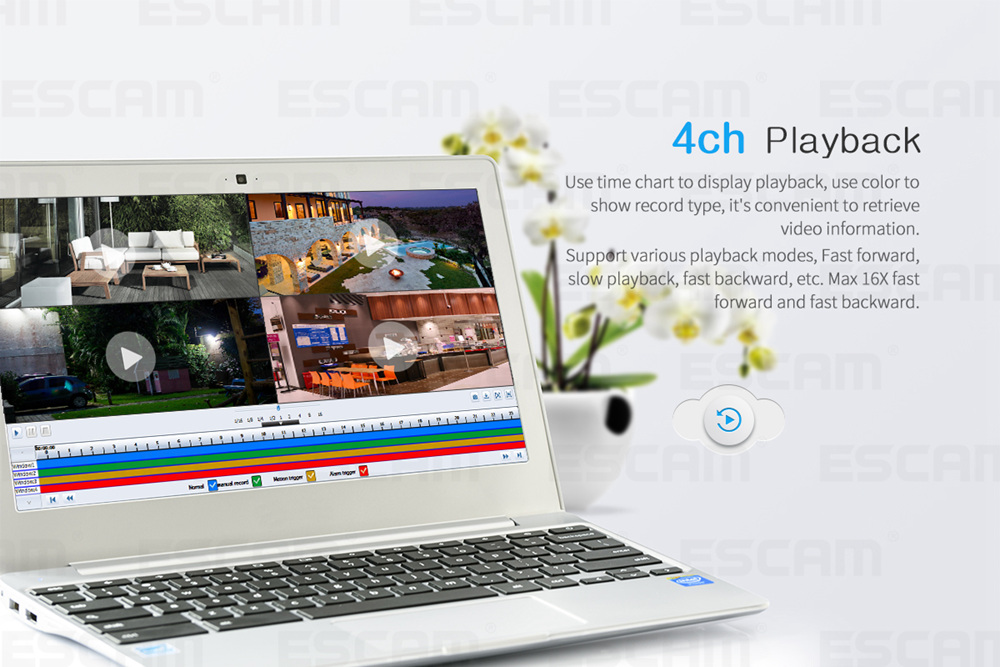

Use time chart to display playback, use color to show record type, Its convenient to retrieve video information
You can backup the record according to the occurrence time and duration, even for seconds
Cameras IP address can be modified in bulk, Cameras can be added remotely
Can connect with IP camera , Support various Onvif version
Can connect with main brand IPC (private protocol and standard ONVIF)
Preview channel position can be switched freely; MAC address doesnt change, convenient for installing.
The backup record and picture via U-disk can playback on NVR, much more convenient.
Support various playback modes, Fast forward, slow playback, fast backward, etc. Max 16X fast forward and fast backward
Support WEBVMS, android/IOS mobile app
Support P2P, QR scan and playback via mobile app.
Specification
| General |
Brand:ESCAM |

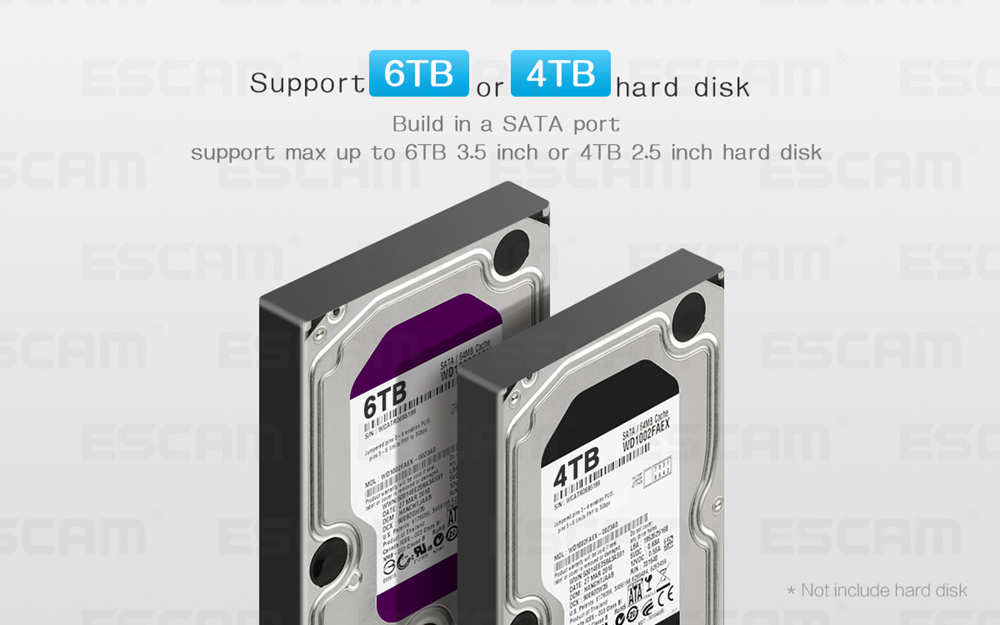

| Specification | System Model No:ESCAM PVR208 Main chipset:HI3520D Operating system:Embedded Linux operating system Interface Operate interface:16 bits graphic interface, support mouse and keyboard operation Image display:1/4/8/10ch Video Video mode:10ch 1080P/960P/720P Frame rate:NTSC@30fps,PAL@25fps Video output:VGA*1, HDMI*1,1080P resolution Image decode:H.264 Playback quality:1080P/960P/720P Area shutter:support(your camera needs to support) Motion detection:support(your camera needs to support) Audio Format:G.711U Talk:NO Input:Audio input number is the same as channel number Output:Support HDMI audio output Playback Record mode:Timing, motion detection, record manually Playback channel:1ch 1080P/4ch 960P Record retrieval:Time, event, and timeline Storage backup Record saving:Local hard-disk Backup mode:USB HDD,USB flash disk Remote surveillance Mobile surveillance:Smartphone (iPhone, Android) Computer surveillance:Support IE and VMS remote surveillance Interface Video output:1*VGA,1*HDMI Network:1*RJ45 10/100M Ethernet interface self-adaption USB:2*USB2.0 Hard-disk:1*SATA 2.0;Max SATA is 6T Others ONVIF:support Power:12V/2A Consumption:≤15W Working environment: -10°C~+50°C;10%~95%RH |

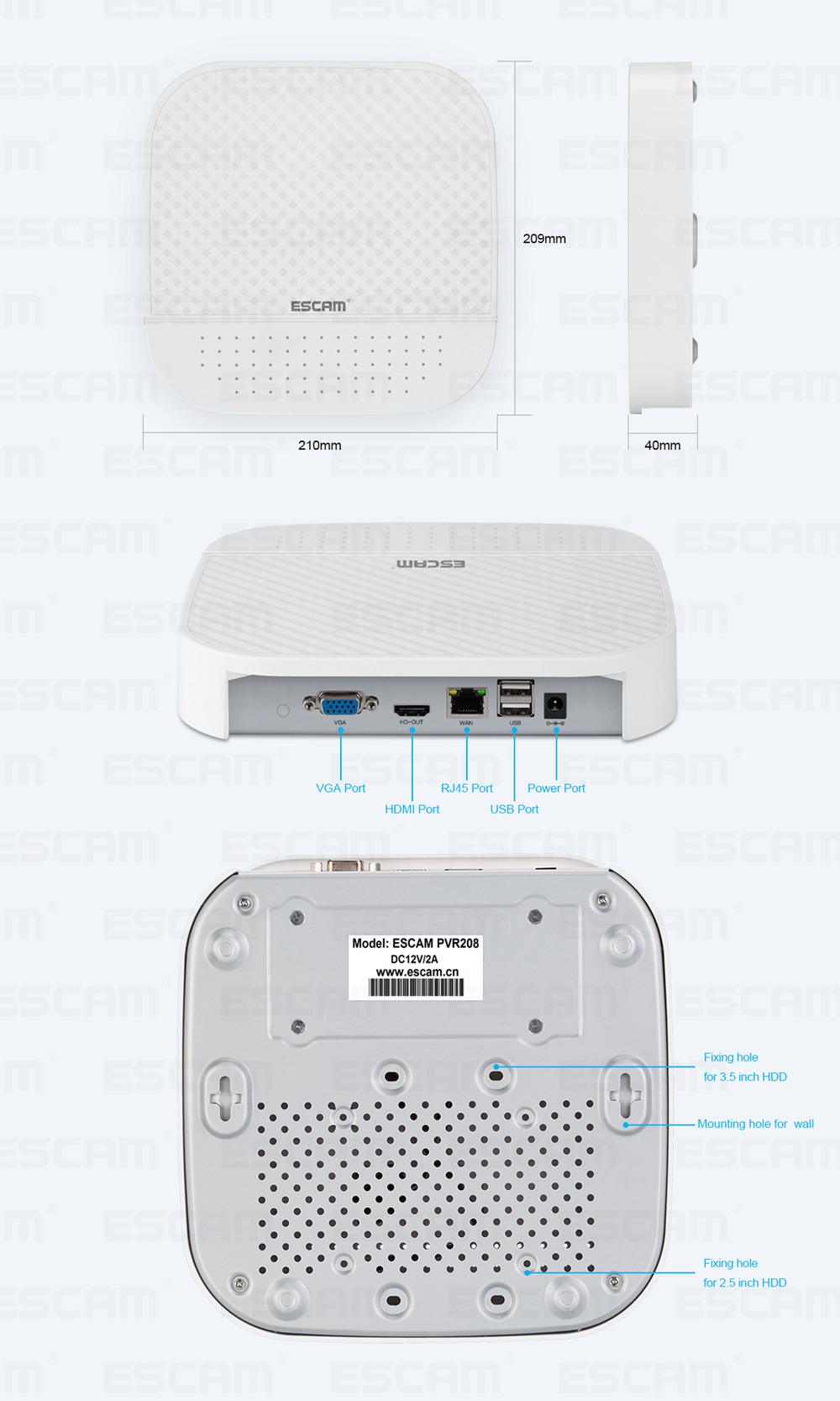

| Weight & Dimensions | Product Weight:0.436KG Product Dimensions:210 x 209 x 40mm Package Weight:0.965KG Package Dimensions:320 x 240 x 52mm |
| Package Contents |
1 x 8CH Network Video Recorder |
