Highlights

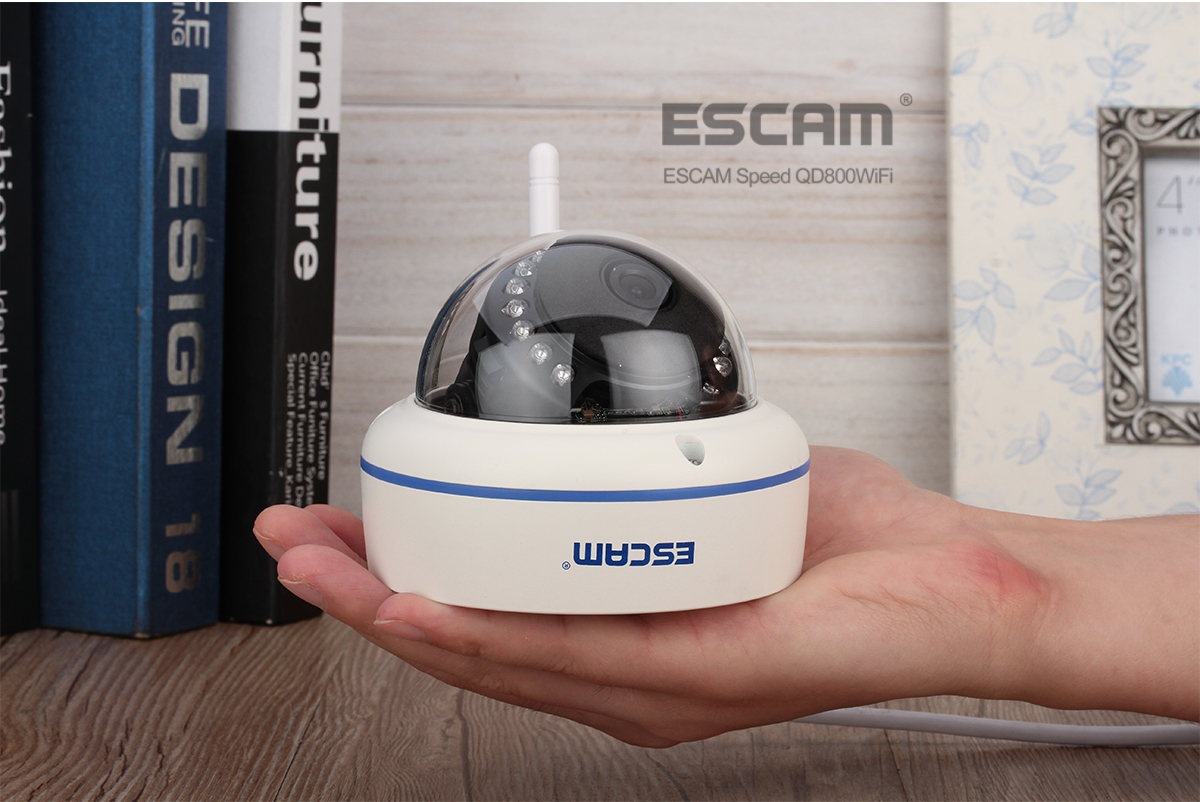

H.264 2MP HD 1080P
1080P camera ensures that you can see enough activity with limited lens distortion, and the ball mount gives you more freedom of where you want to view.
Day/Night Vision
IR distance 15m provides clear night vision even in pitch black, make your night view as daytime.
Motion Detection
Using highly sensitive algorithms, the outdoor camera reduces false alerts to only alert you of unwanted intruders, then use the deterrent alarm to send them a warning.

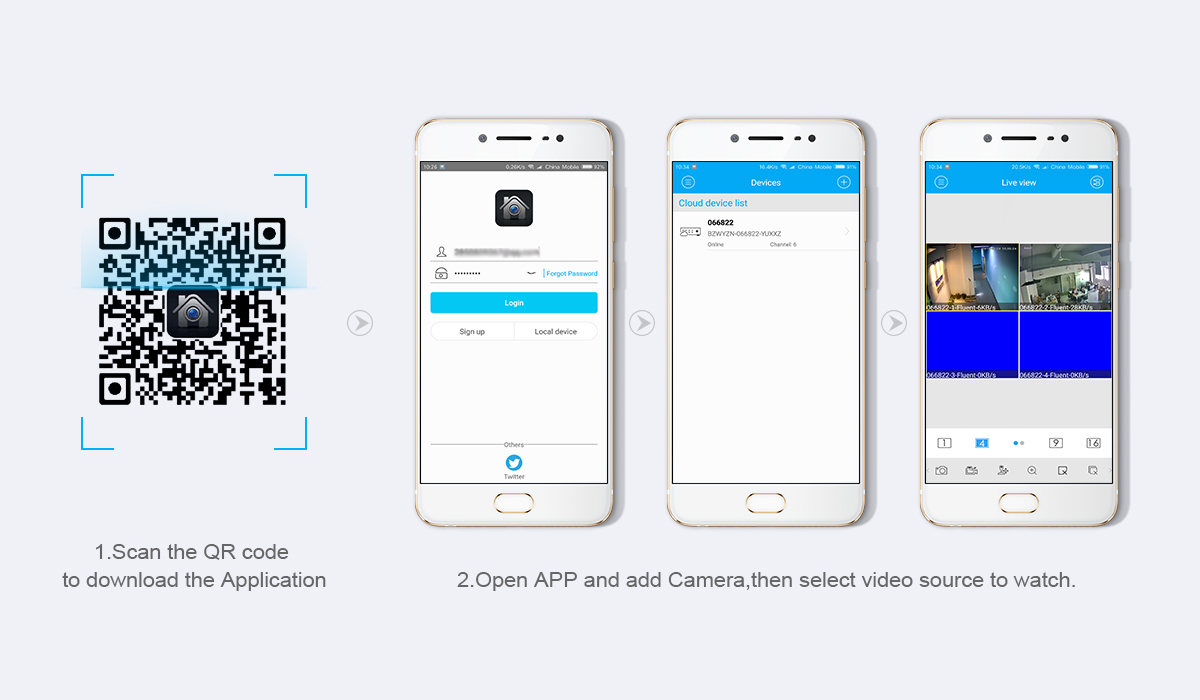

Wifi Connect
Without calbing work, via wifi, it can be eailsy connected with your mobile for remote surveilance.

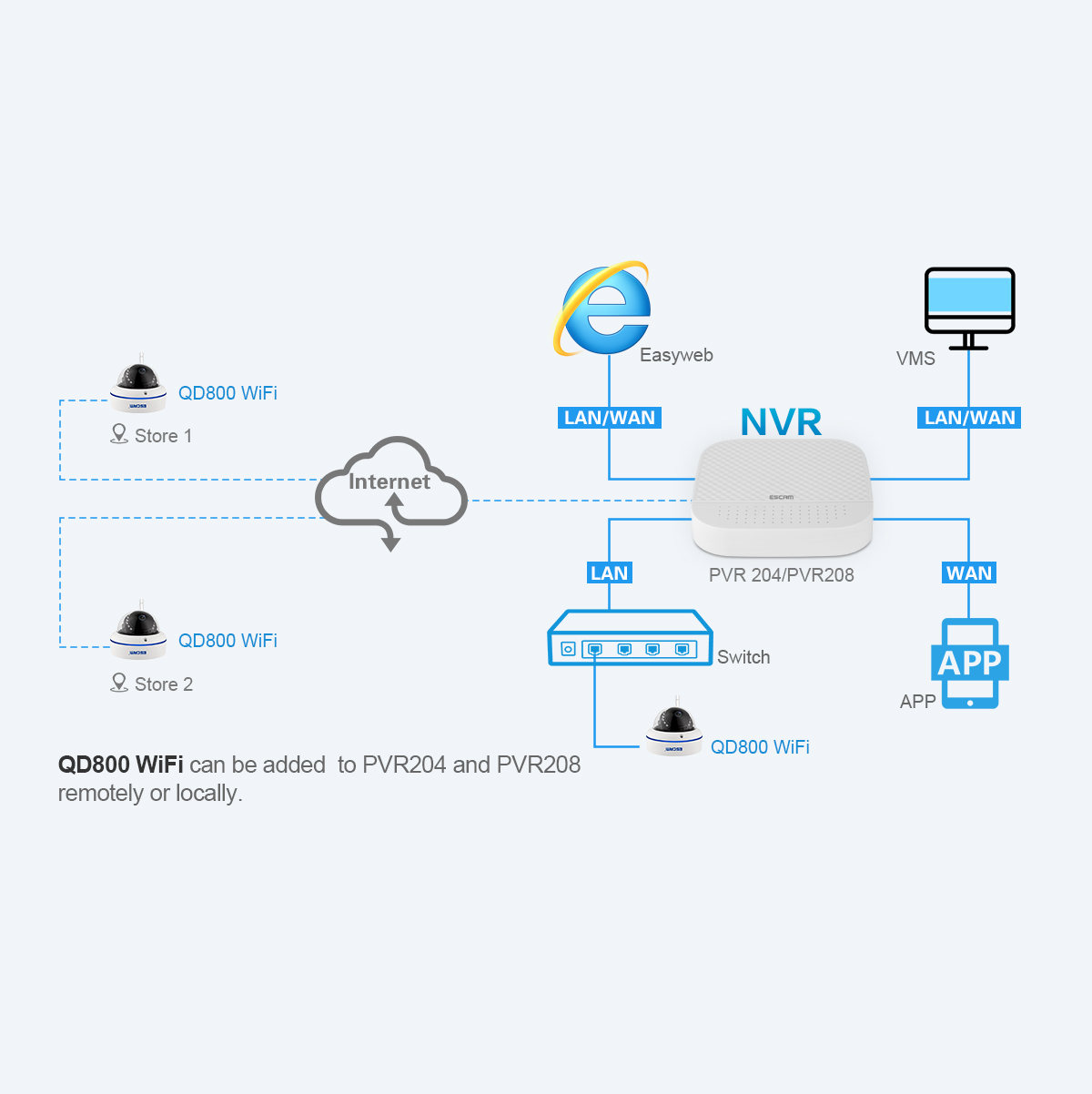

Onvif Protocol
Compliance with standard onvif protocol, compatibled with various brands NVR.
IP66 Water Resistant
Suitable for indoor and outdoor use, all-weather environment application.
Specification
| General | |||||||
|---|---|---|---|---|---|---|---|
| Model | ESCAM Speed QD800WiFi | ||||||
| Camera | |||||||
| Image Sensor | 1/2.7” Megapixel progressive scan CMOS | ||||||
| Effective Pixels | 1920(H)×1080(V) | ||||||
| Electronic Shutter Speed | Auto/Manual, 1/25~1/10000s | ||||||
| Min. Illumination | Color: 0. 1Lux, B/W: 0.003Lux ; 0Lux(IR on) | ||||||
| S/N Ratio | >50dB | ||||||
| Camera Features | |||||||
| Max. IR LEDs Length | Φ5 15pcs IR Led , IR Range 15m | ||||||
| Day/Night | Auto(ICR) / Color / B/W | ||||||
| Backlight Compensation | BLC | ||||||
| White Balance | Auto | ||||||
| Gain Control | Auto | ||||||
| Noise Reduction | 3D | ||||||
| Privacy Masking | yes | ||||||
| Lens | |||||||
| Focal Length | 3.6mm | ||||||
| Max Aperture | F1.2 | ||||||
| Angle of View | 75.7° | ||||||
| Video | |||||||
| Compression | H.264 Main Profile | ||||||
| Frame Rate | Main Stream | 1080P(1920*1080) 15fps, 960P(1080x960), 720P(1280x720) | |||||
| Sub Stream | D1 (704x576) 360P (640x360), CIF (352x288) | ||||||
| Bit Rate | 64-12Mbps,Supports CBR/VBR | ||||||
| Network | |||||||
| Ethernet | RJ-45 (10/100Base-T) | ||||||
| Protocol | HTTP,TCP/IP,IPv4,UPNP, RTSP,SMTP,NTP,DHCP,DNS,PPPOE, DDNS,FTP | ||||||
| ONVIF | ONVIF Ver. 2.4 | ||||||
| Max. User Access | 6 users | ||||||
| Smart Phone | iPhone, iPad, Android | ||||||
| Wireless protocols(-W) | 802.11b/g/n | ||||||
| General | |||||||
| Power Supply | DC12V | ||||||
| Power Consumption | <6W | ||||||
| Working Environment | -20°C~+60°C, 10%~90% | ||||||
| Ingress Protection | IP66 | ||||||
| Dimension | 104mm * 104mm * 85mm | ||||||
| Weight | 0.36KG | ||||||
| Package Dimension | 135mm * 135mm * 130 mm | ||||||
| Package Weight | 0.58KG | ||||||
| Approvals | CE FCC RoHS | ||||||

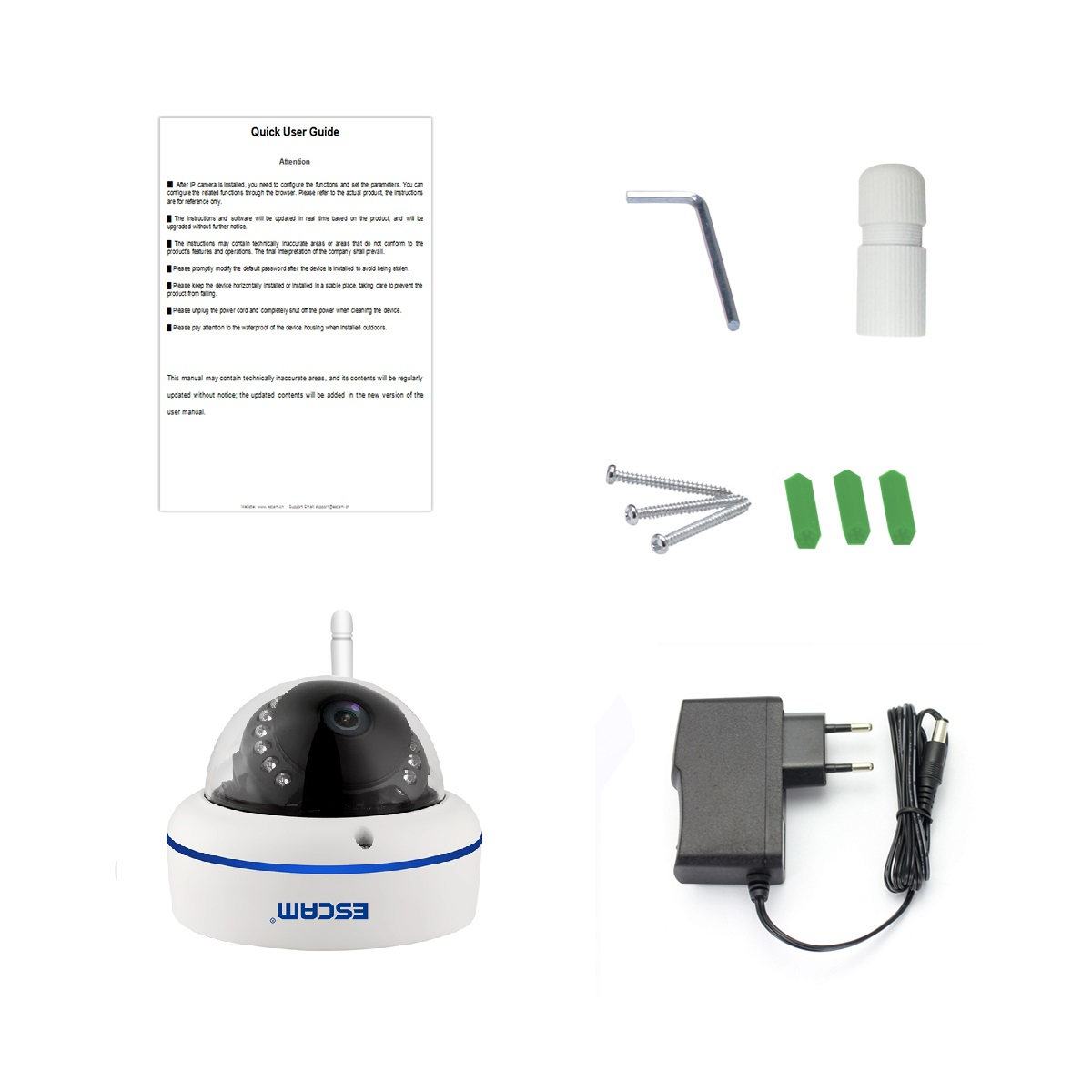

What's in the box?
1 x ESCAM Speed QD800WIFI Camera
1 x Power Supply (EU / US / UK / AU Plug for Optional~)
1 x Waterproof Cup
1 x Installation Accessories
1 x English User Manual
