Highlights
- H.264 Compression
- 720P IP Camera ,
- Support Day/Night ,IR Range 15m
- Support motion detection

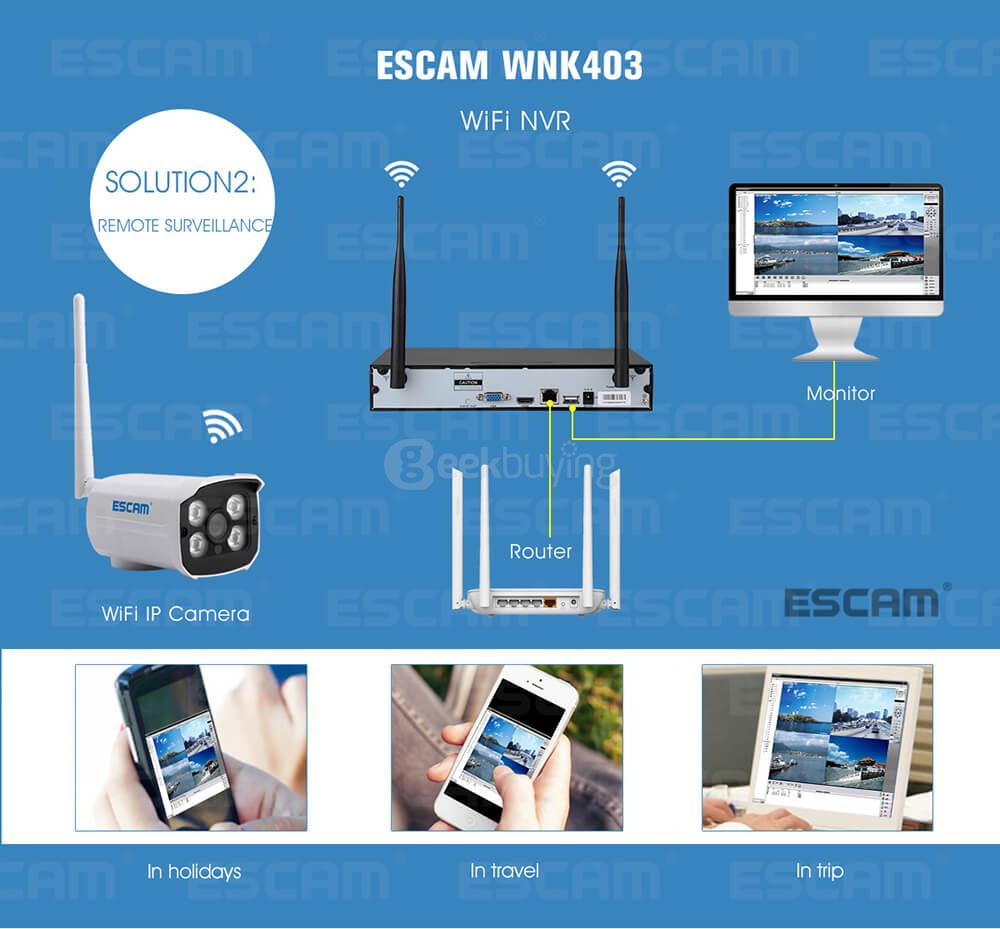

- Support viewing remotely by phone

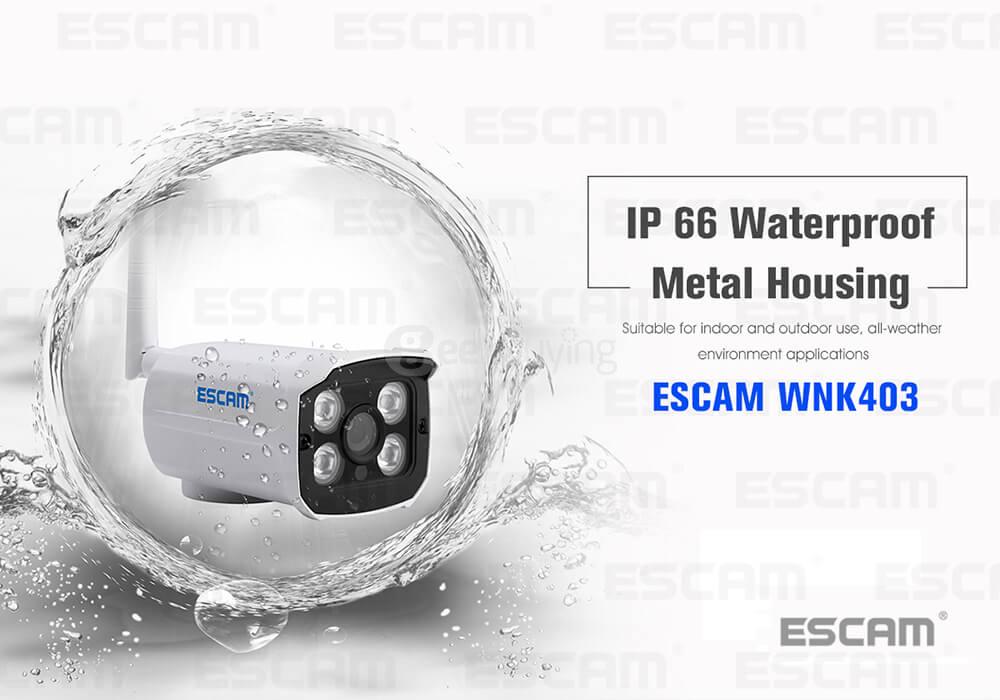

- IP66 waterproof
- WIFI connection

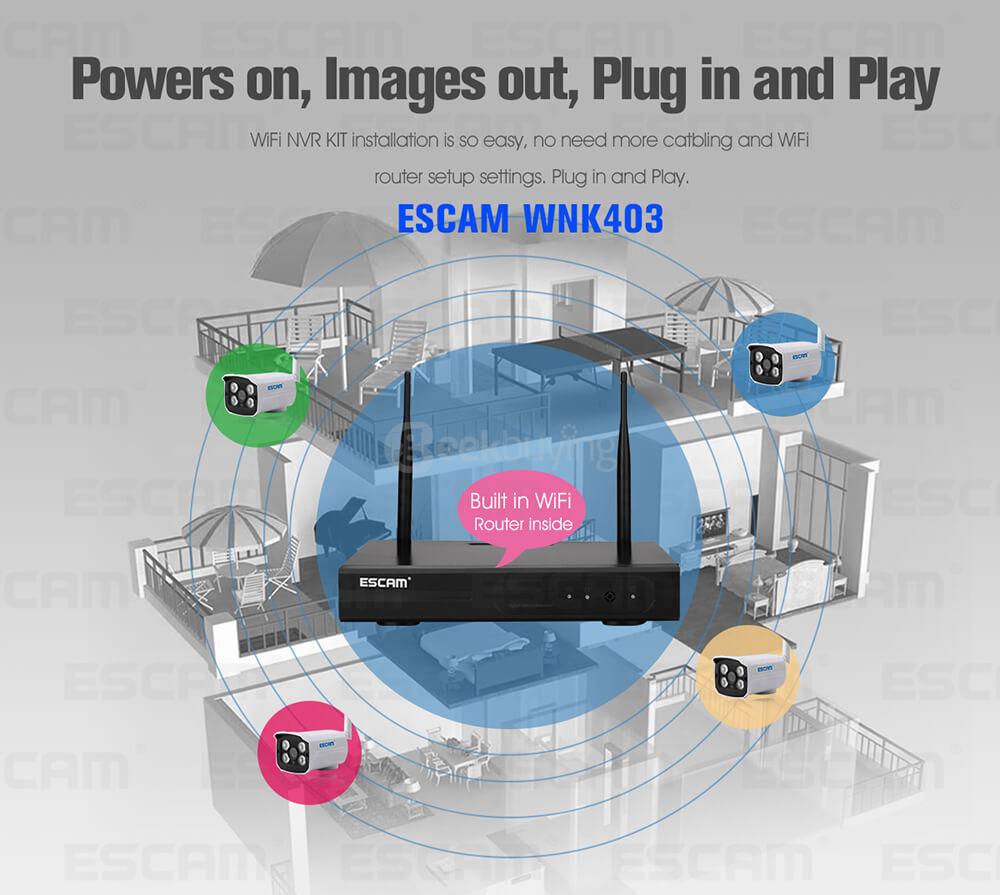

- Plug in and play
Specification
| General | |||||||
|---|---|---|---|---|---|---|---|
| Wireless NVR Specification ESCAM WNK403 | |||||||
| video input | Network Video | 4CH | |||||
| Network video input broadbank | 20Mbps | ||||||
| video output | HDMI input | 1ch,resolution:1024x768,1366x768, | |||||
| 1440x900,1920x1080p | |||||||
| VGA output | 1ch,resolution:1024x768,1366x768, | ||||||
| 1440x900,1920x1080p | |||||||
| AV CODEC Specification | Video Resolution | 720P | |||||
| synch-playback | 4CH | ||||||
| Video Control | Video/Capture mode | Maual,Time,Motion,Alarm | |||||
| Playback mode | Real time,Routine,Event | ||||||
| Backup | USB backup | ||||||
| Hard Disk | Type | 1*SATA interface | |||||
| Max Capacity | 4 TB at most for each | ||||||

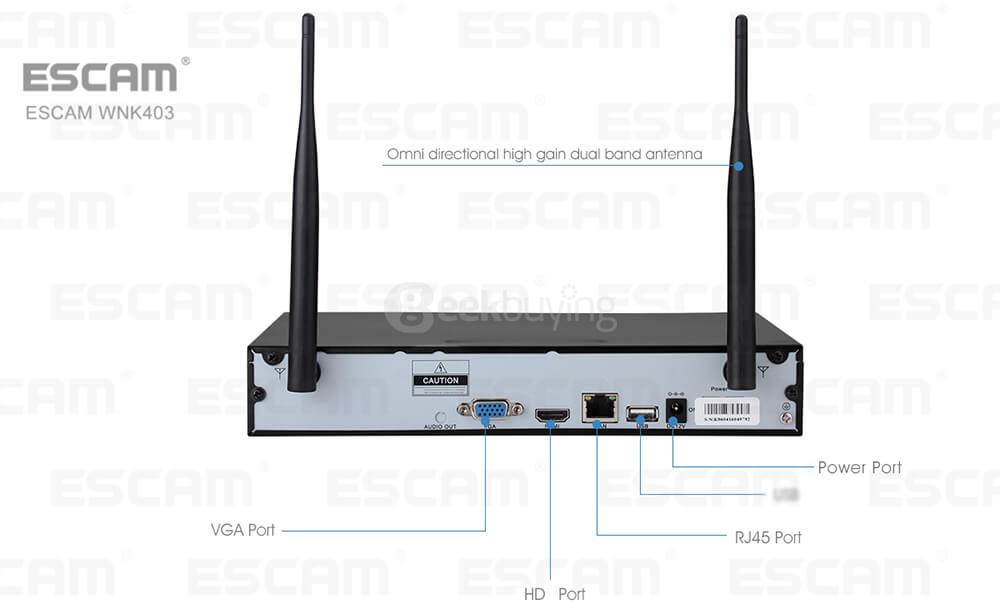

| External Interface | Network Interface | one adaptable RJ45 10M/100M, one 2.4Ghz WIFI interface | |||||
| USB Interface | USB 2.0 | ||||||
| Network Control | Protocol | UPnP (play&plug)/SMTP (email survice)/PPPoE (dial-up) | |||||
| DHCP (Automatically obtain an IP address) | |||||||
| Others | Power Supply | DC12V2A | |||||
| Power Consumption (W) | ≤5W(Without HDD) | ||||||
| Operate Temperature (°C) | -10ºC~+55ºC | ||||||
| Working Humidity (%) RH | 10%~90% | ||||||
| Weight(excluding HDD) | 0.73Kg | ||||||

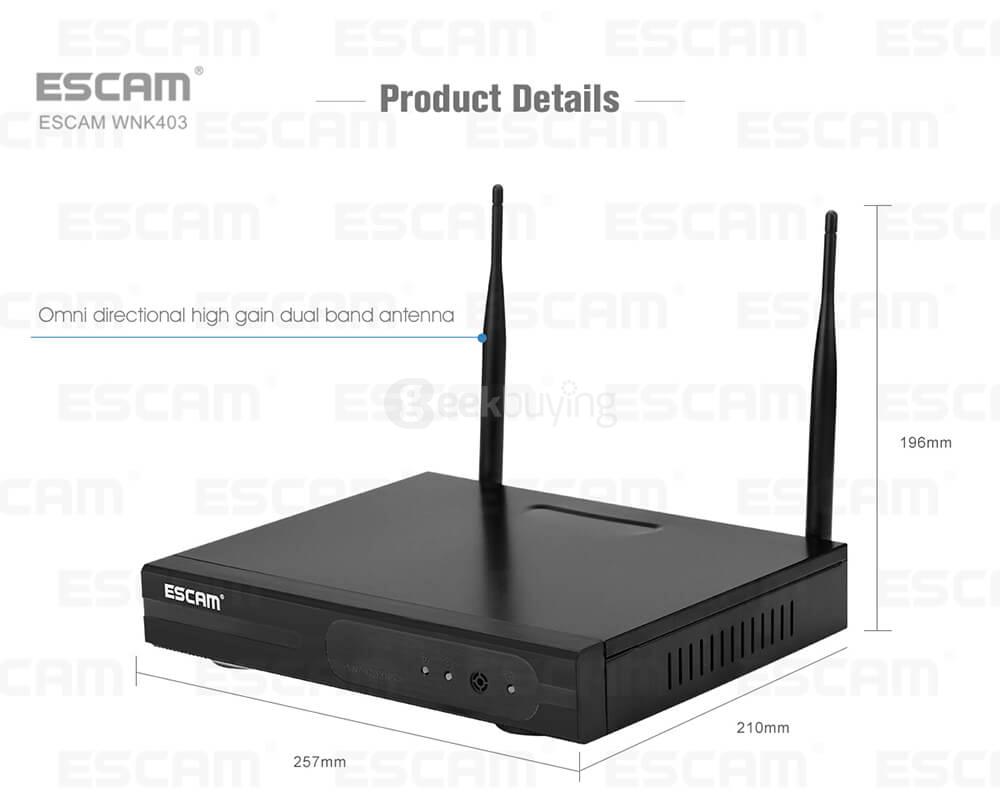

| Dimensions | 257*210*42mm | ||||||
| IPC Specification | |||||||
| Sensor | 1/4” Progressive CMSO Sensor | ||||||
| Signal System | PAL/NTSC | ||||||
| Resolution | 1280 x 720 | ||||||
| Minimum illumination | Color: 0.1 Lux; B/W: 0.01 Lux | ||||||
| Shutter | 1/25s to 1/25,000s | ||||||
| Lens | 3.6mm | ||||||
| OSD | Date Time & Title | ||||||
| White Balance | Auto | ||||||
| Day&Night | Auto / Color / BW | ||||||
| 3D-DNR | Auto | ||||||
| Mirror/Flip | On / Off | ||||||
| Frame Specification | Three Streaming at the Same Time: | ||||||
| H.264 1280x720@15fps or below | |||||||
| H.264 640x480@30fps or below | |||||||
| S/N | > 39.1 Db | ||||||
| Interface | RJ45 / WIFI 802.11b/g/n | ||||||
| General Specification | Anti-thunder Level | Standard IEC61000-4-5 | |||||
| Working Temperature/Humidity | -10ºC to +50ºC / 30% to 80% RH | ||||||
| Working Temperature/Humidity | -20ºC to +60ºC / 20% to 90% RH | ||||||
| Power Input | DC12V1A | ||||||
| Power consumption | ≤6W | ||||||
| Level of Protection | IP66 | ||||||
| Weight | 0.25kg | ||||||
| Dimensions | 107 * 68 * 60mm | ||||||
| Package | Package Dimension | 340*185*270mm | |||||
| Package Weight | 2.8kg | ||||||
| packing list | WIFI NVR*1,WIFI Camera*4,Screw bag*5,Mouse*1,Poweradapter*5, User manual*1,Waterproof hat*4,network cable*1. | ||||||
What's in the box?
- 1*WIFI NVR
- 4*WIFI Camera
- 5*Screw bag
- 1*Mouse*1
- 5*Poweradapter
- 1*User manual
- 4*Waterproof hat
- 1*network cable
