Highlights
The heart of the flight control systems is a powerful STM32F405 MCU and MPU6000 gyro flashed with Betaflight for proven rocksteady flight stability. The integrated LC filter with 5v/3A voltage regulator means clean power for all the FC/OSD components and other attached boards such as VTX, RX and FPV Camera. Betaflight OSD with easily customizable layout of vital flight information and ability to change FC flight parameters. Blackbox flight log recorder with 16mb flash memory. On board buzzer for battery level warning or lost model finder functions.

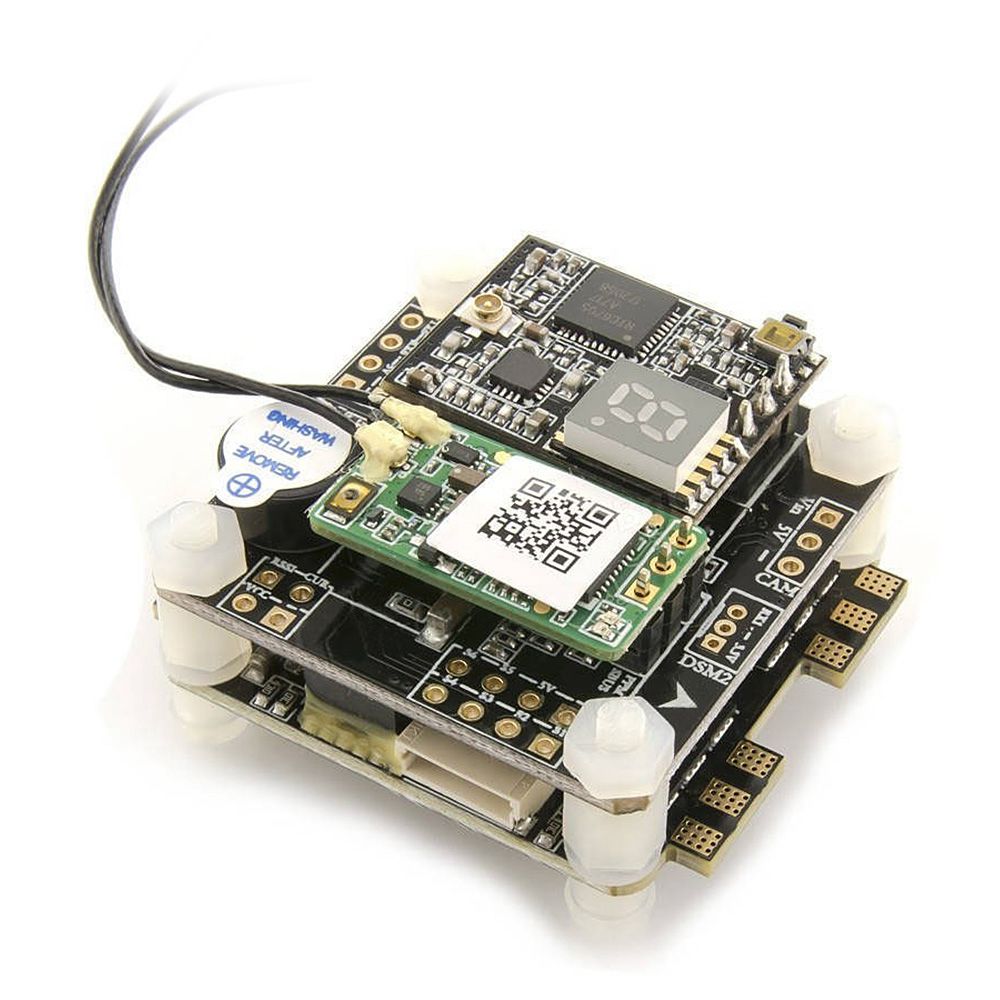

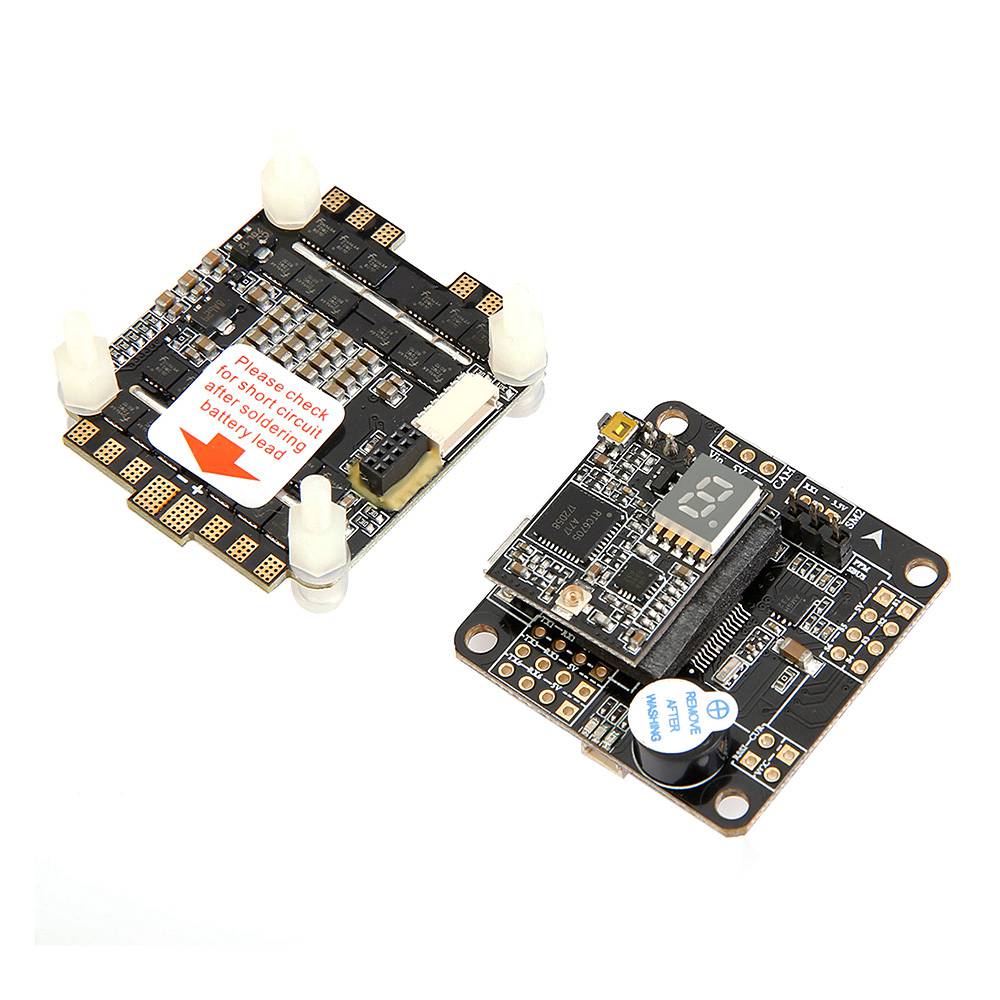

6 in 1 Main Board - F4 FC + Betaflight OSD + LC Filter + 5v Regulator + Blackbox + Buzzer
48 Chanel 5.8ghz Switchable Power VTX Board
VTX allows for easy change of vtx channel/band via push button. Also transmit power is switchable from 25mw to 200mw. Included is a lightweight 5.8ghz dipole whip antenna or 80mm extension cable with SMA connecter for use with your own antenna.
Frsky XM 16ch Sbus Micro RX Board
Genuine FrSky XM receiver is included with 16 channels with RSSI. It possible to connect other brands of Serial or PPM via the dedicated RX pads.
Bullet 30A - 4 in 1 ESC + Current Sensor Board
The ESC system is comprised of 4 x 30A continuous Bullet ESC’s using top quality MOSFETs and running Blheli S firmware.
Your choice of protocol: DSHOT, Multishot, Oneshot 125. The onboard current sensor monitors mAh consumed and pass the information to OSD for an accurate way to monitor battery level and peak power consumption.
Specification
| General |
Brand: Emax |
| Product Details |
6 in 1 Main Board
Receiver Board |
| Package Contents |
1 x 4 In 1 30A BLHeli_S ESC |
