Highlights
- Based on BLHeli firmware, ptimized for perfect drive performance
- Low-voltage protection, over-heat protection and throttle signal loss protection
- Separate power supply for MCU and BEC, enhancing the ESC’s ability to eliminate magnetic interference
- Parameters of the ESC can be set via program card or transmitter
- Throttle range can be set to be compatible with various receivers
- Equipped with linear BEC or switch BEC
Specification
| General | |
|---|---|
| Type | Brushless Motor |

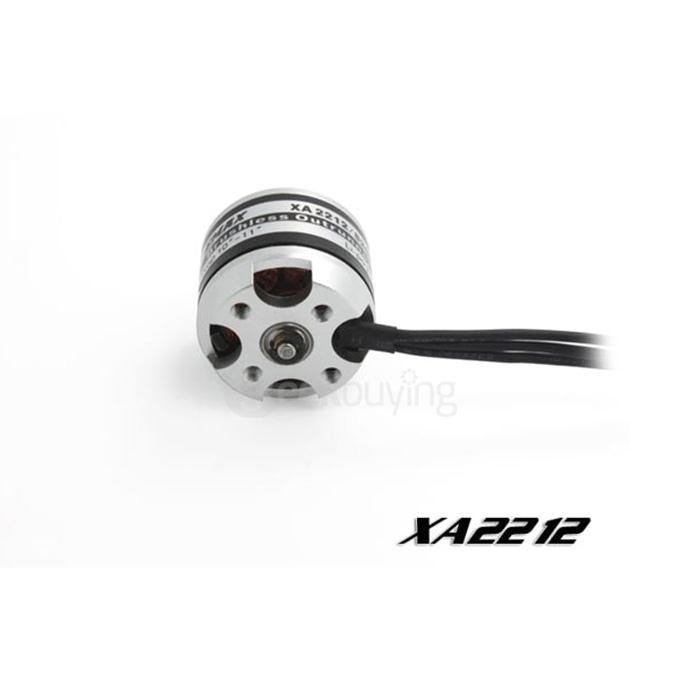

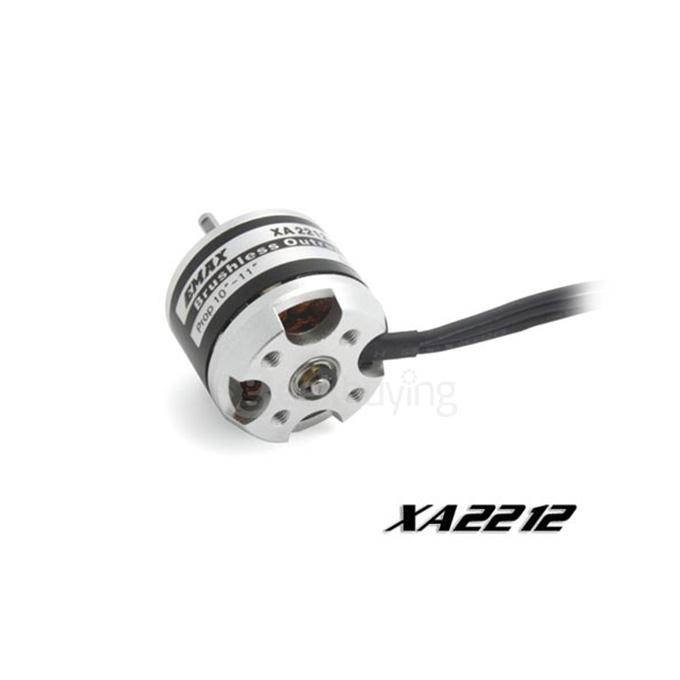

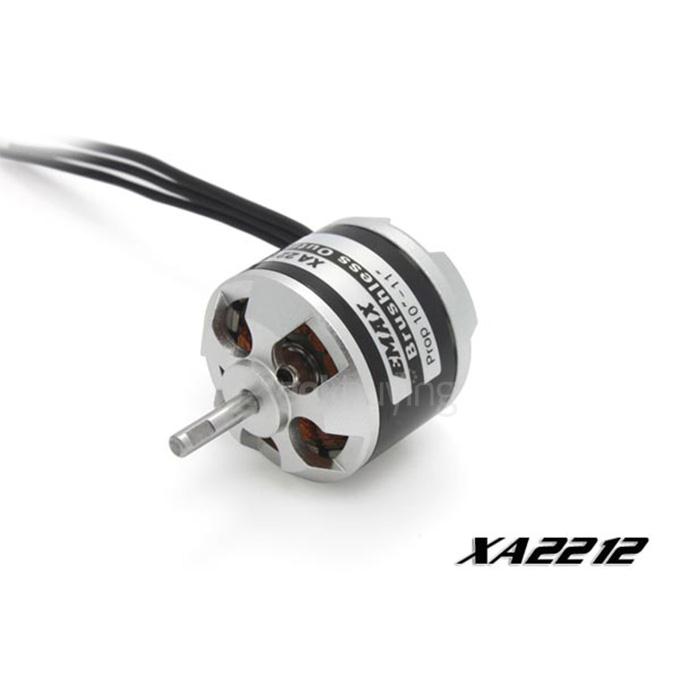

| Model | Emax XA2212 |
| KV | 980KV |
| Speed | Max speed 210,000 rpm for 2-pole, 70,000 rpm for 6-pole, 35,000 rpm for 12-pole |
| Current | 30A 6S OPTO |
| Compatible | RC Models |

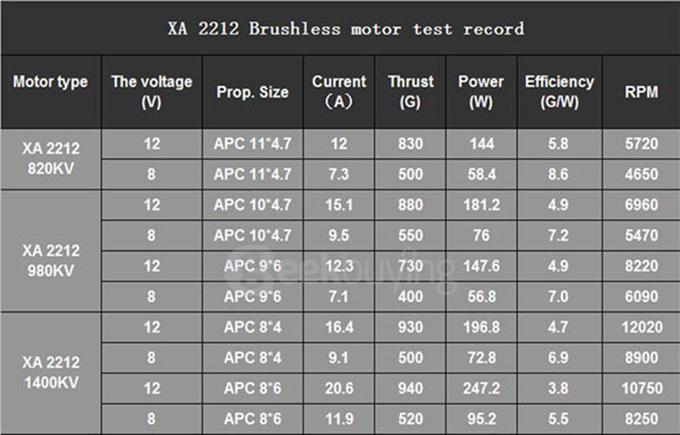

| Different KVs for various models | KV820: suitable for 3D flat foam planes, and slow-fly trainers KV980: suitable for multirotors and 3D planes or puller prop trainers with a wing-span of 1M to 1.2M KV1400: suitable for pusher prop FPV planes, high-speed wings |

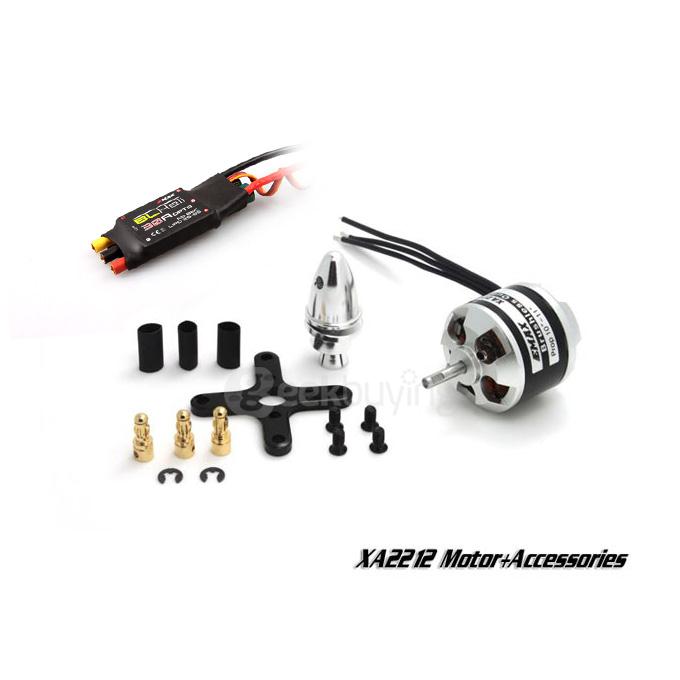

| Package Contents | |
| 1 x Emax XA2212 Brushless Motor | |
|
1 x Emax Motor Accessories |
|
|

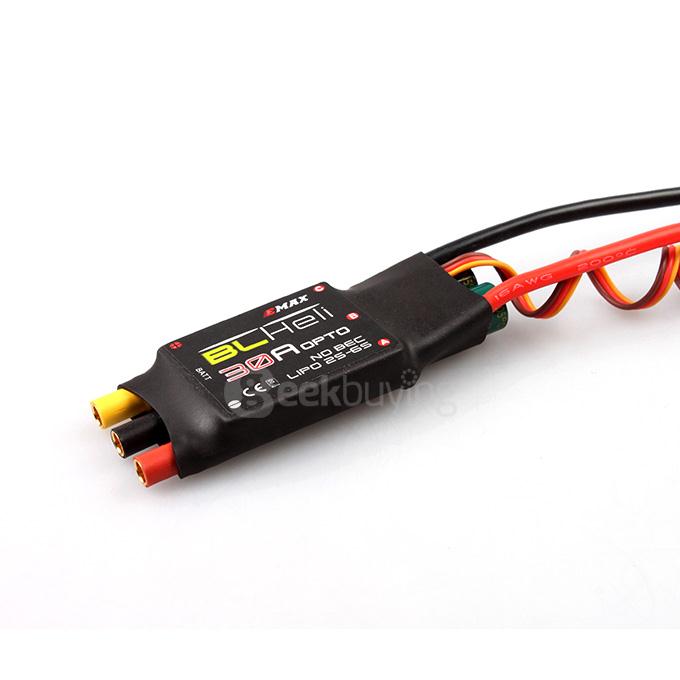

1 x ESC |
|
