Highlights
Comprehensive Test Frequencies & Levels
Supports three test frequencies (100Hz, 1KHz, 10KHz) and two test levels (0.3V and 0.6Vrms RMS). Comprehensive and accurate test results for various components.
Automatic Component Identification
Automatically identifies components and displays primary and secondary parameters simultaneously for efficient and accurate readings.
Advanced Measurement Algorithms
Suitable for imported chips with advanced measurement algorithms, ensuring outstanding stability and reliability in measurements.
High-Definition Color Display
Features a 1.14-inch high-definition color display for clear and intuitive data reading, making test work more efficient.
Data Retention & EXCEL Tables
Supports data retention, and automatically records data to generate EXCEL tables for easy review and analysis on a computer.
Interchangeable Tweezer Heads
Made of gold-plated brass, the straight and curved tweezer heads are interchangeable, offering high hardness and durability for accurate measurements in various applications.
Specification
| General | Brand: FNIRSI Type: Smart Mini Tweezer Model: LCR-ST1 Color: Black |
| Specification | Display: 1.14'' color screen Charging Interface: Type-C, 5V/A Power Supply: 250mAh lithium battery Capacitance Range: 1pF - 22mF Inductance Range: 1μH - 10H Resistance Range: 10mΩ - 10MΩ Diode Test: On voltage 0.7V Frequency Test: 100Hz, 1kHz, 10kHz Level Test: 0.3V, 0.6V RMS Parameter Display: ESR, D value, Q value, Z value, X value |
| Weight & Size | Product Weight: 43.5g Package Weight: 163.9g Product Size(L x W x H): 2.8x1.9x15cm Package Size(L x W x H): 18.5x6x5.1cm |

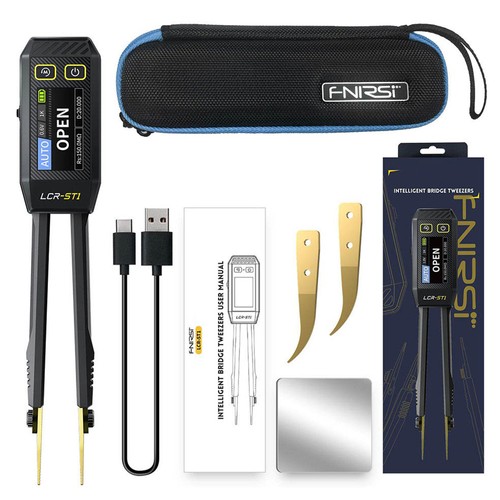

| Package Contents | 1 x LCR-ST1 Mini Smart Tweezer 1 x Pointed Head (one pair) 1 x Hook Head (one pair) 1 x Magnetic Patch 1 x USB Data Cable 1 x User Manual 1 x Carrying Case |
