Highlights
- 600TVL high picture quality
- 1/3" SONY SUPER HAD II CCD
- Nextchip 2040 DSP
- Powerful OSD menu
- D-WDR (Wide Dynamic Range)
- 2D-DNR (Digital Noise Reduction)
- Low Power Consumption(70mA)
- Mirror function
- Privacy areas: 8 areas
- Low illumination: 0.01Lux
- 2.8mm Lens
- Low Power Consumption
- Suitable for FPV

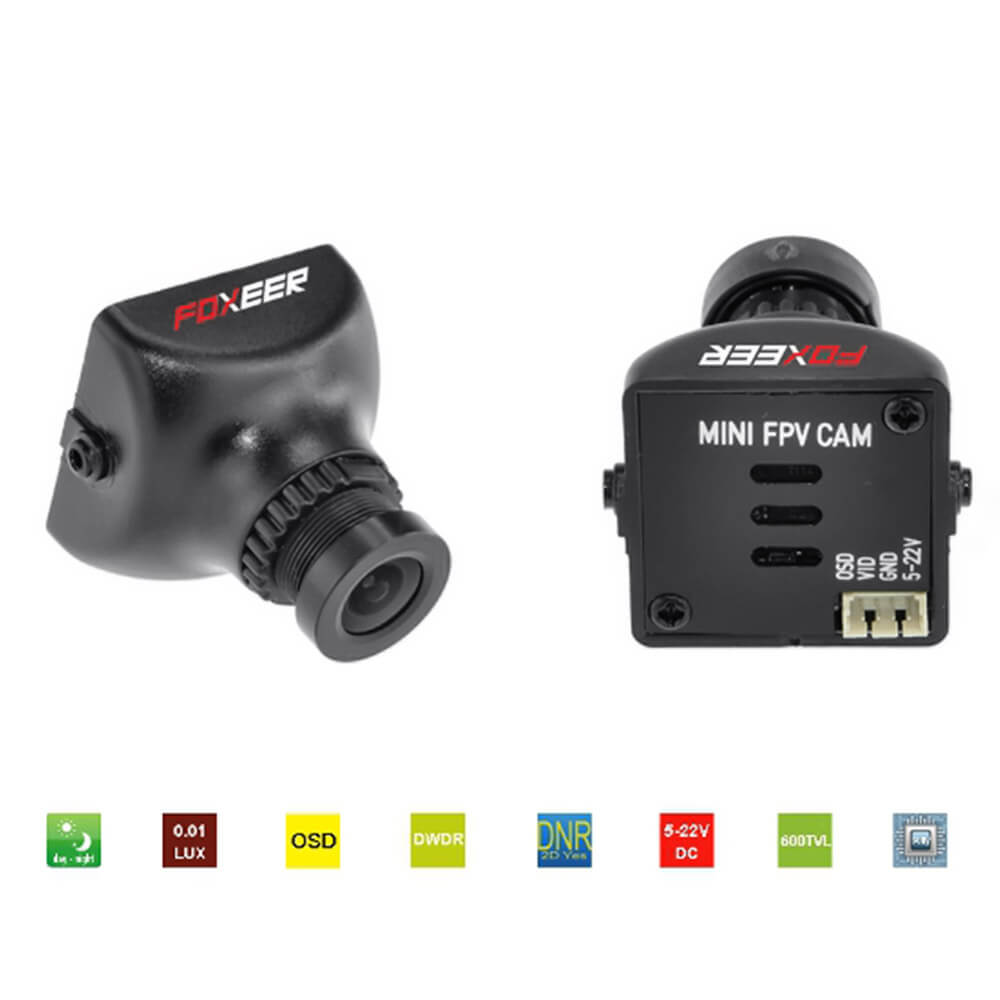

- This is a mini version of the classic CC1333 600TVL Sony Super Had II CCD board FPV camera. It uses a 1/3" Sony Super HAD II CCD, Nextchip 2040 DSP, D-WDR, 2D-DNR, minimum illumination reach 0.01 Lux (black/white) with a powerful OSD. A customized 3pin servo cable is also included.
Specification
| General | |
|---|---|
| Brand | FOXEER |
| Model | HS1177 |
| Quantity | 1 Piece |
| Specification | |
| CCD | 1/3 inches Sony SUPER HAD II CCD |
| PixelL | PAL: 976(H) x 494(V);NTSC:768(H)×494(V) |
| TV System | NTSC |
| Resolution | 650TVL(b/w), 600tvl(color) |
| Synchronization | Internal synchronize |
| Shutter Speed | (CCD IRIS) PAL: 1/50~1/100000 sec; NTSC: 1/60~1/100000 sec |
| Noise | >60 (AGC OFF) |
| Video Out | 75ohm, synchronize |
| Min. Illumination | 0.01Lux |
| Auto Gain | Off/Low/Mid/High |
| Back Light Compensation (BLC) | Off /Back light compensation/ Strong light suppression |
| Private Shading (PRIVACY) | 1~8 private shading area |
| Motion Detection (MD) | On/ Off (Multi level sensitivity settable) |
| Auto White Balance | Manual / Auto / Auto track |
| DNR | 2DNR |
| WDR | D-WDR |
| Day / Night Shift | Auto/ Color/ B&W |
| Power |
Power Consumption: 70mA Power Requirement: DC5V~22V |
| Working Environment | Working Temperature: -10 ~ +50 Degrees Working Humidity: 20~80% Storage Temperature: -40 ~ +60 Degrees Storage Humidity: 20~95% |
| Other Features | Menu (OSD): English menu White Dot Repair: Support Image Adjustment: Support Camera Title: Support |
| Dimensions & Weight (Main Product) | |
| Dimension | 25X25mm |
| Package Contents | |
| 1*FOXEER HS1177 Camera | |
| 1*Camera mount | |
