Highlights
- One HDMI input converted to one HDMI+ Audio (SPDIF+R/L)output
- Output audio support: SPDIF+R/L analog Audio Output
- Input Resolution: up to 1080P(50/60Hz)
- HDMI to achieve the synchronization of audio signal separation. There are PASS / 2.0CH / 5.1CH three kinds of audio mode options
- LED indication: when source or sink is working, LED relative to is light
- No loss of quality
- Installs in minutes
- Need DC5V/1A power supply
Specification
| HDMI Ports | HDMI V1.4, HDMI V1.3 |
|---|---|
| Number of HDMI In | 1 |
| Number of HDMI Out | 1 |
| Support | 3D Display, HDCP 1.2 Compliant, CEC, Deep Color 12bit, Deep Color 36bit, 1080p |
| DTV/HDTV | 1080p, 1080i, 720p, 720i, 576p, 576i, 480p, 480i |
| VGA | 1920x1080, 1600x1200, 1360x768, 1280x1024, 1280x800, 1280x768, 1280x720, 1024x768, 800x600, 640x480 |
| DDC Input/Output Signal | 5 Volts p-p (TTL) |
| TMDS Input/Output Signal | 0.5~1.5 Volts p-p (TTL) |
| Audio Output | L/R + SPDIF |
| Bandwidth (MHz) | 225 |
| Max Current (mA) | 500MA |
| Max Transmission Rate (Gbps) | 6.75 |
| Max Output Distance (m) | 20m |
| Other Ports | 3.5mm Audio Port × YES, DC Port × YES |
| Color | Black |
| Dimensions / WxLxH(mm) | 84.5 x 61.8 x 21 |
| Net Weight (g) | 128 |
| Type | HDMI Switch |

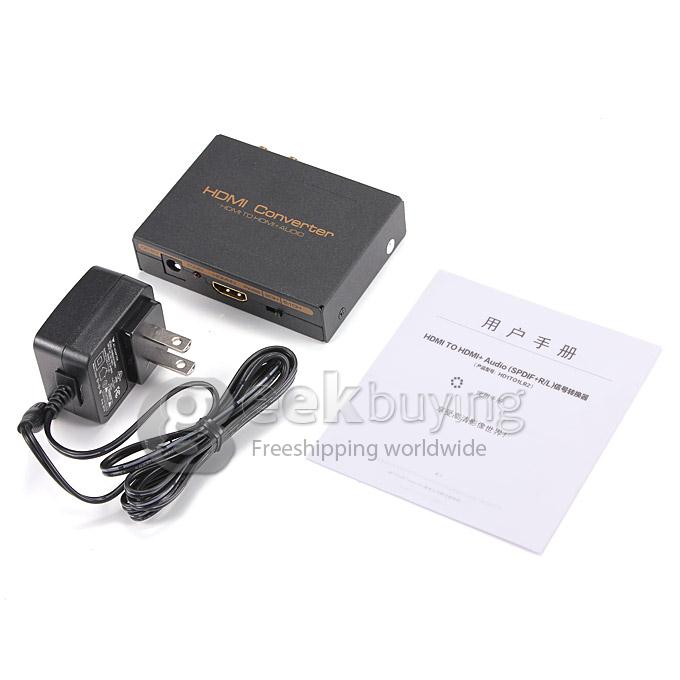

What's in the box?
- 1 x HDMI Converter
- 1 x 5V Power Adaptor(US Plug)
- 1 x Manual
