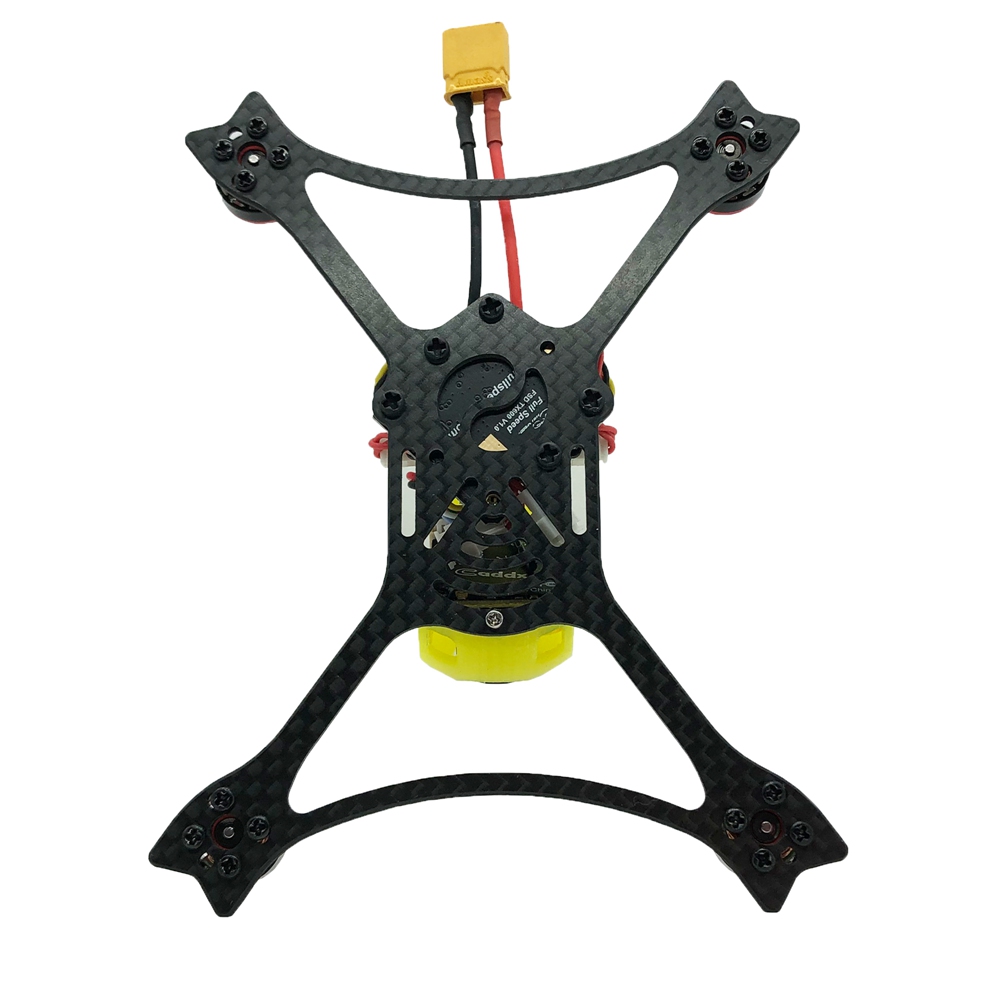

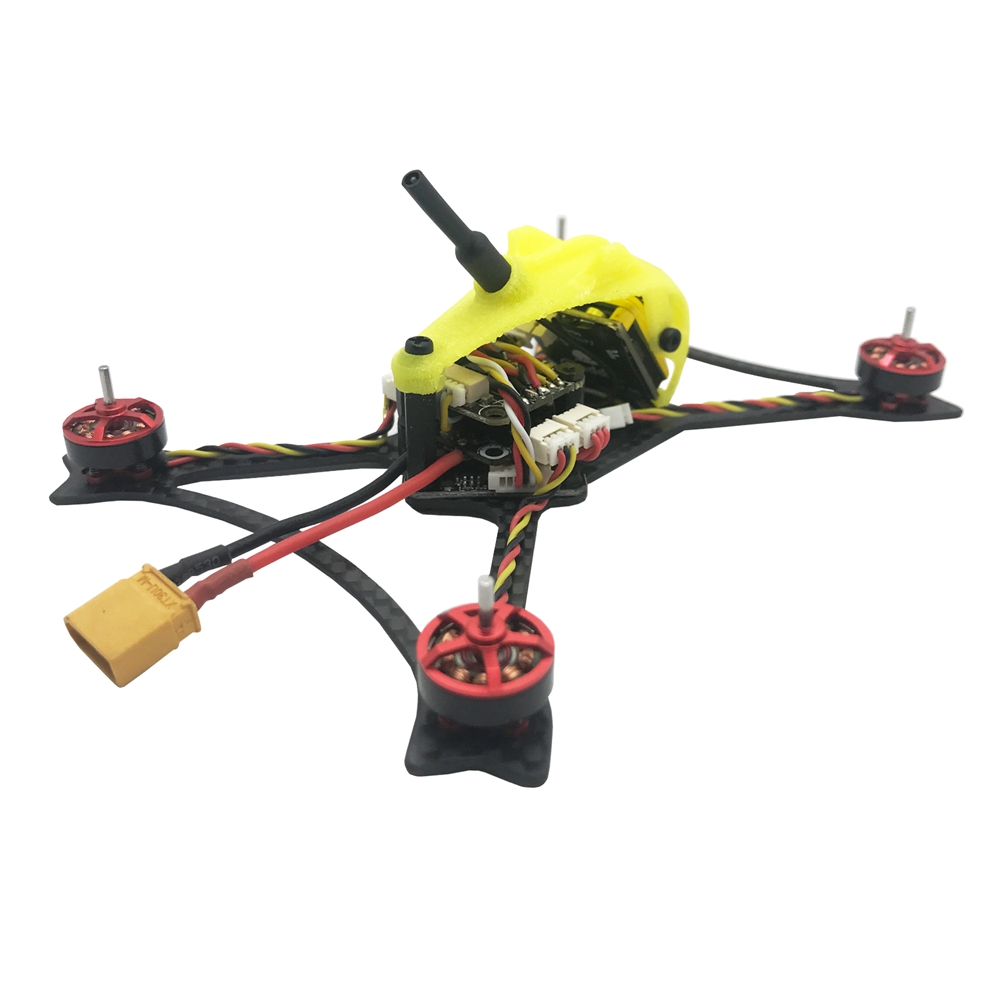

Fullspeed Toothpick 2-3S FPV Racing Drone F4 4IN1 BLHELI_S 12A 600mW VTX Caddx Micro F2 Camera BNF - Flysky Receiver

General

Product Details

F411 Flight Controller

Brand: FullSpeed
Model: FSD412
Item Name: F411 Flight Controller AIO OSD
Size: 20mm x 20mm x 5mm
Mounting hole: 16mm x 16mm
MCU: STM32 F411
BEC: 5V/2A
Built-in Betaflight OSD

12A BLheli_S 4in1 ESC

Firmware: BLHELI_S
Continuous current: 12A
BEC Ouput: NO
Size: 20mm x 25mm x 5mm
Mounting hole: 16mm x 16mm

1103 11000KV Motor

Height: 14mm
Weight: about 3.2g
Shaft: φ1.5mm
Motor Mount Holes: M1.6 on Dia 8.5mm
KV (rpm/V): 11000
Voltage: 7.4V, 2S Lipo battery
Plug: Micro JST-1.25 3-pins connector

65mm Propeller

65mm 2-blades props
1.5mm hole

48CH 25/100/200/400/600mW VTX

Model: FSD TX600
Output power: PIT/25mW/100mW/200mW/400mW/600mW switchable
Control mode:BFOSD control(support IRC Tramp)button
Video system: NTSC/PAL
Antenna: IPEX
BAT: 5V Recommended
Frequency: 5.8GHz 6 bands 48 channels, with Raceband: 5362-5945 MHZ
(factory set up is on lock mode(5733-5866MHZ unlock).
Please follow your local laws and regulations if you need to unlock the frequency.)
Size: 26*26mm(L*W),Hole:20*20mm
Weight: 2.3g

Caddx Micro F2 FPV Camera

Model: Turbo Micro F2
Image Sensor: 1/3" COMS Sensor
Horizontal Resolution 1200 TVL
TV System: NTSC/PAL changeable
Lens: 2.1mm lens
Audio: YES
Auto Gain Control: YES
Camera OSD: YES
Language ENG/CHN
Image Flip Support
Day/Night Auto/Color/B&W
Dimension 19mm*19mm*19mm
Wide Power Input DC 4.5-40V
Weight: 5.5g

Weight & Dimensions

Package Contents

1 x Toothpick frame kit
1 x FSD412  2-3S  12A  Flight tower
4 x 1103-8000KV brushless motor with connector
2 x 65mm 2-blade propeller(CW)
2 x 65mm 2-blade propeller(CCW)
1 x Caddx Micro F2
1 x FSD TX600 25mW-600mW VTX FPV Transmitter
1 x Receiver
