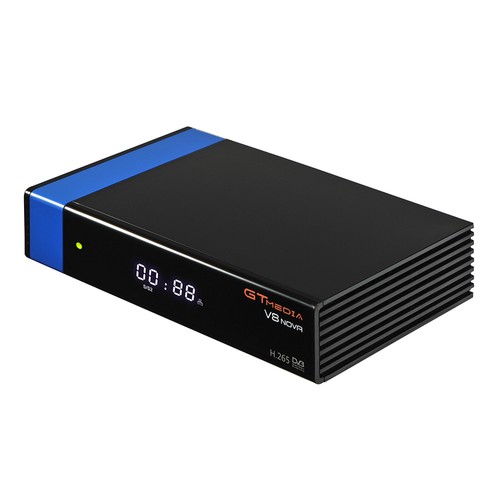

GTMEDIA V8 NOVA DVB-S2 1080P Media Player TV Box Support WIFI LAN H.265

Brand: GTMEDIA
Model: V8 NOVA
Type: TV Box

Flash Memory: 64M Bits Serial Flash
DDR Memory: DDR/1G Bits

WIFI: Support USB Wifi dongle (MTK7601 and RT5370)
LAN: 100M

Video Decode: supports multiple formats including H.265 10-bit, H.264 and AVS+FHD 1080p 60fps HW encoding,
Audio Decode: MPEG1 layer I, MPEG1 layer II, MPEG1 layer III, MPEG2 AAC, MPEG4 HE-AAC,EAC-3

LNB IN(Frequency Range950MHz to 2150MHz DVB-S/S2)
ANT IN(EC-type IEC169-2 Female DVB-T/T2)
HD OUT 2.0
AV OUT(RCA:Yellow, red and white)
Coaxial(RCA:black)
RS232
Power(DC 12V/1.5A)
1x USB 2.0 High Speed Host
LAN
HDMI(1080P) output

Turner:
Input Frequency Range: 950MHZ-2150MHZ
Input Impedance: 75Ω
RF input Signal LEVEL: -80/-20dBM
Active Ant Power: 13/18V DC @ 400mA MAX,Overload Protection

Channel Decode:
Demod standard: DVB-S2 Standard
MPEG Profile Level: AC-3,MPEG-2,MPEG-4,MP@HL;H.265 BP MP&HP@L4.1
Demodulation: QPSK,8PSK,16APSK,32APSK

USB Decode:
PVR: Support
Media Supporting: USB media player to playback the media in USB flash disk or USB HDD or USB card reader with memory card
File system: FAT32, NTFS (only support first partition)
USB: PVR with USB HDD, Time shifting with USB HDD

Multimedia support format:
Movie: mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp
Music: mp3
Photo: JPG, BMP, PNG, GIF

Video Decode
Video Decode: High Definition MPEG4 AVC/H.265 HP@L4.1,MPEG-2 MP@HL/ML
Aspect Ratio: Auto, 16:9 Pillar box, 4:3 Pan & Scan, 4:3 Letter Box

Audio Decode
Audio Decode: MPEG1 layer I, MPEG1 layer II, MPEG1 layer III, MPEG2 AAC, MPEG4 HE-AAC
Sound Mode: LEFT/RIGHT/STEREO/MONO
Sampling Frequency: 32KHz, 44.1KHz, 48KHz

Input Voltage: Input 110V ~240V, 50/60Hz DC12V/1.5A
Consumption: 18W Max
Temperature: 0 to +50 Celsius
Humidity: <95%

1x TV BOX
1x IR Remote control
1x HDMI cable
1x Power adapter
1x User manual
