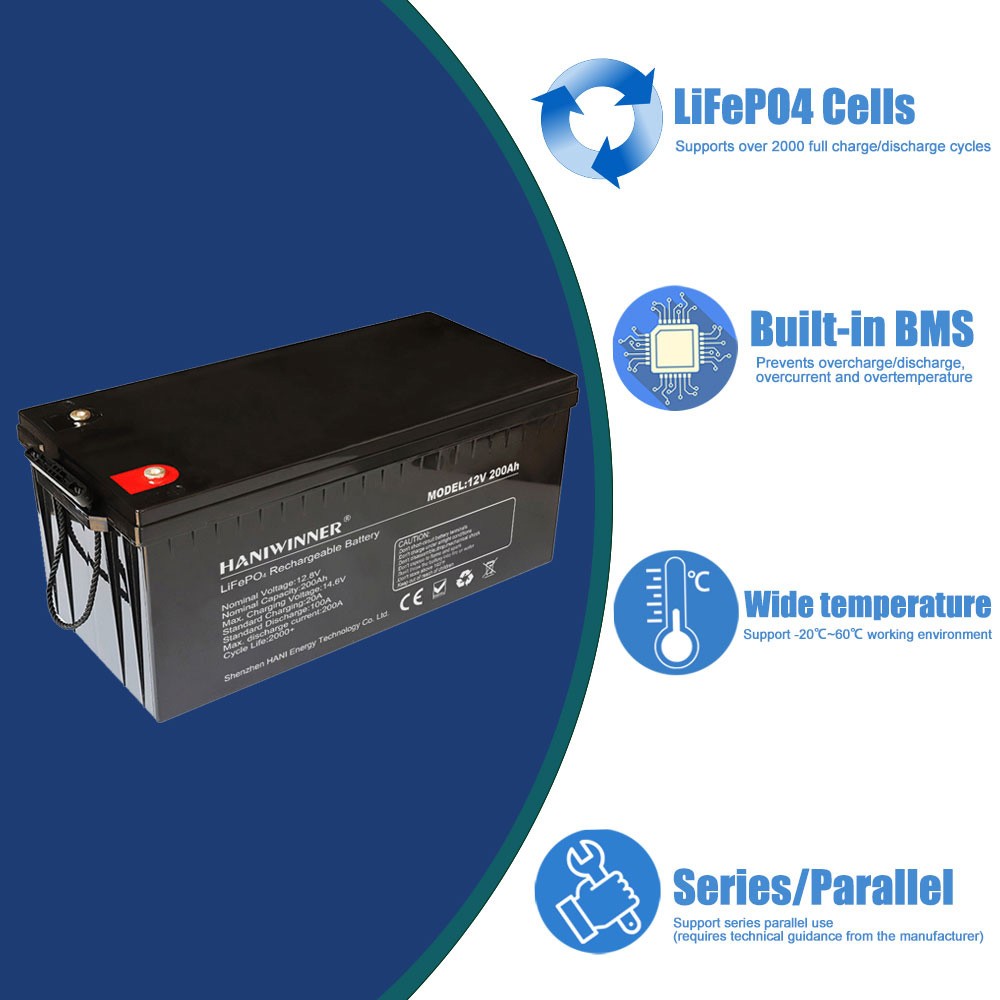

Highlights
Safe LiFePO4 Battery, 2000+ Cycles
Using lithium iron phosphate battery and mature technology, this battery pack has high safety and can offer 100% DOD charge and discharge under normal conditions, more than 2000 cycles.

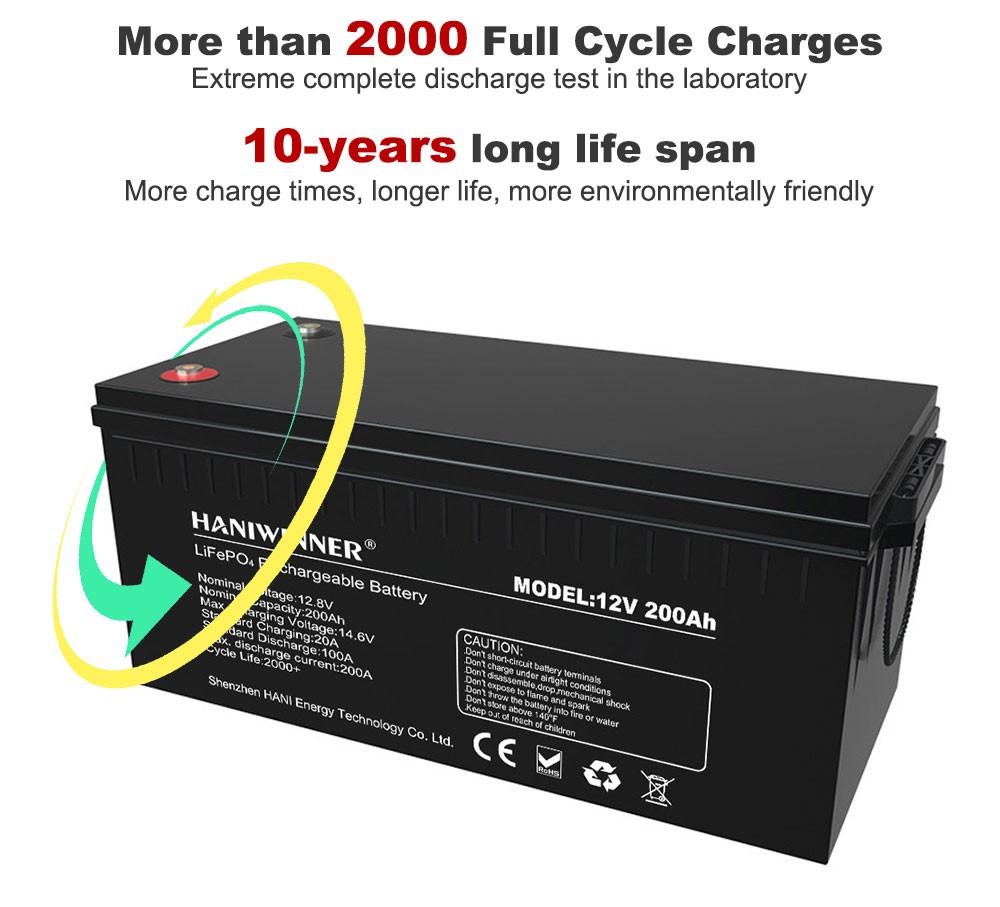

10 Years Lifetime & Lightweight Design

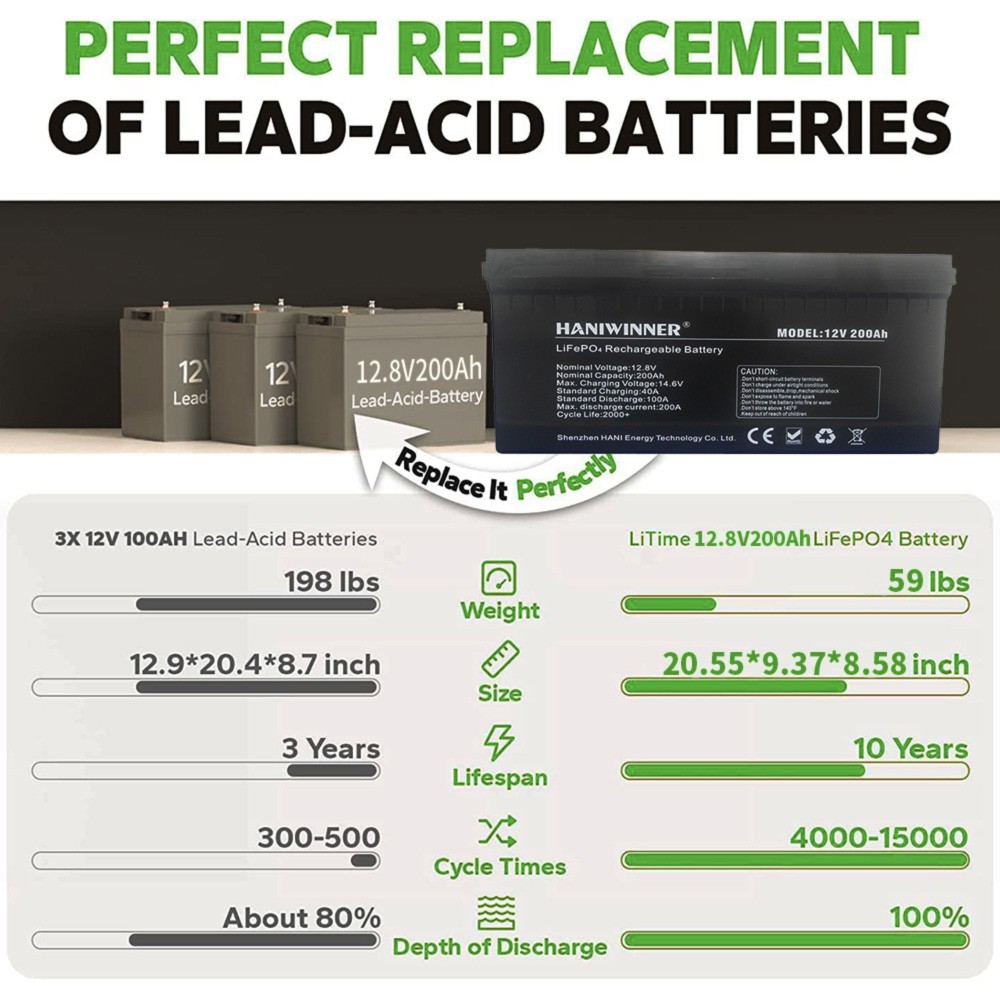

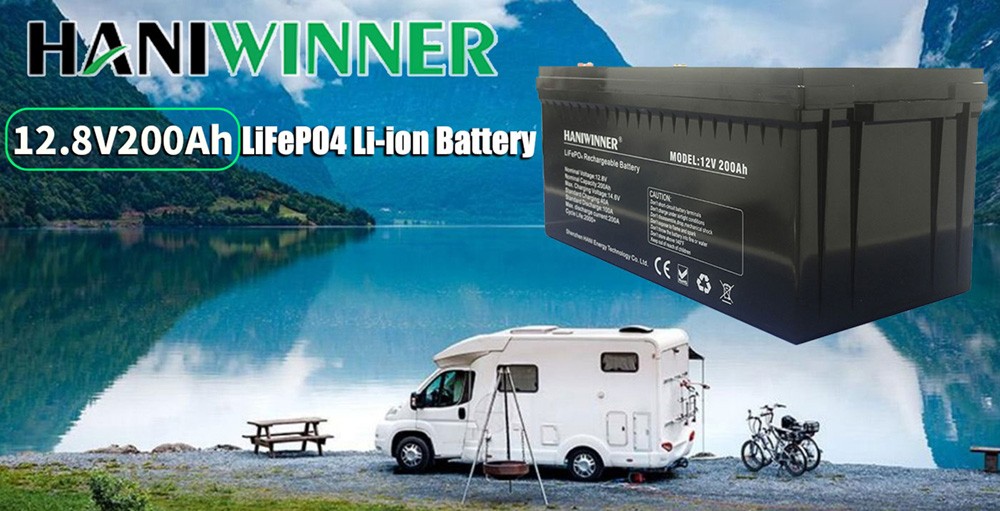

HANIWINNER 12.8V 200Ah LiFePO4 lithium battery pack has almost 10 years of lifetime. And it is a perfect replacement for lead-acid batteries, 40-50% lighter than lead-acid batteries, and is maintenance-free.
Built-in BMS
HANIWINNER LiFePO4 battery pack has a built-in BMS intelligent module for overcharge protection, over-discharge protection, over current protection, over temperature protection and short circuit protection, etc.
Support in Series/Parallel

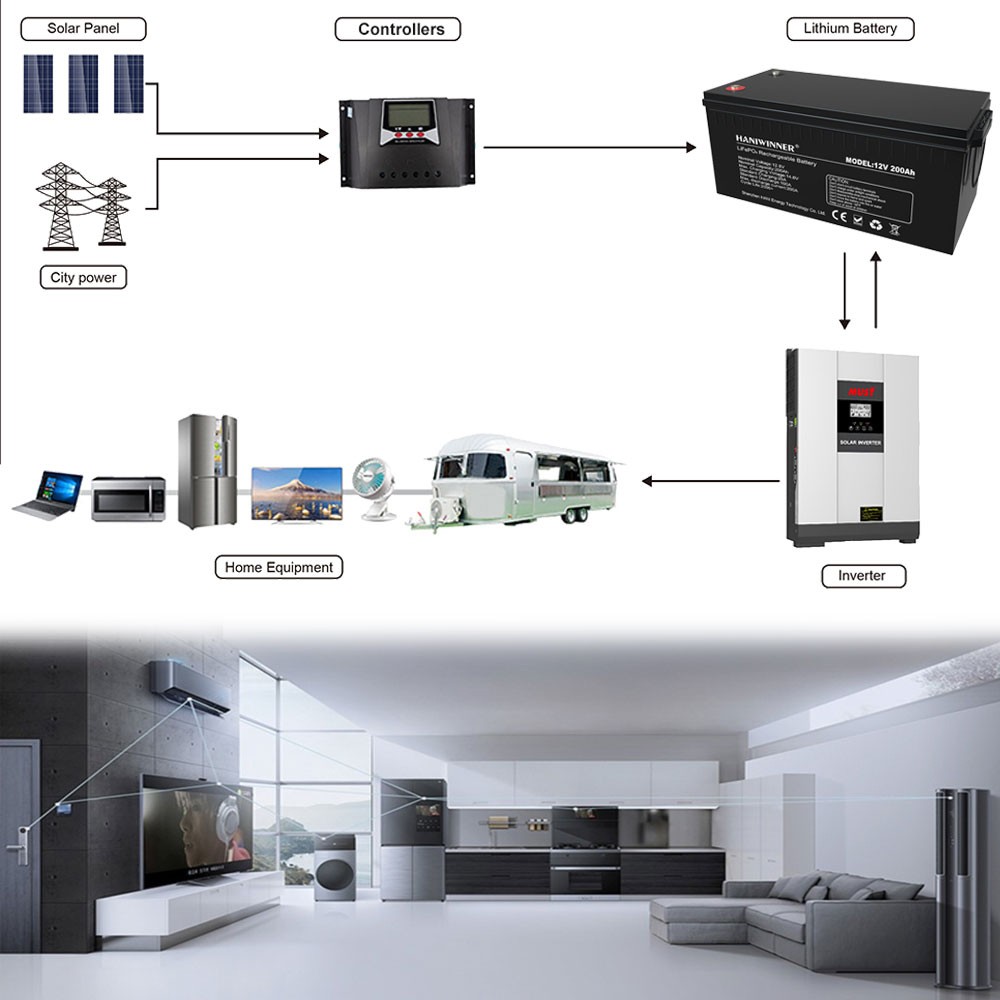

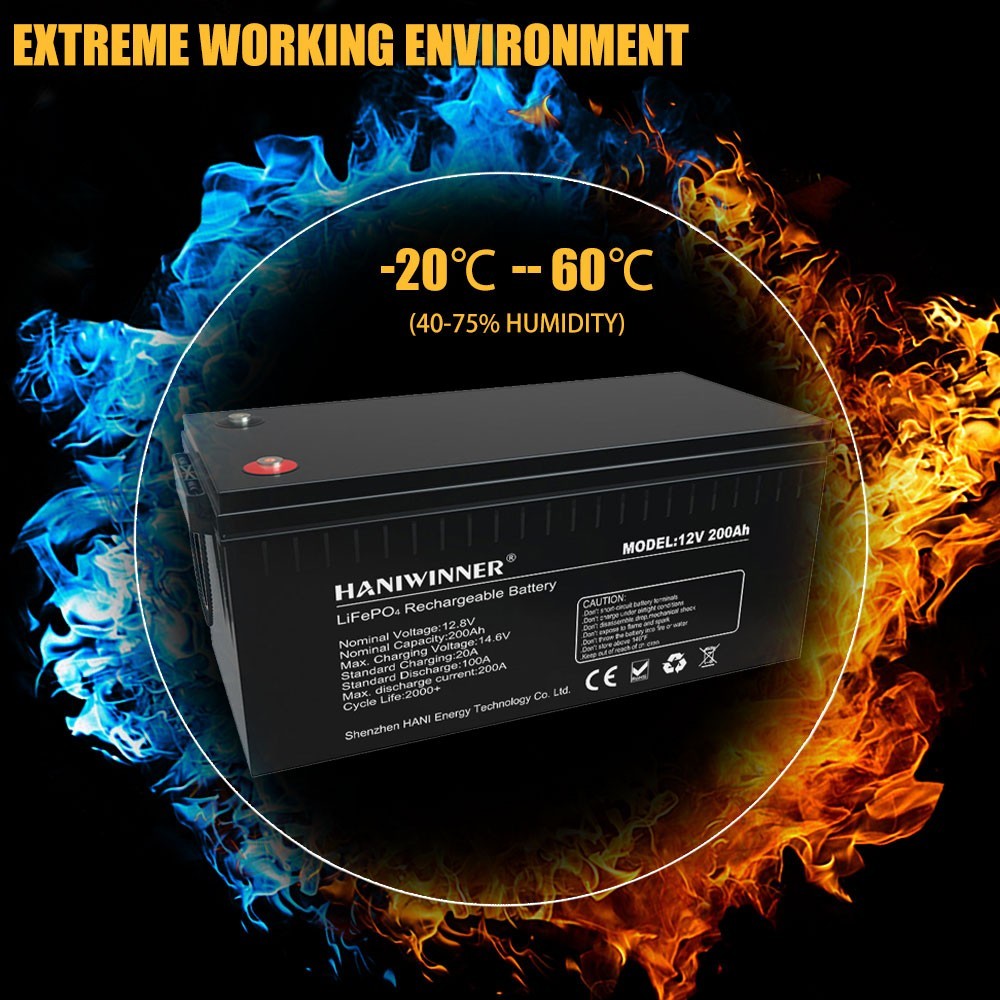

It supports a wide temperature working of -20 to 60 Celsius and can be connected in parallel and in series for larger capacity and voltage. (supports 4S34P, needs to operate under technical guidance), perfectly applied in solar street lamps and lighting systems, electric vehicles, UPS backup power supplies, photovoltaic, wind power, hydropower, home, and other energy storage systems.
Specification
| General | Brand: HANIWINNER Type: Battery Pack Model: HD009-12 Color: Black |

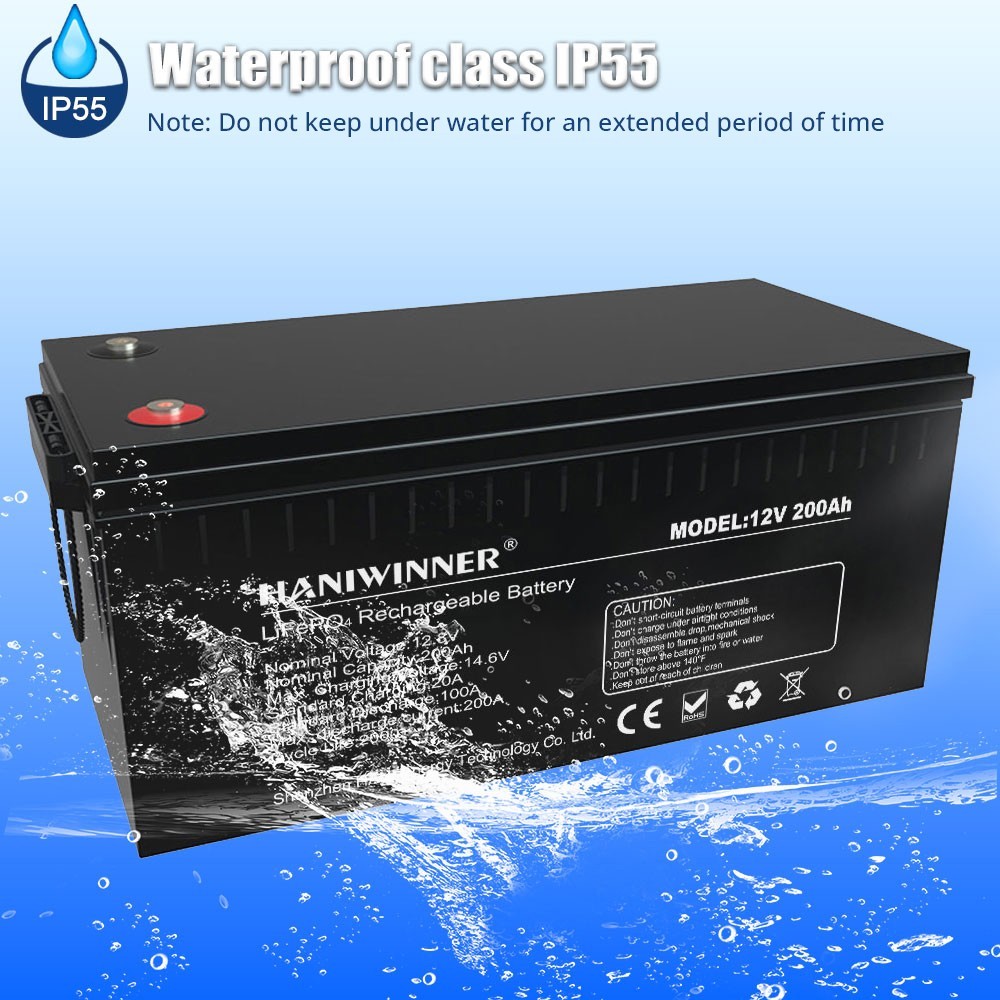

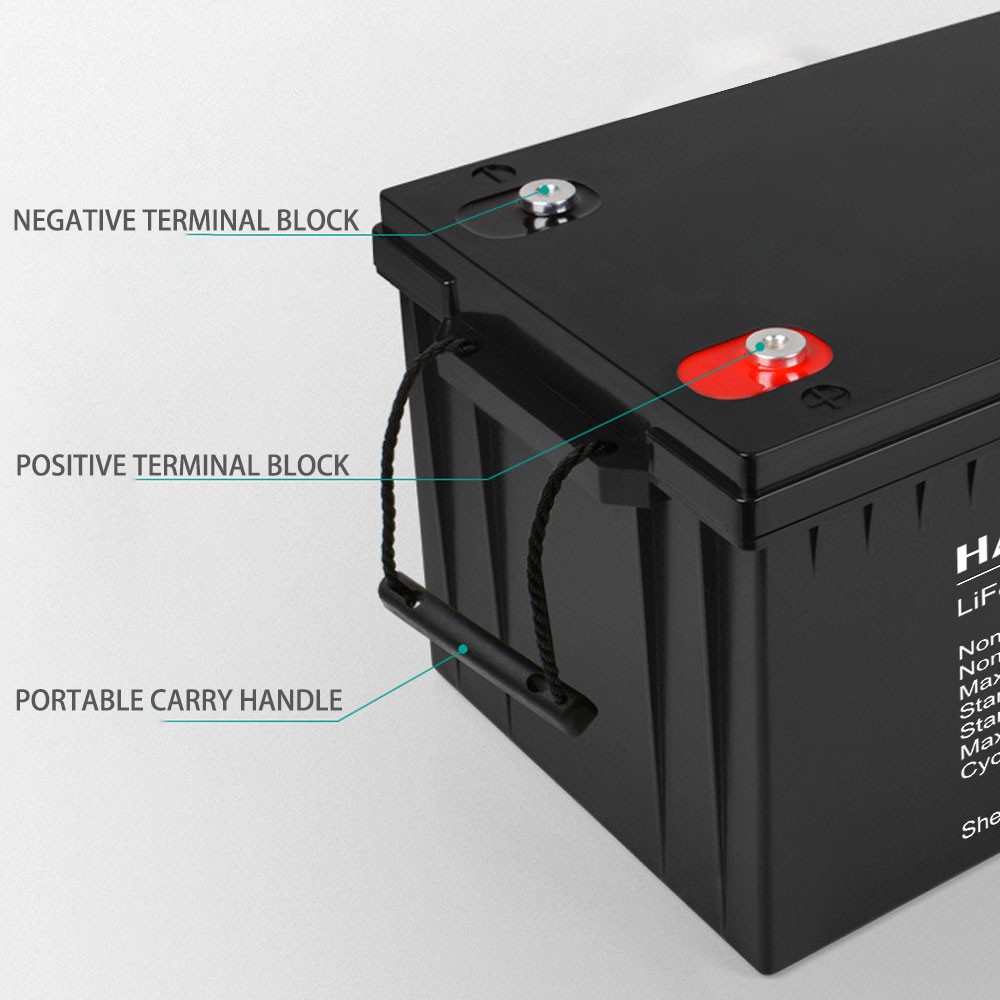

| Specification | Nominal Voltage: 12.8V Rated Capacity: 200Ah @0.2C Power: 2560Wh Internal Resistance: ≤40mΩ Cycle Life: ≥2000 Cycle (0.2C 100% DOD Charge/discharge cycle until the capacity decays to 70%) Self Discharge: ≤3.5% Per month (25±5 Celsius) Max.Charging Voltage: 14.6±0.2V Charging Mode: At 0 - 45 Celsius, constant current 0.2C5A charging to 14.6V, then constant voltage 14.6V charging until the current is reduced to 0.02C5A and then stop Charging Current: 40A Max.Charging Current: 80A Discharging Cut-off Voltage: 10.0V Discharging Current: 40A Max. Continuous Discharge Current: 100A Charge Temperature: 0 - 45 Celsius (40-75% Humidity) Discharge Temperature: -20 - 60 Celsius (40-75% Humidity) Storage Temperature: 0 - 45 Celsius (40-75% Humidity) Water Dust Resistance: IP55 Internal Combination Mode: IFR32700/6000mAh, 4S34P Casing: ABS Termina: M8 |
| Weight & Size | Product Weight: 25.85kg Package Weight: 26.8kg Product Size(L x W x H): 52.2x23.8x21.8cm Package Size(L x W x H): 57x28.5x27cm |
| Package Contents | 1 x Battery Pack 1 x User Manual |
