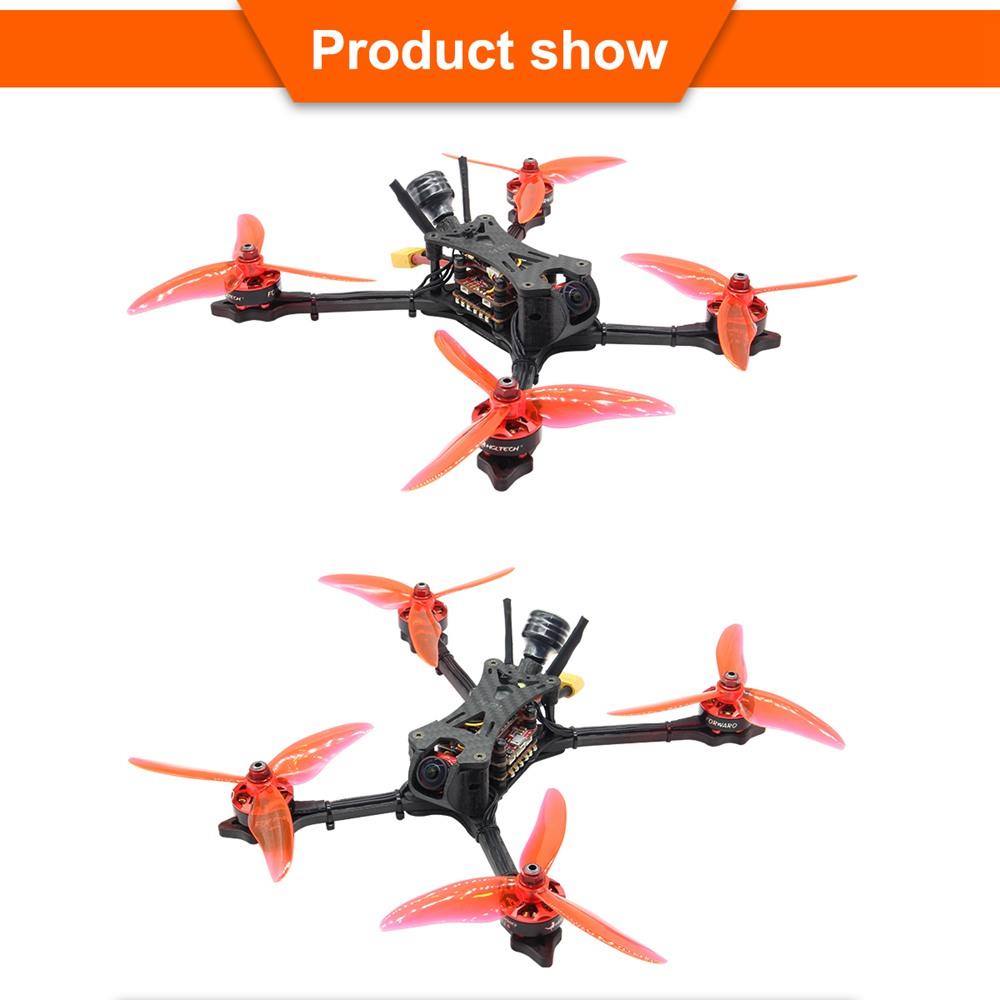

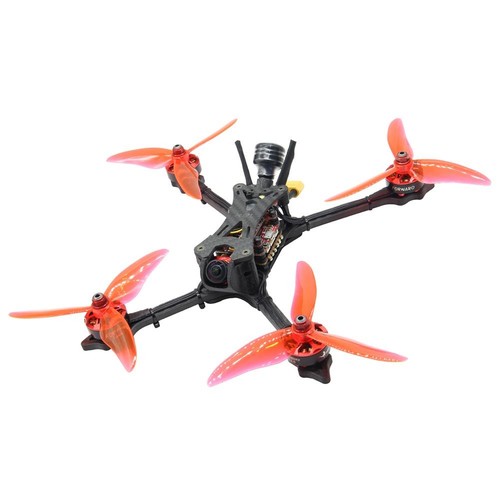

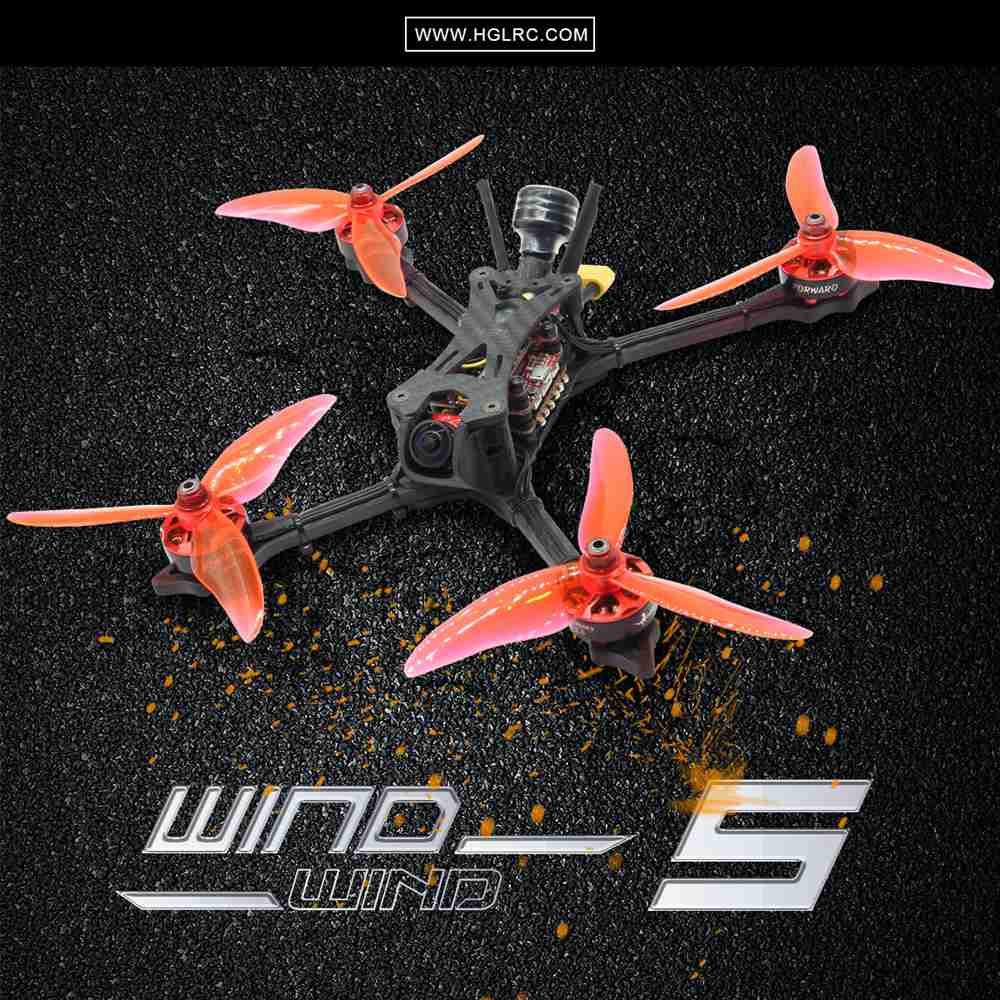

HGLRC Wind5 233mm 5inch 6S FPV Racing RC Drone F7 OSD 60A BLHeli_32 ESC w/ Caddx Ratel Camera BNF-Flysky A8S V2 Receiver

General

Brand: HGLRC
Item Name: Wind5 6S BNF FPV Racing Drone
Version: BNF
Weight: 327.7g

Specification

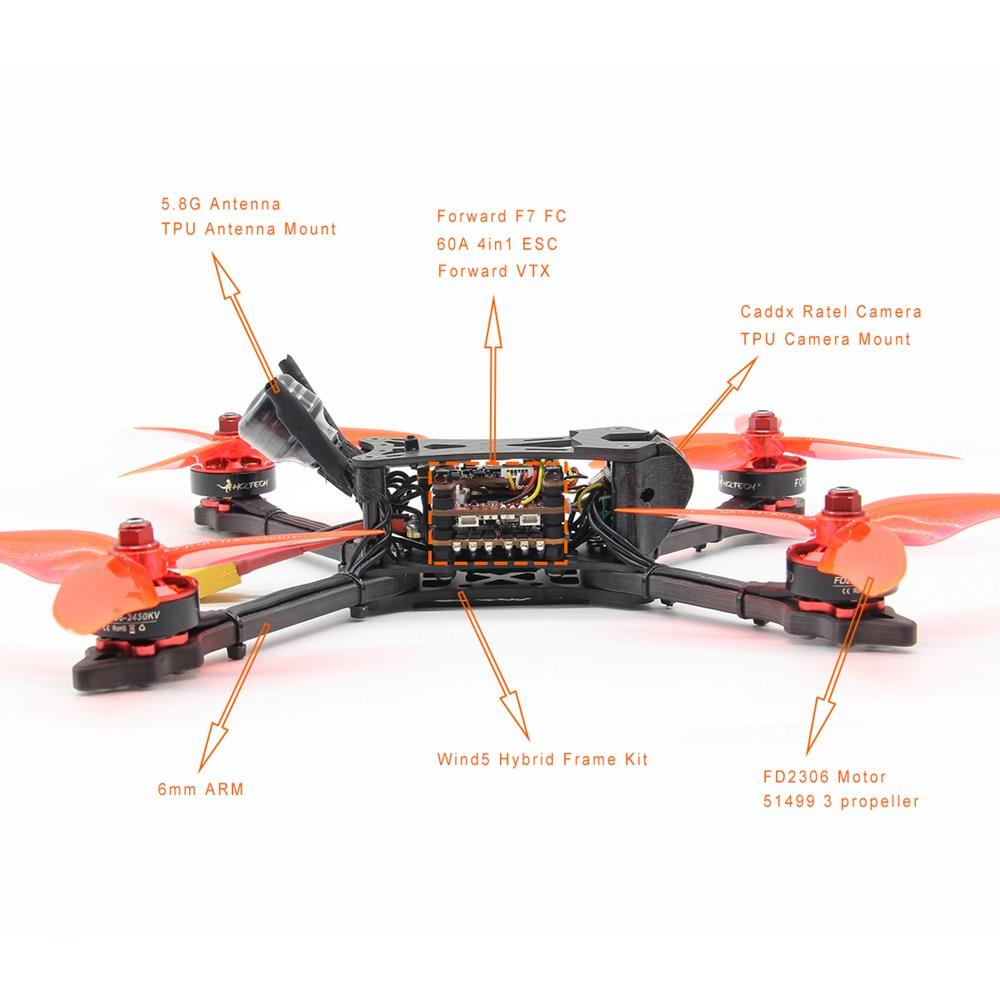

Frame Kit
Model: Wind5 Hybrid
Material: Carbon Fiber
Arm Plate Thickness: 6mm
Standoff Height: 28mm
Type: 5" frame
Flight control Installation Holes: 20*20mm&30 * 30mm Chute Type
Weight: 98.4g

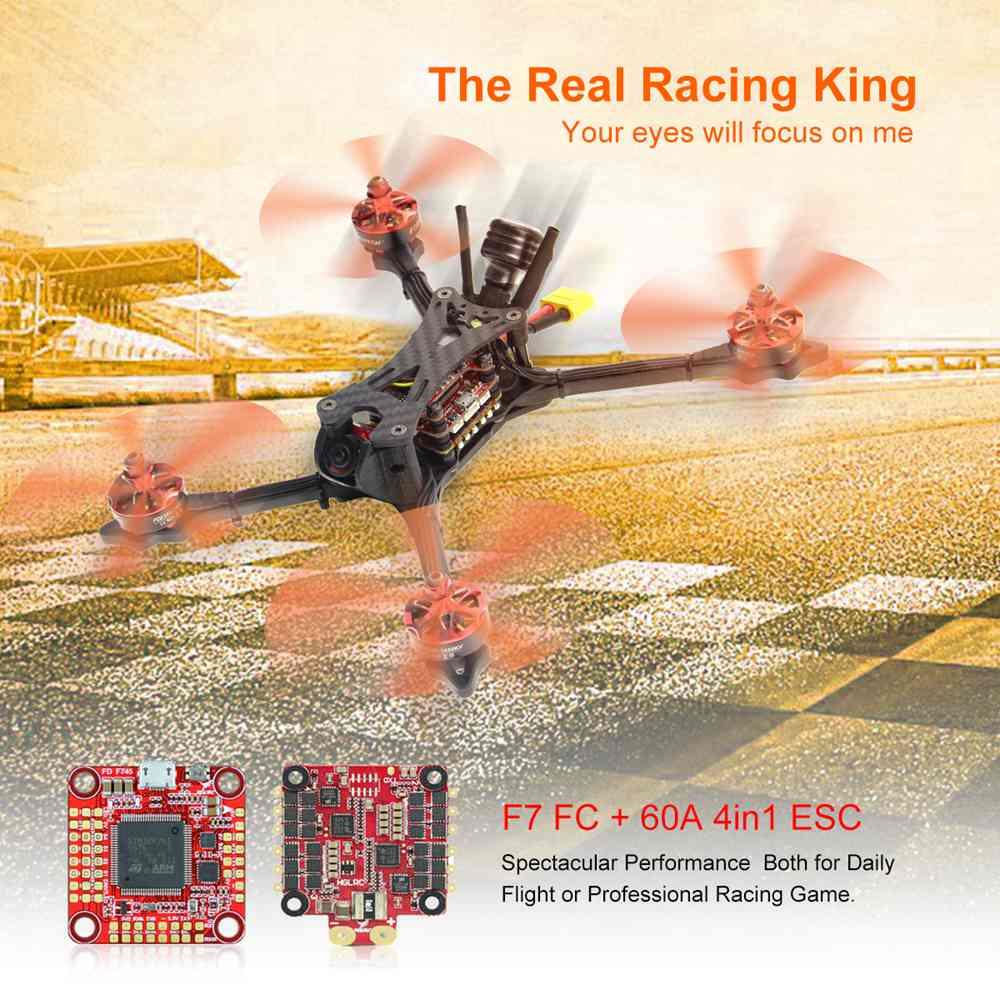

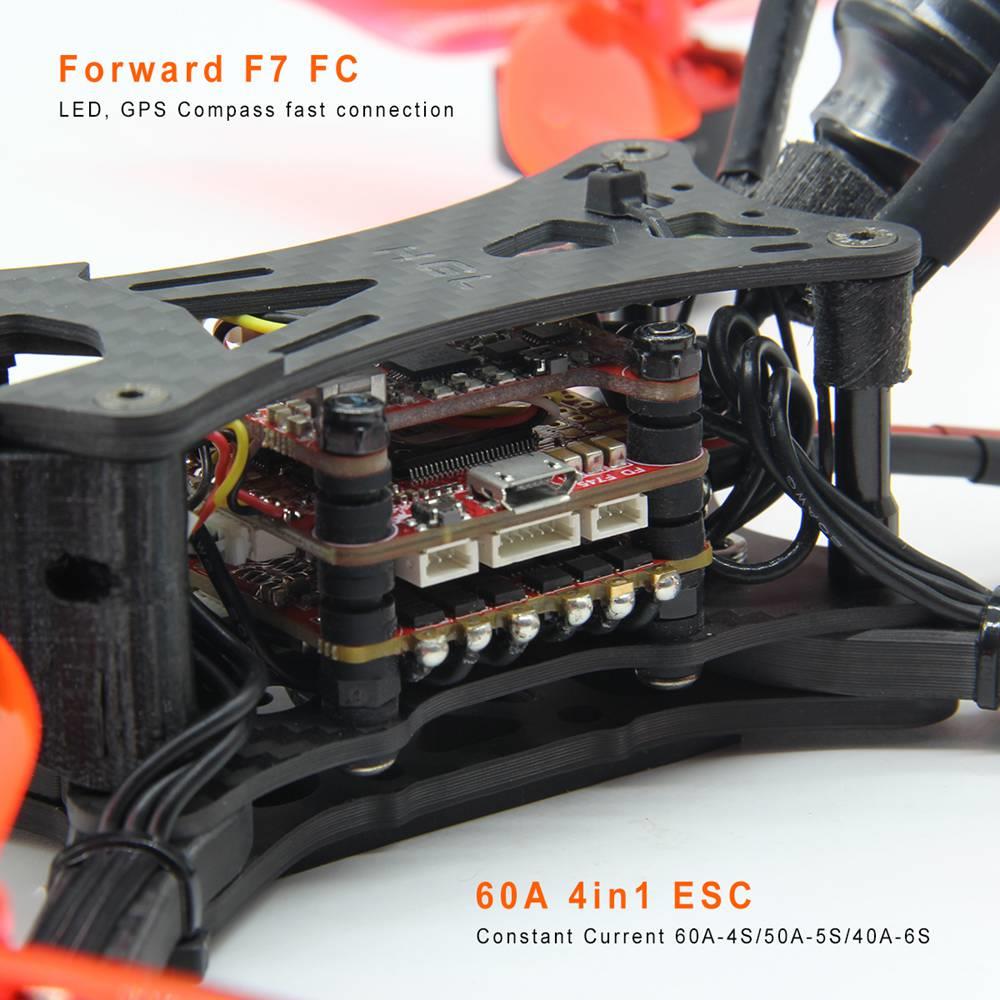

Forward F7 Dual Flight Control
MPU: ICM20608 (32K) &  MPU6000-SPI
CPU: STM32F745VGT6, 32K+16K.
Black Box: No Dataflash Chip Found
Input Voltage: 3-6S Lipo
Built-in Betaflight OSD To Adjust PID
BEC Output: 5V@3A, 8V@1.5A
LED Output: 5V@3A,
Weight:10.2g
Size: 37x37mm Board, 30.5mm Mounting Holes
Support SBUS/PPM/DSMX Receiver

Dinoshot 60A Blheli_32 3-6S 4in1 ESC
Input Voltage: 3-6S Lipo Battery
Constant Current: 60A-4S/50A-5S/40A-6S
Peak Current: 70A
BEC Ouput: NO
Firmware: 32bit ESC With BLHeli_32 Firmware
Size: 36x36mm (Main Board)
         40x48mm (Including Pad)
Installing Hole: 30.5x30.5mm, M3
Weight: 12.9g
CPU: STM32F051
MOS Tube: TOP QUALITY MOSFET
Protocol: DSHOT1200/600/300/150/Oneshot125/42, MultiShot Damped Mode

Forward FD2306 1600KV Brushless Motor
Internal Resistance (mΩ): 93
Stator Diameter: 23mm
Stator Height: 6mm
No.of Stator Slots: 12S
No.of Rotor Poles: 14P
Max Continuous Current: 23.44A(60S)
Max Continuous Power: 866.7W
Shaft Diameter: 5mm
Overall Dimension(mm): 27.9 X 30.7
Lead Wire Size: 20AWG X 150mm
ESC: 50A
No.of Cells(Lipo): 25.2V (4S)
Weight: 32 g

Prop:
Item Name: Gemfan 51499 3  Propeller
Quantity: 3 CW & 3 CCW

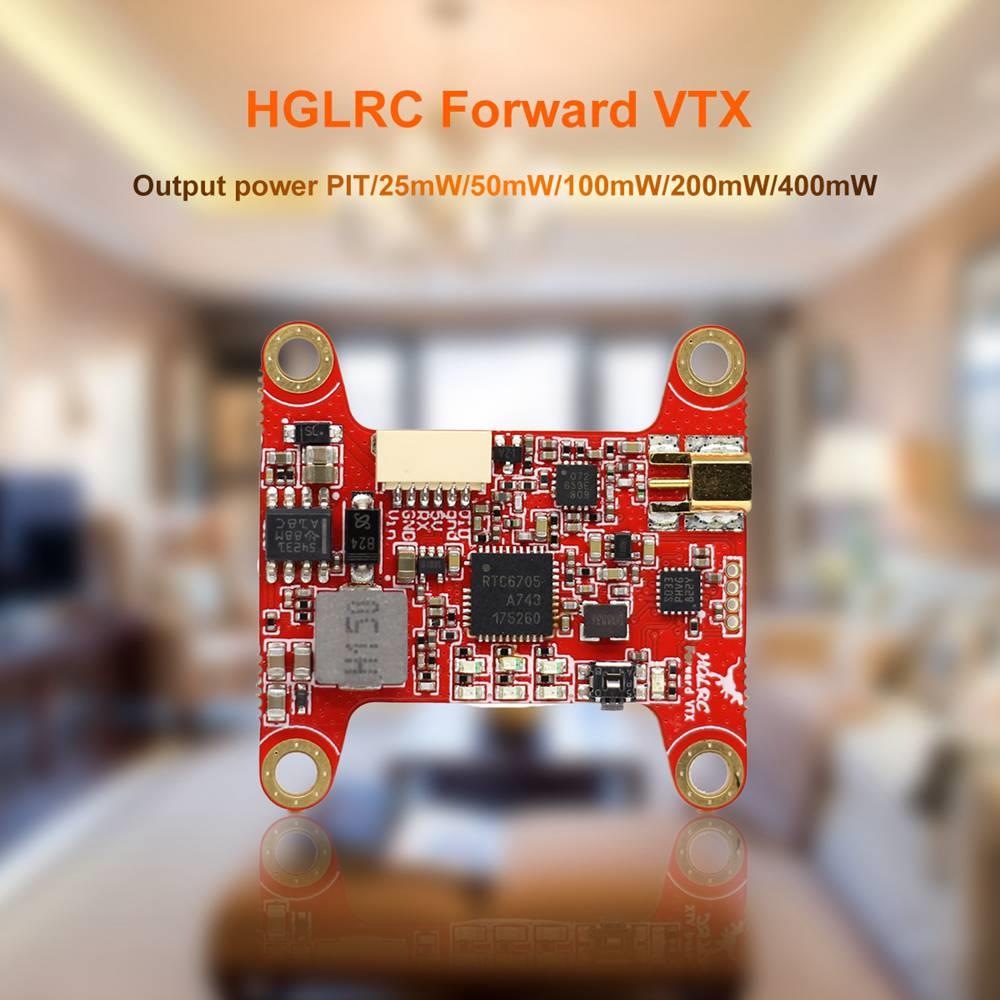

Forward VTX 5.8G 48CH  FPV Transmitter
Output Power: PIT/25mW/100mW/200mW/400mW Switchable
Control Mode:BFOSD Control(RX)/Button
BAT: 7-28V, BEC 5V-1A
Video System: NTSC/PAL
Antenna: MMCX
Frequency: 5.8GHz 6 Bands 48 Channels, With Raceband: 5362-5945 MHZ
Size: 20*38mm(L*W),Hole:30.5*30.5mm
Weight: 5.2g

Camera:
Color: Red
Lens: 1.66mm
Image Sensor: 1/1.8" Inch starlight HDR sensor
Horizontal Resolution: 1200TVL
FOV: 180 Degree
Min. Latency: 8ms
TV System: NTSC & PAL (changeable)
Image: 16:9 & 4:3 (changeable)
WDR: Super WDR (HDR)
Min. Illumination: Starlight
Synchronization: Internal
Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
S/N Ratio:  >60dB (AGC OFF)
Video Output: CVBS
Camera OSD: Separate OSD
DNR: 3-DNR
Language: ENG/FRANCE/RUS/SPA/PU/KOREA/CHN/JAPAN
Day/Night: Auto/Color/B&W/EXT
Dimensions: 19mm*19mm*19mm
Wide Power Input: DC 5-40V
Work Temperature: -20~+60
Work Humidity: 20%~80%
Weight: 8g (N.W.)/ 40.5g (G.W.)
