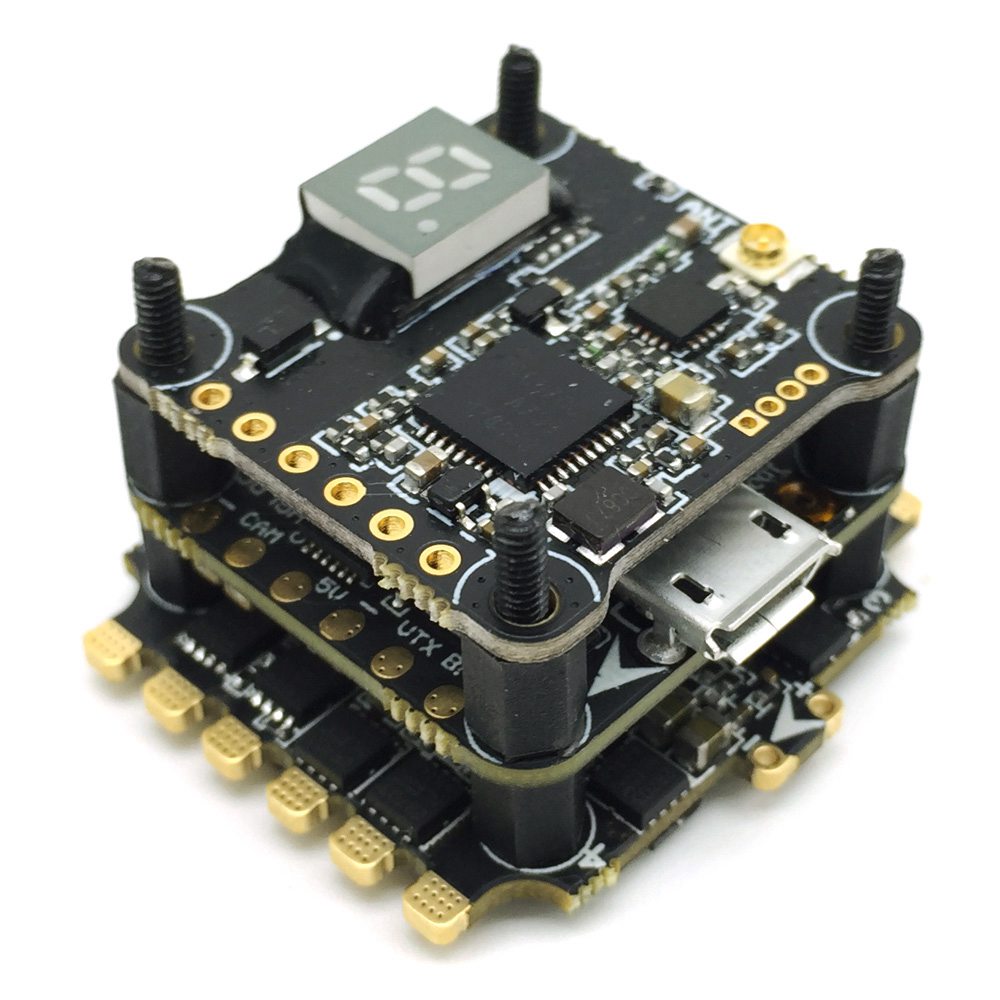

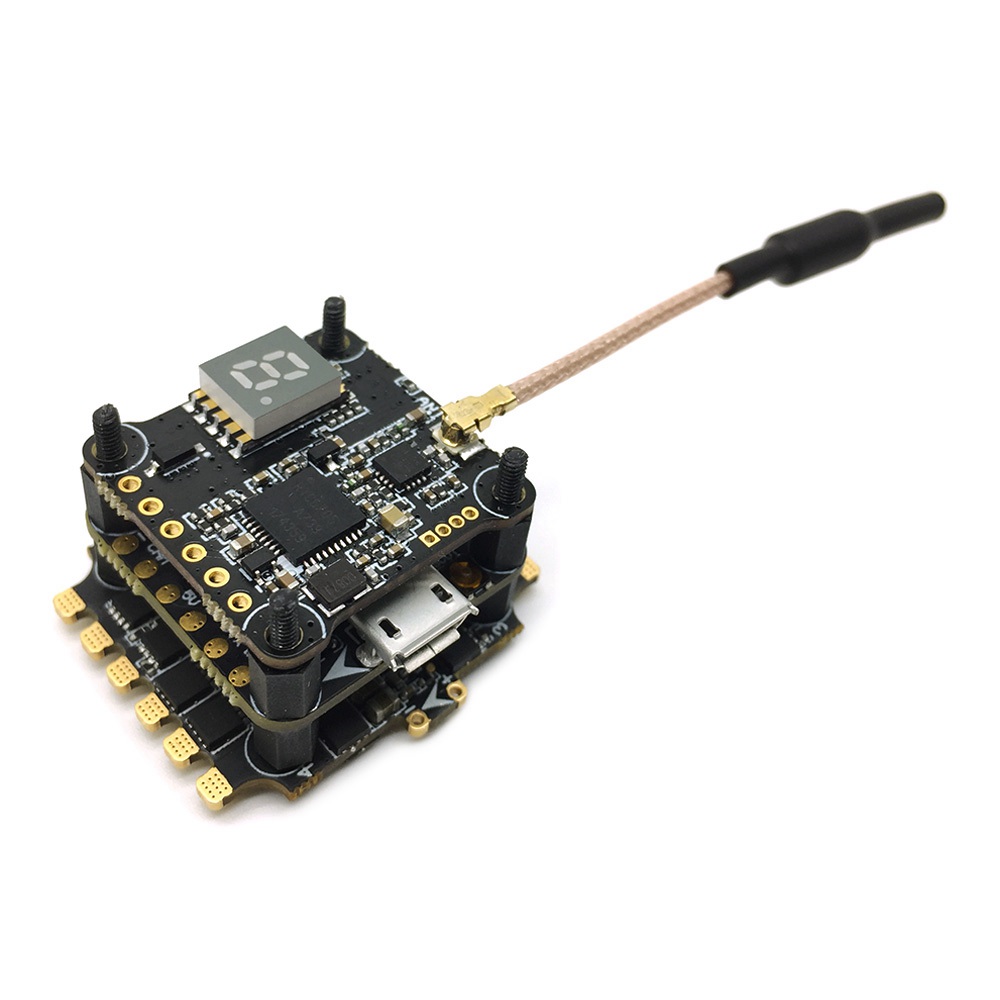

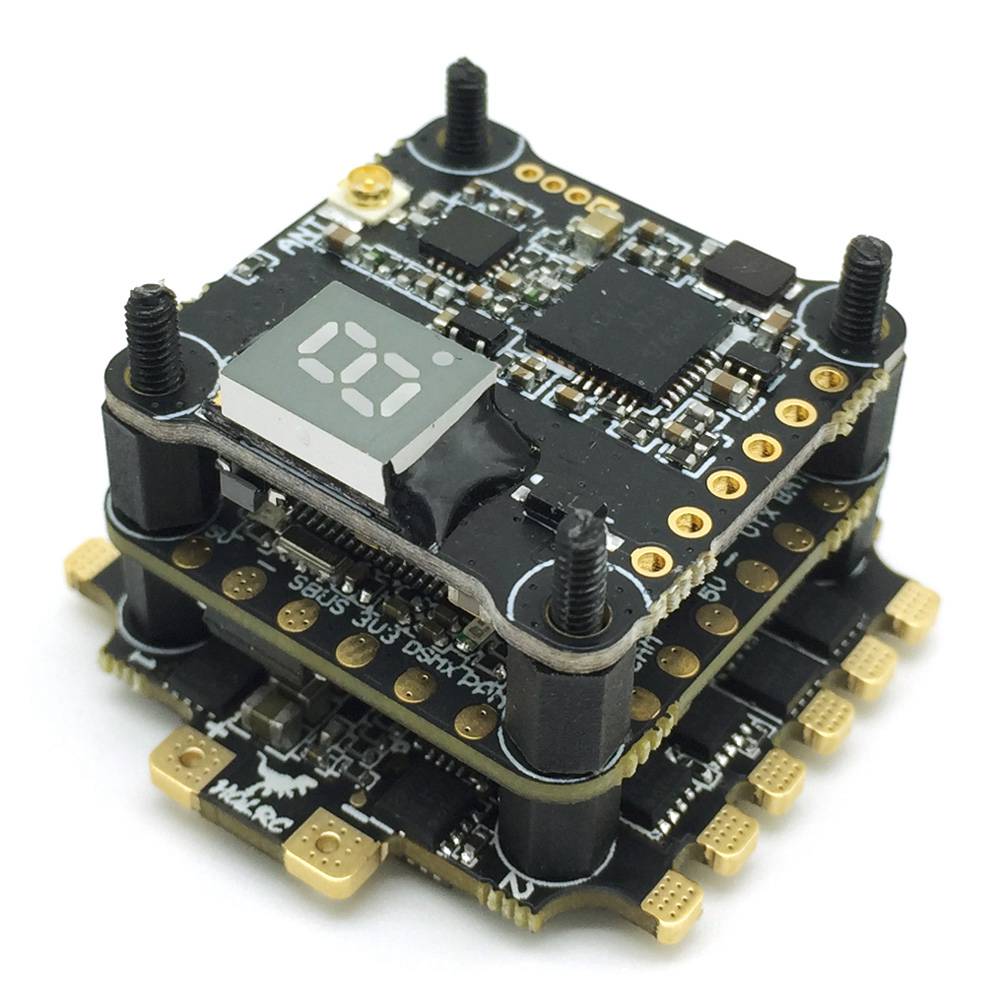

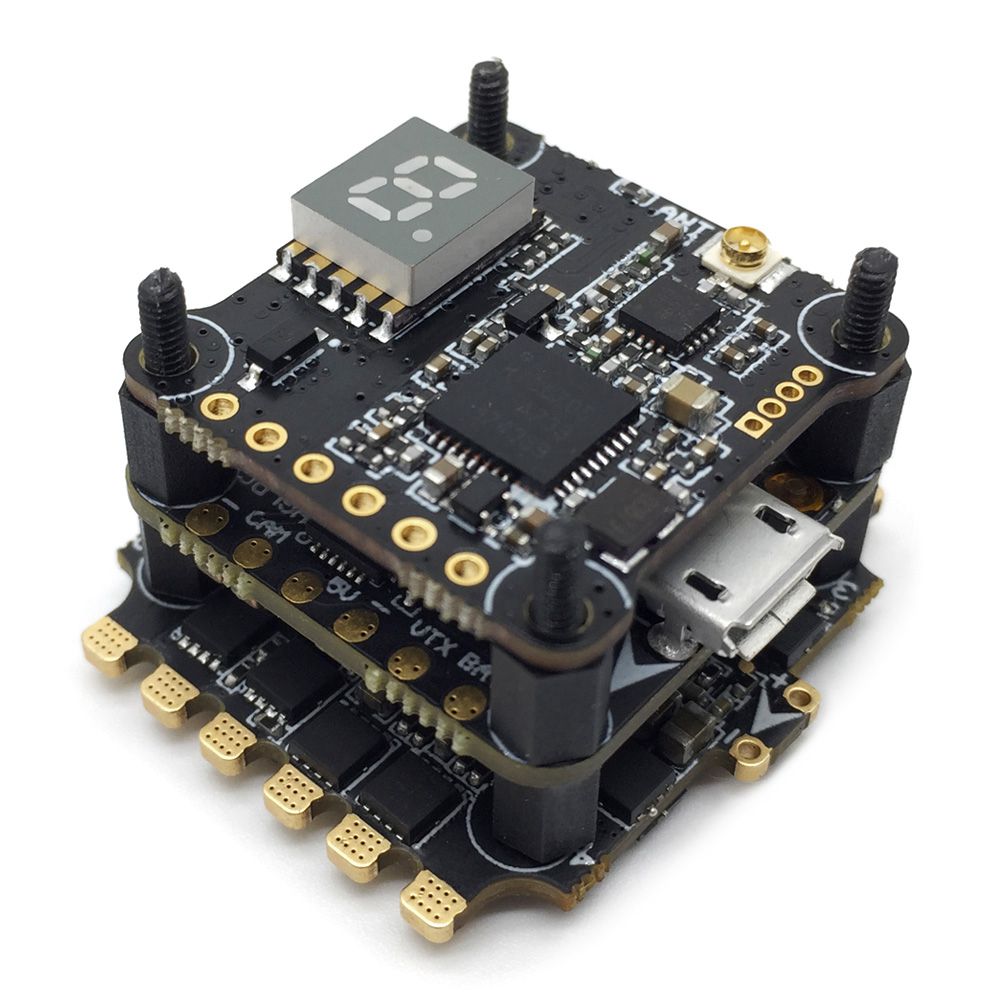

    HGLRC XJB F428-TX20 AIO Fly Tower System F4 OSD BEC FC 28A 2-4S Blhel_S BB2 4in1 ESC 5.8G 48CH VTX

    Ship to:
    United States
    Select the desired shipping method
    Shipping Company Estimated Delivery Time Shipping Cost
    *Please note: the shipping costs are only estimates; the actual shipping price will be shown on the order page.

    Trusted Shipping Partners: and more

    0 item(s) added
    View CartContinue Shopping

    HGLRC XJB F428-TX20 AIO Fly Tower System F4 OSD BEC FC 28A 2-4S Blhel_S BB2 4in1 ESC 5.8G 48CH VTXHGLRC XJB F428-TX20 AIO Fly Tower System F4 OSD BEC FC 28A 2-4S Blhel_S BB2 4in1 ESC 5.8G 48CH VTXHGLRC XJB F428-TX20 AIO Fly Tower System F4 OSD BEC FC 28A 2-4S Blhel_S BB2 4in1 ESC 5.8G 48CH VTXHGLRC XJB F428-TX20 AIO Fly Tower System F4 OSD BEC FC 28A 2-4S Blhel_S BB2 4in1 ESC 5.8G 48CH VTXHGLRC XJB F428-TX20 AIO Fly Tower System F4 OSD BEC FC 28A 2-4S Blhel_S BB2 4in1 ESC 5.8G 48CH VTXHGLRC XJB F428-TX20 AIO Fly Tower System F4 OSD BEC FC 28A 2-4S Blhel_S BB2 4in1 ESC 5.8G 48CH VTXHGLRC XJB F428-TX20 AIO Fly Tower System F4 OSD BEC FC 28A 2-4S Blhel_S BB2 4in1 ESC 5.8G 48CH VTXHGLRC XJB F428-TX20 AIO Fly Tower System F4 OSD BEC FC 28A 2-4S Blhel_S BB2 4in1 ESC 5.8G 48CH VTXHGLRC XJB F428-TX20 AIO Fly Tower System F4 OSD BEC FC 28A 2-4S Blhel_S BB2 4in1 ESC 5.8G 48CH VTXHGLRC XJB F428-TX20 AIO Fly Tower System F4 OSD BEC FC 28A 2-4S Blhel_S BB2 4in1 ESC 5.8G 48CH VTXHGLRC XJB F428-TX20 AIO Fly Tower System F4 OSD BEC FC 28A 2-4S Blhel_S BB2 4in1 ESC 5.8G 48CH VTXHGLRC XJB F428-TX20 AIO Fly Tower System F4 OSD BEC FC 28A 2-4S Blhel_S BB2 4in1 ESC 5.8G 48CH VTXHGLRC XJB F428-TX20 AIO Fly Tower System F4 OSD BEC FC 28A 2-4S Blhel_S BB2 4in1 ESC 5.8G 48CH VTXHGLRC XJB F428-TX20 AIO Fly Tower System F4 OSD BEC FC 28A 2-4S Blhel_S BB2 4in1 ESC 5.8G 48CH VTXHGLRC XJB F428-TX20 AIO Fly Tower System F4 OSD BEC FC 28A 2-4S Blhel_S BB2 4in1 ESC 5.8G 48CH VTX

    Specification

    General

    Brand: HGLRC
    Item No: XJB F428-TX20.V2
    Item Name: Fly Tower
    Mounting Hole: 20x20mm
    Weight: 6.5g
    Usage: for 65mm-250mm Frame Kit
    Product Details

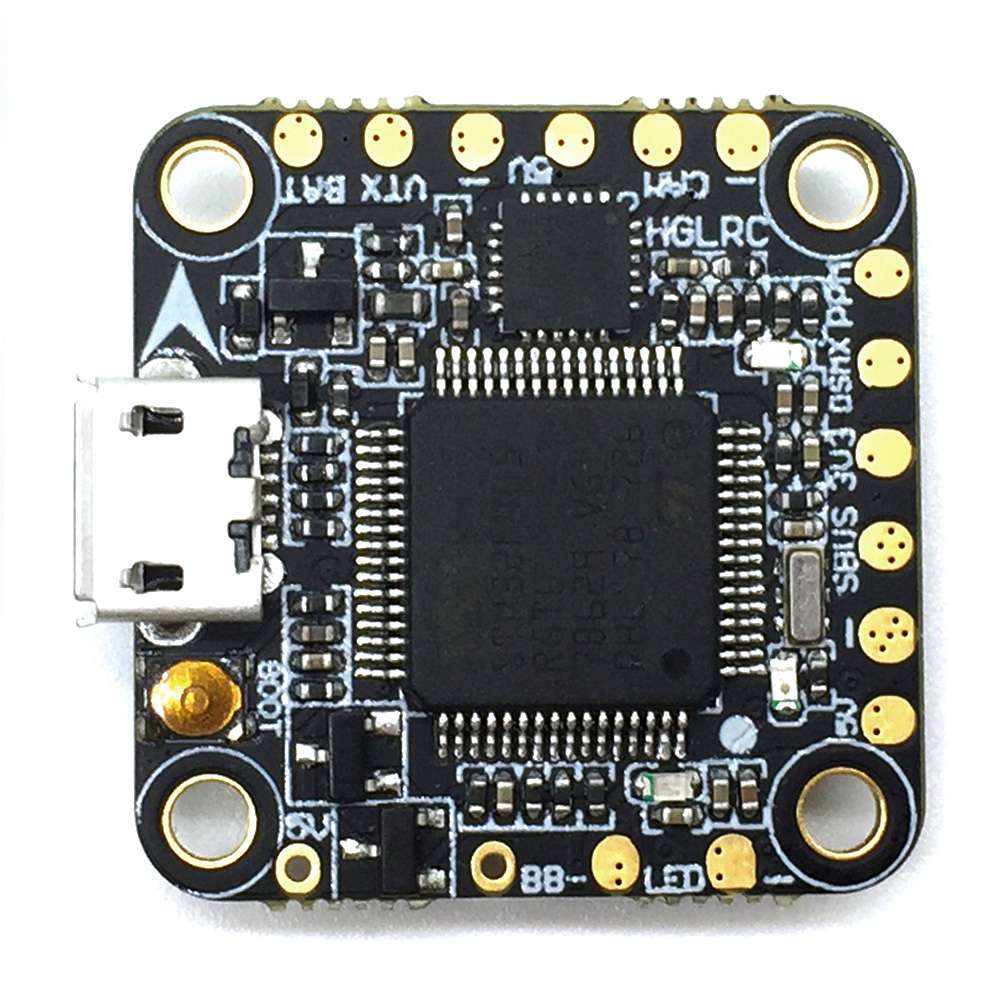

    Micro F4 Flight Control Board (D-Shot Version)
    MPU: MPU6000-SPI
    CPU: STM32F405RGT6, dual 8K.
    Black Box: Flash 16M
    Input Voltage: 2-4S Lipo
    Built-in Betaflight OSD to adjust PID
    BEC Output: 5V@3A
    Size: 25x25mm board, 20mm mounting holes (M2)
    Weight:2.3g
    Support Subs/PPM/DSMX receiver


    28A 2-4S Blheli_S BB2 4 in 1 ESC:
    Input Voltage: 2-4S Lipo battery
    Constant Current: 28A
    Peak Current: 35A
    BEC Ouput: NO
    Firmware: BLheli_S 16.5
    Size: 27x27mm (main board)
          32x32mm ( including pad)
    Installing Hole: 20x20mm, M2
    Weight: 4.2g
    CPU: SILABS EFM8BB2 48MHZ
    MOS Tube: TOP QUALITY MOSFET
    Firmware: Betaflight 16.5
    Support Damped Mode, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, forward and reverse

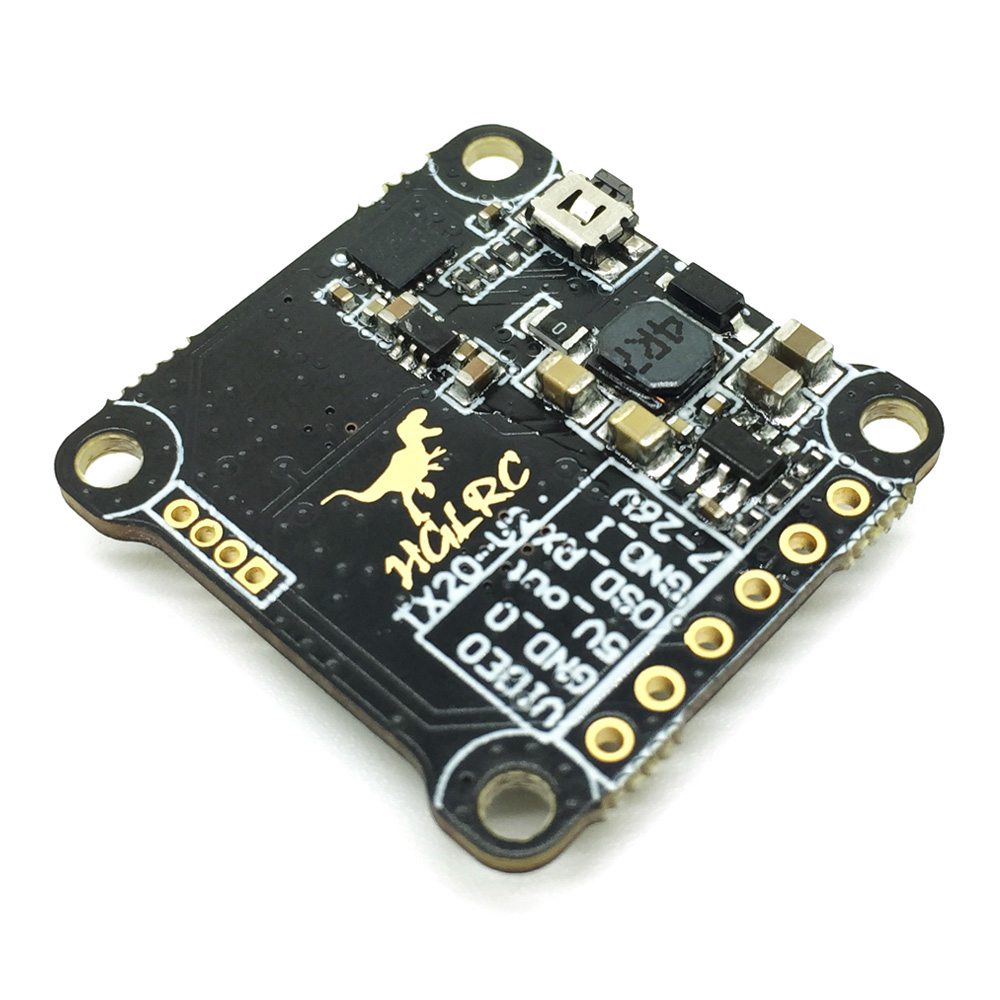

    HGLRC XJB-TX20.V2 Mini FPV Transmitter
    Output power: PIT/25mW/100mW/200mW/350mW switchable
    Control mode:BFOSD control(RX)/button
    BAT: 7-26V,BEC 5V-1A
    240mA----350mW
    Video system: NTSC/PAL
    Antenna: IPEX
    Frequency: 5.8GHz 6 bands 48 channels, With Raceband: 5362-5945 MHZ
    Size: 24*24mm(L*W),Hole:20*20mm
    Weight: 2.4g
    Package Contents

    1 x HGLRC F4 AIO OSD BEC Flight Control Board
    1 x HGLRC 28A Blheli_S 4 In 1 ESC
    1 x HGLRC XJB-TX20.V2 Mini FPV Transmitter
