Happymodel Crazybee F4 Pro V3.0 2-4S Brushless Flight Control Built-in 10A Blheli_S 4IN1 5V/1A BEC For FPV Racing Drone - Compatible Frsky Receiver

General

Brand: Happymodel
Item Name: Crazybee F4 Pro V3.0
Receiver: Compatible Frsky Receiver
Quantity: 1set

Specification

(Frsky version) CRAZYBEE F4FR PRO V3.0 Firmware target: CrazybeeF4FR
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Board Size: 28.5 * 28.5MM
Power Supply: 2-4S battery input (DC 7-17V)
Built-in 10A(each) Blheli_S 4in1 ESC Dshot600 ready
Frsky version Built-in SPI Frsky receiver with telemetry(D8/D16 switchable)
Built-in Betaflight OSD(SPI Control)
Built-in Current meter Max 70A
Current meter scale set to 470
Built-in 5V 1A BEC
Built-in voltage detection
MCU upgraded to EFM8BB21
Power supply: 2-4S LiPo/LiPo HV (7v/17v)
Current: 10A continuous peak 12A (5 seconds)
Support BLHeliSuite programmable
Factory firmware: F_H_40_REV16_5.HEX
Default protocol: DSHOT600

SPI BUS Receiver:
Frsky D8/D16 switchable
Compatible Non EU transmitter both D8 and D16 mode
Channels: 8ch or 16ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 300m

Recommend Battery(Not Included):  2S 450mah/550mah,3S 300mah/350mah/450mah,4S 300mah/350mah

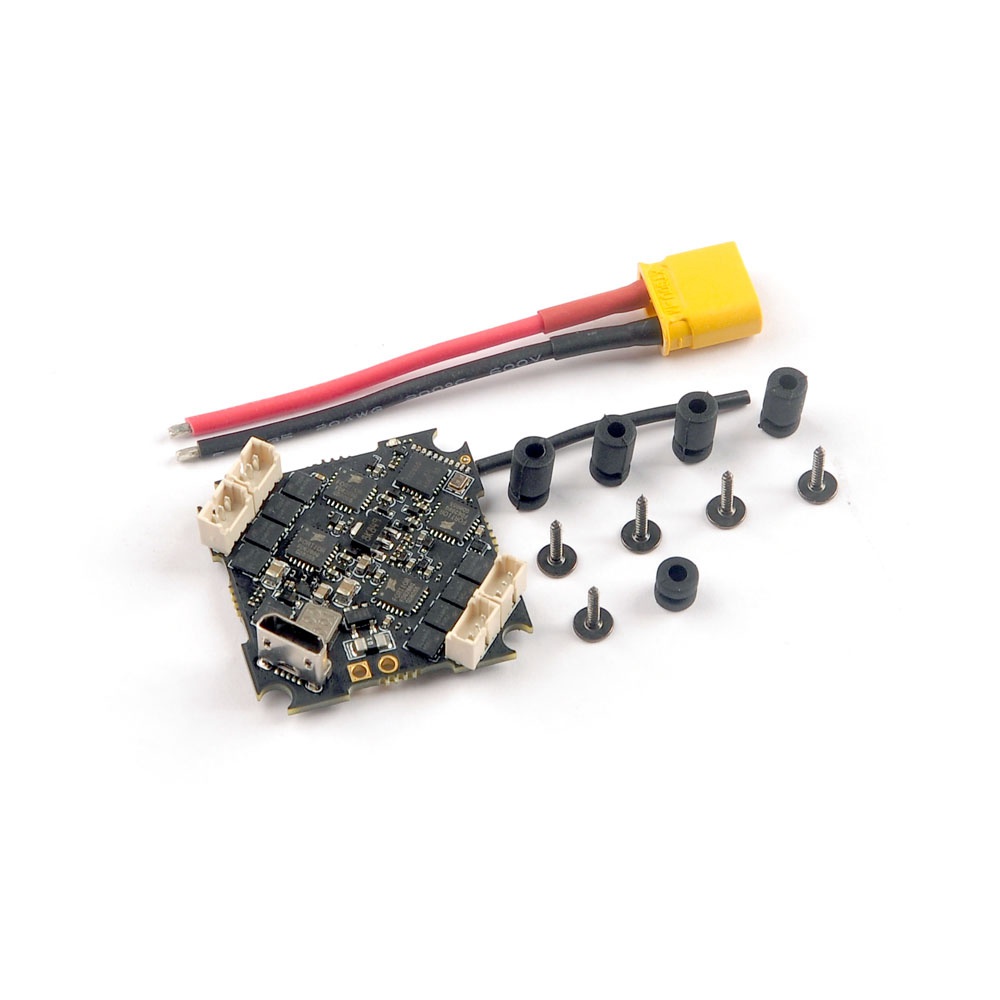

Package Contents

1 X Flight Control
