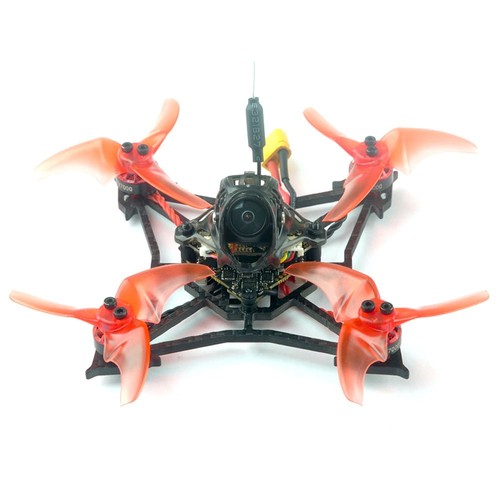

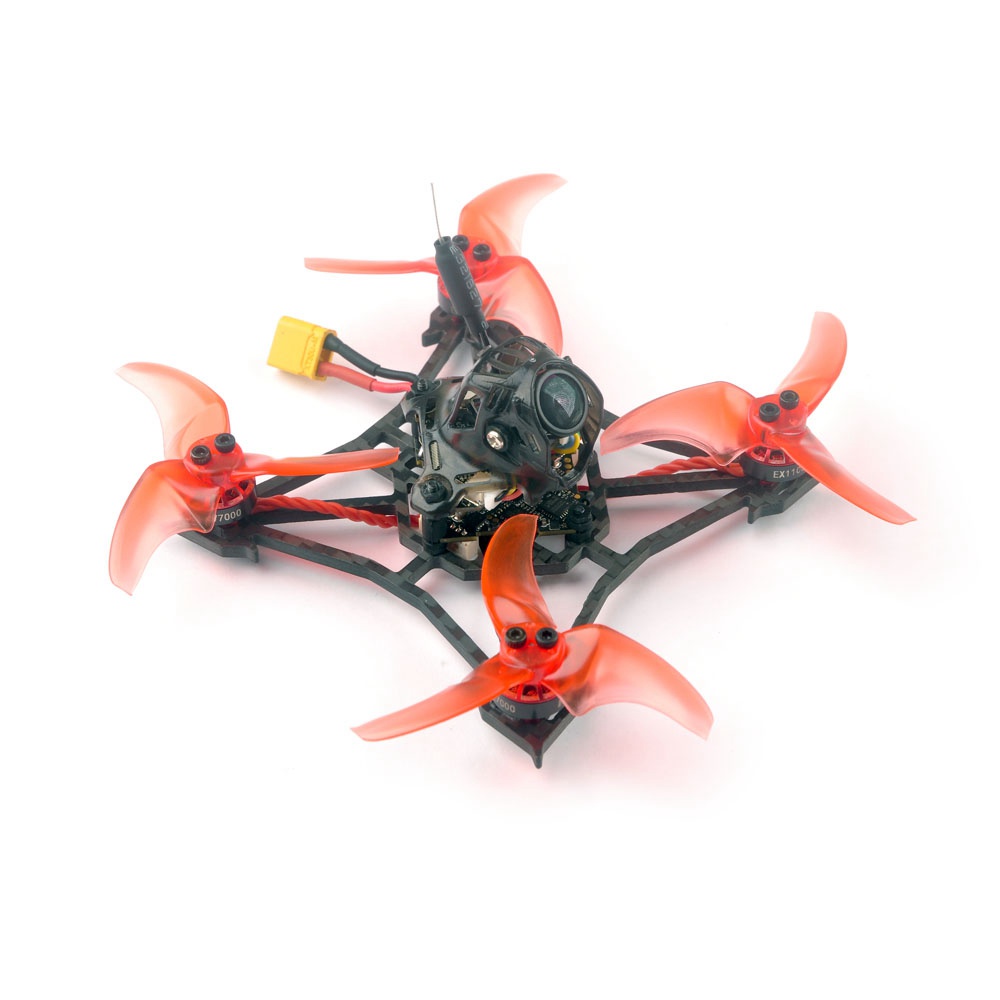

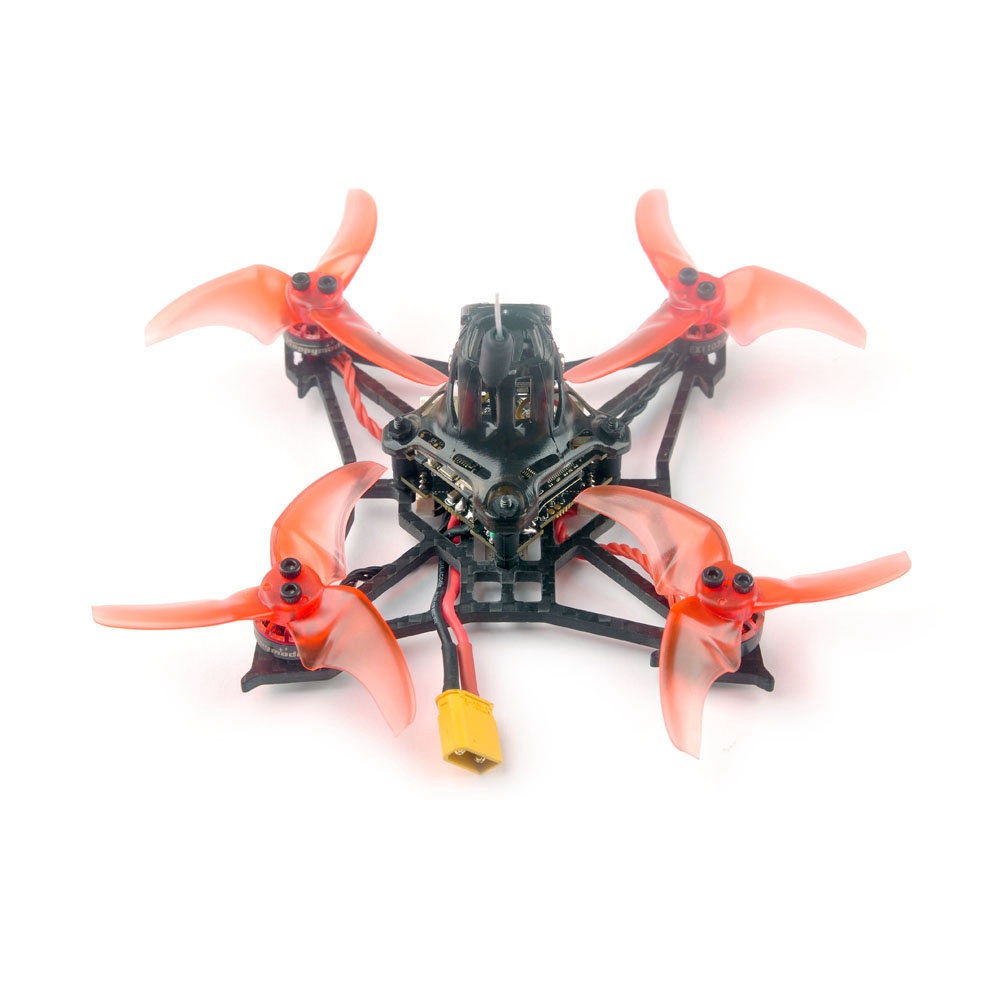

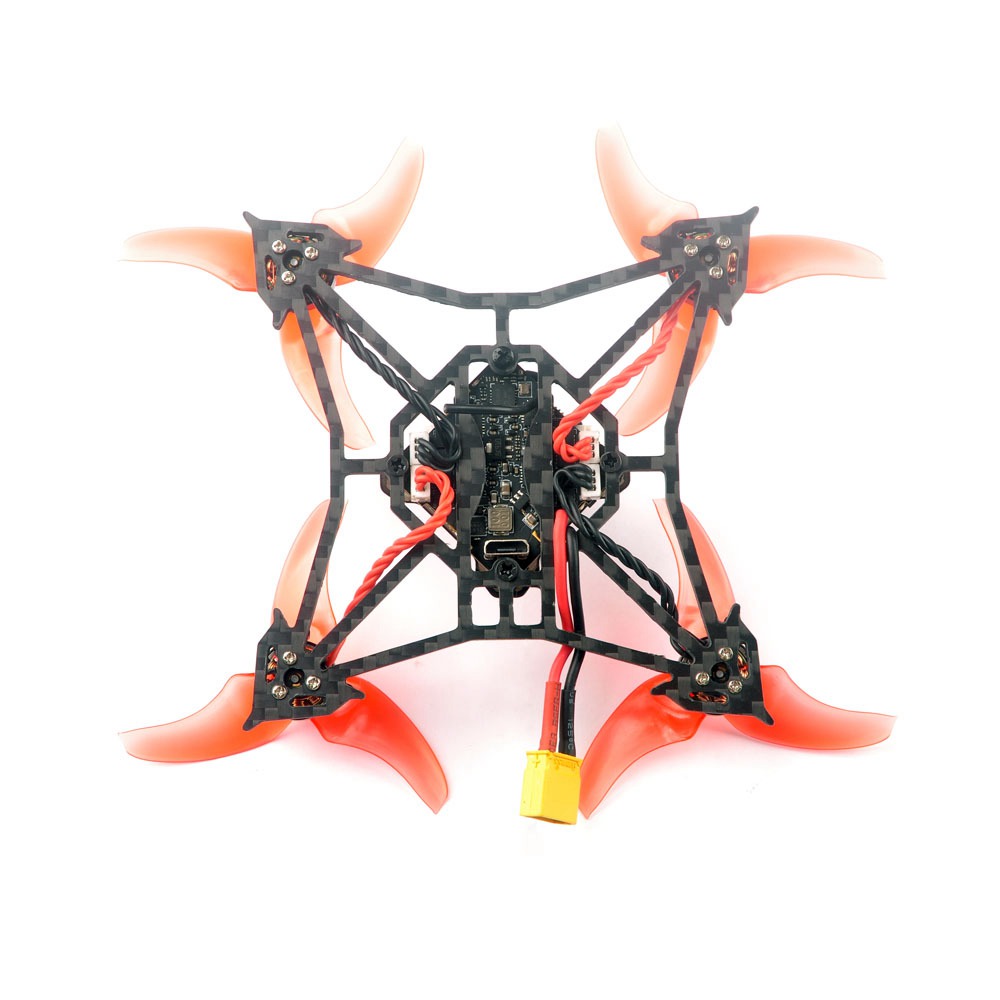

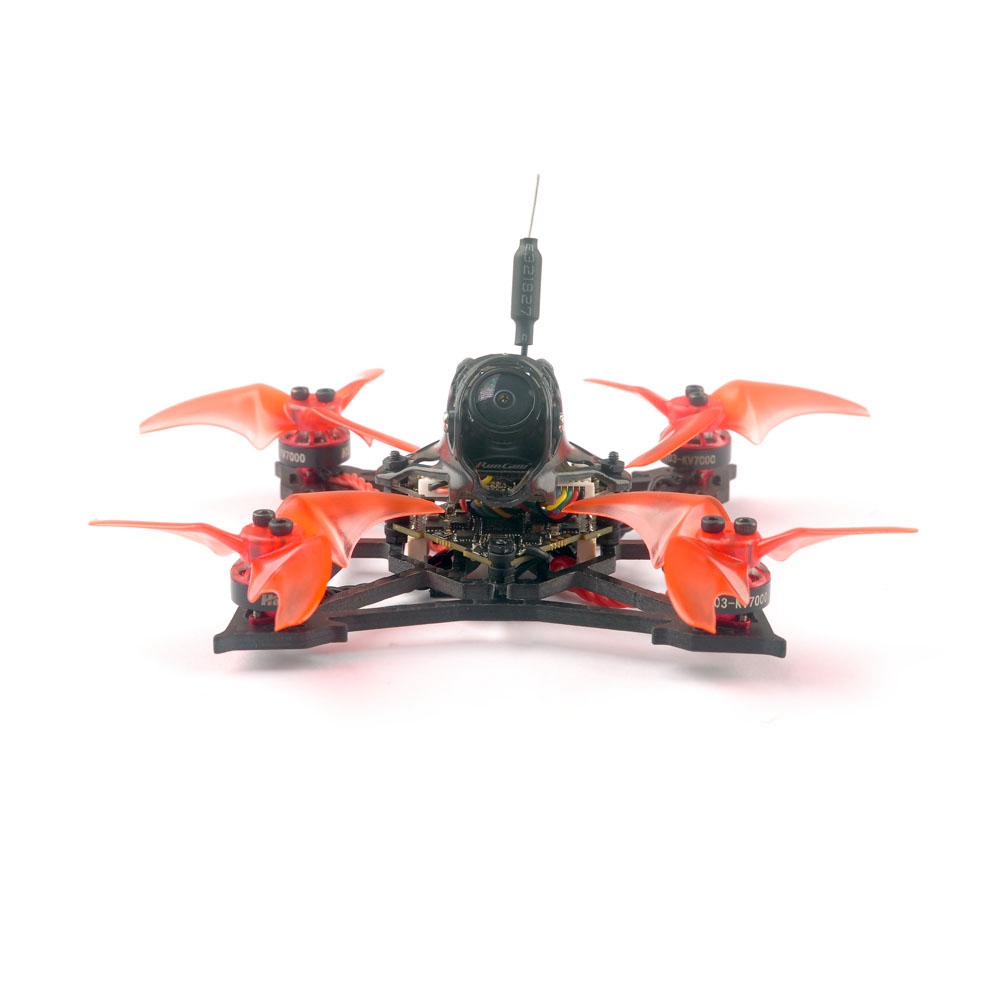

Happymodel LARVA X 2-3S 2.5Inch Hyperlight Brushless FPV Racing Drone F4 PRO V3.0 OSD 10A Diamond_VTX Runcam NANO2 BNF - Frsky D8 NON-EU Receiver

General

Brand: Happymodel
Item Name: Larva X
Version: BNF
Receiver: Frsky D8 NON-EU

Specification

Wheelbase: 100mm
Size: 88mm * 88mm * 45mm(without propellers)

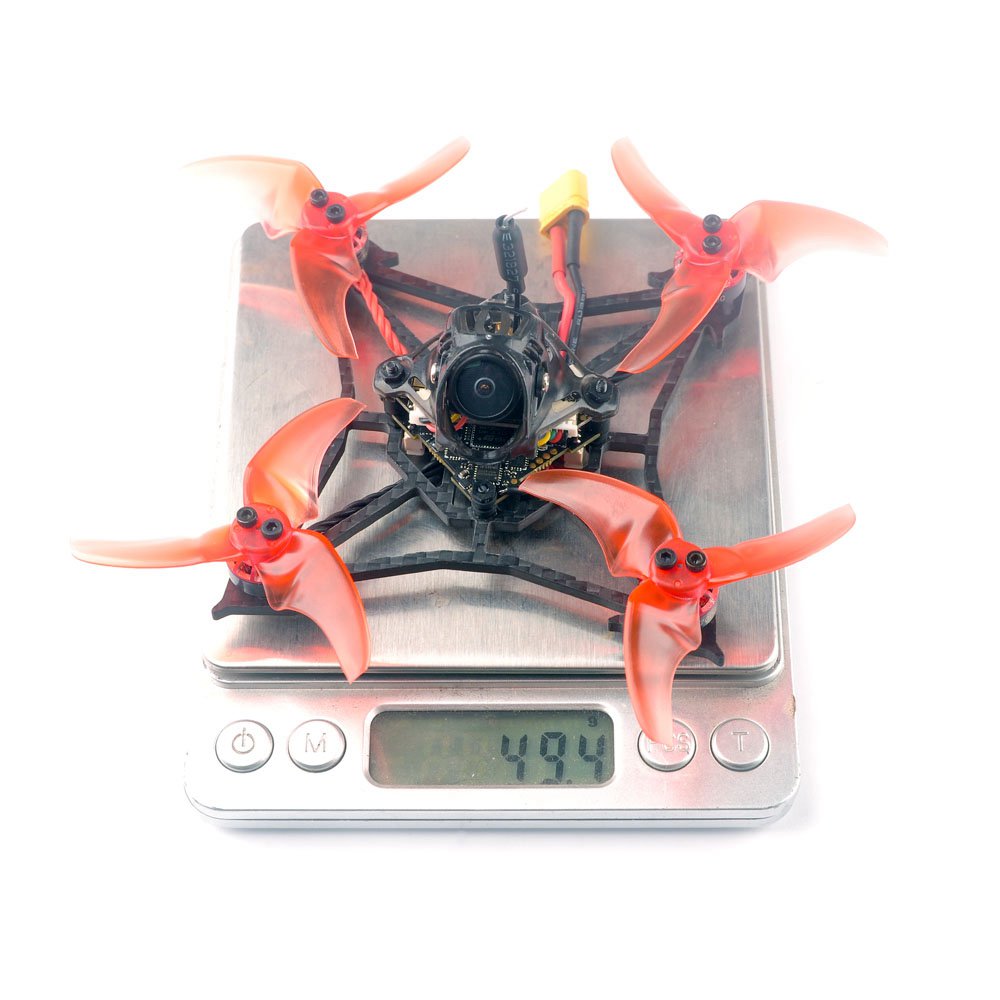

Weight: 50g(without battery)
Recommended Battery: 3S 300mah/350mah  2S 450mah

Motor:
Mode: EX1103
KV options: KV7000
Configu-ration:9N12P
Stator Diamter:11mm
Stator Length:3mm
Shaft Diameter: Φ1.5mm
Motor Dimension(Dia.*Len):Φ13.5mm*16mm
Weight(g):3.7g

Flight controller:
(Frsky version) CRAZYBEE F4FR PRO V3.0 Firmware target: CrazybeeF4FR
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Board size: 28.5 * 28.5MM
Power supply: 2-4S battery input (DC 7-17V)
Built-in 10A(each) Blheli_S 4in1 ESC Dshot600 ready
Frsky version Built-in SPI Frsky receiver with telemetry(D8/D16 switchable)
Flysky version Built-in SPI Flysky receiver with telemetry(AFHDS/AFHDS2A switchable)
No RX version need to add external Receiver
Built-in Betaflight OSD(SPI Control)
Built-in Current meter Max 70A
Current meter scale set to 470
Built-in 5V 1A BEC
Built-in voltage detection

Onboard 4in1 ESC:
MCU upgraded to EFM8BB21
Power supply: 2-4S LiPo/LiPo HV (7v/17v)
Current: 10A continuous peak 12A (5 seconds)
Support BLHeliSuite programmable
Factory firmware: F_H_40_REV16_5.HEX
Default protocol: DSHOT600

Internal Frsky NON-EU receiver Version
SPI BUS receiver
Frsky D8/D16 switchable
Compatible Non EU transmitter both D8 and D16 mode
Channels: 8ch or 16ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 300m

Diamond_VTX
Output power: 25~200mw switchable
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 250mA~510mA(type)
Antenna: RG178 antenna
U.FL interface
Frequency: 5.8GHz 5bands 40 channels
With Raceband
Smartaudio ready
Weight: 3g without antenna
Video Output Size: VGA (640x480)
Video Output format: NTSC
Record video size : 1280x720 @25FPS
TF Card support: Max.32G
Interface: JST SH1.0 3pin for Camera
JST SH1.0 5pin for Connect with F3/F4 Flight controller
Compress Format: AVI

Runcam NANO 2 Camera:
Model: Nano 2
Image Sensor: 1/3" CMOS
Horizontal Resolution: 700TVL
Lens: 2.1mm(M8) FOV 155°
Signal System: NTSC / PAL
S/N Ratio: >50dB
Electronic Shutter Speed: Auto
Auto Gain Control (AGC): Auto
Min. Illumination: 0.01Lux@1.2F
D-WDR: Auto
Day/Night: Color
Power: DC 3-5.5V
Current : 110mA@5V 120mA@3.3V
Housing Material: ABS
Net Weight: 3.2g
Dimensions: L14mm*W14mm*H16mm

Weight & Dimensions

Product weight: 50g
Product size (L x W x H): 88mm * 88mm * 45mm

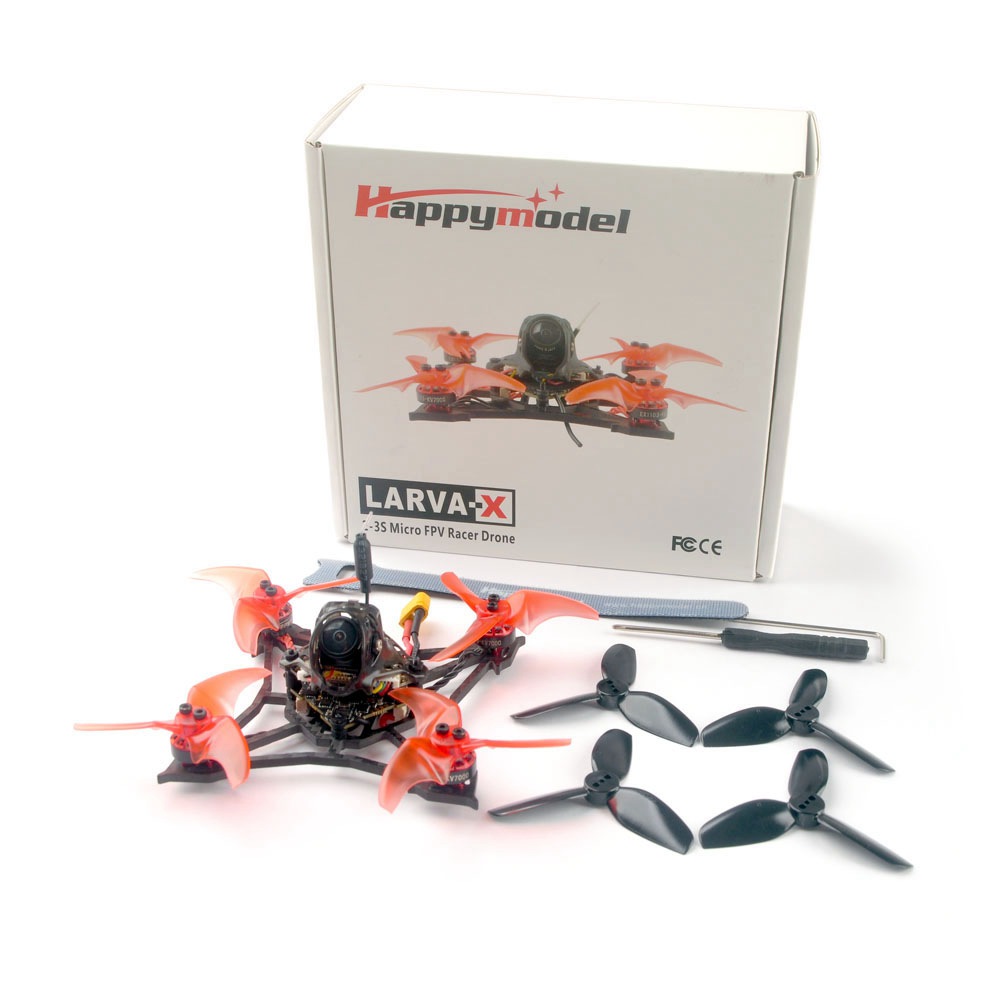

Package Contents
