Highlights
New Crazybee F4 PRO V2.0 AIO Flight controller 1-3s Lipo Compatible
2S for indoor Cine whoop mode
3S for outdoor Freestyle whoop mode
Betaflight support, multi flight mode: ACRO/AIR/ANGLE
The lightest 1102 brushless motor only 2.7g with double ball bearings
Powerful and smoothly
Betaflight OSD support, easy to get RSSI, Voltage, current from your goggles(DSMX version no RSSI output)
Caddx turtle v2 + 1080p 60fps DVR ready
Camera Angle adjustable
VTX power switchable 25mw~200mw
Smartaudio ready, change VTX bands, powers, channels via OSD
DSM2/DSMX version support DSM2 and DSMX compatible Spektrum transmitter
Full telemetry function ready (Frsky Non-EU and Flysky version support)
Special Breath light ready
Real Bind and Fly version
Compatible both for 2s-3s Lipo/LIHV
Specification

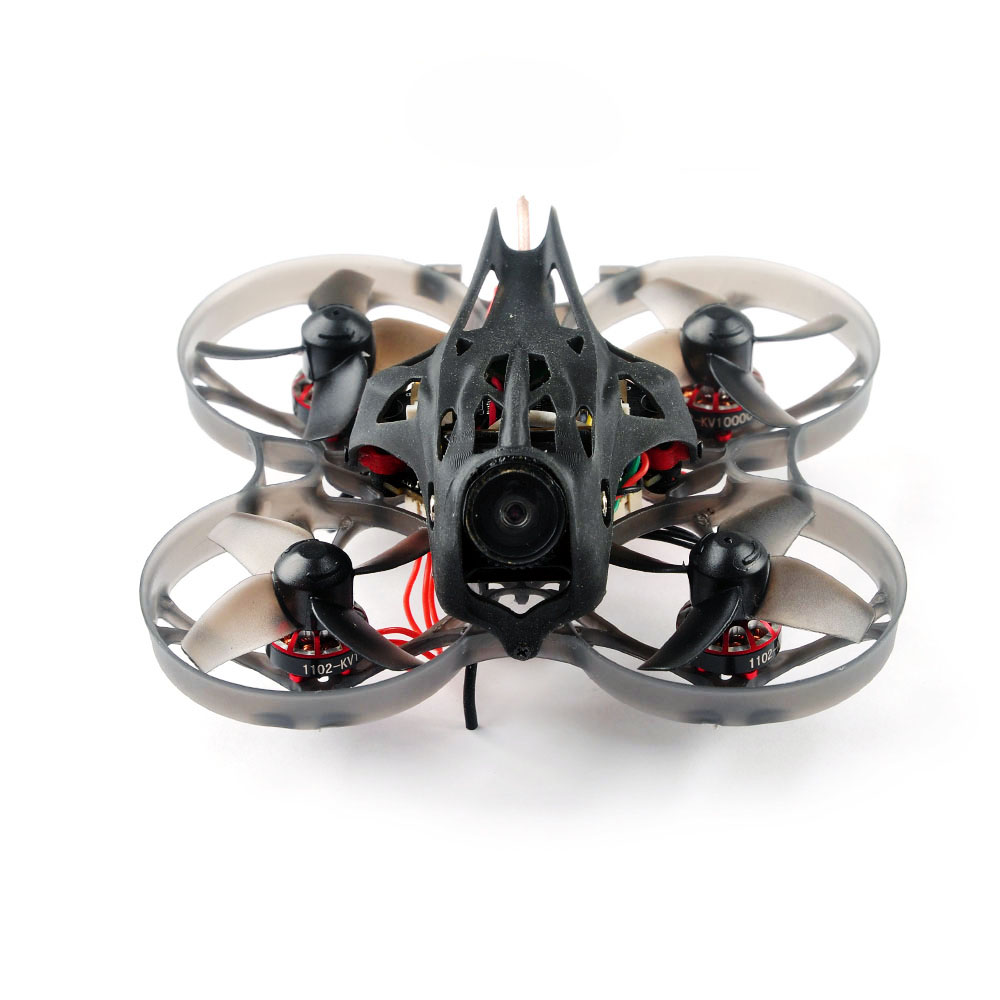

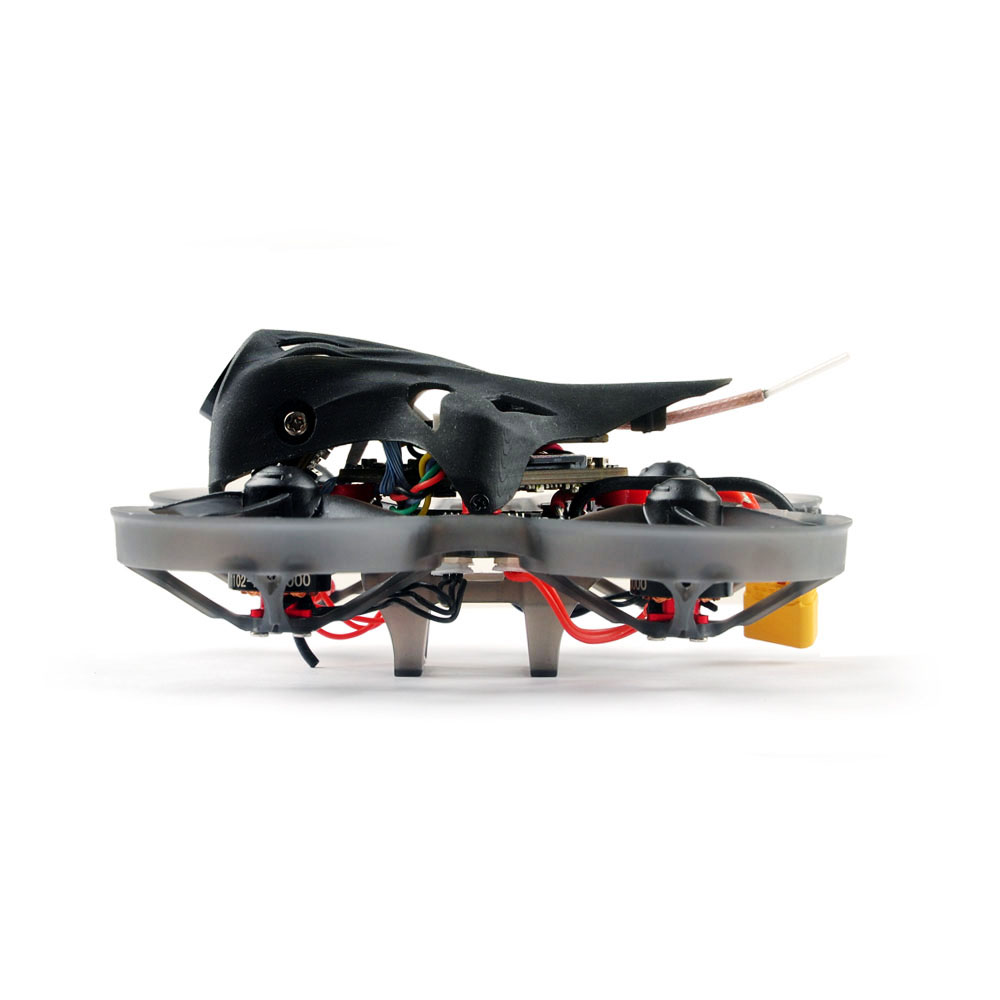

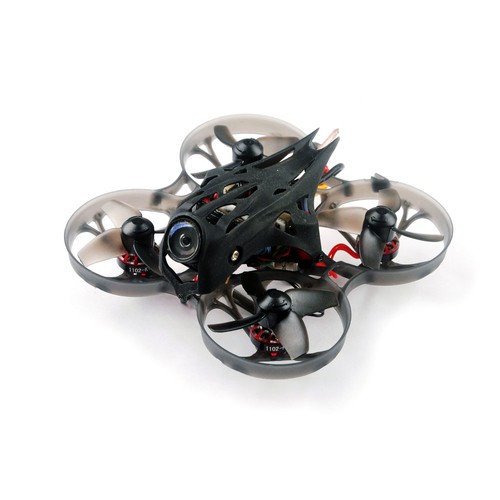

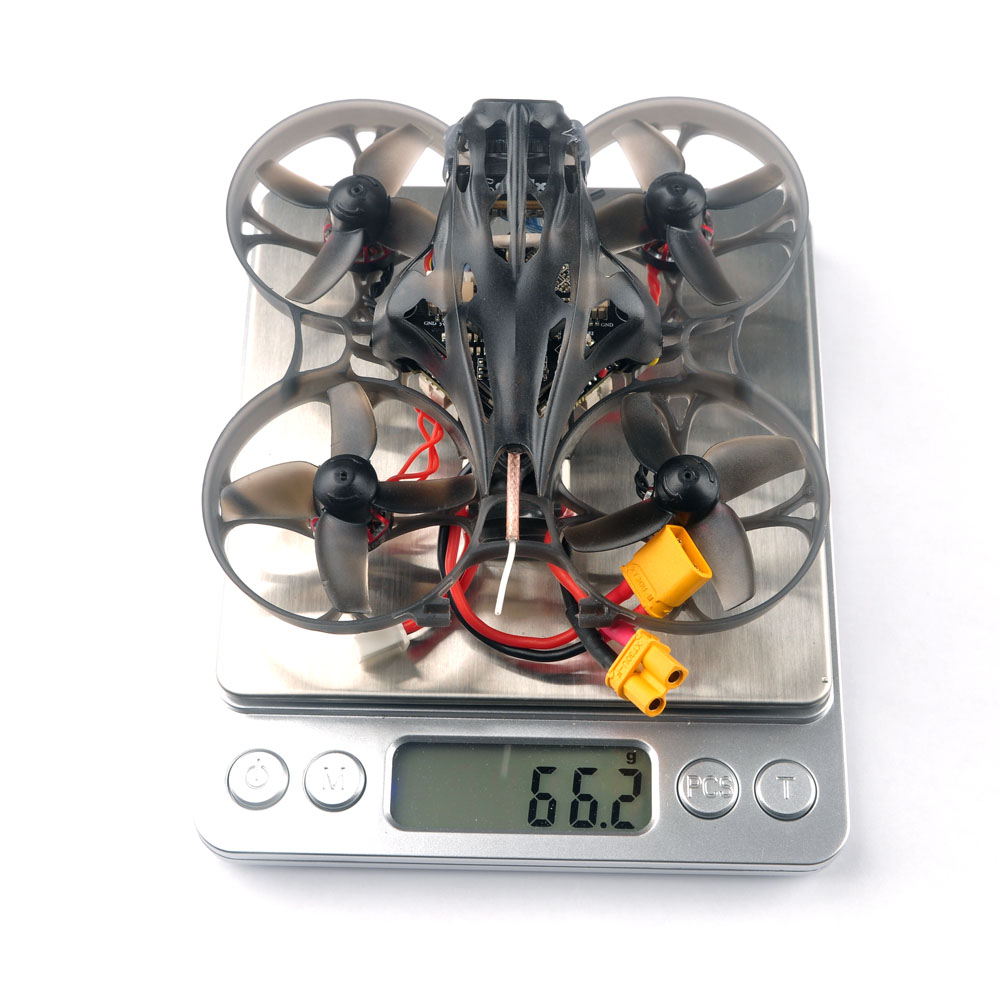

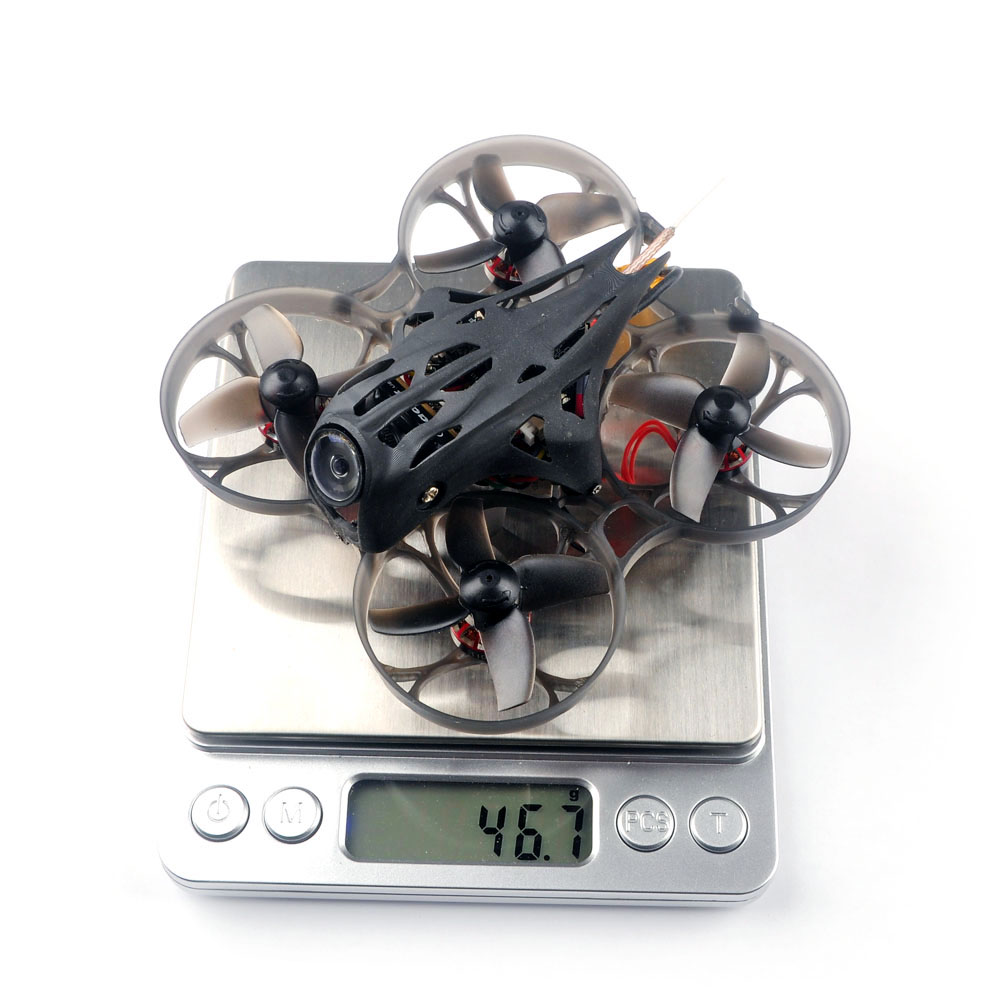

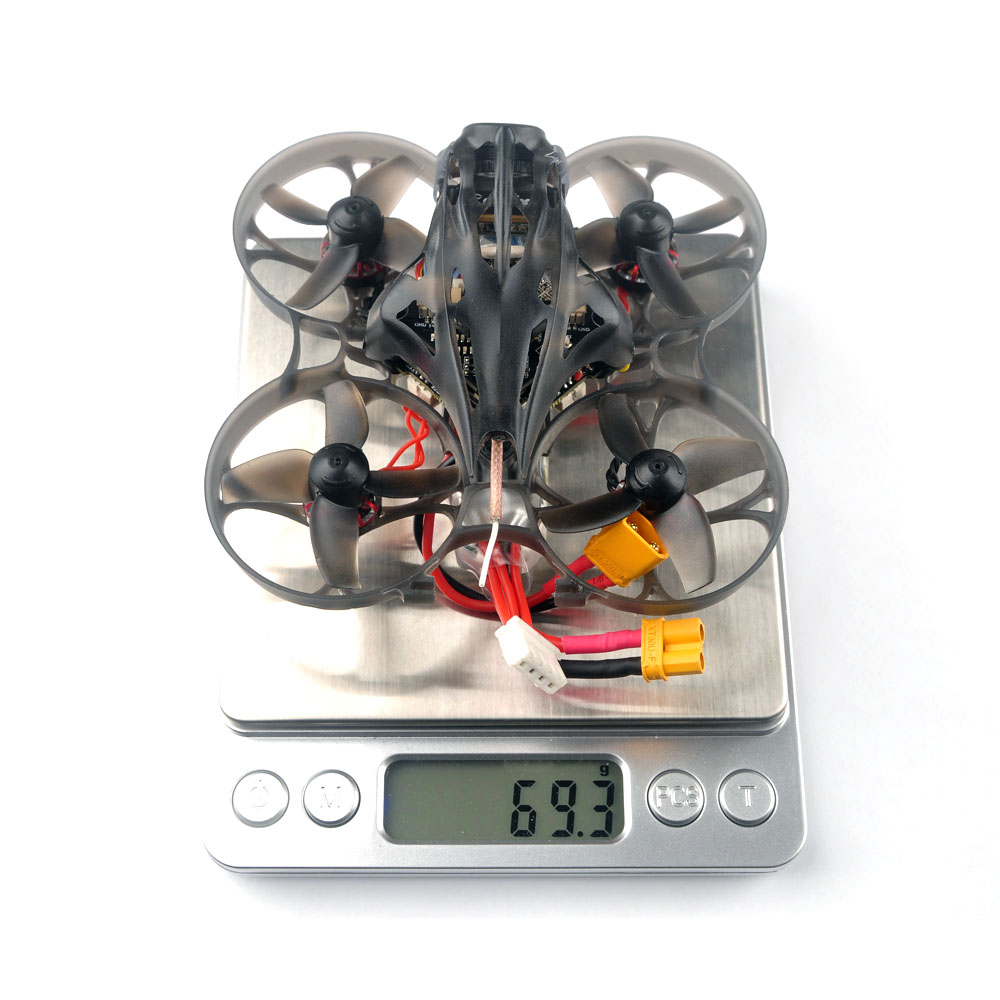

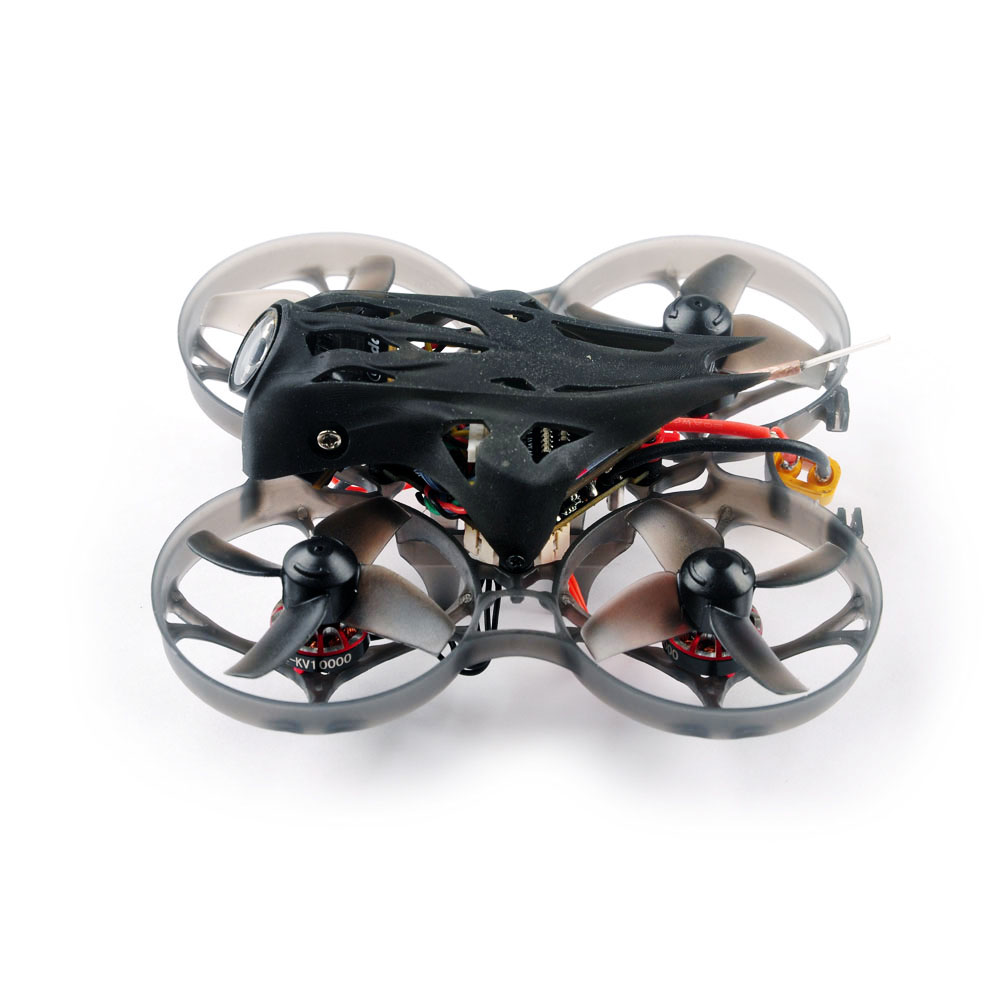

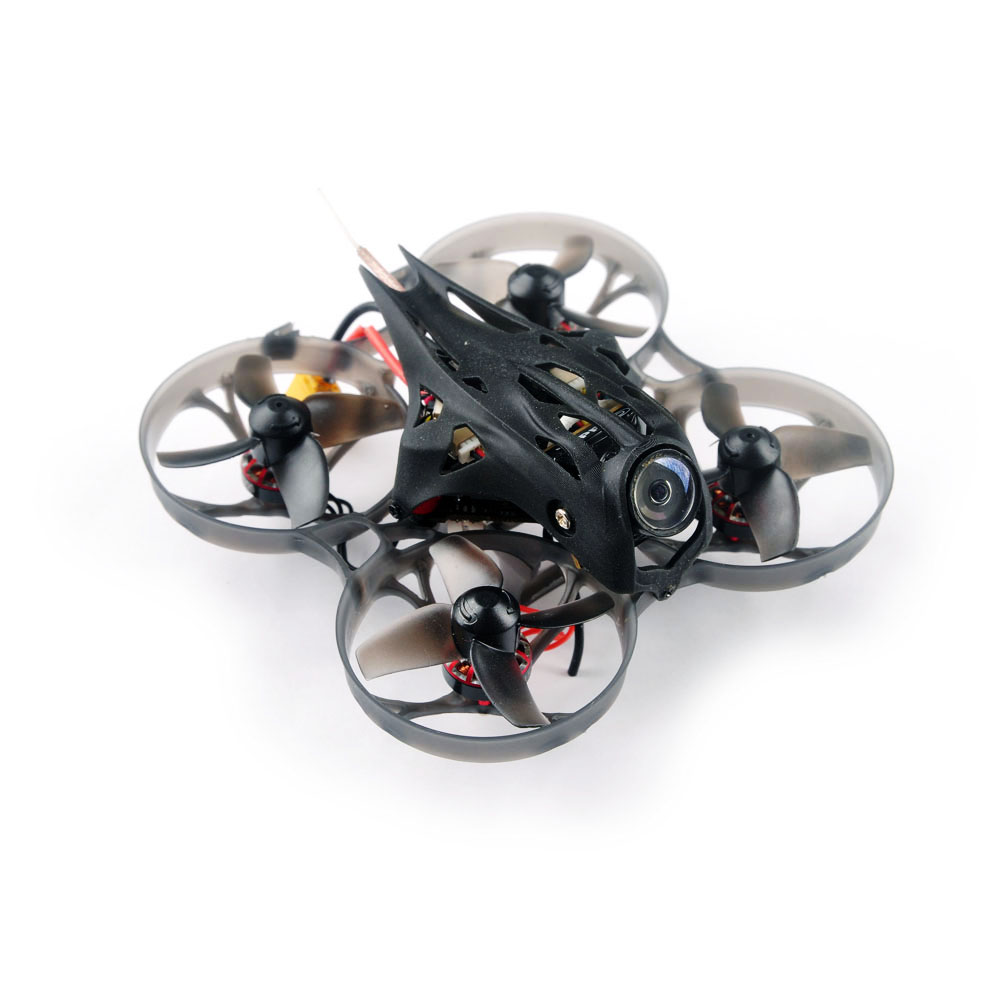

| General | Brand: Happymodel Item Name: Mobula7 HD Version Wheelbase: 75mm Size: 98mm X 98mm X 45mm Weight: 46.7g(Without Battery) 69.7g(With Battery) |
| Flight Controller |
Crazybee F4 Pro V2.0 Flight Controller : Firmware: |
| Onboard Frsky NON-EU Receiver Version | SPI BUS Receiver Frsky D8/D16 Switchable Compatible Non EU Transmitter Both D8 And D16 Mode Channels: 8ch or 16ch Failsafe Support No Ground Interference ( Transmitter And Receiver 1M From The Ground): 300m |
| Onboard 5A 4 In 1 ESC | MCU Upgraded To EFM8BB21 Power Supply: 1-3S LiPo/LiPo HV (3.5v/13v) Current: 5A Continuous Peak 6A (5 seconds) Support BLHeliSuite Programmable Factory Firmware: S_H_50_REV16_7.Hex Default Protocol: DSHOT600 |
| EX1102 10000KV Motor | Model: EX1102 KV: 10000KV Configu-ration: 9N12P Stator Diamter: 8mm Stator Length: 2mm Shaft Diameter: Φ1.0 Motor Dimension (Dia.*Len) : Φ10.5*14.5mm Weight: 2.7g Support 1-3S Lipo |
| Propeller | 40mm 4-blade Propeller ( 4 CW + 4 CCW) |
| 5.8G 40CH 25-200mW VTX | Output Power: 25~200mw Switchable Frequency: 40CH Input Voltage: 3.3V 5.5V Current Consumption: 300mA(type) Antenna: RG178 Antenna Frequency: 5.8GHz 5bands 40 channels With Raceband Smartaudio Ready Weight: 3g |

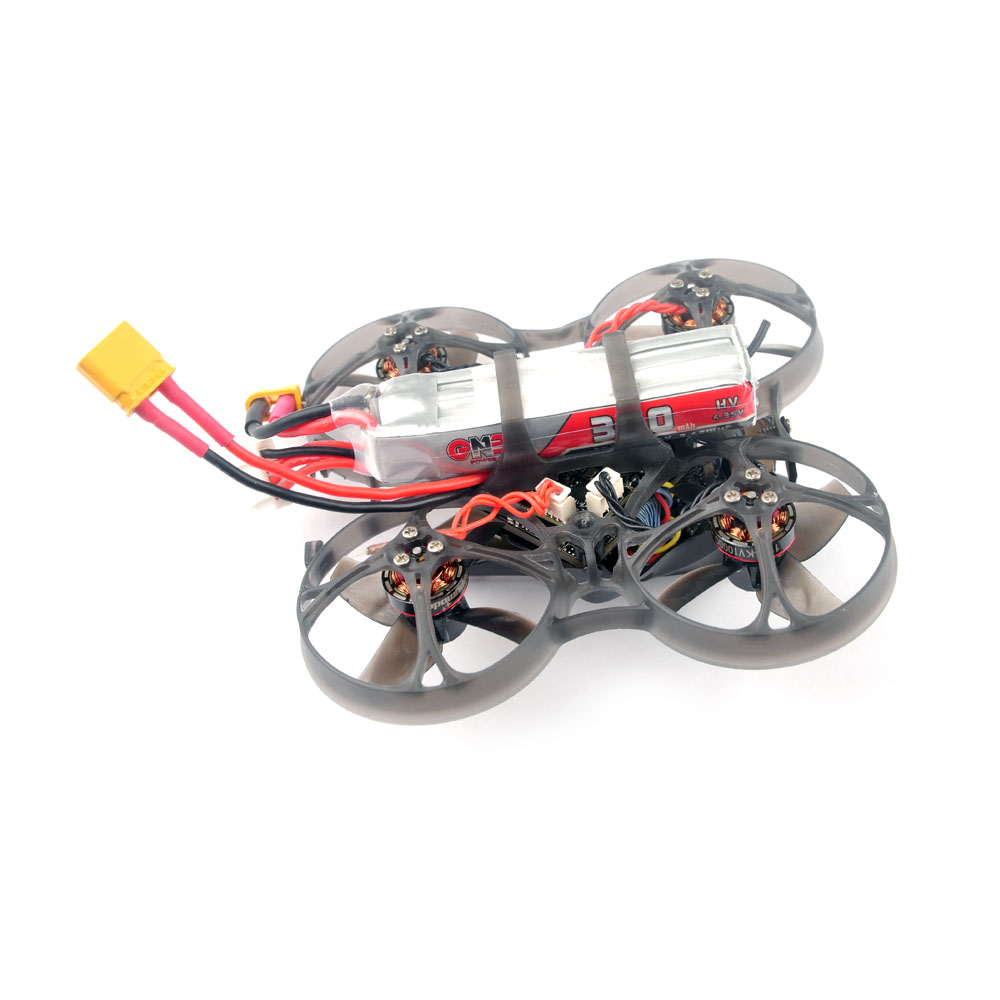

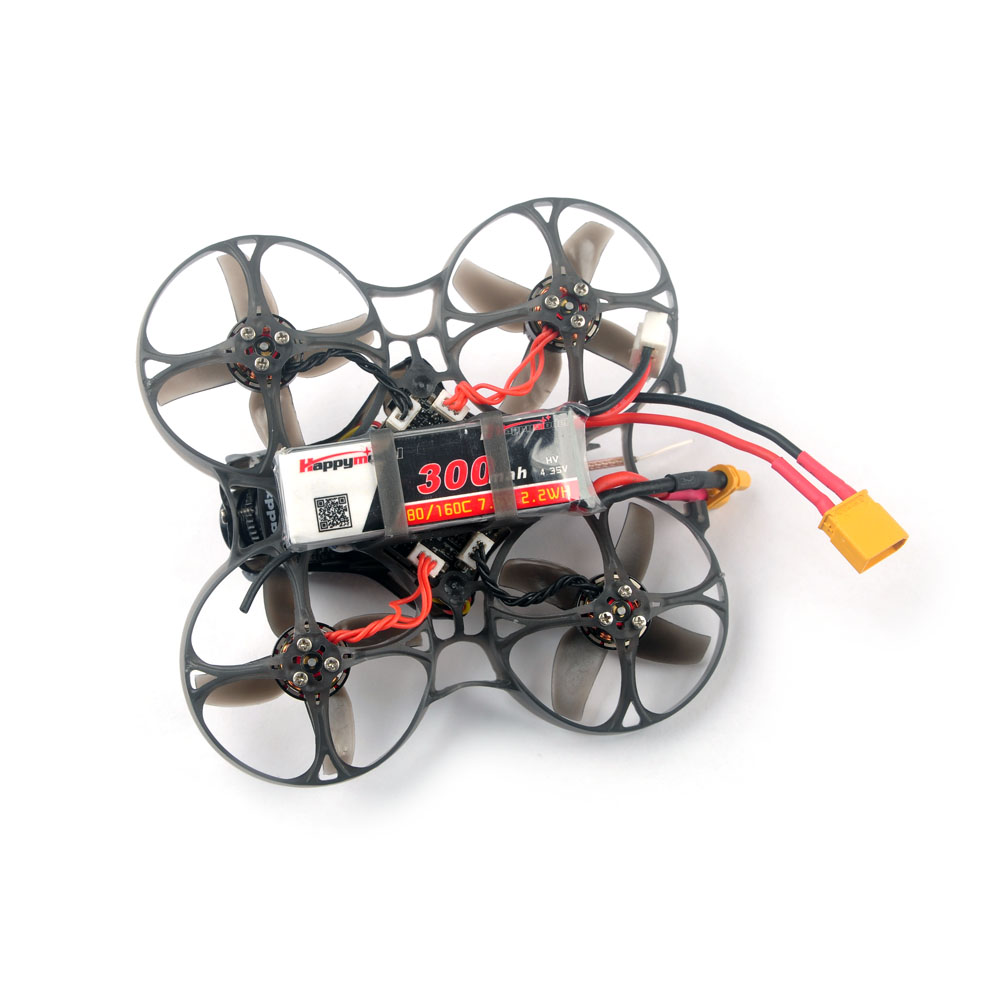

| Lipo Battery | Capacity:300mAh Voltage:11.4v Continuous Discharge Rate: 30C Instantaneous Discharge Rate: 60C Size: 65mm X 18mm X 11mm Weight: 23g Connector: XT30 |
| CADDX Turtle V2 Camera | Image Sensor: 1/2.7" CMOS sensor Horizontal: 800TVL TV System: NTSC/PAL Changeable Video Resolution: 1080P@60fps / 1080P@30fps / 720@60fps Power Input: DC 4.5-20V FPV FOV: 155° Recording FOV: 170° Mini Illumination: 0.01lux Image Resolution: 2 Megapixels Lens: 1.8mm Turbo Eye Lens Working Current: 380mA@5V/160mA@12V (Low Consumption) OSD Menu: Yes (Support Voltage Display) Video Files: MP4 Audio: Support Electronic Shutter : PAL : 1/50-100,000 NTSC : 1/60-100,100 S/N Ratio: >60dB (AGC OFF) Video Output: CVBS Max Micro SD Card Supported: 8-64GB(Need Class 10 Or Above, Recommend Class 10/UHS-I/UHS-II) Color: Red |
| Package Contents | 1 X Mobula7 HD Version Racing Drone(With Frsky Receiver) 4 X 40mm 3-Blade Propellers ( 4 CW & 4 CCW) 1 X 3S 11.4v 300mah 30C/60C Battery 1 X Propeller Disassemble Tool 1 X Screwdriver 1 X Manual |
