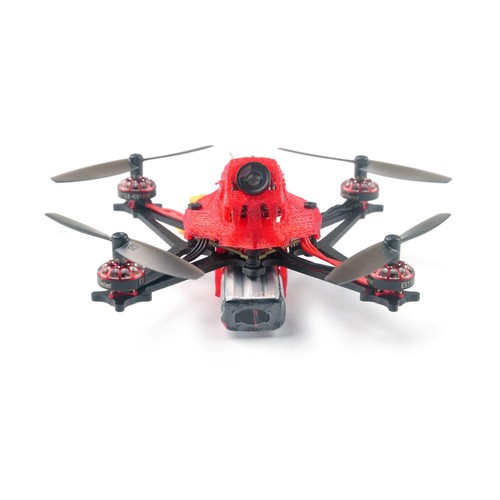

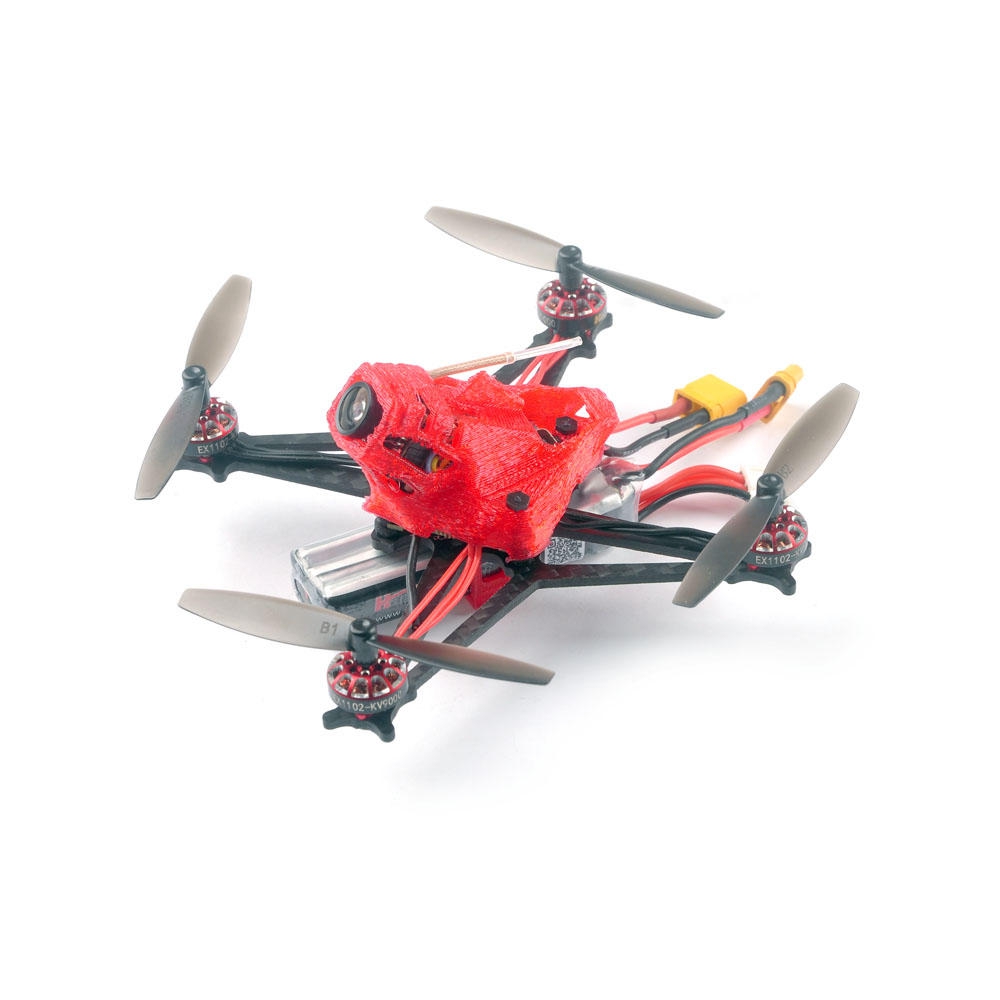

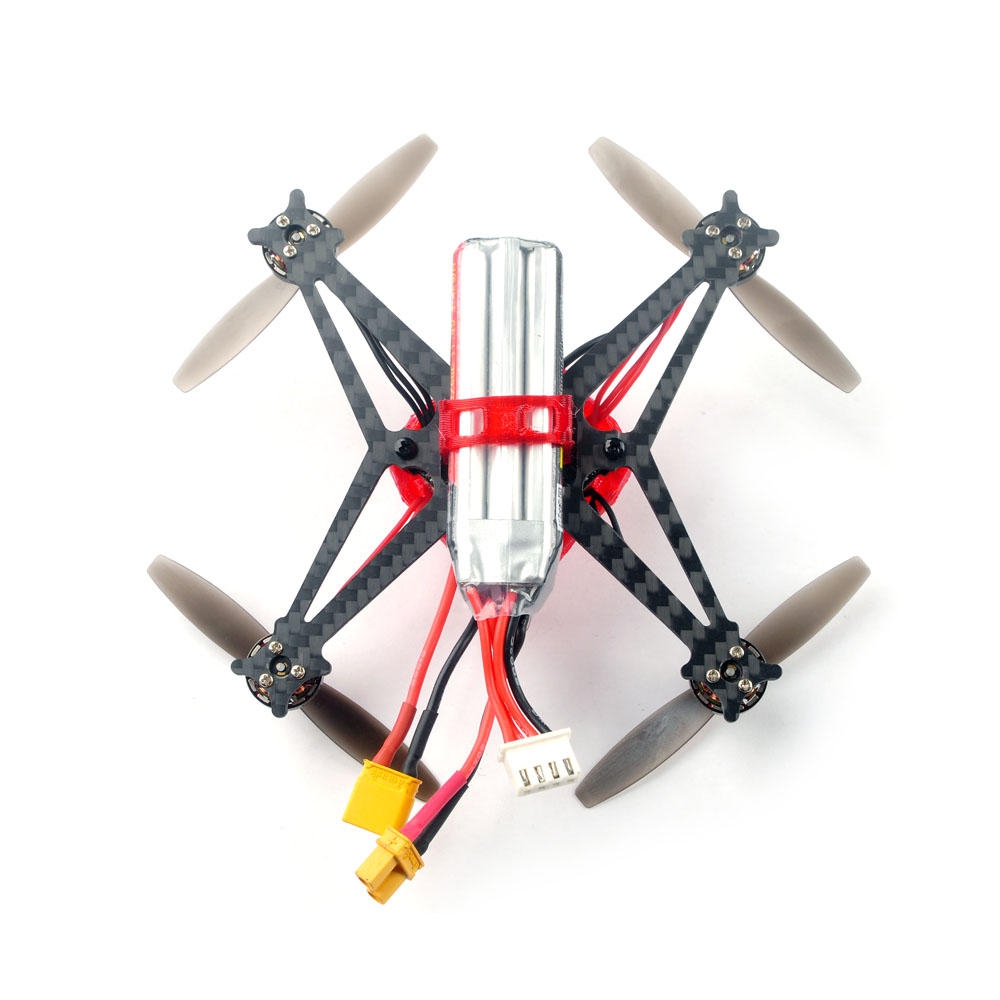

Happymodel Sailfly-X 105mm 2-3S Freestyle Micro FPV Racing Drone With Crazybee F4 PRO 700TVL Cam BNF - DSM2/DSMX Receiver

Name: Happymodel Sailfly-X Racing Drone BNF DSM2 Receiver
Brand: Happymodel
SKU: 415789
Price: 99.99 USD
Availability: InStock

Share to

Ship to:

United States

Select the desired shipping method

Shipping Company Estimated Delivery Time Shipping Cost

*Please note: the shipping costs are only estimates; the actual shipping price will be shown on the order page.

Trusted Shipping Partners: and more

0 item(s) added

View CartContinue Shopping

Description
Videos
Reviews
Q&A
Support & Firmware
Learn More

Sold Out

Highlights

Crazybee F4 PRO V2.1 AIO Flight controller 2-3s Lipo Compatible

The lightest 1102 brushless motor only 2.7g with double ball bearings

Light, powerful and smoothly

AIO 5.8G 40CH 25mW VTX / 700tvl camera with smartaudio

2mm carbon fiber frame with TPU 3d-printed canopy

Betaflight OSD support, easy to get RSSI, Voltage, current from your goggles(DSMX version no RSSI output)

Full telemetry function ready (Frsky and Flysky version support)

Compatible both for 2s-3s Lipo/LIHV

Happymodel Sailfly-X 105mm 2-3S Freestyle Micro FPV Racing Drone With Crazybee F4 PRO 700TVL Cam BNF - DSM2/DSMX Receive

Specification

General	Brand: Happymodel Item Name: Sailfly-X Version: BNF Color: Red Flight Type: Freestyle

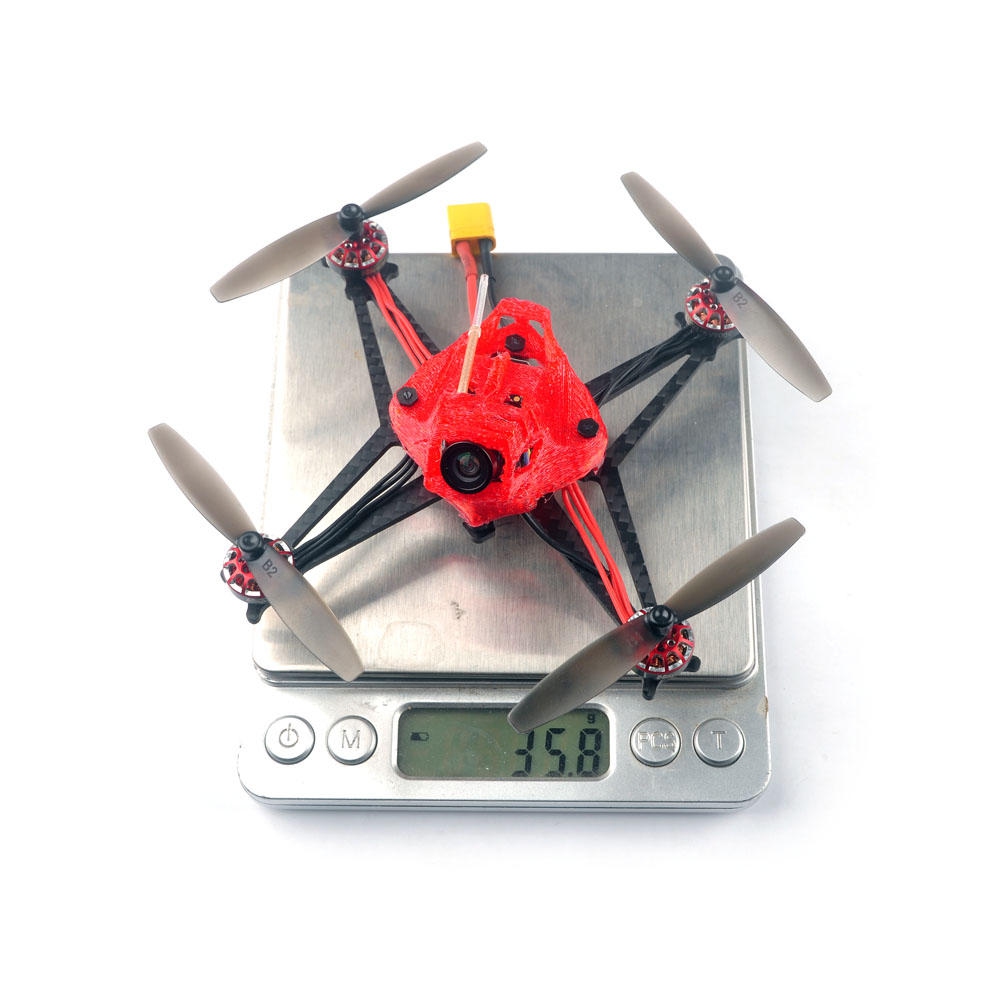

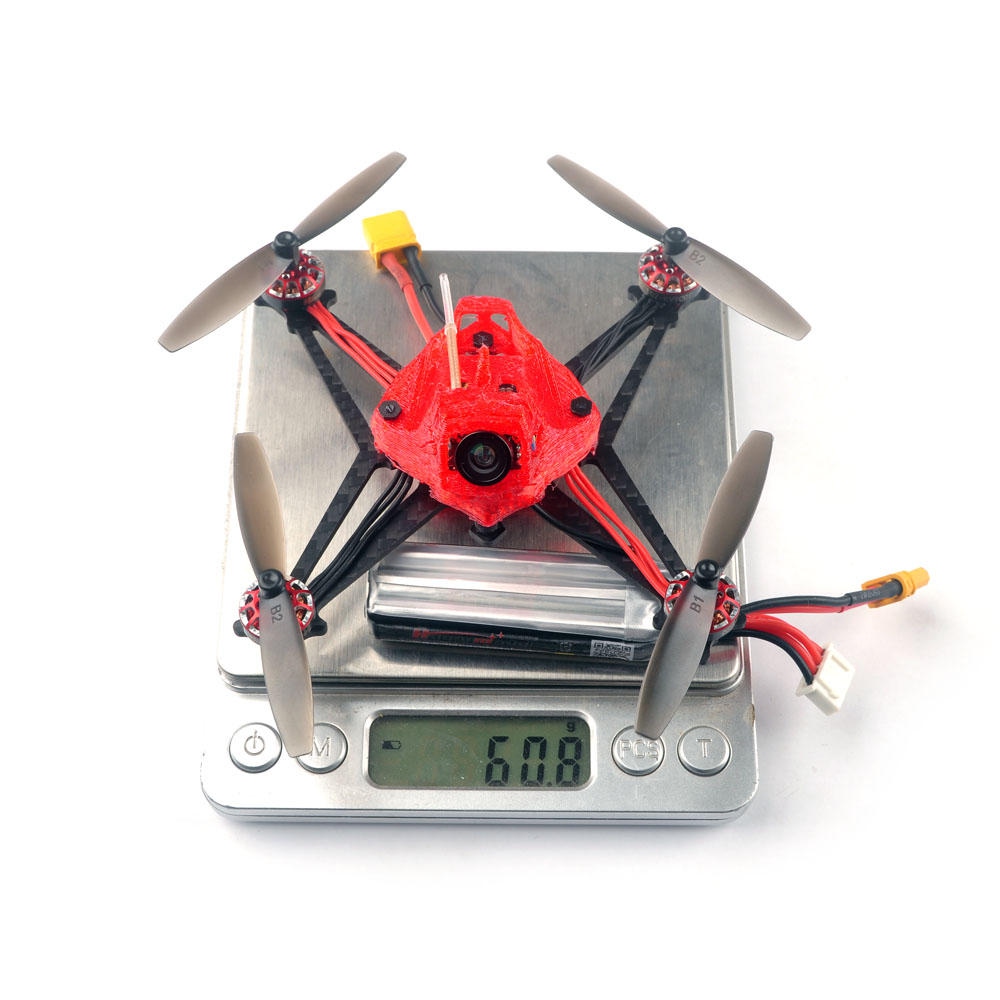

Specification	Wheelbase: 105mm Drone Size: 95 X 95 X 50mm Drone Weight: 35g(With Battery) Flying Weight: 60g(With Battery) Crazybee F4 PRO FC (DSM2/DSMX version) CRAZYBEE F4DX PRO V2.1 Firmware target: CrazybeeF4DX MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU-6000(SPI connection) Board size: 28.5 * 28.5MM Power supply: 2-3S battery input (DC 7.4-13V) Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready DSM2/X Version built-in Serial-based DSM2/DSMX compatible satellite receiver Built-in Betaflight OSD(SPI Control) Built-in Current meter Max 28A Current meter scale set to 1175 Built-in 5V 1A BEC with LC filter Built-in voltage detection Onboard 5A 4in1 ESC MCU upgraded to EFM8BB21 Power supply: 2-3S LiPo/LiPo HV (7.4v/13v) Current: 5A continuous peak 6A (5 seconds) Support BLHeliSuite programmable Factory firmware: S_H_50_REV16_7.Hex Default protocol: DSHOT600 EX1102 9000KV Motor Model: EX1102 KV9000 Configu-ration:9N12P Stator Diamter:11mm Stator Length:2mm Shaft Diameter:Φ1mm Motor Dimension(Dia.Len):Φ13.5mm16mm Weight(g):2.8g No.of Cells(Lipo):2S-3S 40CH 25mW VTX AIO 700TVL Cam Output power: 25mw Frequency: 40CH Input voltage: 3.3V 5.5V Current consumption: 300mA(type) Camera resolution: 700TVL Field of view: 120° Video Format: NTSC Antenna: RG178 antenna Frequency: 5.8GHz 5bands 40 channels With Raceband Smartaudio ready(Frsky EU-LBT and DSMX version not compatible) Size: 13.9"12.0mm ( L*W ) Weight: 3.2g Battery Capacity:300mAh Voltage:11.4v Continuous Discharge Rate: 30C Instantaneous Discharge Rate: 60C Size: 65mmx18mmx11mm Weight: 25g Connector: XT30 Onboard DSM2/DSMX receiver version: Serial bus receiver Protocol: DSM2/DSMX compatible Channels:6-9 (Depend on your radio) No ground interference ( Transmitter and receiver 1 m from the ground): 300m
Weight & Dimensions	Product weight: 35g Product size (L x W x H): 95 X 95 X 50mm

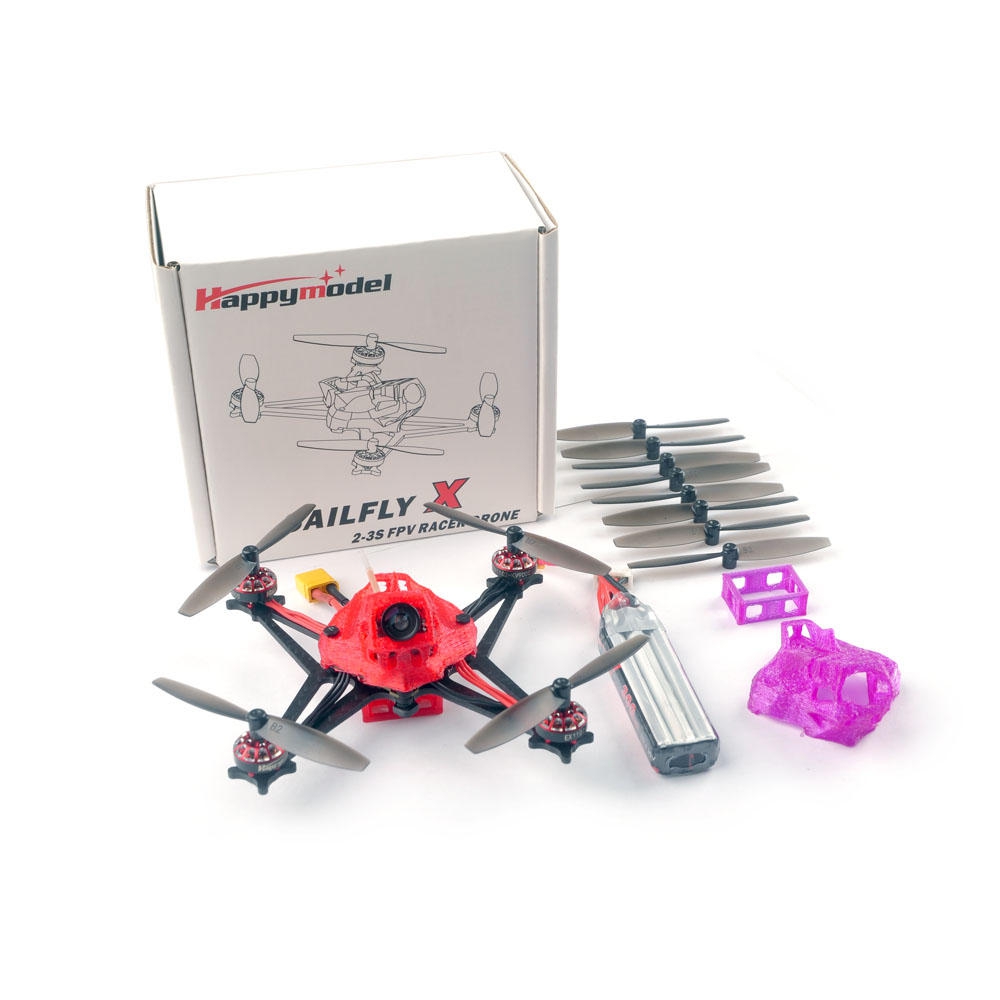

Package Contents	1 x Sailfly-X FPV Racing Drone 1 x 3D Printed 30 Degree Angle Canopy ( Red) 1 x 3D Printed 40 Degree Angle Canopy ( Purple) 1 x 3S 11.4v 300mah 30C/60C battery 1 x Propeller disassemble tool 1 x Screwdriver
