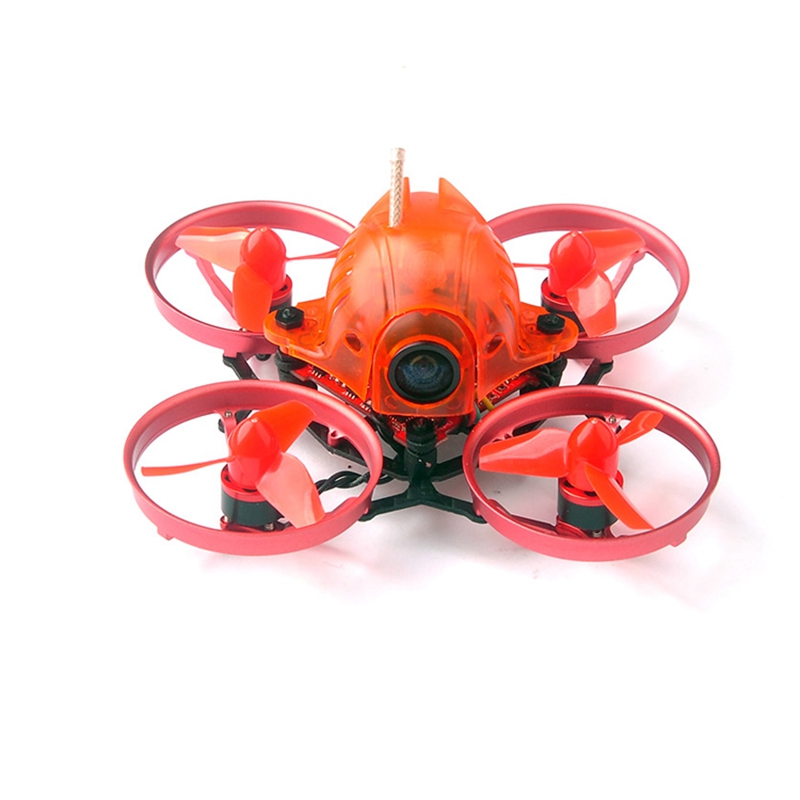

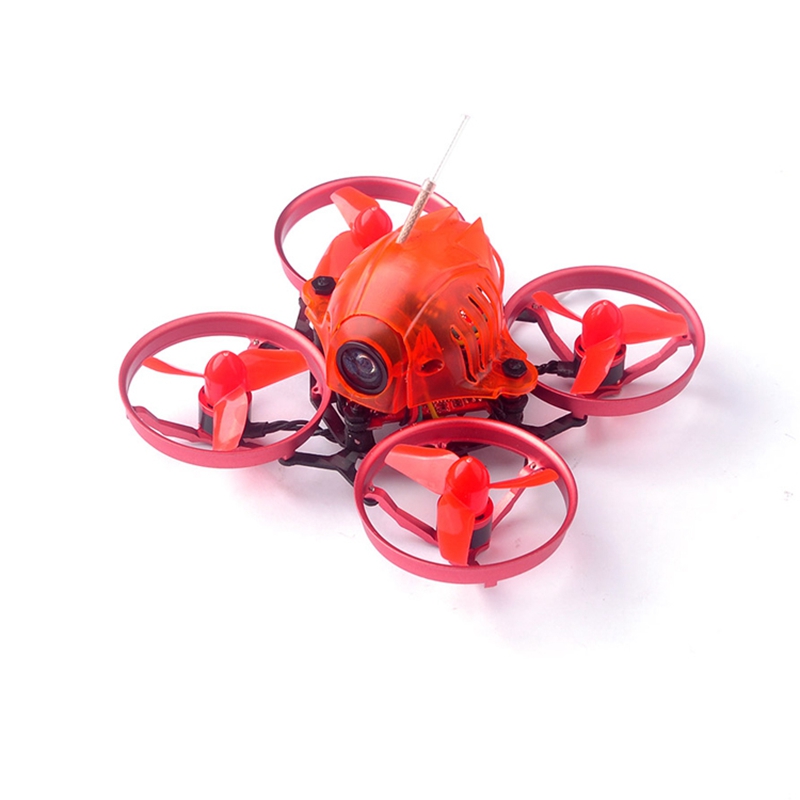

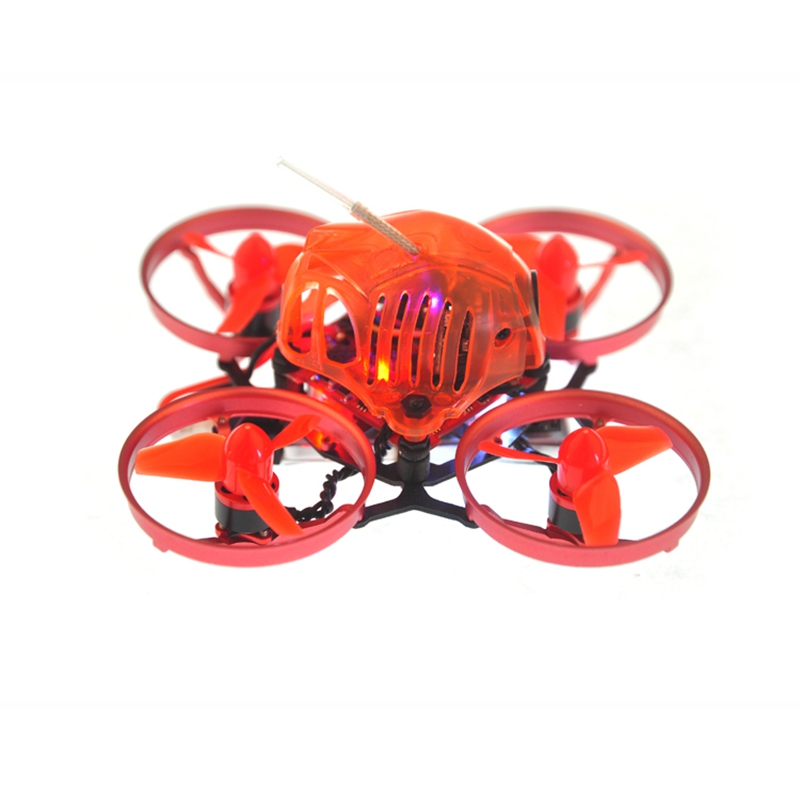

Brand Name: Happymodel
Mode Name: Snapper 6
Wheelbase: 65mm

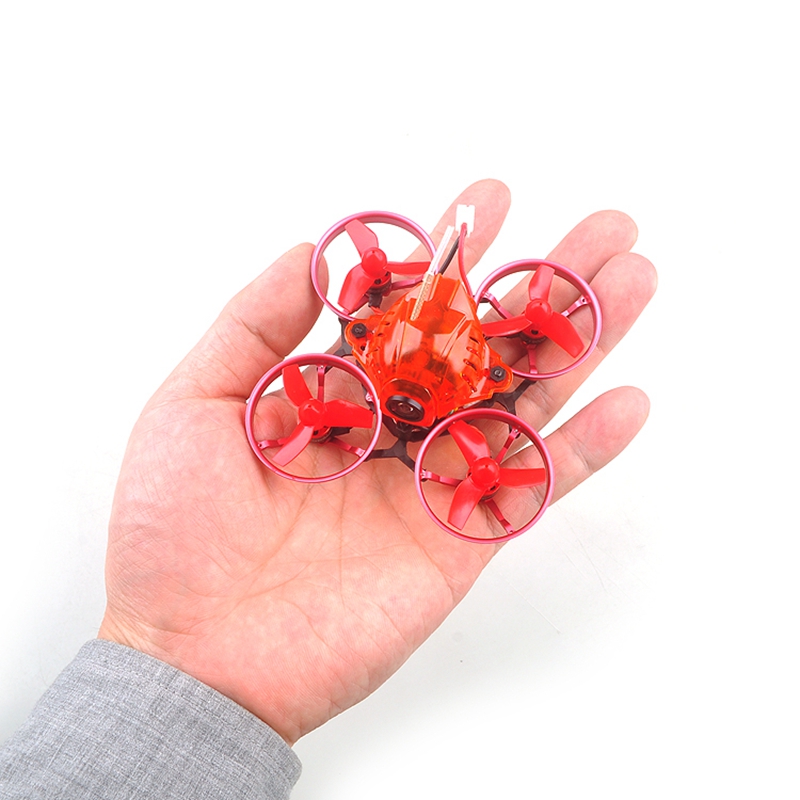

Size: 81mm*81mm*36mm

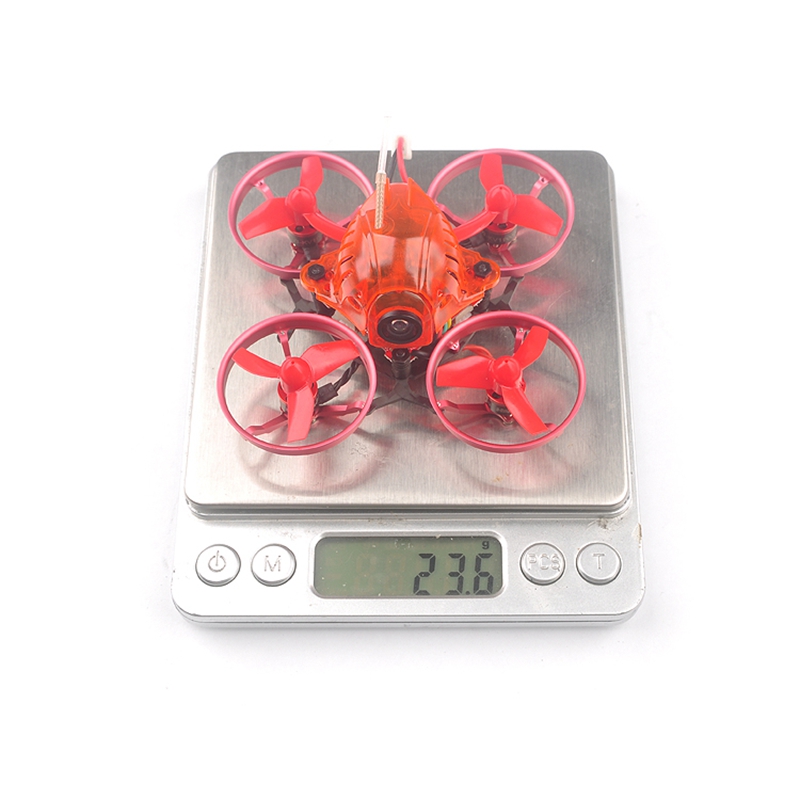

Weight: 23g(without battery)
Spare Parts Specifications:
Motor:
Mode: SE0603 KV19000
Configu-ration:9N12P
Stator Diamter:6mm
Stator Length:3mm
Shaft Diameter:Φ0.8mm
Motor Dimension(Dia.*Len):Φ9mm*15.5mm
Weight(g):1.7g
No.of Cells(Lipo):1S
Flight Controller:
Firmware: Betaflight_3.3.0_Crazybee
MCU: STM32F303CCT6 (72MHZ, 256K FLASH)
Sensor: MPU-6000(SPI connection)
Board size: 28.5 * 28.5MM
Board weight: 3.5 g
Power supply: 1S battery input (DC 3.5-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Frsky receiver with telemetry(D8/D16 switchable)
Built-in Betaflight OSD(SPI Control)
Built-in Current meter Max 14A
Built-in 5V 0.8A BEC with LC filter
Built-in voltage detection
BLHELI_S pass-through Ready
Heading LED Ready
Onboard 4in1 ESC
Power Supply: 1S LiPo/LiPo HV (4.2v/4.35v)
Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: O_L_5_REV16_6.HEX
Default protocol: DSHOT600
Frsky receiver Version
SPI BUS receiver
Frsky D8/D16 switchable
Compatible both of Non EU and EU LBT transmitter
Channels: 8ch or 16ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 300m

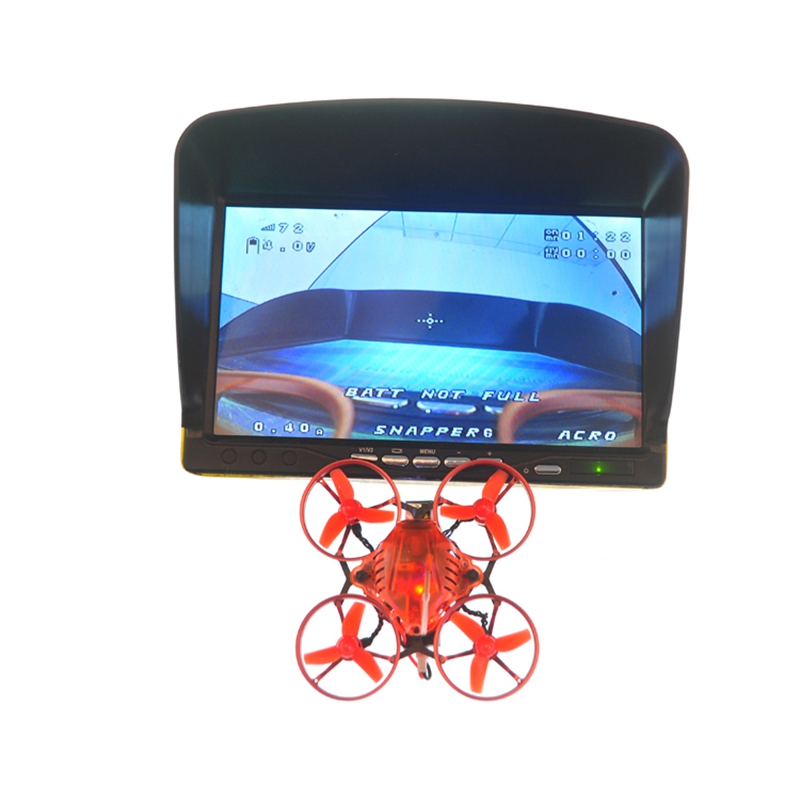

AIO Camera&VTX
Output power: 25mw
Frequency: 48CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Camera resolution: 700TVL
Field of view: 120°
Video Format: NTSC
Antenna: RG178 antenna
Frequency: 5.8GHz 6 bands 48 channels
With Raceband: 5474 5945 MHZ
Size: 13.9"12.0mm ( L*W )
Weight: 3g
Lipo Battery
Capacity:250mAh
Voltage:3.8v
Continuous Discharge Rate: 30C
Instantaneous discharge rate: 60C
Size: 55mmx12mmx7mm
Weight: 6.5g
Connector: PH2.0
|
