Highlights
Multi-flight Mode
Supporting Betaflight, it has multi-flight mode,namely ACRO/AIR/ANGLE.
Powerful Support
It has included powerful brushless motor and smooth ESC.
Strong Protection
This CNC aluminum alloy propeller guard will protect you from injury.
Betaflight OSD Support
With the Betaflight OSD support,it is easy to get RSSI, Voltage and other info from your goggles.
Adjustable Operation
You could adjust the settings and the PID of the flight controller via OSD.
Compatibility
The frsky version supports both EU LBT and NON-EU Frsky transmitter.
Others
It has full telemetry function ready, head lights ready and camera angle adjustable, a real Bind and Fly version.
Specification
| General |
Brand Name: Happymodel |
| Motor | Motor Mode: SE0703 KV19000 Configu-ration:9N12P Stator Diamter:7mm Stator Length:3mm Shaft Diameter:Φ1.0 Motor Dimension(Dia.*Len):Φ10*14.5 Weight(g):2.5 No.of Cells(Lipo):1S |
| Flight controller | Flight controller Firmware: Betaflight_3.3.0_Crazybee MCU: STM32F303CCT6 (72MHZ, 256K FLASH) Sensor: MPU-6000(SPI connection) Board size: 28.5 * 28.5MM Board weight: 3.5 g Power supply: 1S battery input (DC 3.5-4.35V) DSM2/DSMX receiver Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready Built-in Betaflight OSD(SPI Control) Built-in Current meter (Max 14A,could be modified to 28A by replace resistor) Built-in 5V 0.8A BEC with LC filter Built-in voltage detection BLHELI_S pass-through Ready Heading LED Ready |
| Onboard 4in 1 ESC | Onboard 4in1 ESC Power supply: 1S LiPo/LiPo HV (4.2v/4.35v) Current: 5A continuous peak 6A (3 seconds) Support BLHeliSuite programmable Factory firmware: O_L_5_REV16_6.HEX Default protocol: DSHOT600 |
|
AIO Camera & VTX |
AIO Camera & VTX Output power: 25mw Frequency: 48CH Input voltage: 3.3V 5.5V Current consumption: 300mA(type) |
| Package Contents |

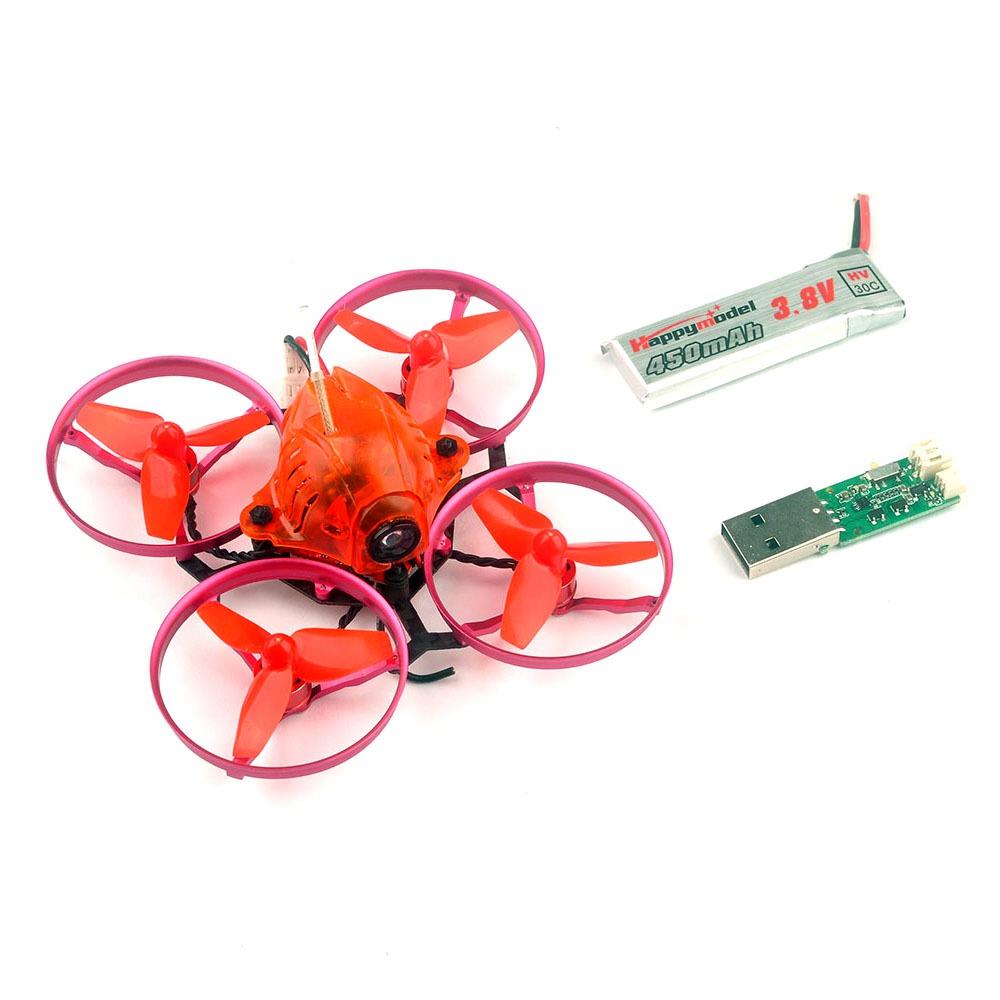

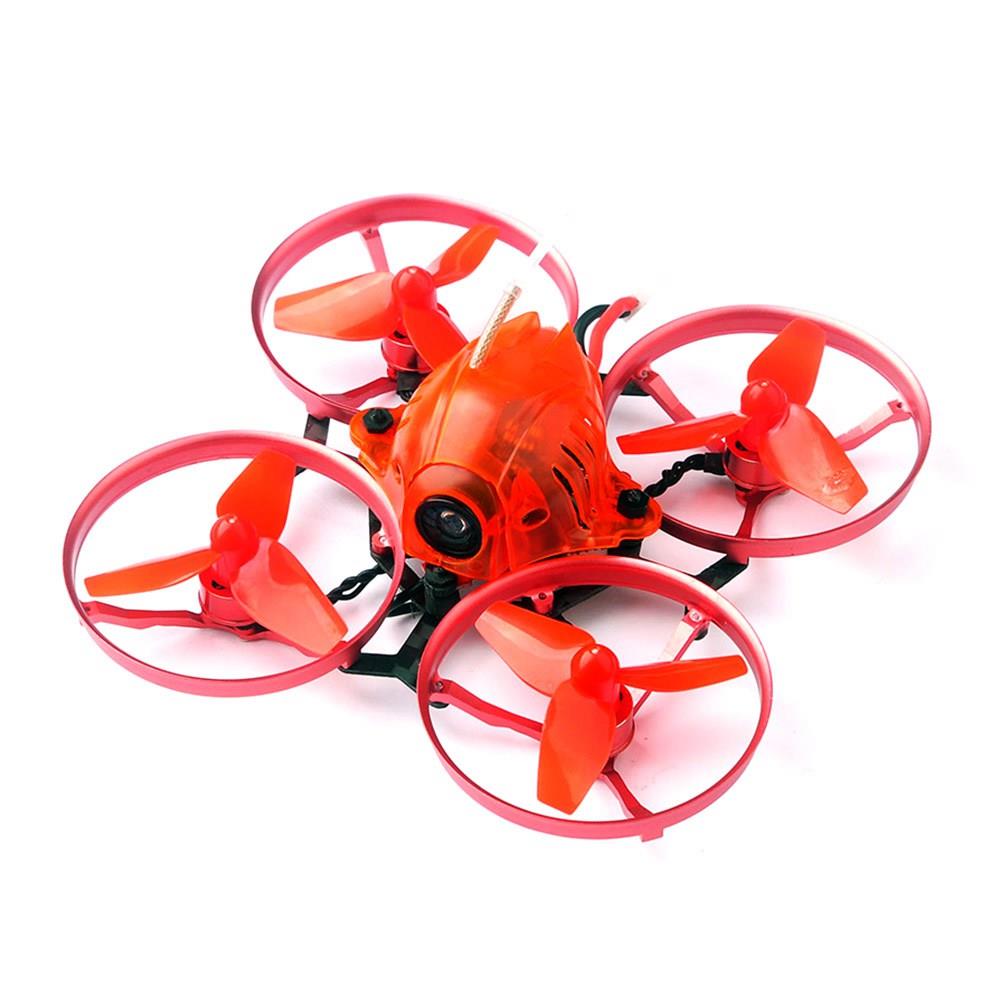

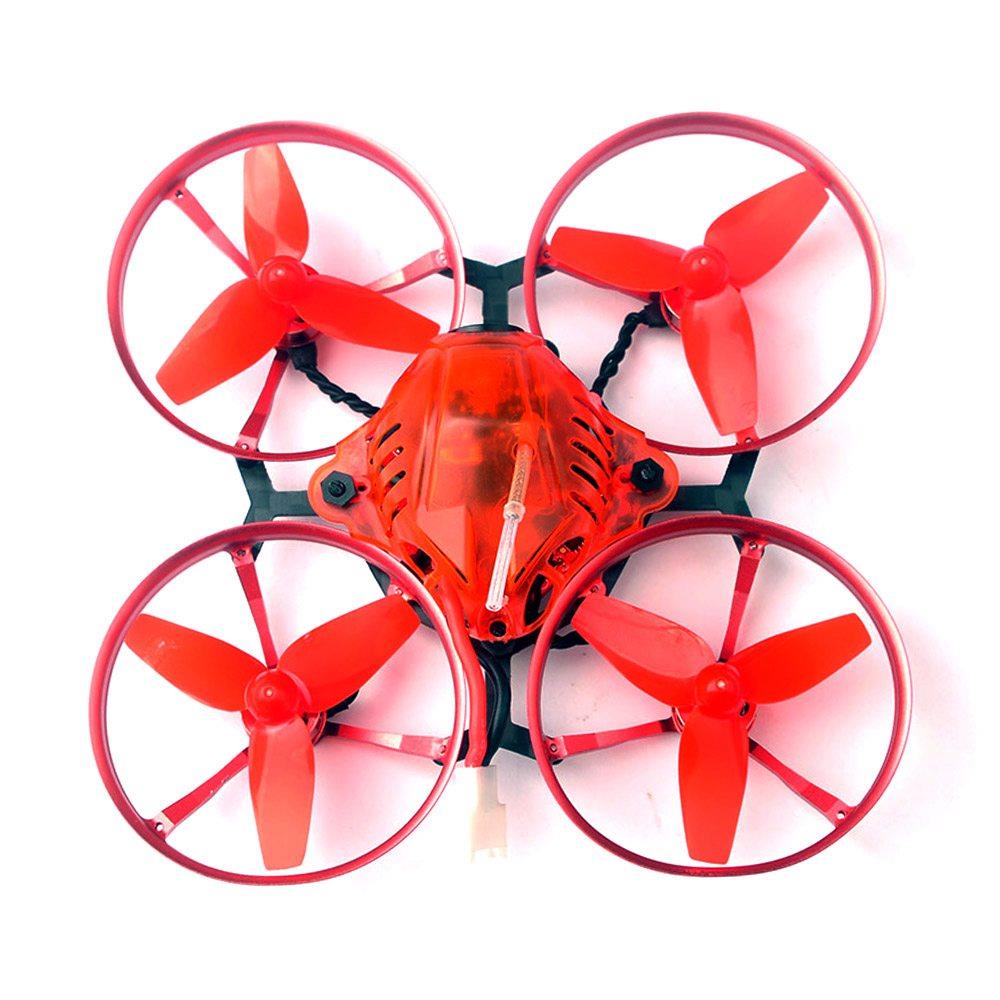

1 x Happymodel Snapper7 Racing Drone |
