Highlights
Lightweight Design
It is with small size and lightweight.
TVL FPV Lens
It is equipped with 2.1mm M8 960H TVL FPV lens.
Wide Compatibility

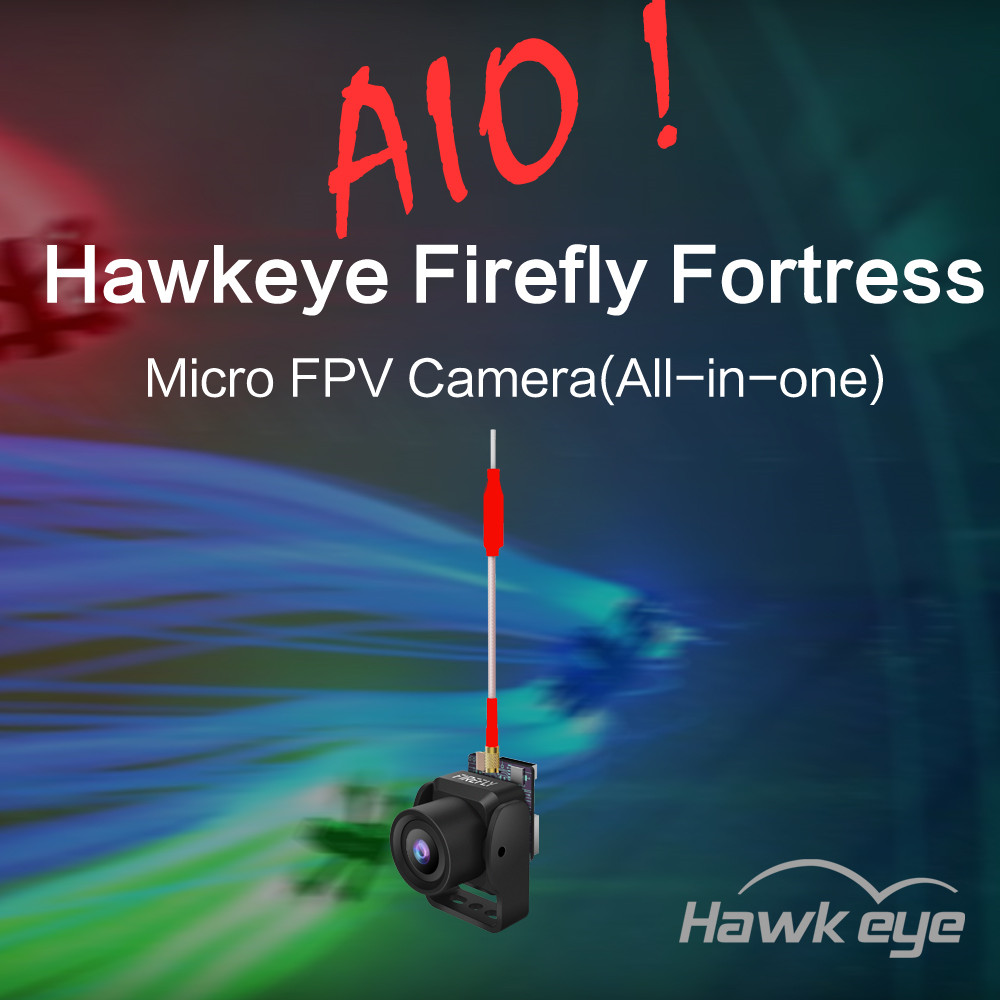

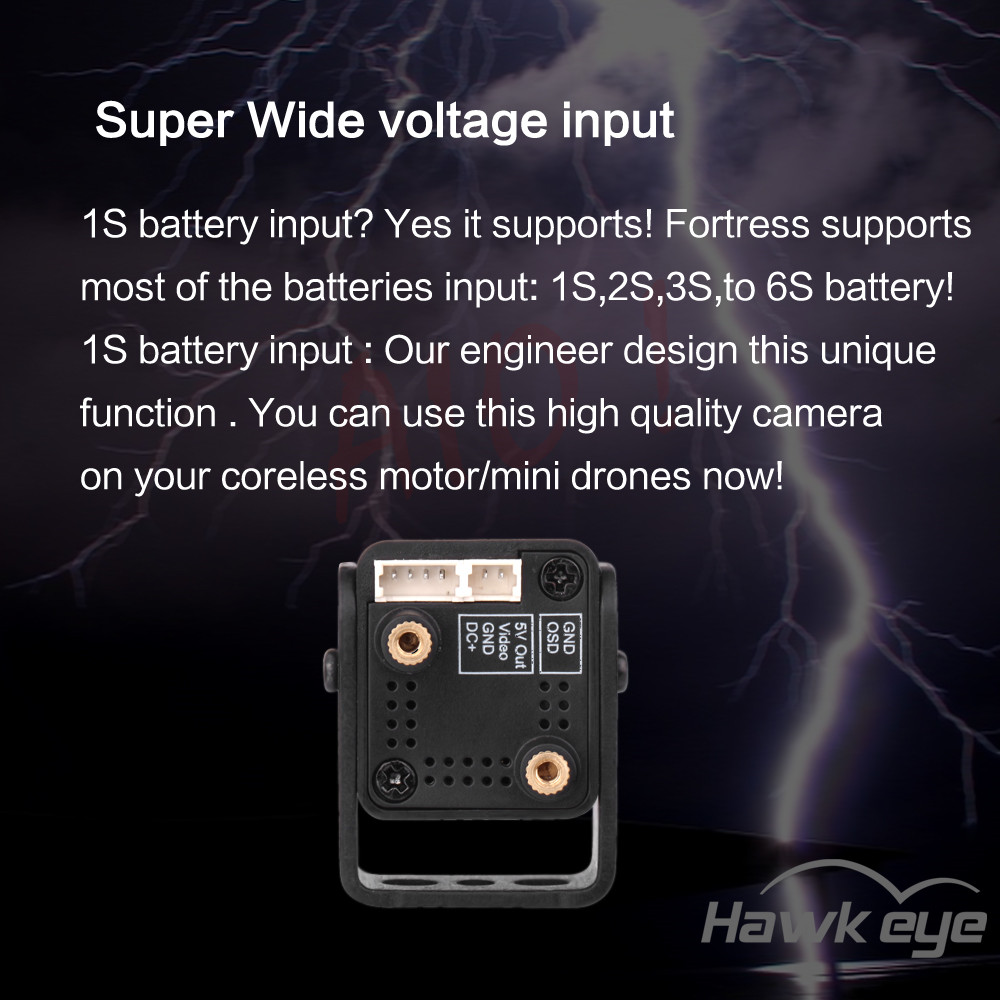

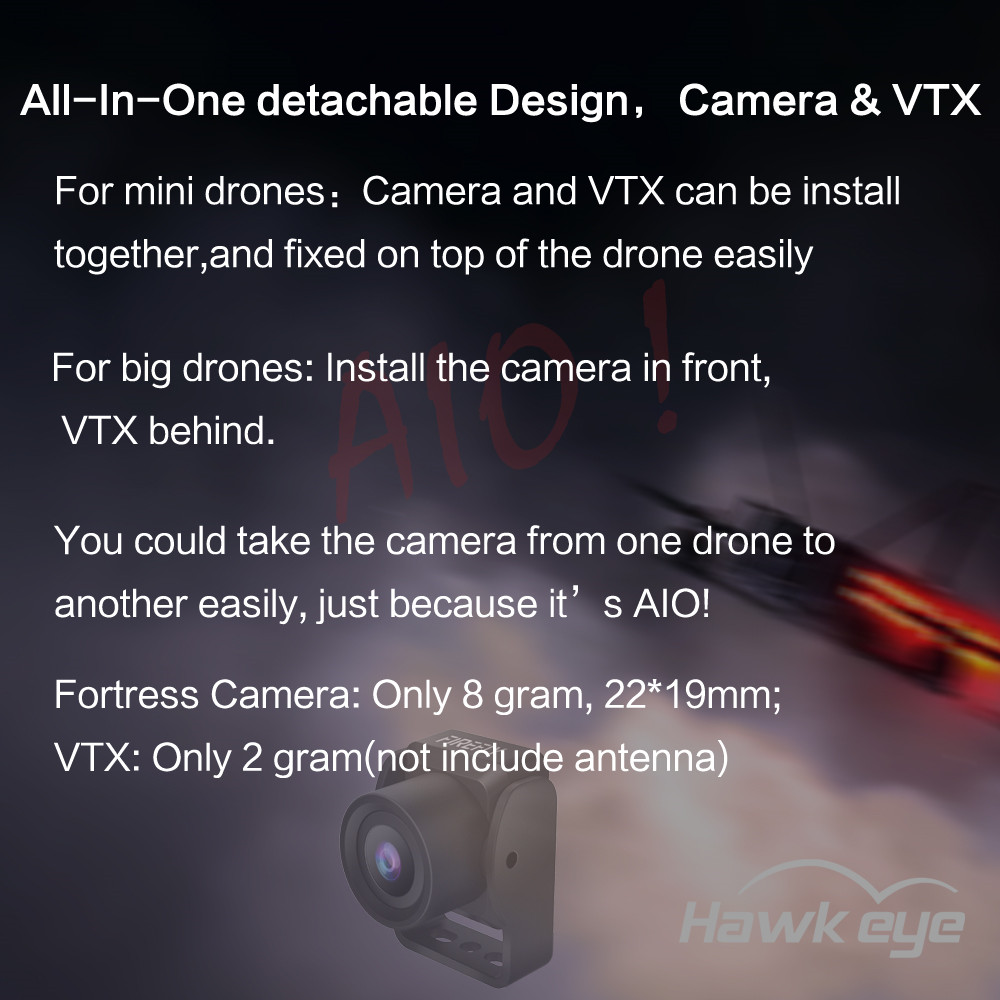

It supports 1S, 2S-6S battery and 6 Adjustable setting modes, AIO available, with well protected shell.
Specification
| General |
Brand: Hawkeye |

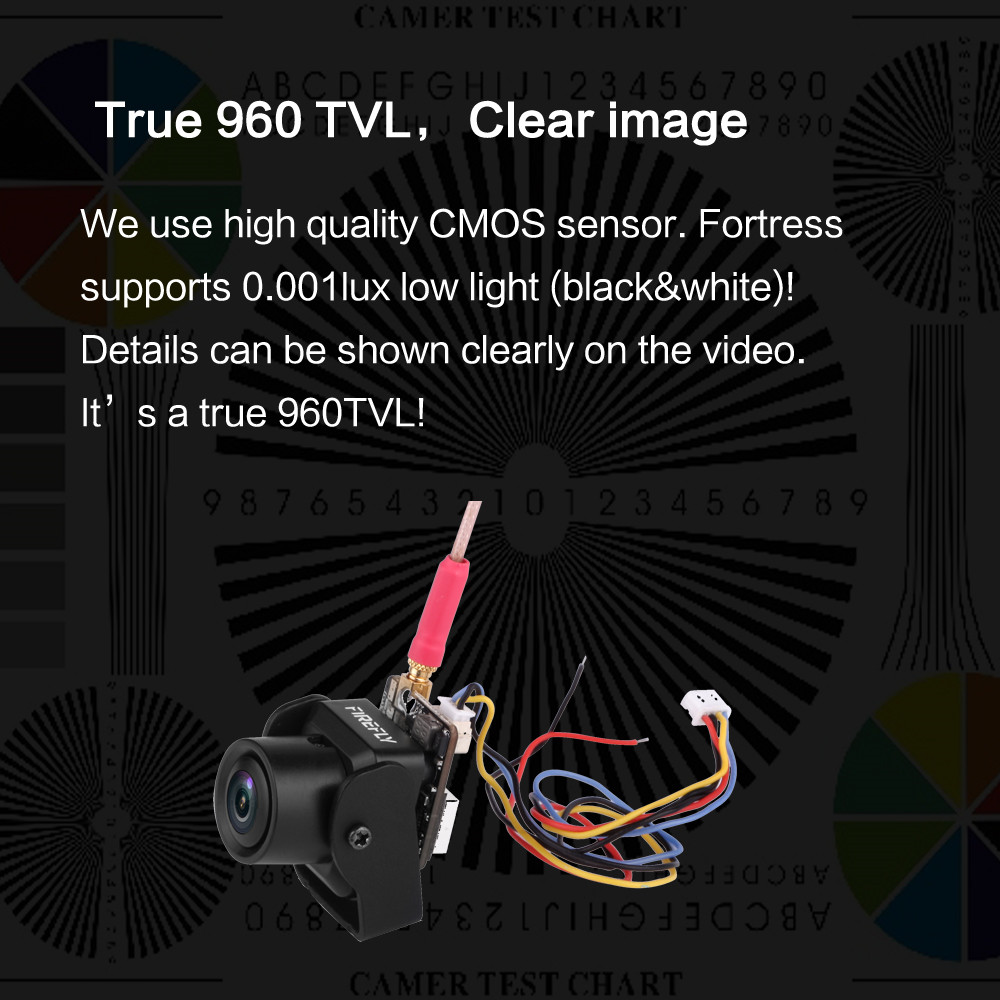

| Camera | Image Sensor: 1/3 inch CMOS Horizontal Resolution: 960 H TVL TV System: NTSC/PAL Image: 4:3 / 16:9 Min. Illumination: 0.1Lux(Color); 0.001Lux(B&W) Lens: M8, 2.1mm FOV: 160 degrees S/N Ratio: > 60dB Video Output: CVBS Voltage Output: 5V - 300mA Power Input: 5-36V (No transmitter added) 6-36V (transmitter added) 3.5-4.3V (Change to 1S Battery input) Working Voltage: 1S, 2S-6S LiPo Working Temperature: -20°C - +60°C Auto Gain control(AGC): yes Gamma control: yes Manual white balance control: yes Net Weight: 8g Dimension: 19 x 22 x 22mm Language: English / Chinese |

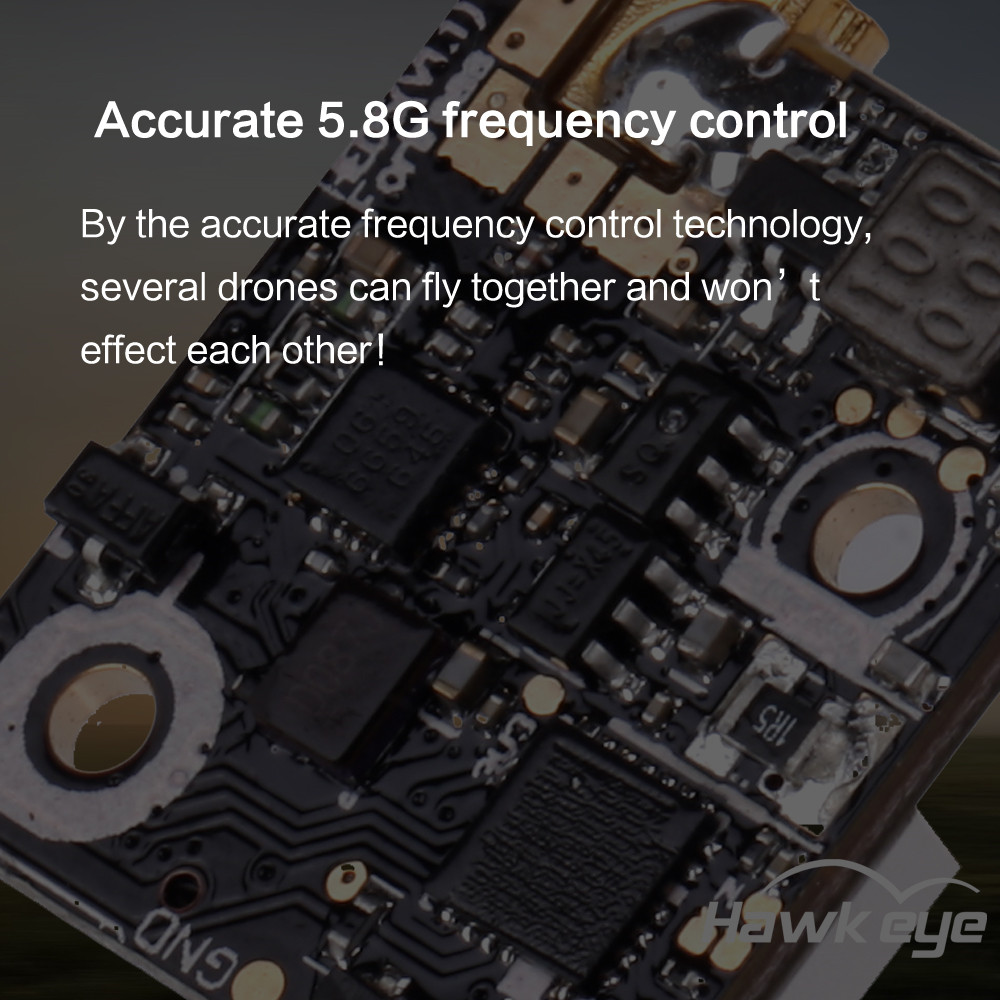

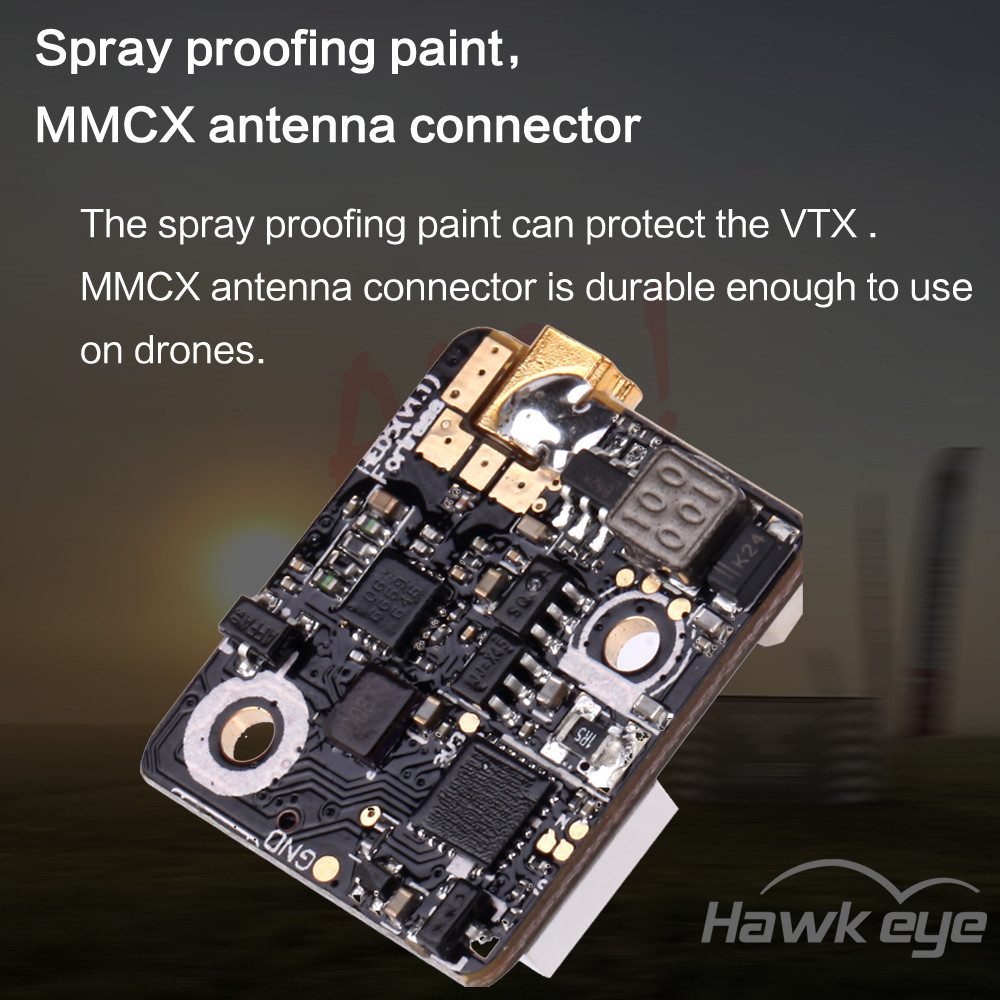

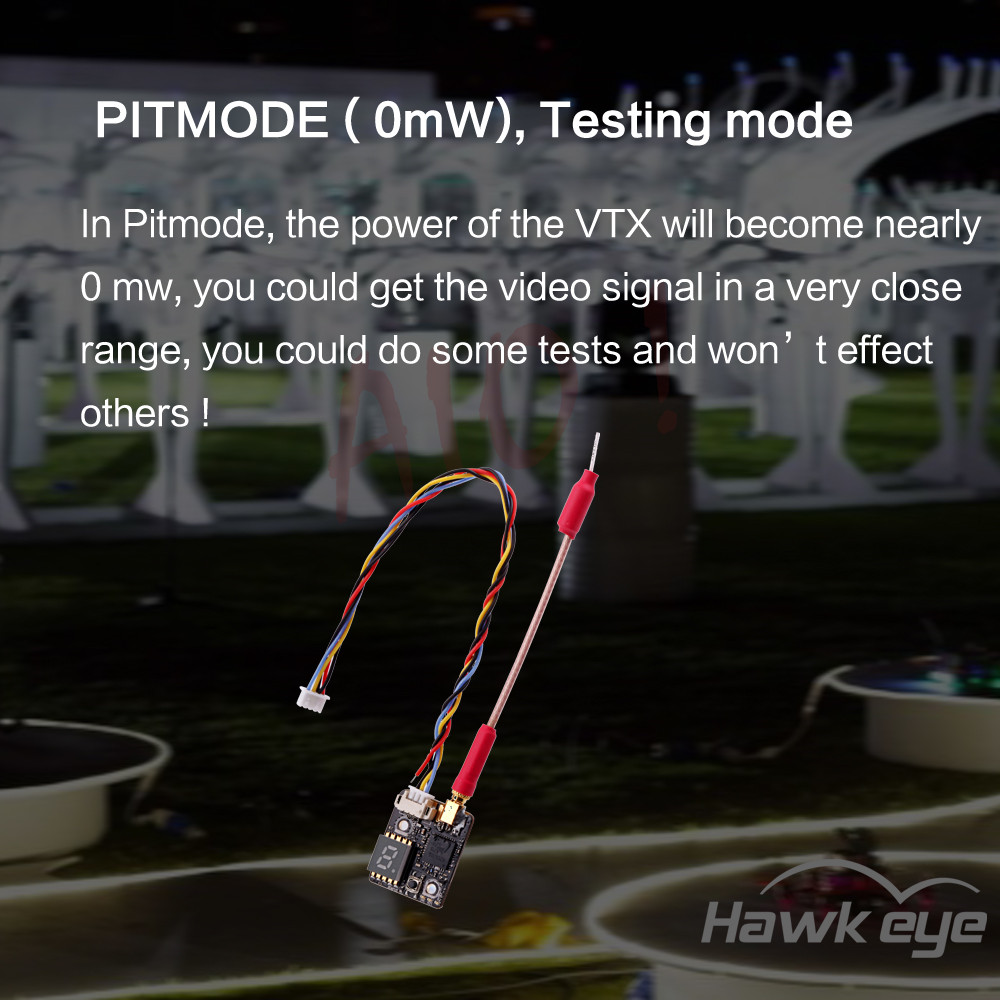

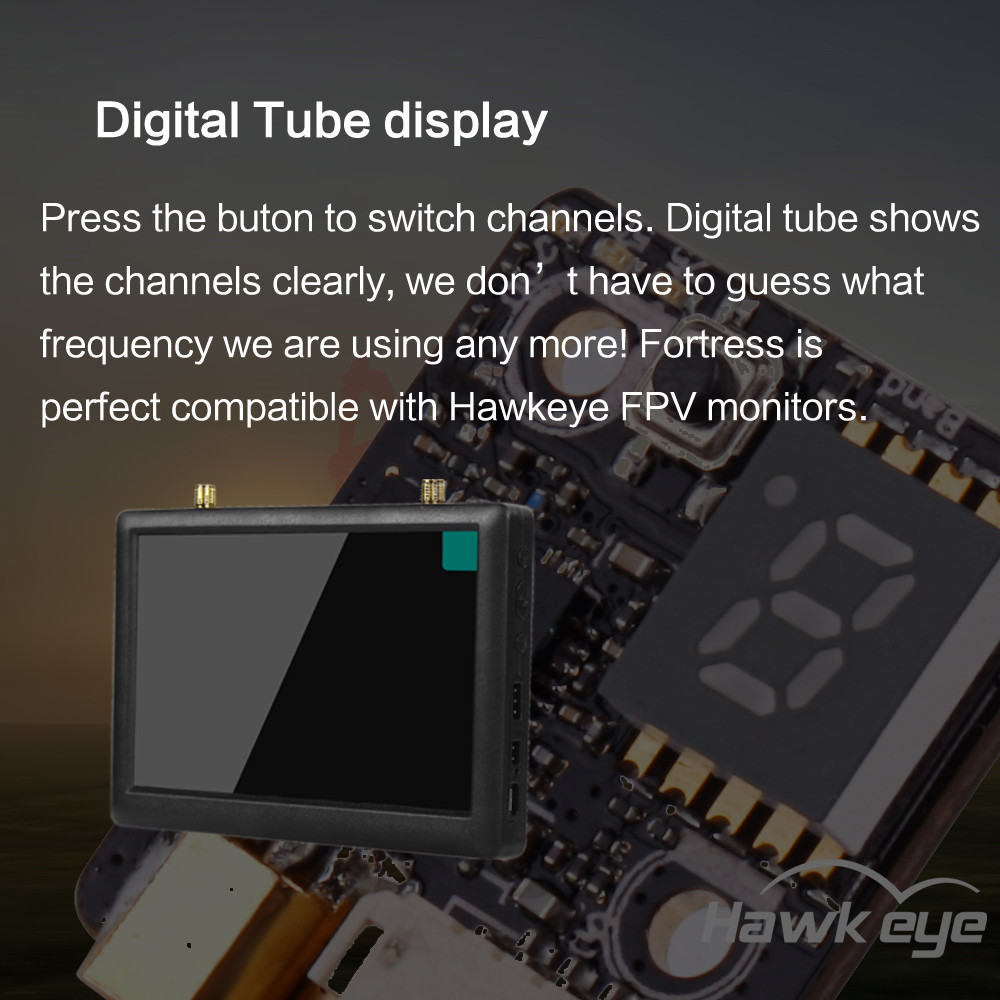

| 5.8G VTX | Supply Power: 3.3-5.5V Input Impedance: 75Ω VTX Power: 0(pitmode)/25/50/200mW Frequency: 5.8GHZ Channel: 48/72CH VTX Digital Tube Display: yes VTX Spray Proofing Paint: yes Antenna Connector: MMCX Size: 18 x 20mm Weight: 2g |

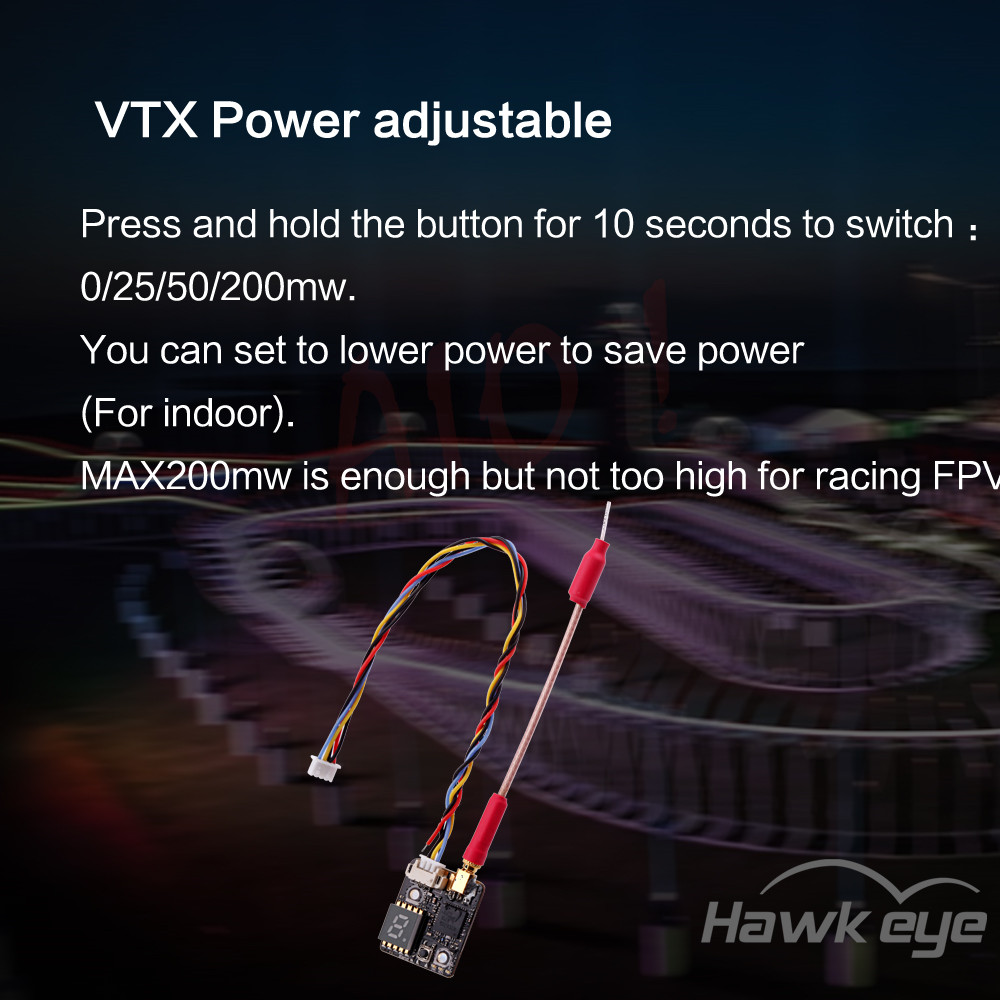

| Transmitter Channel Button | Press Once: Channel switch from 1 to 8. Press 2 seconds: Channel group switch from A to F, or H. Press 10 seconds: Change power: 0mw,25mw,50mw,200mw. |

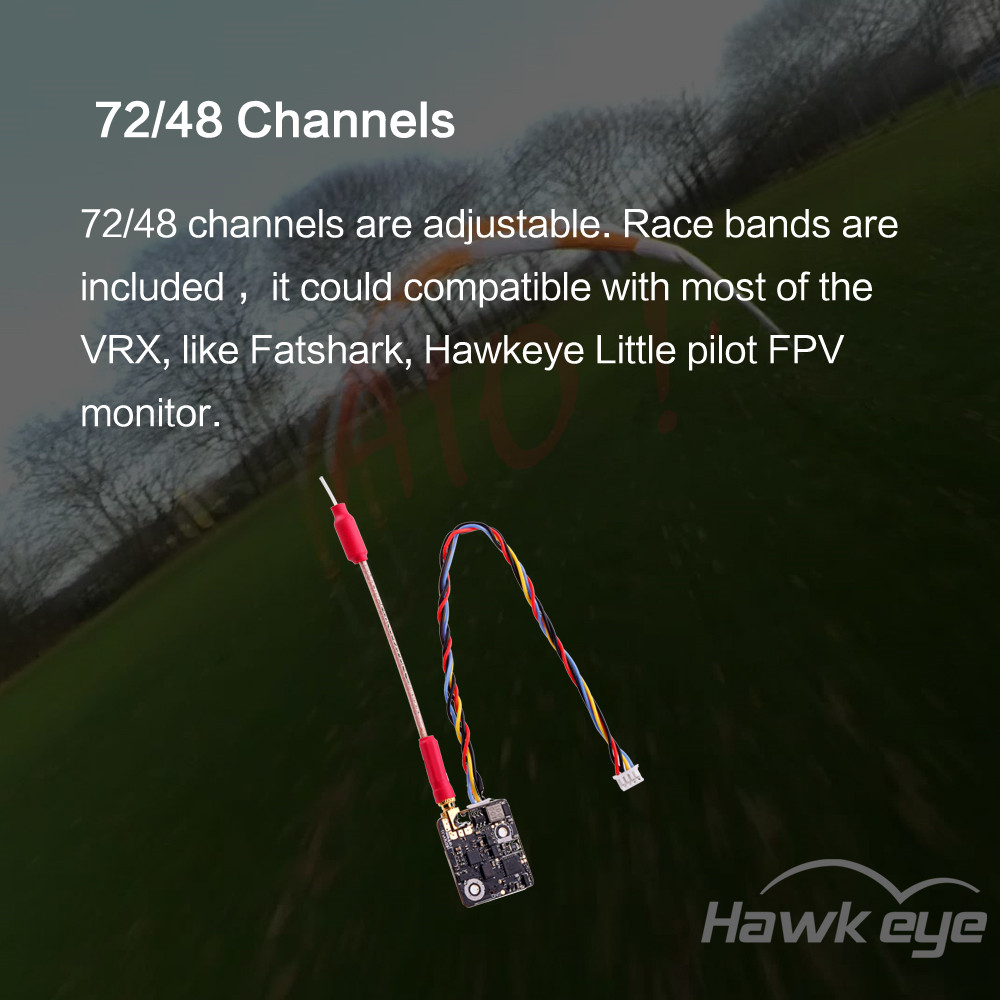

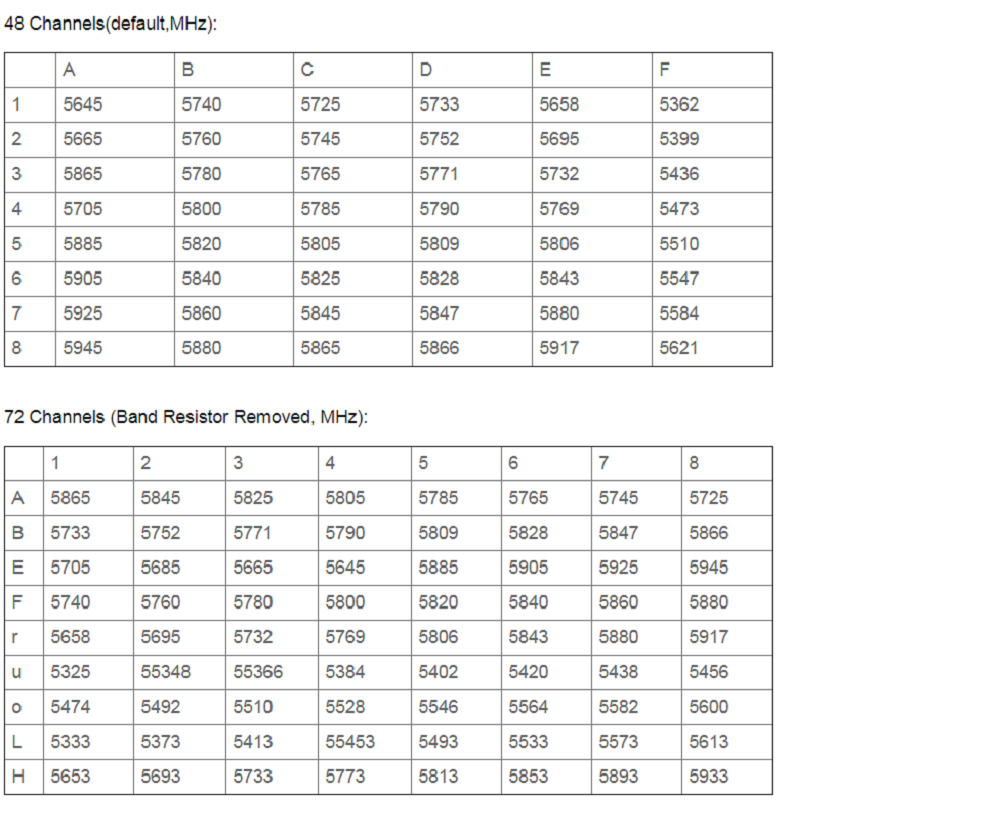

| Band Resistor(0Ω) | Soldered: 48 channels (Default) Removed: 72 channels |

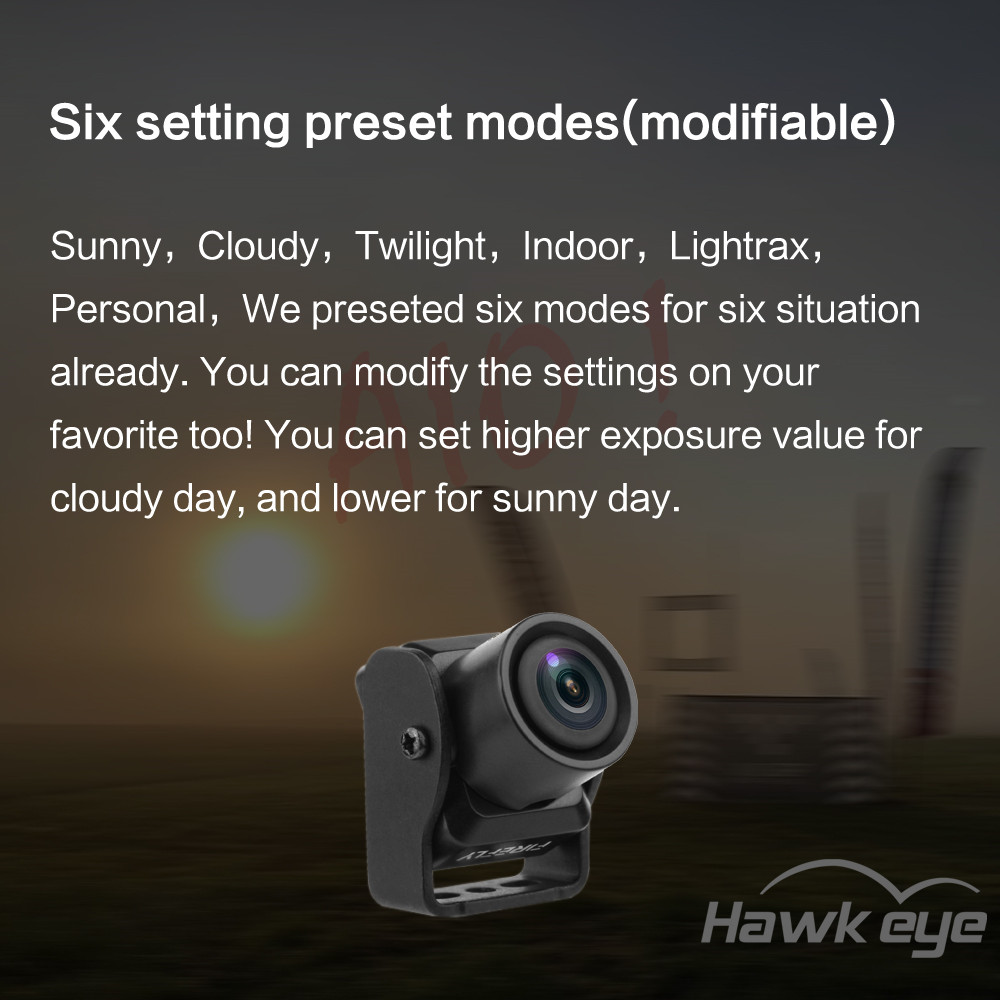

| Mode Setting | Press and hold Left key to switch: Cloudy,Indoor,Lightrax,Twilight,Personal,Sunny. You could adjust the settings in each mode. |
| Power Setting | Power Setting & Low Power Alarm Setting: Press and hold Right key to adjust the power value; Press Left button to set the alarm power. You could adjust the power by pressing up/down button. |
| Package Contents |
1 x FPV Camera (with VTX) |
