Highlights
- 1/4" Megapixel CMOS, Max image Resolution 1280*720@25fps
- H.264 Main Profile @ level 3.0 coding, Real time H.264 dual-stream encoding, resolution, frame rate, bit rate adjustable
- Support Color/BW mode converting, IR-CUT Filter
- Build in Motion Detection
- Auto-retrieve function and auto-connection network
- Integrated ONVIF standard, Compatibility with third-party ONVIF platform software
- IP66 Rated Waterproof, Outdoor use
- Mobile view allows you to realize remote view & anywhere & anytime.
- Support two-dimension barcode(QR code) scanning.
- Support Wireless IEEE 802.11b/g/n
Specification
|
Model |
IPCC-H05 |
|
Hardware |
|
|
Processor |
HI3518 |
|
Sensor |
1/4" Megapixel CMOS |
|
Lens |
3.6mm lens |
|
IR LED |
36IR LEDs, IR Distance 10~15m |
|
Day/Night |
IR-CUT |
|
Min. Illumination |
0.1lux; 0 lux with IR on |
|
Max S/N Ratio |
50dB |
|
Video |
|
|
Compression |
H.264 |
|
Image |
main stream: 1280x720@1-25fps 640x360@1-25fps sub stream: 640x360@1-25fps 320x180@1-25fps |
|
Bit Rate |
128~4096kbps, Supports CBR/VBR |
|
Image Control |
Hue, saturation, brightness, contrast, exposure |
|
Auto Image Control |
AE, AWB |
|
Network |
|
|
Protocol |
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, FTP, UPNP |
|
Compliance |
ONVIF 2.2(1.02 backward compatible) |
|
PC Client and Browser |
ISS, IE6.0 and above |
|
Mobile phone |
Iphone, ipad, Android |
|
Wireless |
Support IEEE 802.11b/g/n |
|
WIFI Encryption |
WAP, WAP2 |
|
Interface |
|
|
LAN |
1 RJ45 10M/100M Ethernet port |
|
General |
|
|
Protection Level |
IP66 Rated Waterproof |
|
Power Supply |
DC 12 V/1A |
|
Power Consumption |
Maximum 6w |
|
Package size |
21* 11 * 11cm |
|
Package Weight |
0.8kg |
|
Approvals |
CE , FCC, RoHS |

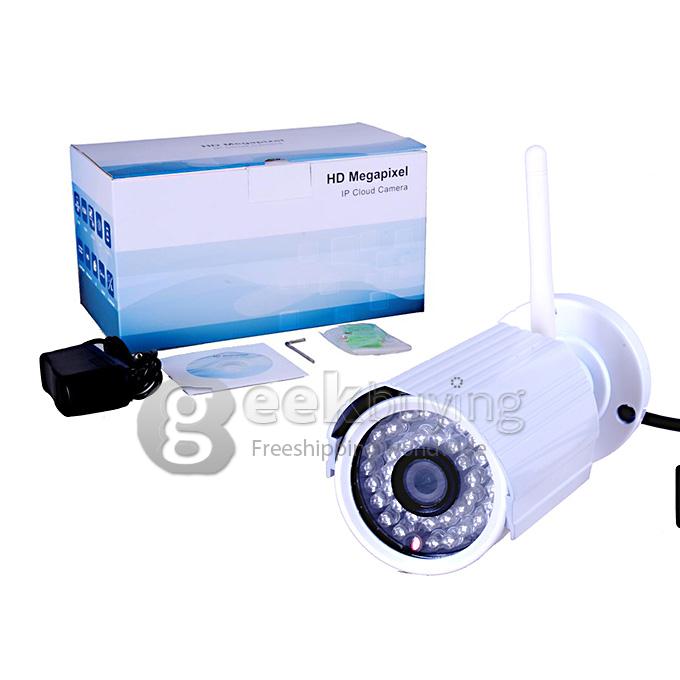

What's in the box?
- 1 x IP Camera
- 1 x Power Adapter(EU Plug)
- 1 x Screws Package
- 1 x CD
